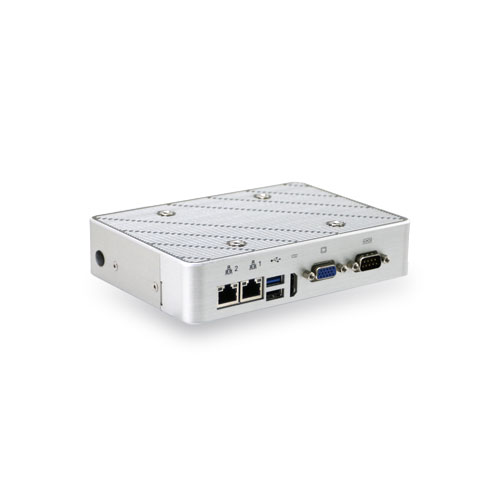

Fanless Box system with Intel® Bay Trail SoC
| Main System | |
|---|---|
| System color | Silver |
| Mechanical | Aluminum extrusion and heavy-duty steel |
| CPU | Intel® Celeron®J1900 2.0GHz quad core SoC(10W) Intel® Atom™ E3845 1.91GHz quad core SoC(10W)(Standard Product) Intel® Atom™ E3825 1.33GHz dual core SoC (6W) |
| Chipset | Intel® Bay Trail SoC onboard; |
| Graphic | Intel® HD graphics |
| BIOS | AMI SPI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1067/1333MHz SDRAM; max. up to 8GB |
| System I/O | 1 x VGA |
| 1 x HDMI | |
| 1 x COM (RS232/422/485, RS485 with auto flow control) | |
| 1 x USB 3.0 | |
| 1 x USB 2.0 | |
| 2 x LAN | |
| Ethernet | 2 x Gigabit Ethernet (Intel® I211) |
| Storage | support 1 x mSATA |
| Expansion slot | 1 x Mini-PCIe (Half size) 1 x Mini-PCIe (Full size, share with mSATA) |
| System indicators | 1 x Power LED |
| System controls | 1 x Power on switch |
| Watchdog timer | Interval: Programmable 1 ~ 255 sec. Output: System reset |
| OS Support | Win7, Win8.1, Win10, Linux |
| Environment | |
| Power supply | Wide range DC 12 ~ 24V input, with AC 60W adapter, DC 12V output, Screw type connector |
| Operating temperature | -20°C ~ 60°C (Optional -40°C) |
| Storage temperature | -20°C ~ 80°C |
| Relative humidity | 0% ~90% (non-condensing) |
| Mounting kit | Wall mount/VESA75 mount/DIN mount (optional) |
| Dimensions | 169 mm(W) x 117.7 mm(D) x 36mm(H) | Weight | 0.8 kg |
