Fanless embedded Box PC systems with Intel ApolloLake SoC
| Main System | |
|---|---|
| System color | Silver |
| Mechanical | Aluminum extrusion and heavy-duty steel |
| CPU |
Intel® Apollo SoC N4200 QC 1.10GHz (6W) Intel® Apollo SoC N3350 DC 1.10GHz (6W) (Standard Product) Intel® Core™ i3-6100U 2.3GHz dual core processor (TDP 15W) |
| Chipset | Intel® Apollo Lake-I SoC integrated |
| Graphic | Intel® HD graphics |
| BIOS | AMI SPI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB |

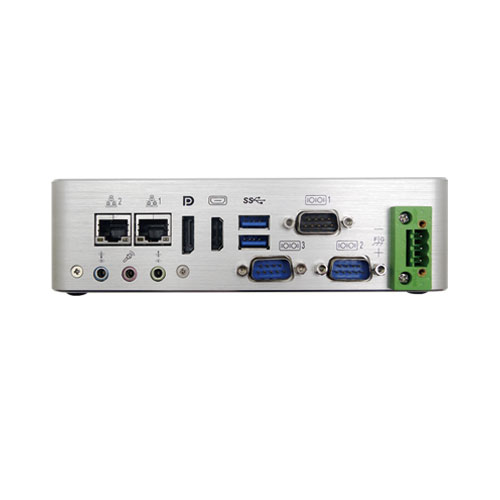

| System I/O | 1 x HDMI |
| 1 x DP | |
| 3 x COM (RS232/422/485,RS485) | |
| 2 x USB 3.0 | |
| 1 x USB 2.0 | |
| 2 x LAN | |
| Ethernet | 2 x Gigabit Ethernet (Intel® I210) |
| Storage | 64GB mSATA |
| Storage support | 1 x mSATA |
| Expansion slot | 1 x Mini-PCIe (Half size) 1 x Mini-PCIe (Full size, share with mSATA) |
| System indicators | 1 x Power LED |
| System controls | 1 x Power on switch |
| Watchdog timer | Interval: Programmable 1 ~ 255 sec. Output: System reset |
| Power supply | Wide range DC 12 ~ 36V input, Phoenix connector |
| Mounting kit | Wall mount/VESA100 mount/DIN mount (optional) |
| OS Support | Win10, Linux |
| Environment | |
| IP Level | N/A |
| Operating temperature | -20°C ~ 60°C (Optional -40°C) |
| Storage temperature | -20°C ~ 80°C |
| Relative humidity | 0% ~90% (non-condensing) |

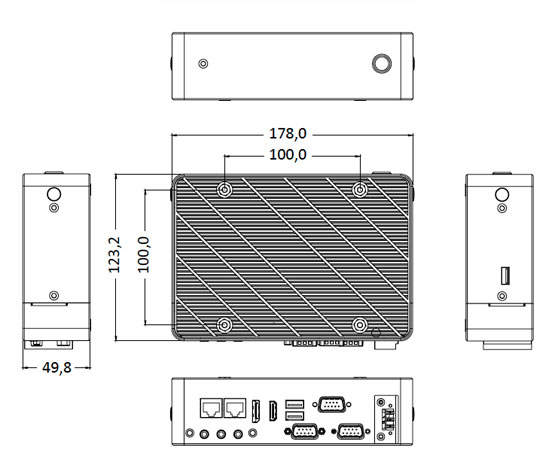

| Dimensions | 178 mm(W) x 123.2 mm(D) x 49.8 mm(H) | Weight | 1 kg |
| Warranty | 2 year |
