Fanless Box system with Intel® Skylake-S Series
| Main System | |
|---|---|
| System color | Silver Body |
| Mechanical | Aluminum extrusion and heavy-duty steel |
| CPU | Intel® Core™ i7-6600U 2.6GHz dual core
processor (TDP 15W) Intel® Core™ i5-6300U 2.4GHz dual core processor (TDP 15W) (Standard Product) Intel® Core™ i3-6100U 2.3GHz dual core processor (TDP 15W) |
| Chipset | Intel® SoC |
| Graphic | Intel® HD Graphics 520/510 |
| BIOS | AMI SPI Flash ROM |
| System memory | 4GB DDR4 2133MHz up to 16GB |

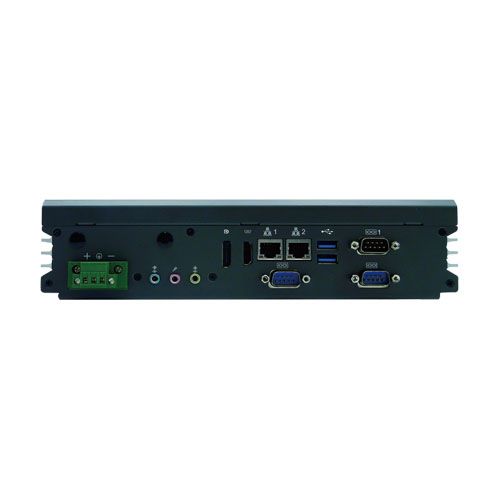

| System I/O | 1 x HDMI |
| 1 x DP | |
| 3 x COM (2 x RS232, 1 x RS232/422/485, RS485 with auto flow control) | |
| 2 x USB 3.0 | |
| 2 x USB 2.0 | |
| 2 x LAN | |
| 1 x Audio | |
| Ethernet | 2 x Gigabit Ethernet (1 x Intel® I210, 1 x Intel® I219LM) |
| Storage | 64GB mSATA |
| Storage support | 1 x 2.5" HDD , 1 x mSATA |
| Expansion slot | 1 x Mini-PCIe (Full size with SIM) 1 x Mini-PCIe (Full size, share with mSATA) |
| System indicators | 1 x Power LED,1 x HDD LED |

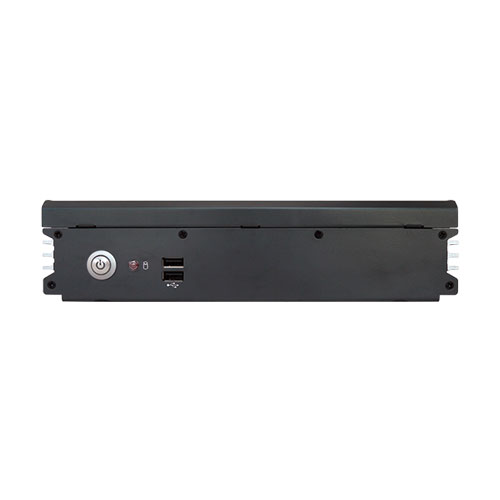

| System controls | 1 x Power on switch |
| Watchdog timer | Interval: Programmable 1 ~ 255 sec. Output: System reset |
| Power supply | Wide range DC 9 ~ 36V input, phoenix connector |
| Battery | N/A |
| Mounting kit | Wall mount/VESA100 mount |
| OS Support | Win7, Win8.1, Win10, Linux |
| Environment | |
| IP Level | N/A |
| Operating temperature | 0°C ~ 50°C (Optional -40°C) |
| Storage temperature | -20°C ~ 80°C |
| Relative humidity | 0% ~90% (non-condensing) |

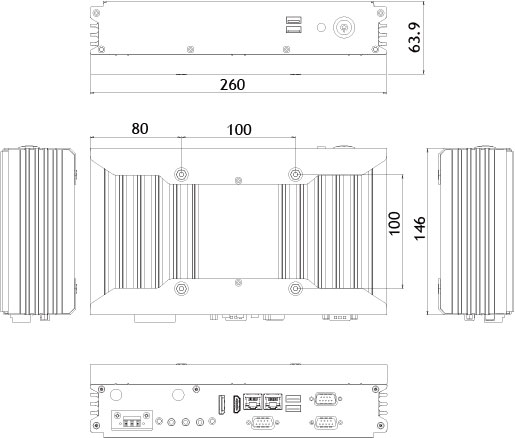

| Dimensions | 260mm(W) x 146mm(D) x 63.9mm(H) | Weight | 3.7 kg |
| Warranty | 2 year |
