Fanless Box system with Intel Apollo Lake SoC
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc.
| Main System | |
|---|---|
| Chipset | Intel Celeron N3350 Processor |
| CPU | Onboard SoC, TDP up to 12W |
| Expansion Slots | 1x Mini PCIe Slot with PCIe + USB 2.0 interface 1x mSATA 1x M.2 2230, Key E, Support Wifi/BT 1x SIM Slot (Design Reserved, BOM Option) 1x Micro SIM Card Slot |
| Memory | Onboard Memory, DDR3L, 4GB 1x SO-DIMM Slot |
| ROM | 64GB SSD |
| Graphic Support | 1x VGA (Support by Chrontel CH7517) 1x DP++ |
| Audio Controller | Realtek ALC269 |
| EC I/O | ITE IT8528VG |
| Ethernet | Support 10/100/1000Mbps 2x Intel i211-IT / 2x RJ-45 Connectors |

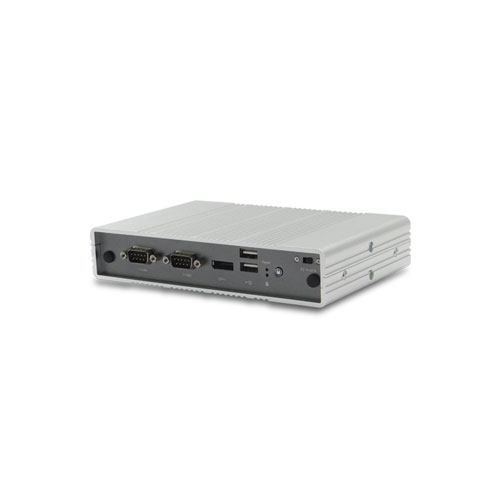

| Front I/O | 1x DP++ 1x Reset Button 1x Power Button w/ Power LED 1x HDD LED 2x COM Ports 2x USB 2.0 1x AT/ATX Switch 2x Antenna Holes |

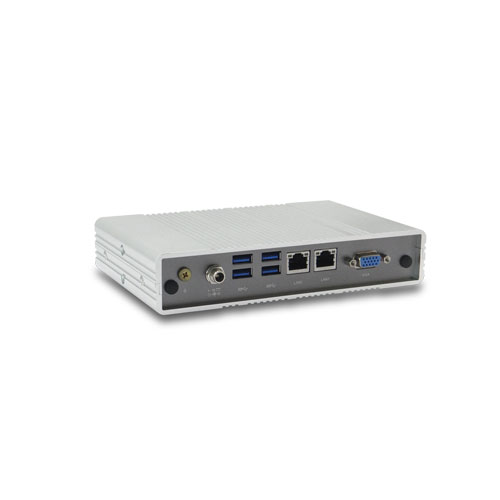

| Rear I/O | 1x VGA 2x RJ-45 4x USB 3.0 1x DC-In (9V~36V) 2x Antenna Holes |
| Environment | |
| IP Level | N/A |
| Operation temperature | 0°C ~ 50°C |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 60°C @ 90% (non-condensing) |
| Dimensions | 172mm x 105.2mm x 44.3mm | Warranty | 2 year |
