MAA1014

Android Base, Slim version, Rugged Mobile Tablet PC

  • 10.1” IPS LCD

  • Rugged IP65 protection level

  • Support Andriod 9

  • Support NFC

  • Support GPS

  • Support Mirco USB 2.0 connector

  • Support high strength Glass Touch Panel

  • Support strap

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAA1014 10.1" Rugged Tablet
Android 9, Qualcomm MSM8953

IP65 Dust & Water Proof
This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

Slim & Lightweight Rugged Tablet
You can carry this tablet easily for various environment

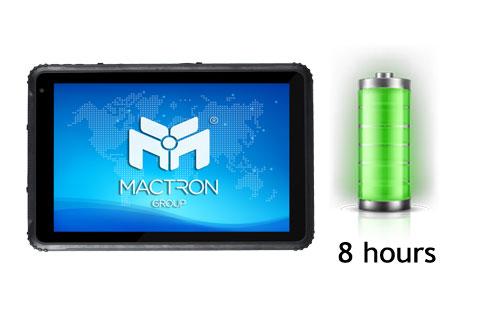

10000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 8hrs  (Default 50% volume, default 200nit, play 1080HD video)

Display
Display Type10.1" IPS TFT LCD
Resolution1280 x 800
Brightness 400nit
Touch screen type 5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPU MSM8953, 2.0GHz
GPU Adreno 506
RAM 4 GB LPDDR3
ROM 64 GB
Network 802.11 a/b/g/n (2.4G + 5.8G dual band WiFi)
Bluetooth 4.0 (BLE) class1, transmission distance:10m
4G
IO Ports 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 2.0 for OTG
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
Application NFC
GPS & Glonass
Operation System Android 9
Physical
Camera Front: 2.0MP camera; Rear: 13.0MP camera
Speaker 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity: -42db, output resistance:2.2kΩ (Built-in)
Sensor G-sensor, Ambient light sensor, Compass
Power Adapter AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery 10000mAh/3.7V (Built-in)
Using time 8hrs (Dedfault 50% volume, default 200nit, play 1080 HD video)
Rugged Feature IP65, 1.0m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Humidity 95% non-condensing
Dimensions 268mm x 178mm x 14mm
Weight 900g

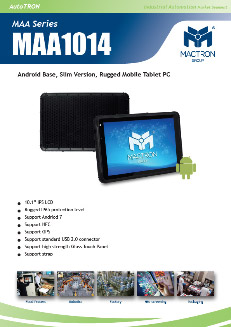

Datasheet
