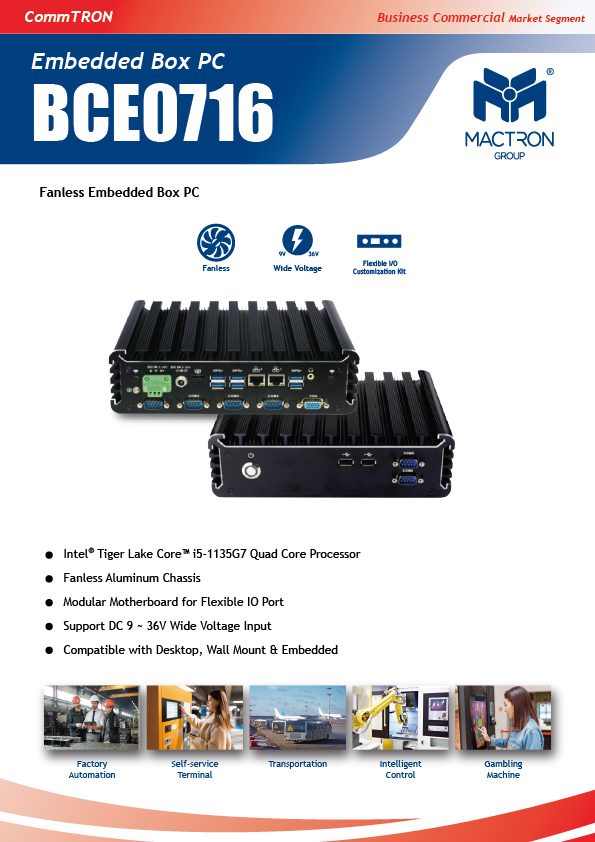

BCE0716

Commercial Fanless Windows Embedded Box PC

  • Intel® Tiger Lake Core™ i5-1135G7 Quad Core Processor
  • Fanless Aluminum Chassis
  • Modular Motherboard for Flexible IO Port
  • Support DC 9 ~ 36V Wide Voltage Input
  • Compatible with Desktop, Wall Mount & Embedded

Applications:

Factory Automation, Self-service Terminal, Transportation, Gambling Machine, Intelligent Control

Commercial Fanless Windows Embedded Box PC
BCE0716 Intel® Comet Lake Core i5-10210U

Mini Size . Rich Functions . Low Power Consumption . High Performance



Main System
ProcessorIntel® Core™ i5-1135G7 Quad Core
Intel® Core™ i3-1115G4 Dual Core (Optional)
Intel® Core™ i7-1165G7 Quad Core (Optional)
GPUIntel® UHD Graphics
Memory1 x SO-DIMM, DDR4 4GB, 4800 MHz (Max.32GB)
Storage1 x M.2 2280 64GB or 2.5" SATA (Up to 1TB)
ExpansionSupport 1 x M.2 M-Key 2280 slot (Support SATA Protocol)
Support 1 x Mini PCIE slot (WIFI/3G/4G optional)
Support 1 x M.2 E-Key 2230 slot (support WIFI/Bluetooth)

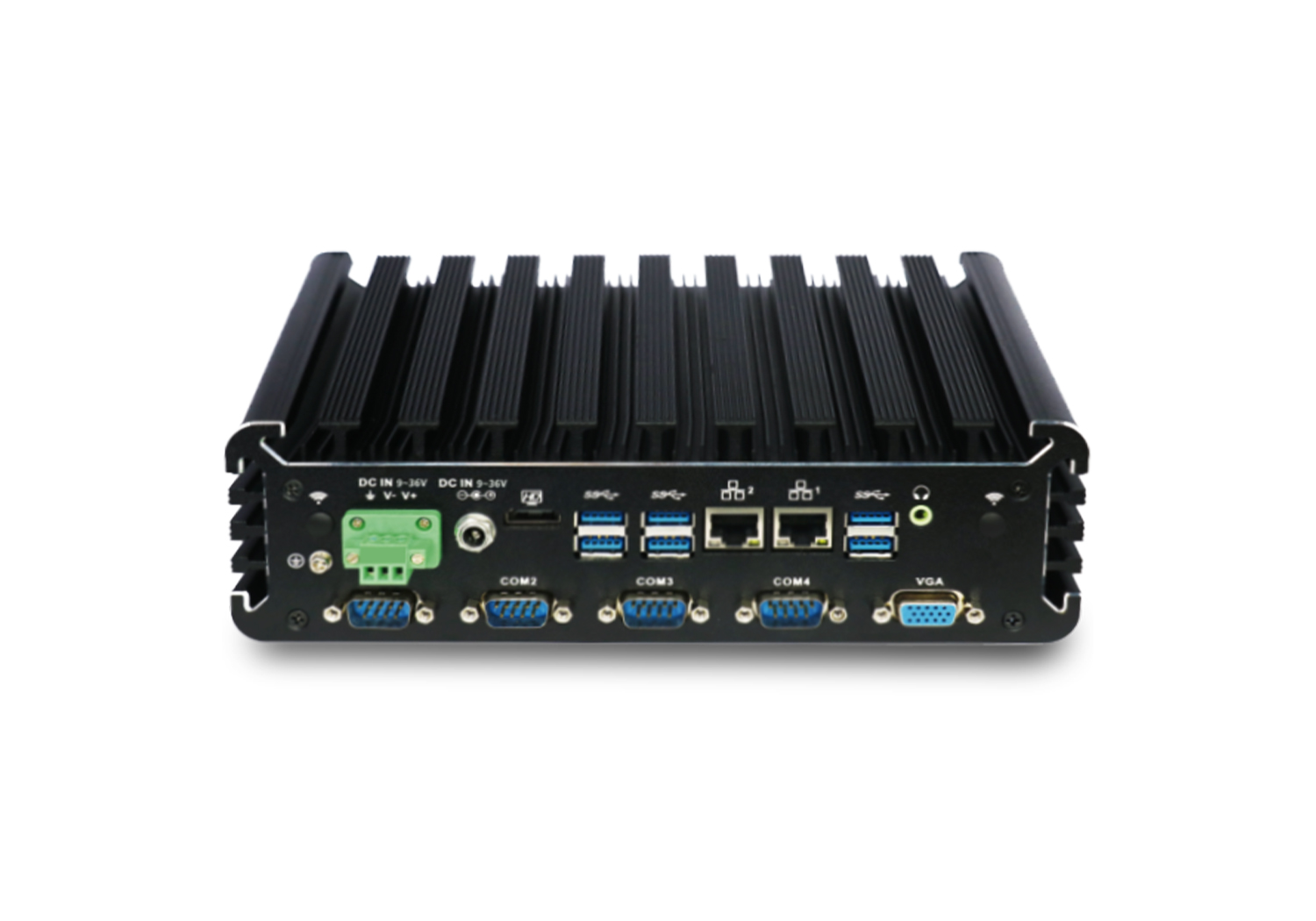

Rear I/O Ports6 x USB 3.0 Type A
4 x COM (RS232)
2 x LAN (1000bps)
1 x Phoenix Connector (3-Pin)
1 x HDMI
1 x VGA
1 x Audio
1 x DC-In

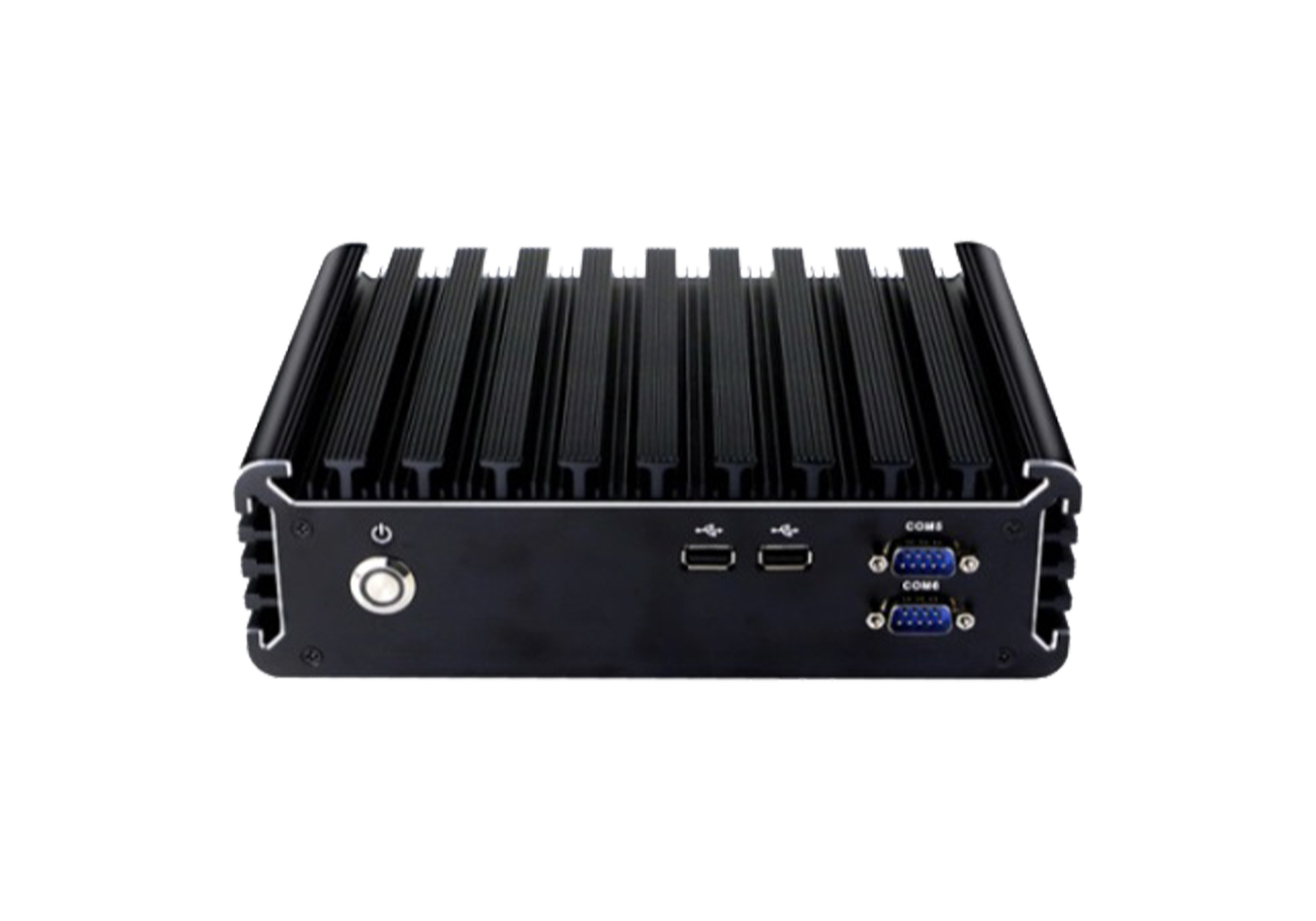

Front I/O Ports2 x USB 2.0 Type A
2 x COM (Support RS232 & RS485)
1 x Power Switch
Physical
ColorBlack
Dimensions (WxDxH)230 x 166 x 68 mm
Weight2.2 kg
EnclosureRugged Aluminum
Button1 x Power On/Off
Power InputDC 9-36V
Power AdapterDC 12V/5A, 60W
SecurityWake-on-LAN
Watchdog
Standard Accessory1 x Power Adapter
1 x VESA Mount Kits
Environment

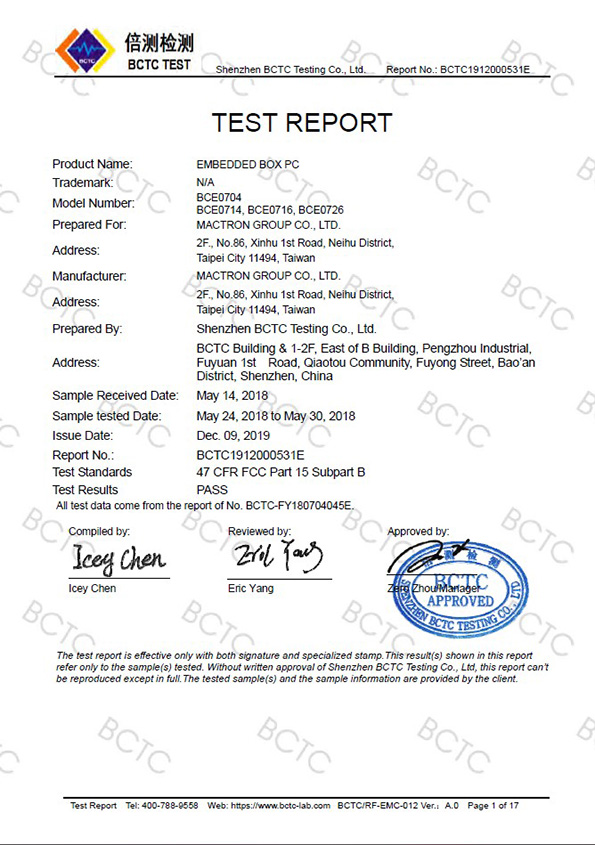

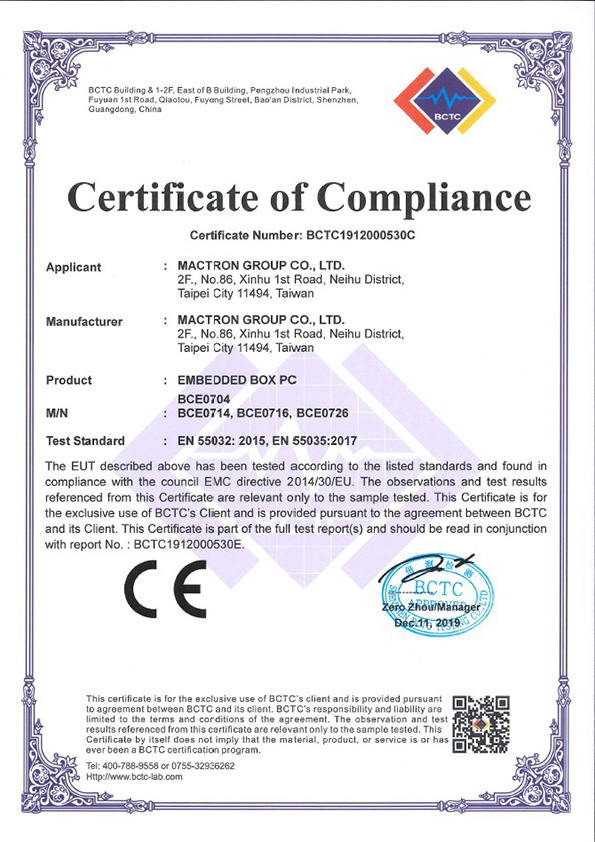

CertificationCE, FCC
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 80°C
Relative Humidity5% - 95% RH non-condensing
Warranty2 Years
