MAA0802

8″ Automation Rugged Android Mobile Tablet PC

  • 8" Rugged Tablet

  • Support Android 10

  • Support USB2.0

  • Support docking

  • Support NXP NFC(13.56M)

  • Support GPS

  • Support 1D/2D Barcode Scanner

  • Support IP-65

  • Support strap

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAA0802 8" Rugged Tablet

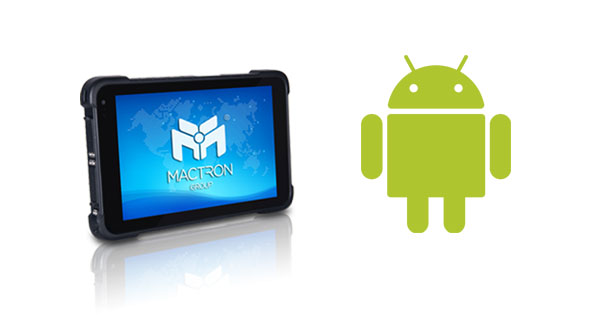

Android 10, MSM8953

700 nits Brightness* &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.
*700 nits Brightness is optional function

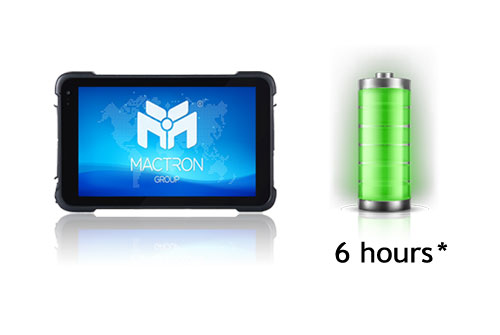

8500mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 6hrs (Default 50% volume, default 400nit, play 1080 HD video)

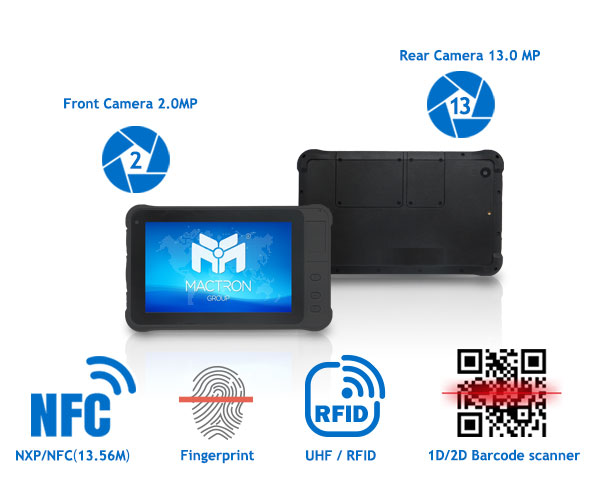

Full Range of Data Collection Functions
NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 2.0MP / Rear Camera 13.0MP

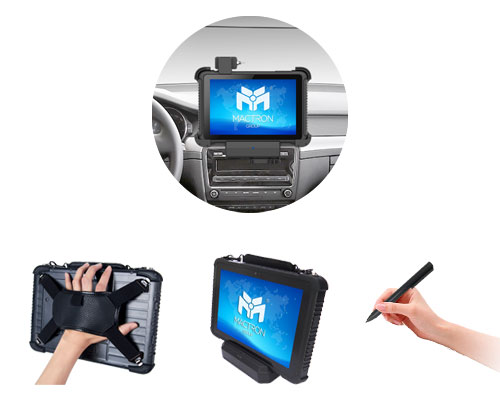

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Hand Strap / Hand Writing Pen

Display
Display type 8" IPS TFT LCD
Resolution 1280 x 800
Brightness 450nit
Touch screen type 5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPU MSM8953, 2.0GHz
GPU Adreno 506
RAM 4 GB LPDDR3
ROM 64 GB
Network 802.11a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.1 (BLE) class 1, transmission distance: 10m
4G

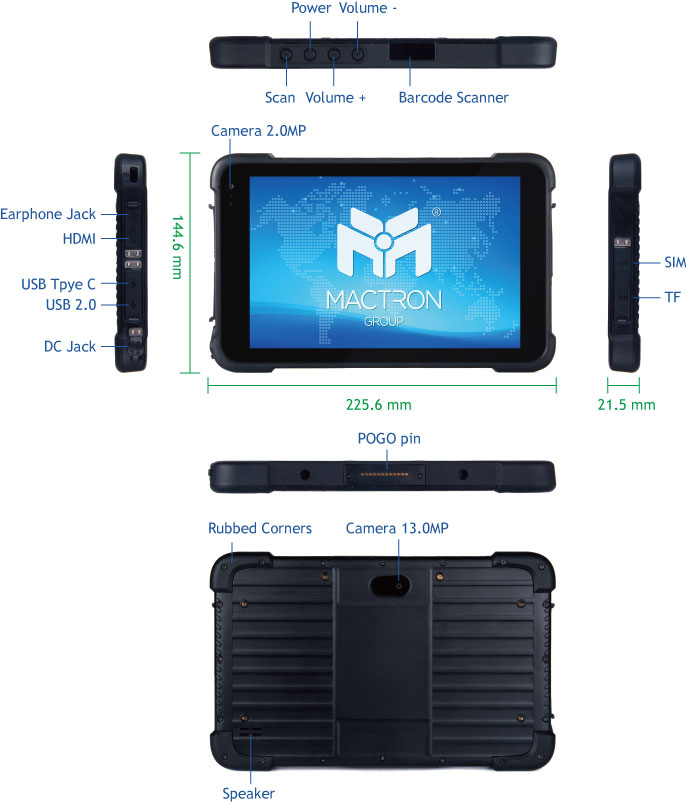

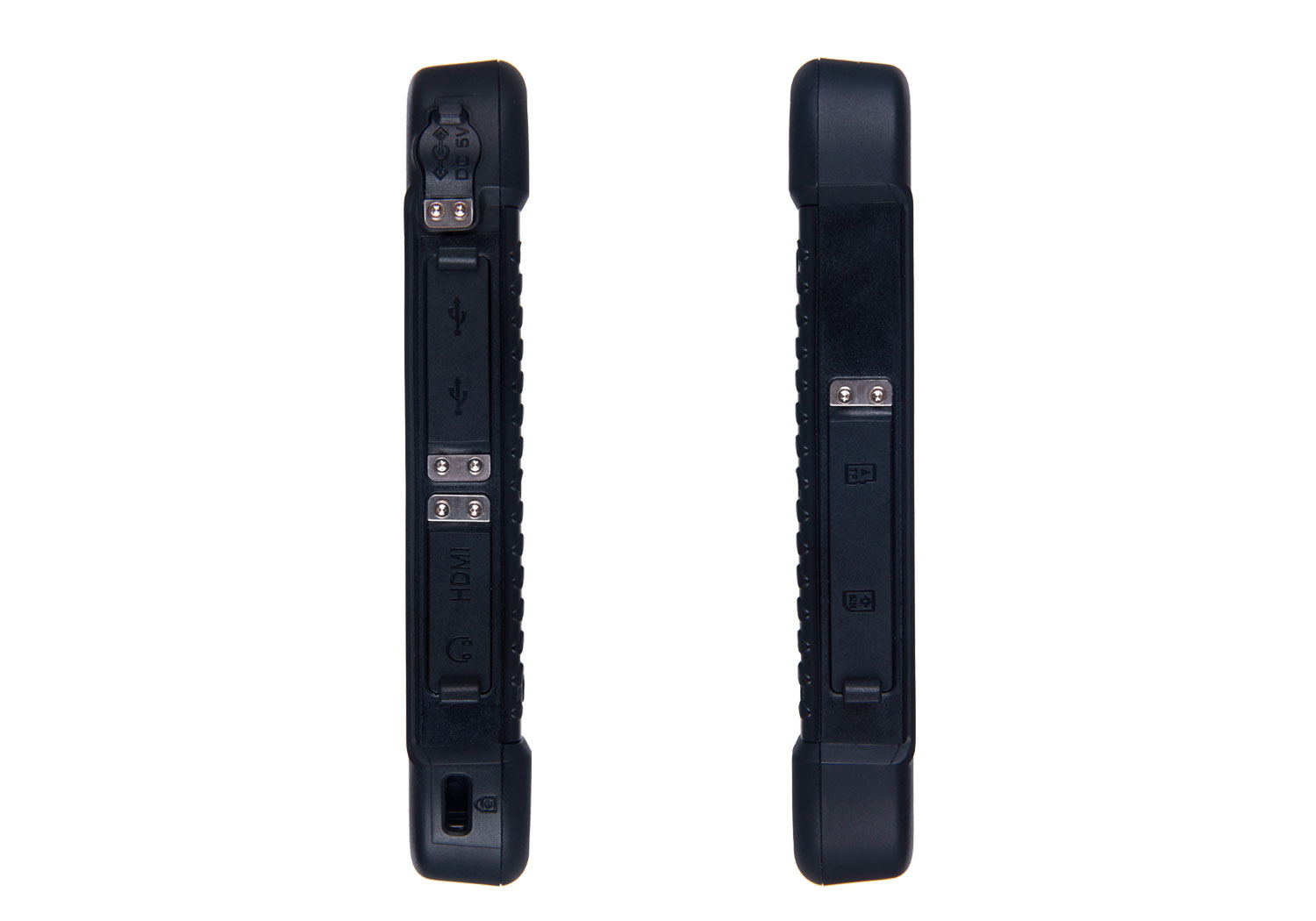

IO Ports 1 x TF slot, max: 128G (SDHC/SDXC)
1 x SIM slot
1 x USB 2.0
1 x USB Type C
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack

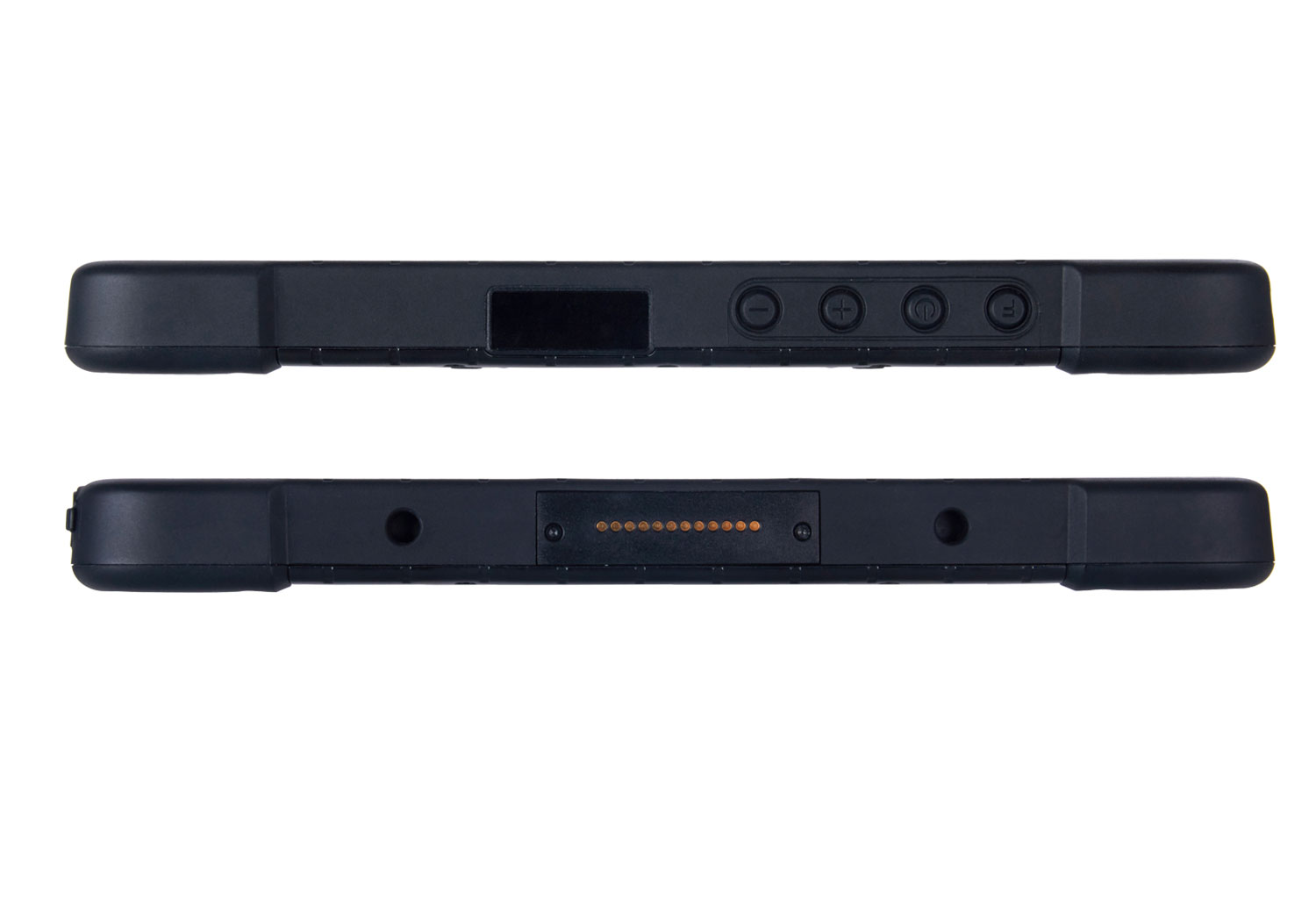

1 x 12pin POGO pin
Application 1D / 2D Barcode scanner (Optional)
NFC
GPS & Glonass & Beidou
Operation System Android 10
Physical
Camera Front: 2.0MP camera; Rear: 13.0MP camera
Speaker 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity:-42db, output resistance 2.2kΩ (Built-in)
Sensor G-sensor, Gyro sensor, Light sensor, Proximity sensor, Compass
Power Adapter AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery 8500mAh/3.7V (Built-in)
Using time 6hrs (Default 50% volume, default 400nit, play 1080 HD video)
Rugged Feature IP65, 1.2m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Humidity 95% non-condensing
Dimensions 225.6mm x 144.6mm x 21.5mm
Weight 715g
