MAA0803

8″ Automation Rugged Android Mobile Tablet PC

This will be released in mid of Q1, 2024
  • 8″ Android System

  • MTK MT6789 Processor

  • 550 nits High Brightness Sunlight Readable

  • Support 4G LTE, NFC Module

  • Support Optional Barcode Scanner

  • Support GNSS, Wi-Fi, Bluetooth 5.2

Applications:

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

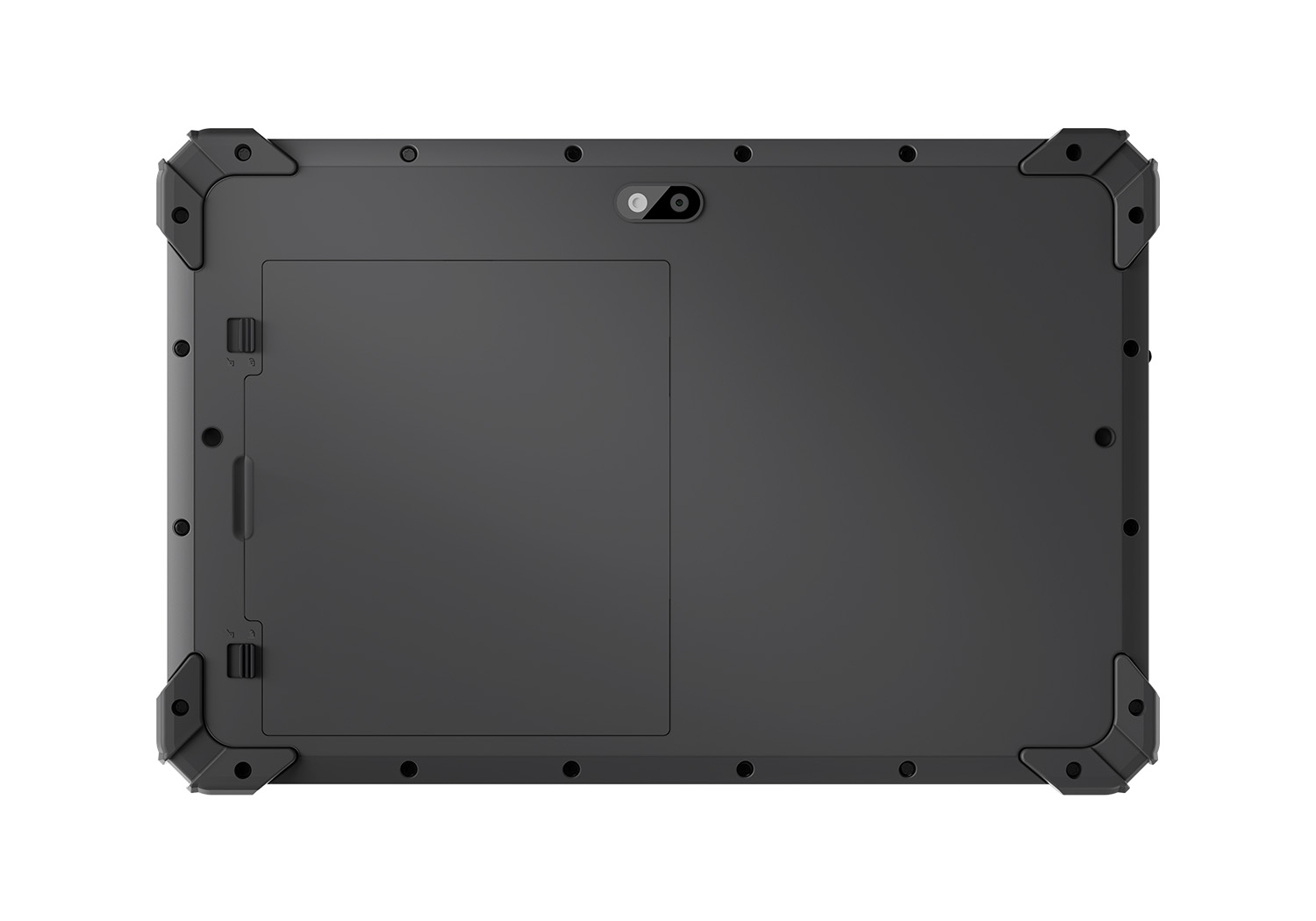

MAA0803 8" Rugged Tablet
Android 12, MT6789

550 nits Brightness &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

10,000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 7hrs  (Default 50% volume, default 200nit, play 1080HD video)

Full Range of Data Collection Functions
NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0MP

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Holder / Hand Strap

Display
Display Type8" TFT
Resolution1920 x 1200
Brightness550 nits
Touch Panel5 Points PCAP Touch, G+G
System
CPUMediaTek MT6789
Memory8GB LPDDR4
Storage128GB
OSAndroid 12
SupportBluetooth 5.2
WLAN: 802.11 a/b/g/n/ac
GNSS: GPS, GLONASS, Beidou
Barcode Scanner
NFC
I/O Ports1 x USB 2.0 Type A
1 x USB Type C
1 x 3.5mm Earphone Jack
2 x SIM Card slot
1 x TF slot (Max.512GB)
1 x 12pin Pogo pin
Physical
CameraRear: 13MP Front: 5MP
Power OutputDC 9V/2A
Battery10000mAh/3.8V (Removable)
Button1 x Power On/Off
1 x Volume +
1 x Volume -
1 x Home
1 x Custom
Standard Accessory1 x Hand Strap
1 x Power Adapter
Dimensions236.7 x155.7 x 20mm
Weight910g
Environment
Rugged FeatureIP65, 1.22m drop test
CertificationMIL-STD-810H
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Relative Humidity95% (non-condensing)
Warranty2 Years

Overview

Optional

Docking Station
ADOCKN2
Docking Station
1 x LAN, 1 x COM, 1 x USB Type A, 1 x USB Type C, 1 x DC Jack
Removable Battery For MAA1013
ABATN52
Removable Battery


Mounting Holder
ACARMN4
Mounting Holder
1 x LAN, 1 x COM, 2x USB Type A, 1 x DC Jack
Adapter 5.5V/4A
ADA19C1
Adapter 19V/3.24A
Type C

Vehicle Charger (5V/3A)
ACARC01
Vehicle Charger (5V/3A)
Type C
