Android Base, Slim Version, Rugged Mobile Tablet PC

  • Support android 10 system

  • Operating temperature: -10°C to 50°C

  • Support standard Mirco USB 3.0 OTG connector

  • Support NXP NFC (13.56M)

  • Support GPS navigation

  • Rugged IP65 protection level

  • Support high strength Glass Touch Panel

  • Support Wrist Strap


Food Process, Robotics, Factory, HMI screening, Packaging, etc.

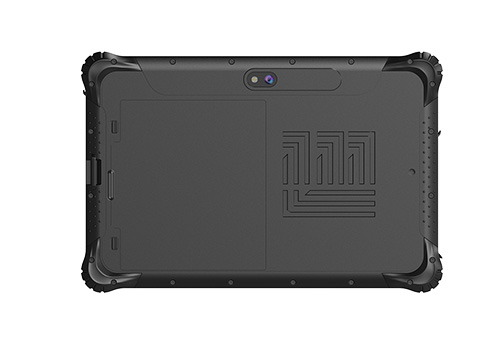

MAA0804 8" Rugged Tablet
Android 10, Qualcomm MSM8953

IP65 Dust & Water Proof
This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

Slim & Lightweight Rugged Tablet
You can carry this tablet easily for various environment

7500mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 7hrs  (Default 50% volume, default 200nit, play 1080HD video)

Display type 8" IPS TFT LCD
Resolution 1280 x 800
Brightness 450nit
Touch screen type 5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
CPU MSM8953, 2.0GHz
GPU Adreno 506
Network 802.11a/b/g/n (2.4G + 5.8G dual band WiFi)
Bluetooth 4.0 (BLE) class 1 transmission distance: 10m
IO Ports 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 3.0 for OTG
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
Application NFC
GPS & Glonass
Operation System Android 10
Camera Front: 2.0MP camera; Rear: 8.0MP camera
Speaker 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity:-42db, output resistance2.2kΩ (Built-in)
Sensor G-sensor, Gyro sensor, Ambient light sensor, Campass
Power Adapter AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A
Battery 7500mAh / 3.7V (Built-in)
Using time 7hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature IP65, 1.2m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Humidity 95% non-condensing
Dimensions 220mm x 143.4mm x 15.7mm
Weight 647g
