MAA1013

Android Base, High Brightness Rugged Mobile Tablet PC

  • 10.1” Mobile Tablet
  • High Brightness, sunlight readable
  • Support Android 9.0
  • Support Anti-Scratch Touch Panel
  • Built-in 13.56M RFID module
  • Support 1D/2D Barcode Scanner
  • Support Fingerprint

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAA1013 10.1" Rugged Tablet
Android 9, Qualcomm MSM8953

700 nits Brightness &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

10000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 6hrs  (Default 50% volume, default 200nit, play 1080HD video)

Full Range of Data Collection Functions
NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0MP / Fingerprint

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

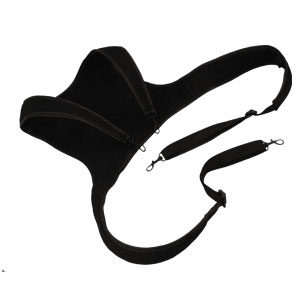

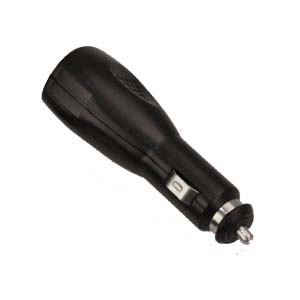

Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/ Car Charger /Hand Writing Pen

Display
Display Type10.1" IPS TFT LCD
Resolution1280 x 800
Brightness700nit
Touch screen type5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPUMSM8953, 2.0GHz
GPUAdreno 506
RAM4 GB LPDDR3
ROM64 GB
Network802.11 a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class1.5, transmission distance:10m
2G /3G /4G (Optional)
IO Ports1 x TF slot, max: 128G (SDHC/SDXC)
1 x SIM slot
1 x USB 3.0
1 x USB Type C
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
1 x 12pin POGO pin
Application1D/2D Barcode scanner (Optional)
NFC (Optional)
Fingerprint (Optional)
GPS & Glonass
Operation SystemAndriod 9
Physical
CameraFront: 5.0MP camera; Rear: 13.0MP camera
Speaker1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
MicSensitivity: -42db, output resistance:2.2kΩ (Built-in)
SensorG-sensor, Ambient light sensor, Gyro Sensor, Compass
Power AdapterAC100V ~ 240V, 50Hz/60Hz, output DC 5.5V/4A
Battery10000mA/3.7V (Removable)
Using time6hrs (Default 50% volume, default 200nit, play 1080HD video)
Rugged FeatureIP65, 1.0m drops
Operating Temperature-10°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Humidity95% non-condensing
Dimensions280mm x 180mm x 22mm
Weight1068g

Optional

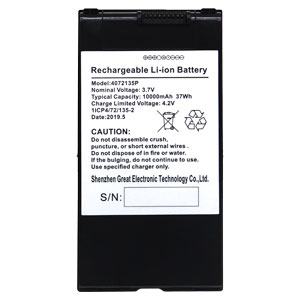

Removable Battery For MAA1013
ABAT103
Removable Battery
