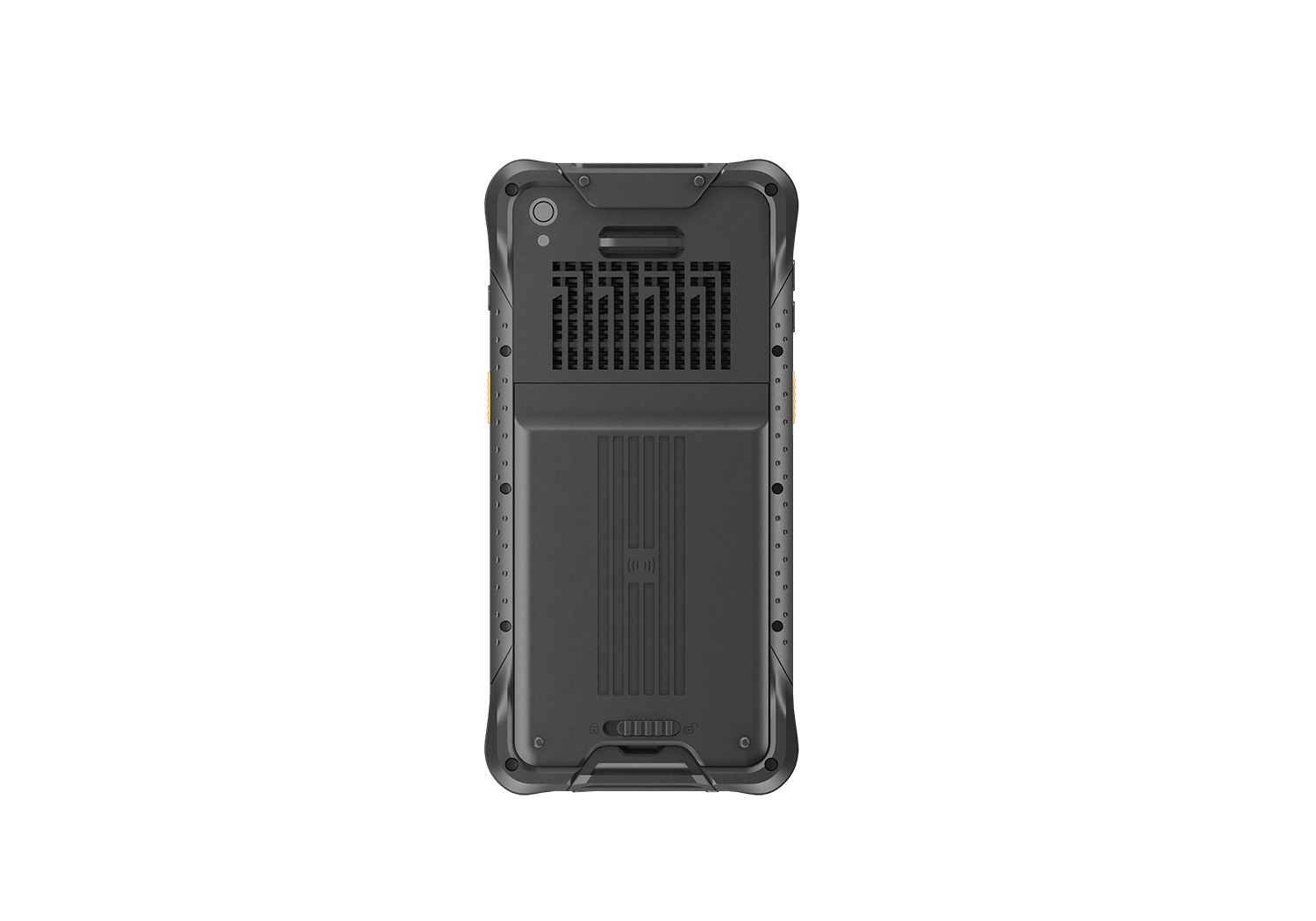

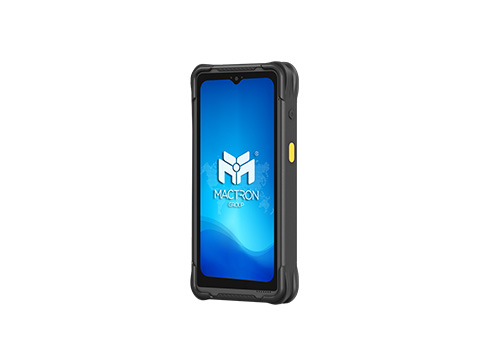

MAS0600

Windows Base, Rugged Mobile Tablet PC

  • 6" Handheld

  • MIL-STD-810G

  • 1.2m Drop

  • Support Windows 10 OS

  • Rugged IP65 protection level

  • Support High Strength Glass Touch Panel

  • Support Wrist Strap, Arm Strap, Belt Strap

  • Support Docking charging

  • Support NXP NFC(13.56M)

  • Support GPS Navigation

  • Support 1D/2D Barcode Scanner

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

Display
Display type 6" IPS TFT LCD
Resolution 720 x 1280
Brightness 430nit
Touch screen type 5 points capacitive, G+F, 7H-Anti-scratch, 1.1mm, COF
System
CPU Intel Cherry Trail X5-Z8350, 1.44GHz
GPU Intel HD Graphic (Gen7)
RAM 2GB LPDDR3
ROM 32GB
Network 802.11a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class 1, transmission distance: 10m
4G

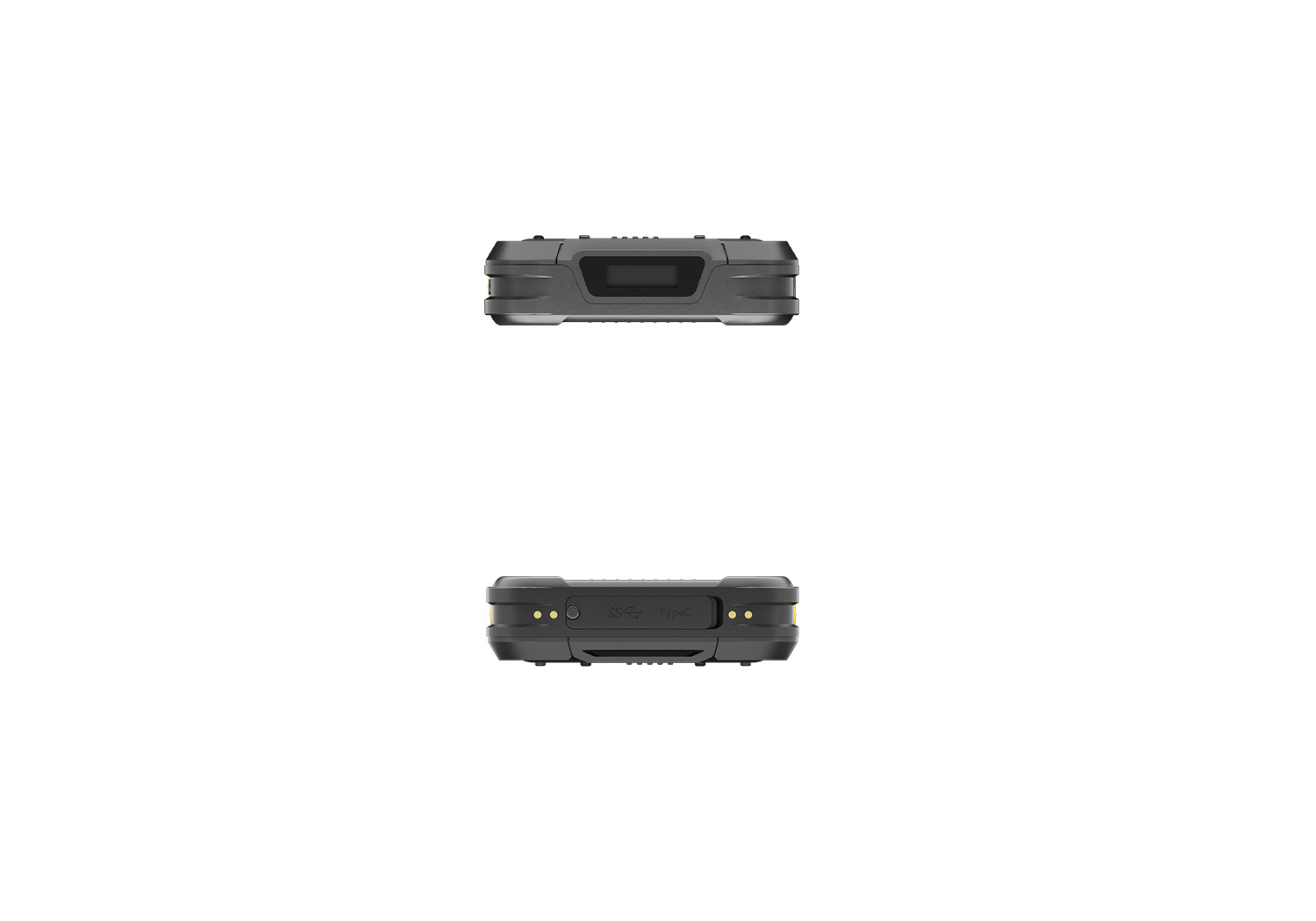

IO Ports 1 x TF slot, max: 128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 2.0
1 x 3.5mm standard headphone jack
1 x 4 pin POGO pin
Application 1D/2D Barcode Scanner
NFC
GPS & Glonass

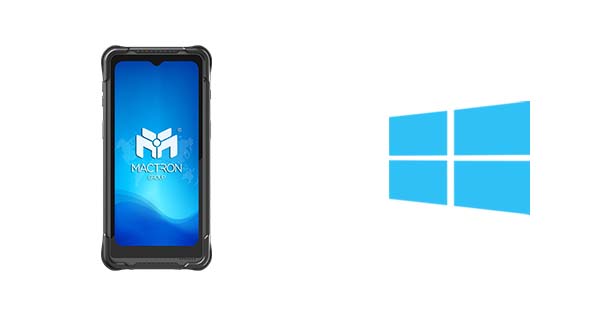

Operation System Windows 10 (Optional)
Physical
Camera Front: 2.0MP camera; Rear: 5.0MP camera
Speaker Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity:-42db, output resistance2.2kΩ (Built-in)
Sensor G-sensor
Power Adapter AC100V ~ 240V, 50Hz/60Hz, output DC 5V/2.5A
Battery 5000mAh/3.7V(Removable)

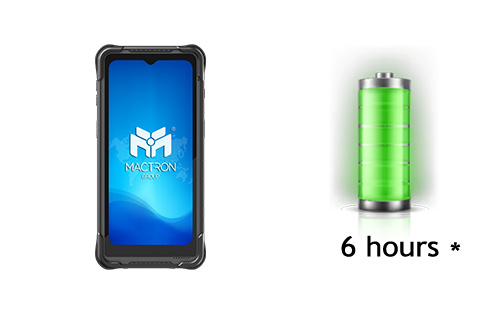

Using time 6 hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature IP65, 1.2m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Humidity 95% non-condensing
Dimensions 185mm x93mm x20.7mm
Weight 380g

Optional

Removable Battery
ABAT060
Removable Battery
Adapter 5V/2.5A
ADA0525
Adapter 5V/2.5A
