MAS0801

8″ Automation Rugged Windows Mobile Tablet PC

This will be released in mid of Q3, 2023
MAS0801 MAS0801 MAS0801 MAS0801 MAS0801
  • 8″ Windows System

  • Intel® Celeron® N5100 Processor

  • 700 nits High Brightness Sunlight Readable

  • Support 4G LTE, NFC Module

  • Support Optional Barcode Scanner

  • Support GNSS, Wi-Fi , Bluetooth 5.0

Applications:

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

MAS0801 10.1" Rugged Tablet
Windows Base, Intel Jasper Lake N5100

700 nits Brightness &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

5,000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 7hrs  (Default 50% volume, default 200nit, play 1080HD video)

Full Range of Data Collection Functions
NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0MP

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Holder / Hand Strap

Overview

Display
Display Type8" IPS TFT LCD
Resolution1280 x 800
Aspect Ratio16:10
Brightness700 nit
Touch Panel5 Points Projected Capacitive Touch
System
ProcessorIntel® Celeron® N5100 Quad Core
GPUIntel® UHD Graphics
MemoryLPDDR4 8 GB
Storage128 GB eMMC

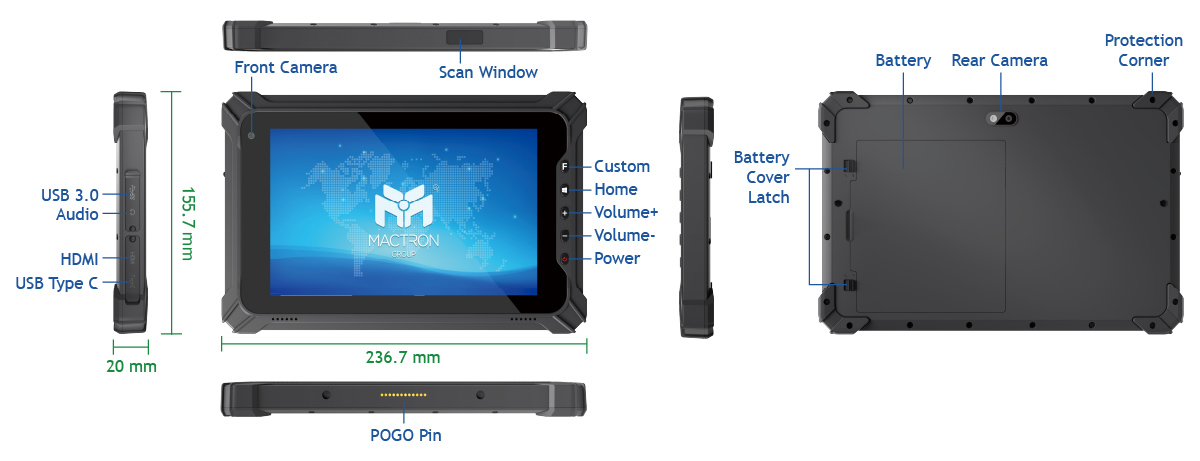

I/O Ports1 x USB 3.0 Type A
1 x USB Type C
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x TF slot (Max.128GB) (SDHC/SDXC)
1 x SIM slot
1 x 12pin POGO pin
Operating SystemWindows 10
Physical
CameraFront Camera : 5.0 MP
Rear Camera : 8.0 MP
Speaker2 x 0.8W
ColorBlack
Dimensions (WxHxD)236.7 x 155.7 x 20mm
Weight910 g
Button1 x Power On/Off
1 x Volume +
1 x Volume -
1 x Home
1 x Custom
SensorG-sensor
Battery5,000 mAh/7.6 V (Removable)
Using Time7 hrs (Default 50% Volume, 50% Brightness, Play 1080 HD Video)
Power Adapter19 V/3.42 A
CommunicationWLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz
WWAN - 4G
Bluetooth 5.0
GPS, GLONASS
SecurityTPM 2.0
Data CollectionNFC
Barcode Scanner
Standard Accessory1 x Hand Strap
1 x Power Cable
Environment
IP RatingIP65
Drop Test1.22 m
CertificationMIL-STD-810G
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Relative Humidity95% (non-condensing)
Warranty2 Years
MAS0801

Optional

Docking Station
ADOCKN1
Docking Station
1 x LAN, 1 x COM, 1 x USB Type A, 1 x USB Type C, 1 x DC Jack
Removable Battery For MAS1011
ABATN51
Removable Battery


Mounting Holder
ACARMN2
Mounting Holder
1 x LAN, 1 x COM, 2x USB Type A, 1 x DC Jack
Adapter 19V/3.42A
ADA19C0
Adapter 19V/3.42A
Type C

Vehicle Charger (19V/3.42A)
ACARC02
Vehicle Charger (19V/3.42A)
Type C

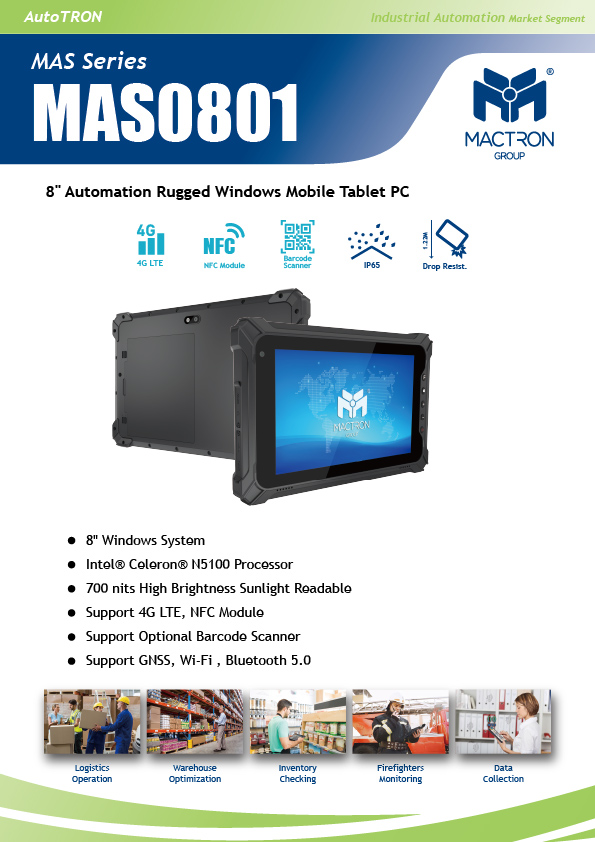

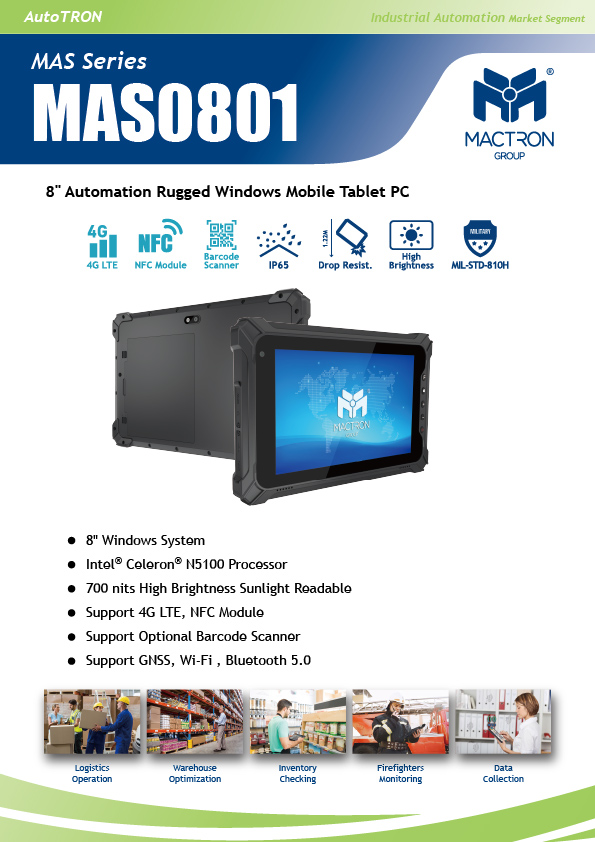

Datasheet
