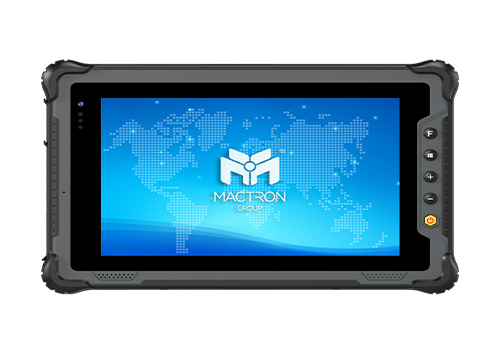

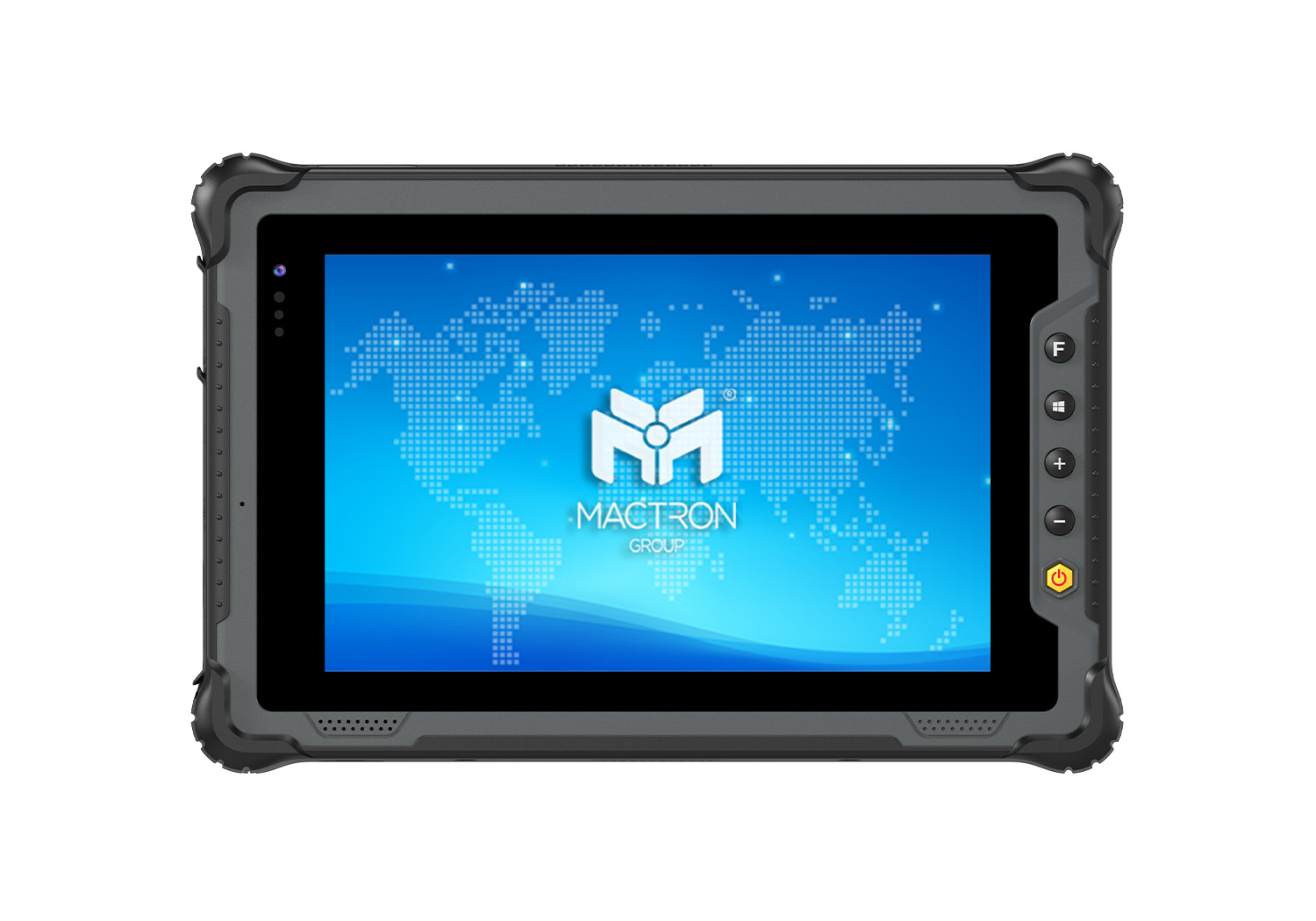

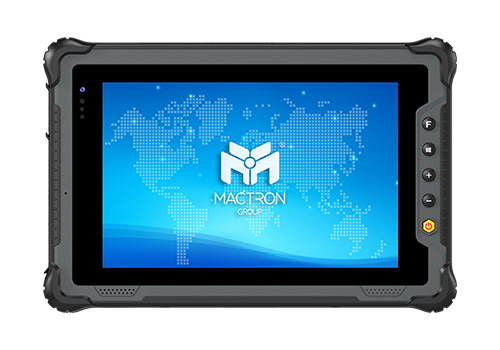

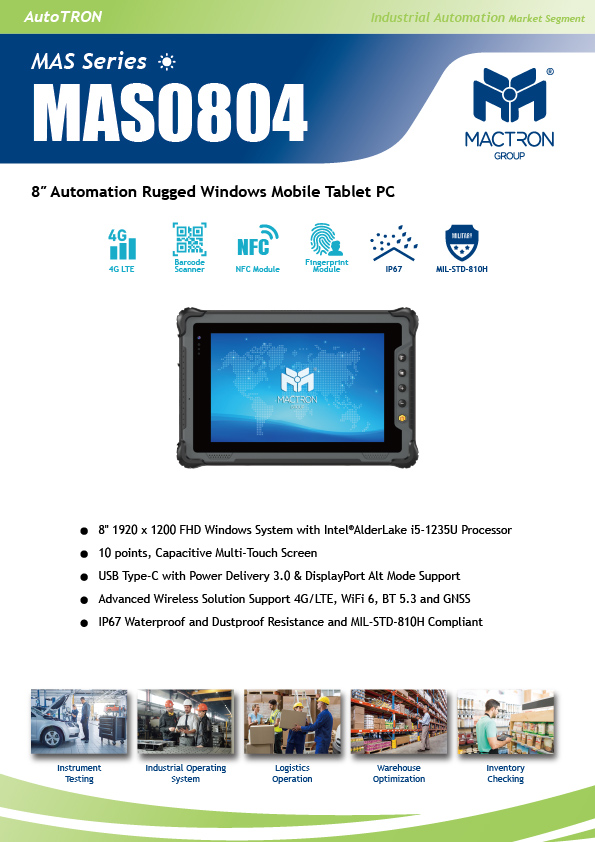

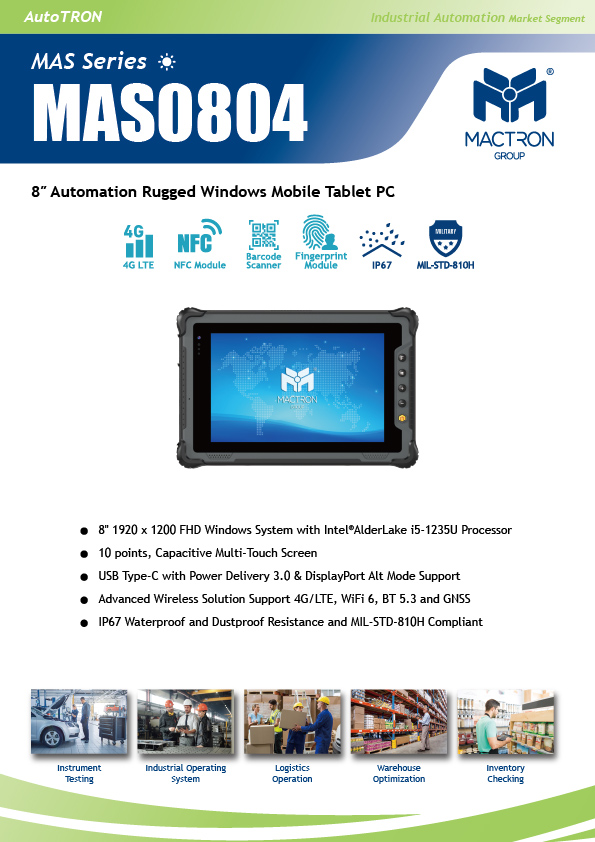

8® 1920 x 1200 FHD Windows System with Intel®AlderLake i5-1235U Processor
10 points, Cpacitive Multi-Touch Screen
USB Type-C with Power Delivery 3.0 & DisplayPort Alt Mode Support
Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.3 and GNSS

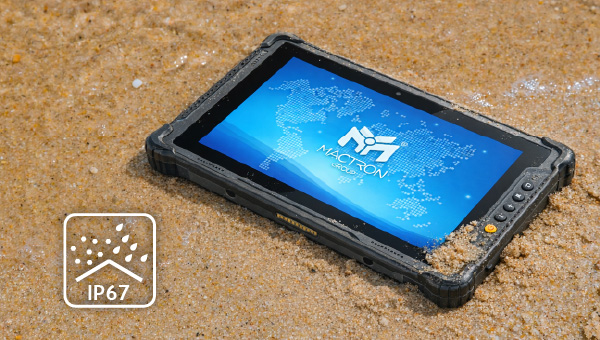

IP67 Waterproof and Dustproof Resistance and MIL-STD-810H Compliant
Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking
| Display | |
|---|---|
| Display Type | 8® IPS LCD |
| Resolution | 1920 x 1200 FHD |
| Brightness | 550 nits |

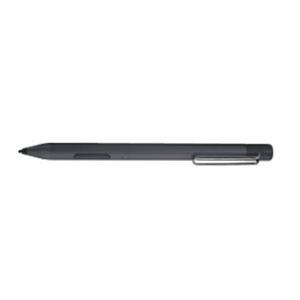

| Touch Panel | 10 Points, Capacitive Multi-Touch Screen Support Active Pen |
| System | |
| CPU |
Intel AlderLake i5-1235U(12MB Cache,up to 4.4GHz,10 cores,12 threads,TDP 15W) (Optional) Intel AlderLake i7-1255U(12MB Cache,up to 4.7GHz,10 cores,12 threads,TDP 15W) |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | 16GB LPDDR4 on board |
| Storage | 128GB M.2 SSD (Optional) 256GB SSD/512GB SSD |
| SSD | M.2 2280 M-Key SSD (Expansion Slot) x1 (Optional) |
| Operating System | Windows 11 |
| Security | Integrated Trusted Platform Module (TPM 2.0) |

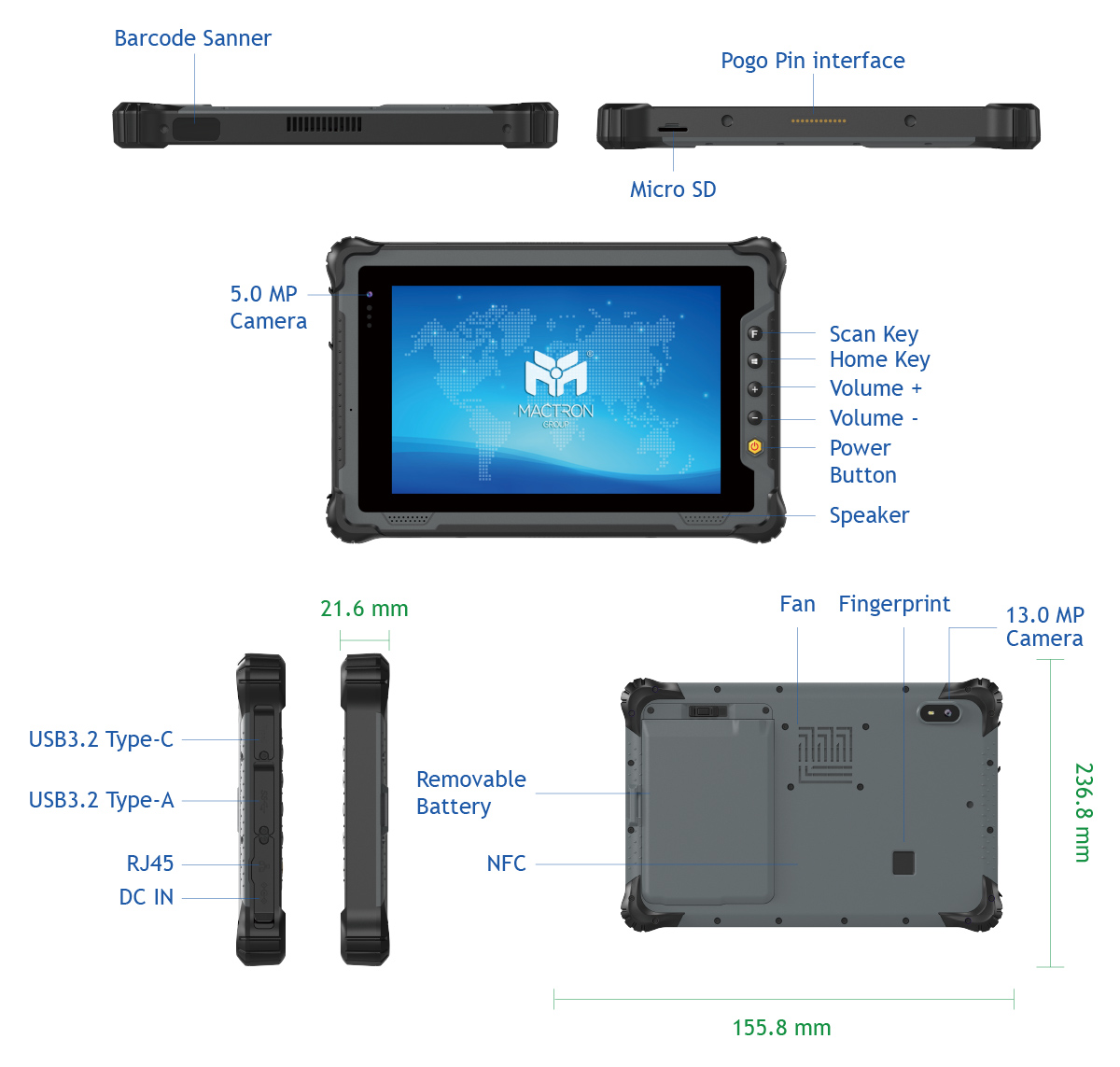

| I/O Ports |

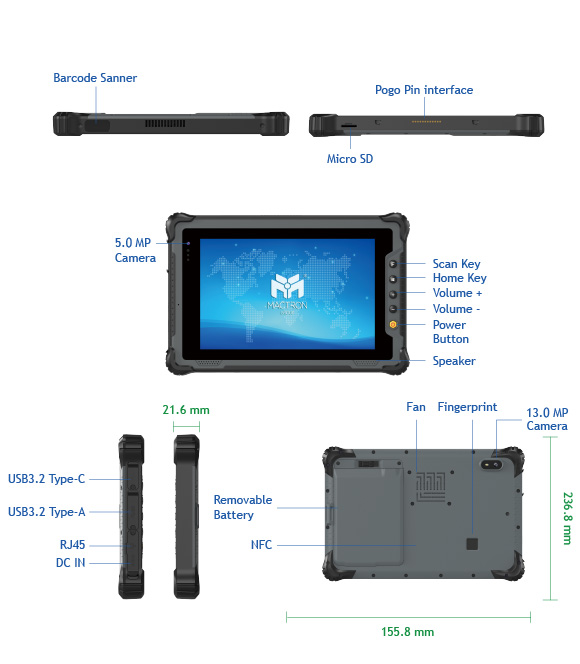

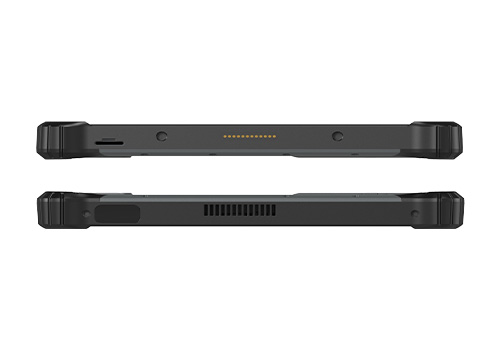

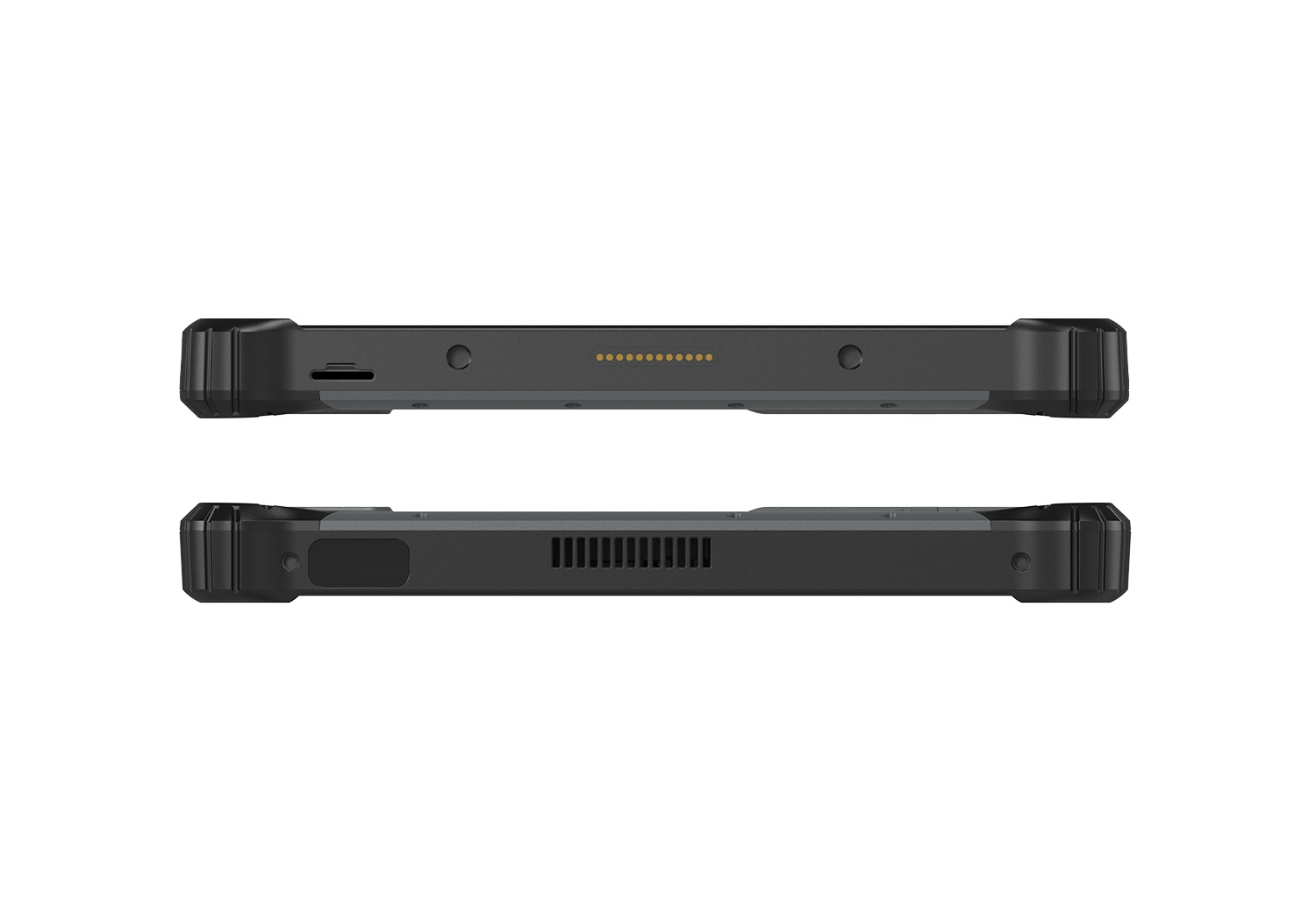

USB 3.2 Type-C x1 (Support charging & Host & HDMI) USB 3.2 Type-A x1 Micro SD Solt x1 RJ45 Gigabit Ethernet Port x1 DC 4.0mm jack x1 12pin POGOPin (Charge&USB) x1 Nano SIM card slot x1 |
| WiFi | Intel® Wi-Fi 6E AX210 802.11 a/b/g/n/ac/ax (2.4 & 5GHz 6GHz) |
| Bluetooth | Bluetooth® 5.3 |
| 4G/5G | 4G LTE (Optional 5G) |
| GPS | Support GPS, GLONASS |
| Data Collection |
Barcode Scanner Module (Optional) NFC Module (Optional) Fingerprint Module (Optional) |
| Physical | |
| Camera | FF 5.0 MP front camera AF 13.0 MP rear camera and flashlight |
| Audio |
Speaker 1W x1 Microphone x1 |
| Fan | Integrated Fan x1 |
| Color | Grey |
| Buttons |
F Key (Scan Key) x1 Power (Power Key ) x1 Volume Key + (Volume up Key) x1 Volume Key - (Volume down Key ) x1 Windows Home (Home Key) x1 |
| Indicator LED |
Bicolour charging indicator x1; Blue indicator x1 |
| Sensors | G-sensor |
| Main Battery | Battery Li-Ion, 7.6V, 5700mAh, 6.8h |
| RTC Battery | RTC 3V/1mAh on board |
| Power Adapter |

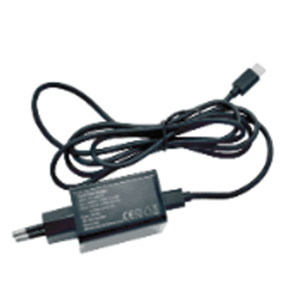

AC adapter: 100-240V, 50Hz-60Hz, 12V/4A/48W USB-Type-C Adapter: 12V/2.5A/30W (Optional) |
| Standard Accessory |

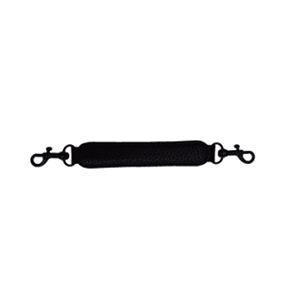

Power Adapter x1 Hand Strap x1 |
| Optional Accessory |

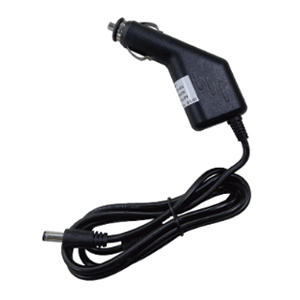

Removable Battery Power adapter Docking Station Vehicle Charger |
| Packing List | |
| Accessories | Power Adapter x1 |
| Product Dimension | 236.8 mm (L) × 155.8 mm (W) × 21.6 mm (H) |
| Product Weight | 850g |
| Box Dimension | TBD |
| Box Weight | TBD |
| Environment | |
| IP Rating | IP67 |
| Drop Test | 1.2m drop resistance |
| Certification | CE,CCC / MIL-STD-810H |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
