MAS1010

Windows Base, Rugged Mobile Tablet PC

  • 10.1" high bright screen

  • IP-65 Standard , dustproof, waterproof, shockproof

  • BT4.2 ; NXP NFC(13.56M); Fingerprint identification

  • Double frequency WIFI 802.11(a/b/g/n/ac) ; 1D/ 2D Barcode Scanner

  • 10000mAh Polymer lithium removable battery

  • Support High strength glass touch screen

  • Support Docking charging extension

  • Support air outlet

  • Windows 10/ Android 5.1

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAS1010 10.1" Rugged Tablet
Windows Base, Intel Cherry Trail X5-Z8350

700nit Brightness* &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.
*700 nits Brightness is optional function

10000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
*8hrs (Default 50% volume, default 200nit, play 1080 HD video)

Full Range of Data Collection Functions

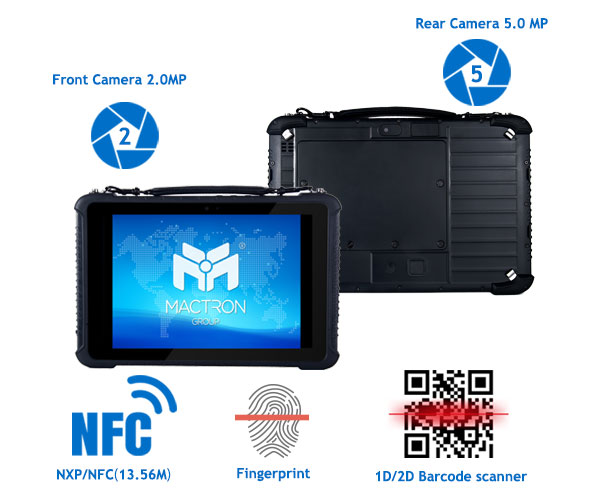

NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 2.0MP / Rear Camera 5.0 MP / Fingerprint

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/ Car Charger /Hand Writing Pen

Display
Display Type10.1" IPS TFT LCD
Resolution 1280 x 800
Brightness 400nit
Touch screen type 10 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPU Intel Cherry Trail X5-Z8350, 1.44GHz
GPU Intel HD Graphic (Gen7)
RAM 4 GB LPDDR3
ROM 64 GB
Network 802.11 a/b/g/n/ac (2.4G/5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class 1, transmission distance: 10m
4G
IO Ports 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x USB 2.0
1 x Micro USB 2.0 for OTG
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DB9 (1 x RS232)
1 x RJ45
1 x DC jack
1 x 12pin POGO pin
Application 1D/2D Barcode Scanner (Optional)
NFC
Fingerprint (Optional)
GPS & Glonass
Operation System Windows 10 (Optional)
Physical
Camera Front: 2.0MP camera; Rear: 5.0MP camera
Speaker 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity: -42db, output resistance: 2.2kΩ (Built-in)
Sensor G-sensor
Power Adapter AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery 10000mAh/3.7V (Removable)
Using time 8hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature IP65, 1.0m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Humidity 95% non-condensing
Dimensions 280mm x 187mm x 22mm
Weight 1252g

Optional

Removable Battery
ABAT100
Removable Battery
