MAS1011

10.1″ Automation Rugged Windows Mobile Tablet PC

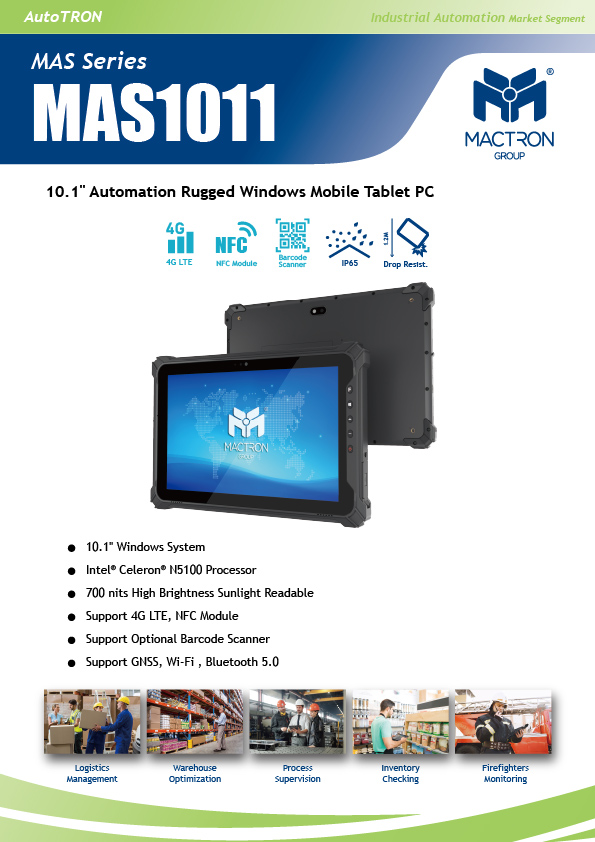

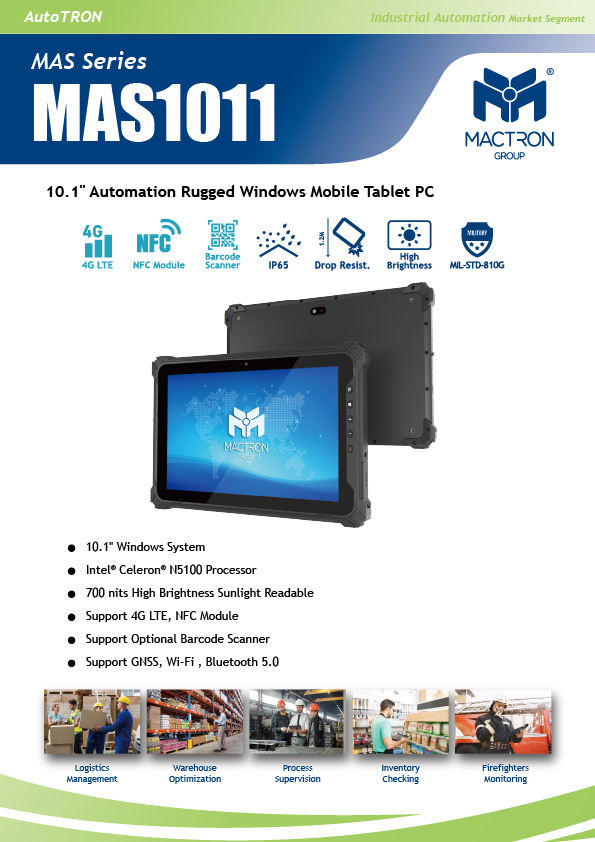

  • Datasheet

    • 10.1″ Windows System

    • Intel® Celeron® N5100 Processor

    • 700 nits High Brightness Sunlight Readable

    • Support 4G LTE, NFC Module

    • Support Optional Barcode Scanner

    • Support GNSS, Wi-Fi , Bluetooth 5.0

    Applications:

    Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

    MAS1011 10.1" Rugged Tablet

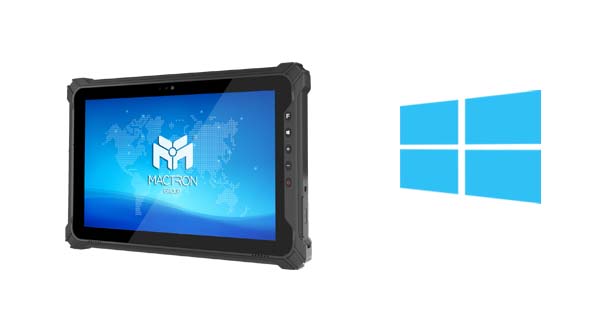

    Windows Base, Intel Jasper Lake N5100

    700 nits Brightness &
    IP65 Dust & Water Proof

    This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

    5000mAh Large Capacity Battery

    You don’t have to worry your business would be interrupted by power off anymore
    * 6hrs  (Default 50% volume, default 200nit, play 1080HD video)

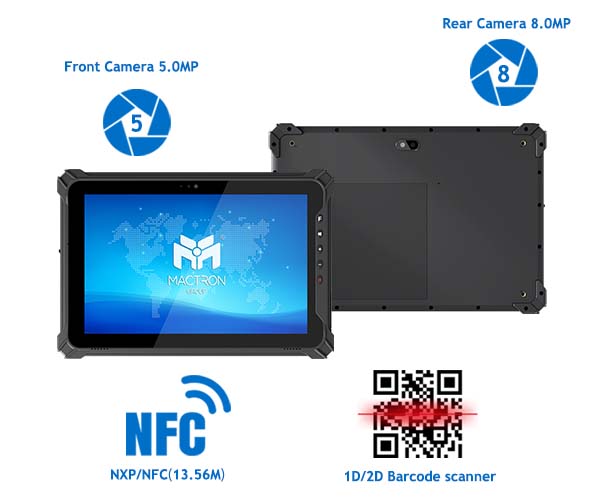

    Full Range of Data Collection Functions

    NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0MP

    Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

    Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/ Car Charger
    Display
    Display Type 10.1" IPS TFT LCD
    Resolution 1280 x 800
    1920 x 1200 (Optional with MOQ)
    Aspect Ratio 16:10
    Brightness 700 nit
    Touch Panel 10 Points Projected Capacitive Touch
    System
    Processor Intel® Celeron® N5100 Quad Core
    GPU Intel® UHD Graphics
    Memory LPDDR4 8 GB
    Storage 128 GB

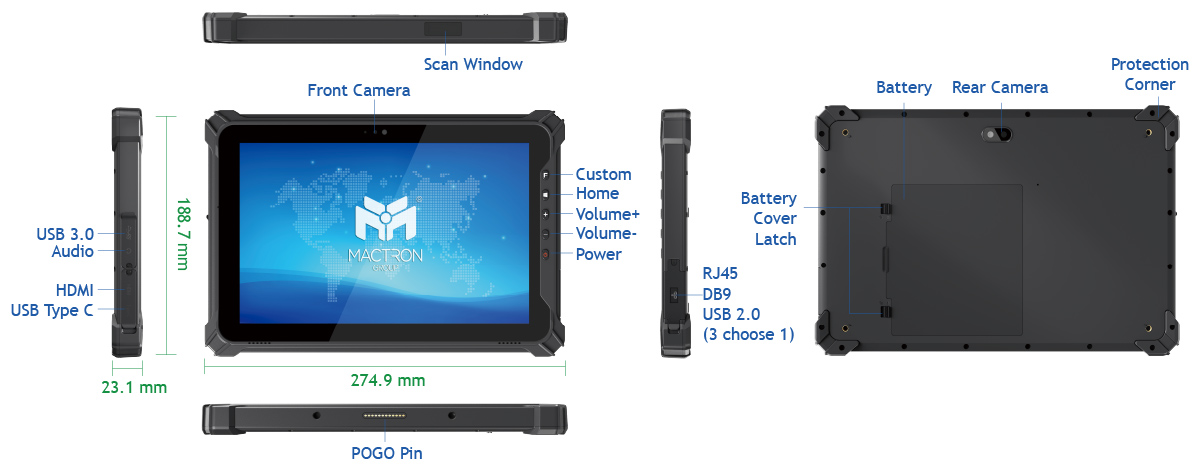

    I/O Ports 1 x USB 3.0 Type A
    1 x USB Type C
    1 x HDMI 1.4a Type C
    1 x 3.5mm standard earphone jack
    1 x TF slot (Max.128GB) (SDHC/SDXC)
    1 x SIM slot
    1 x DC jack
    1 x 12pin POGO pin
    1 x LAN Port (Optional COM (RS232) or USB2.0 Type A with MOQ)
    Operating System Windows 11
    Physical
    Camera Front Camera : 5.0 MP
    Rear Camera : 8.0 MP
    Speaker 1 x 1W
    Color Black
    Dimensions (WxHxD) 274.9 x 188.7 x 23.1 mm
    Weight 1140 g
    Button 1 x Power On/Off
    1 x Volume +
    1 x Volume -
    1 x Home
    1 x Custom
    Sensor G-sensor
    Battery 5,000 mAh/7.6 V (Removable)
    Using Time 6 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
    Power Adapter 19 V/3.42 A or 12V/ 4A
    Communication WLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz
    WWAN - 4G
    Bluetooth 5.0
    GNSS - GPS, Glonass
    Security TPM 2.0
    Data Collection NFC Module
    Barcode Scanner Module
    Standard Accessory 1 x Hand Strap
    1 x Power Cable
    Packaging Box Dimension (WxHxD) 369 x 205 x 60mm
    Packaging Box 1750g
    Environment
    IP Rating IP65
    Drop Test 1.22 m
    Certification MIL-STD-810G
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Relative Humidity 95% (non-condensing)
    Warranty 2 Years
    Optional Accessory

    ADOCKN1
    Docking Station
    1 x LAN, 1 x COM, 1 x USB Type A, 1 x USB Type C, 1 x DC Jack

    ABATN51
    Removable Battery

    ACARMN1
    Mounting Holder
    1 x LAN, 1 x COM, 2x USB Type A, 1 x DC Jack

    ADA19C0
    Adapter 19V/3.42A or
    12V/4A

    ACARC02
    Vehicle Charger (19V/3.42A)
    Type C

    ASTRAP1
    Shoulder Strap

    ASTRAP2
    Back Strap

    ACHD014
    Quad Charging Dock
