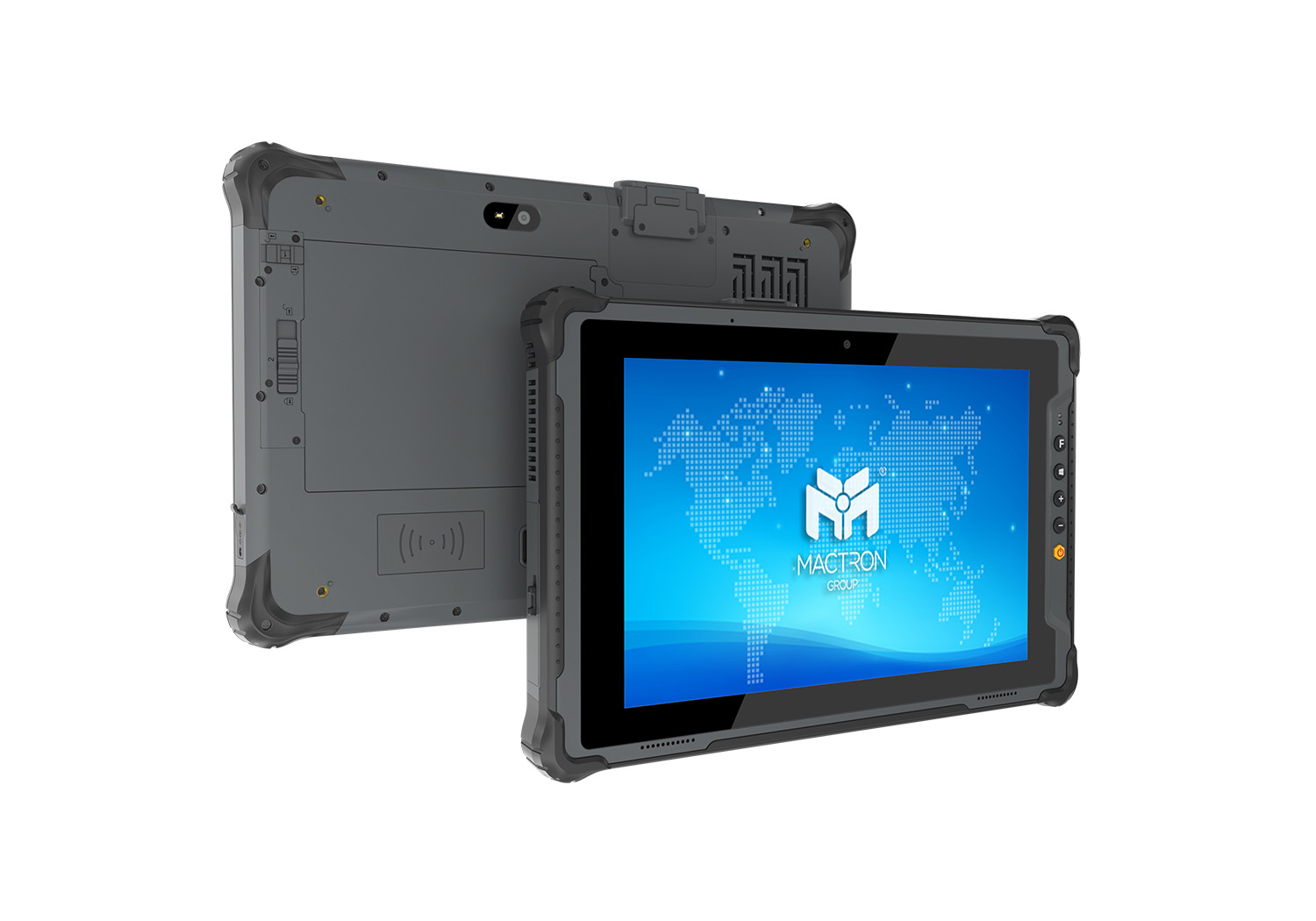

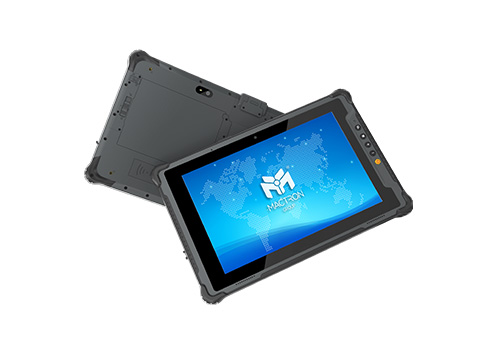

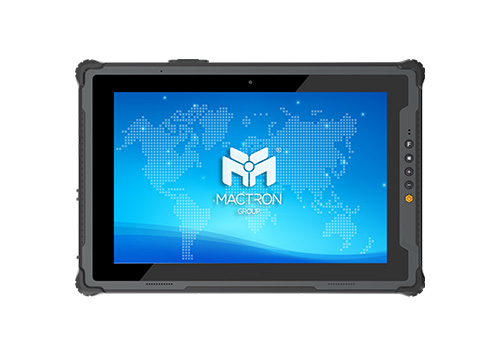

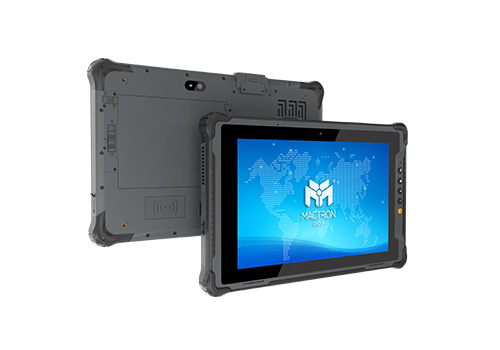

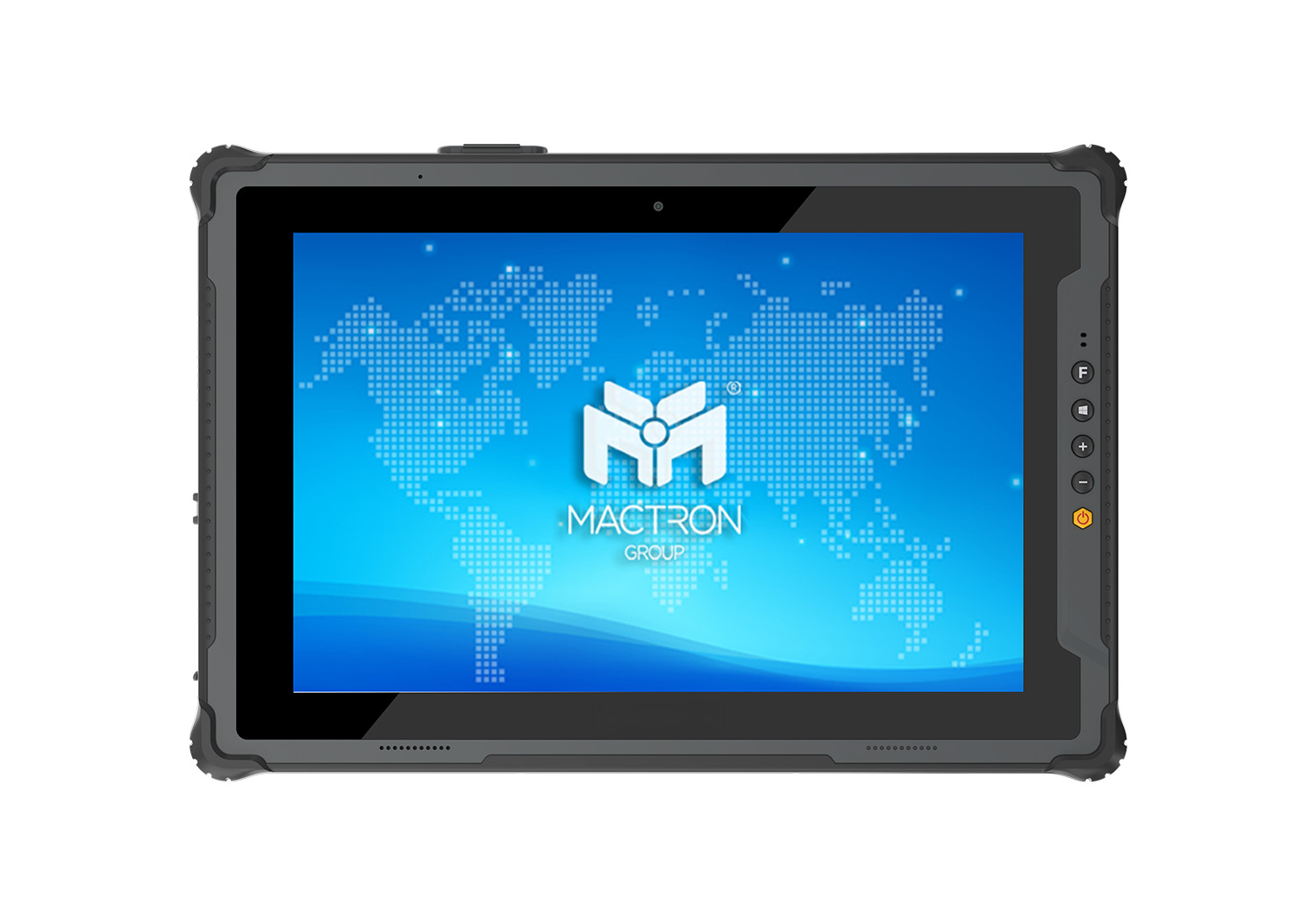

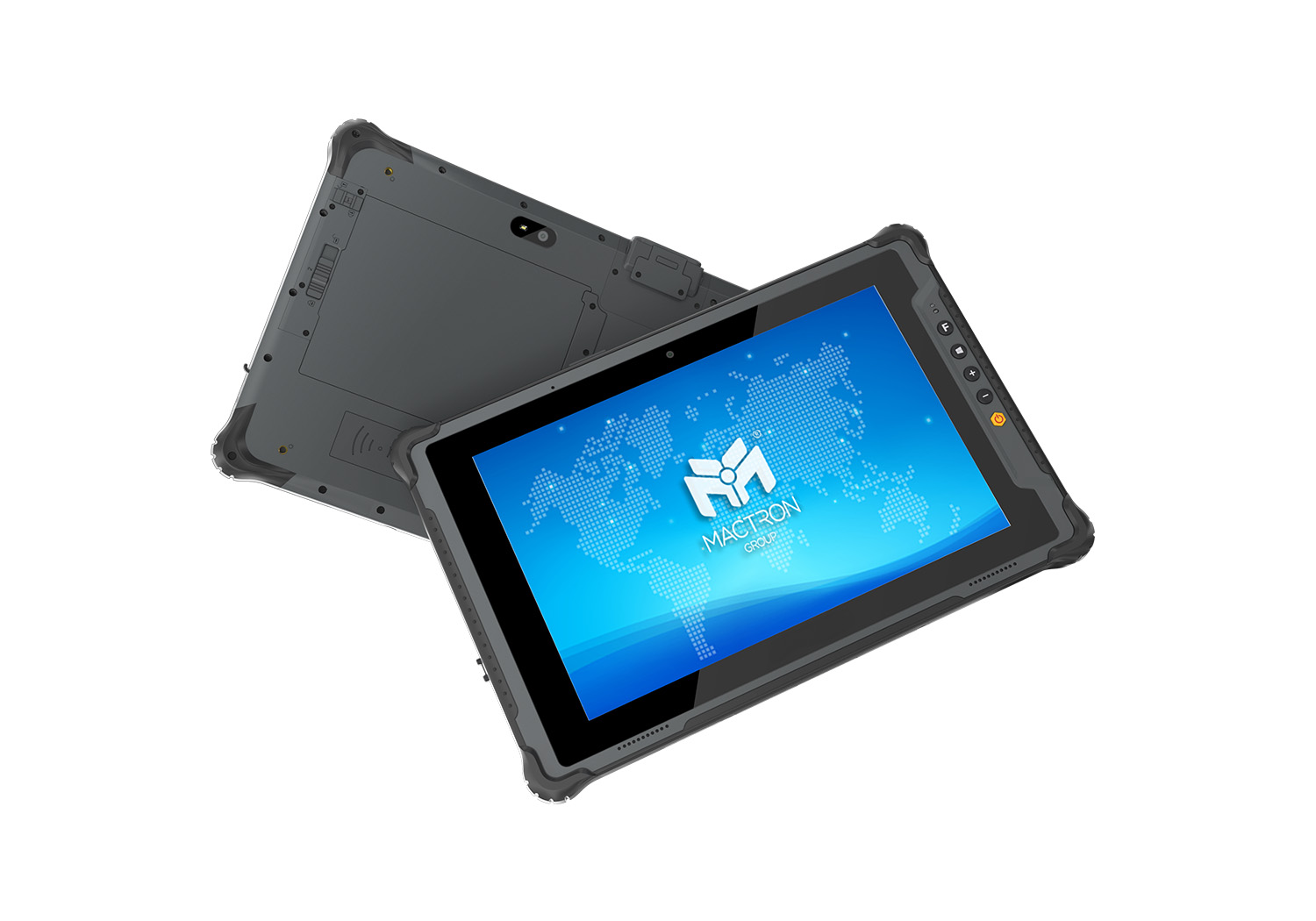

10.1® 1920 x 1200 FHD Windows System with Intel ® 12th Gen. Core™ Processor
10 points, Cpacitive Multi-Touch Screen

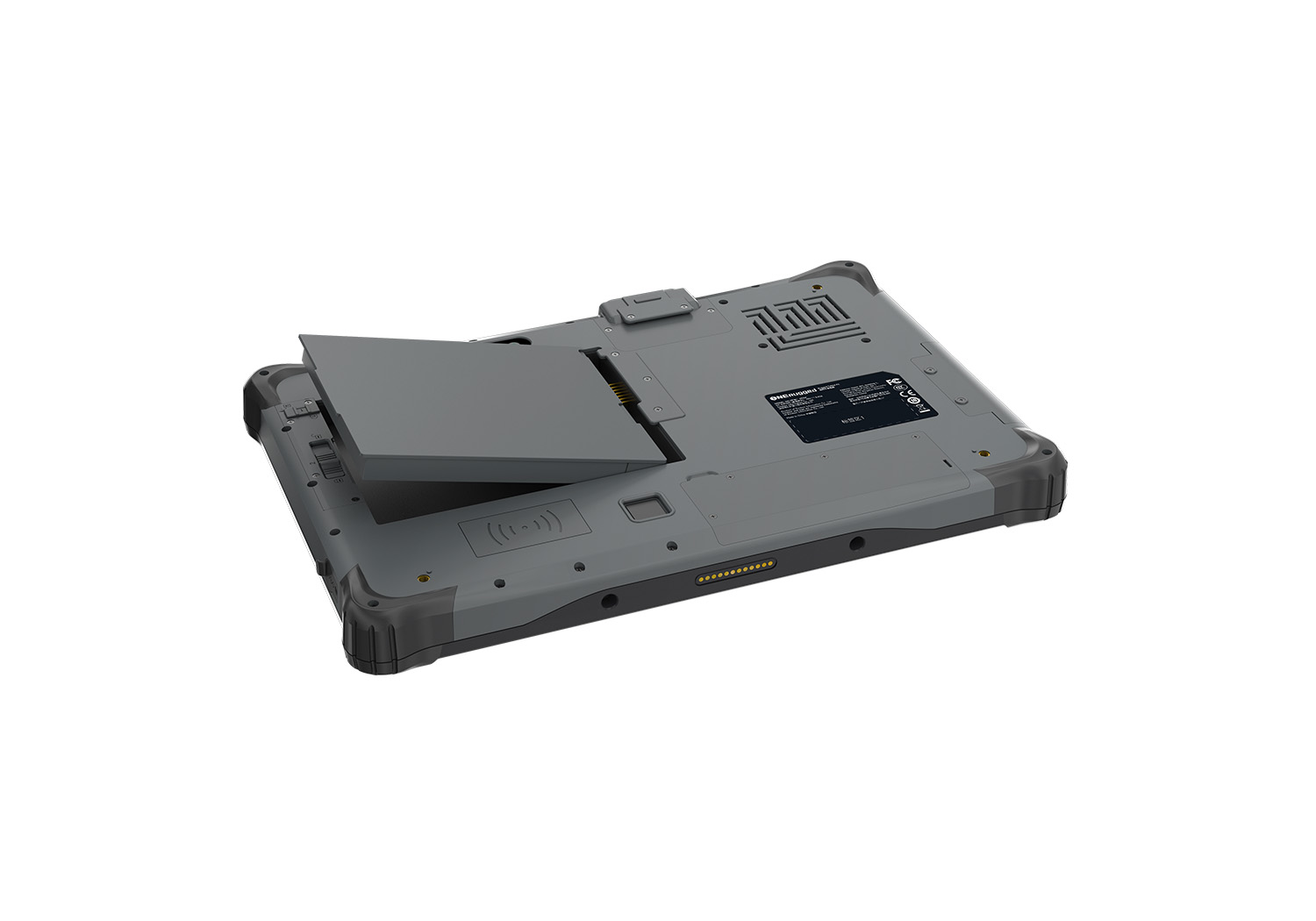

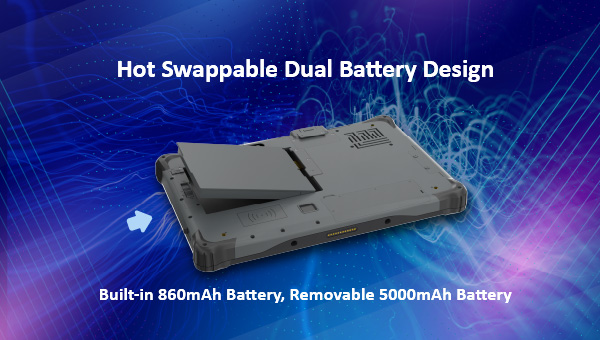

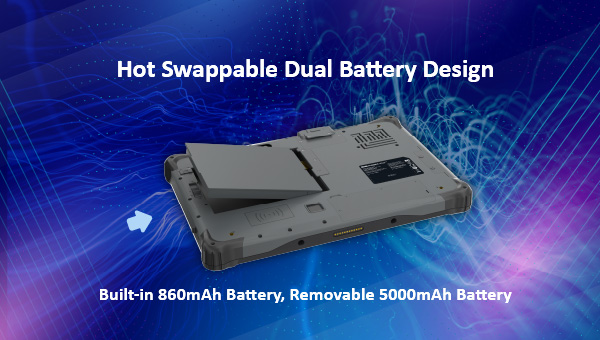

Hot Swappable Dual Battery Design

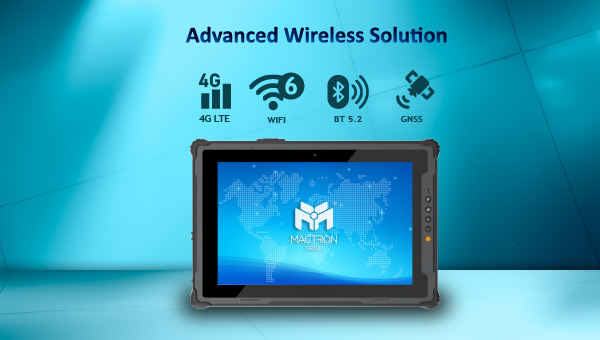

Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GPS
Multiple touch modes Support Glove Touch
IP65 Waterproof and Dustproof Resistance and MIL-STD-810H Compliant
Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking
| Display | |
|---|---|
| Display Type | 10.1® IPS LCD |
| Resolution | 1920 x 1200 FHD |
| Brightness | 700 nits |
| Touch Panel | 10 Points, Capacitive Multi-Touch Screen G+G, Hardness over 7H, Scratch Resistant, Support Glove Touch |
| System | |
| CPU | IIntel® Core™ i5-1235U (12th Gen) Processor (12MB Cache, up to 4.4 GHz, 2P+8E cores) |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | DDR4L-16G |
| Storage | 128GB SSD |
| Operating System | Windows 11 |
| Security | Integrated Trusted Platform Module (TPM 2.0) |

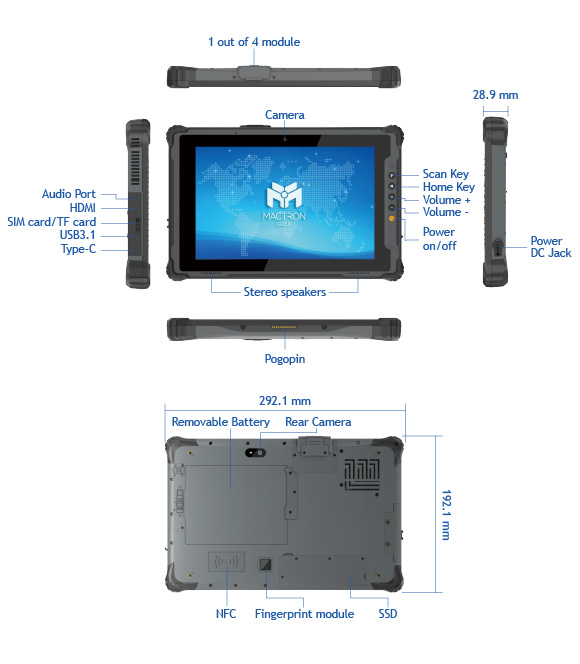

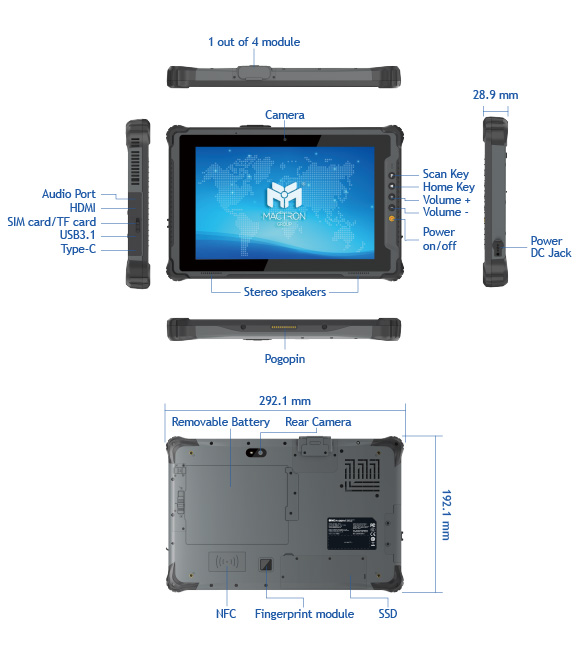

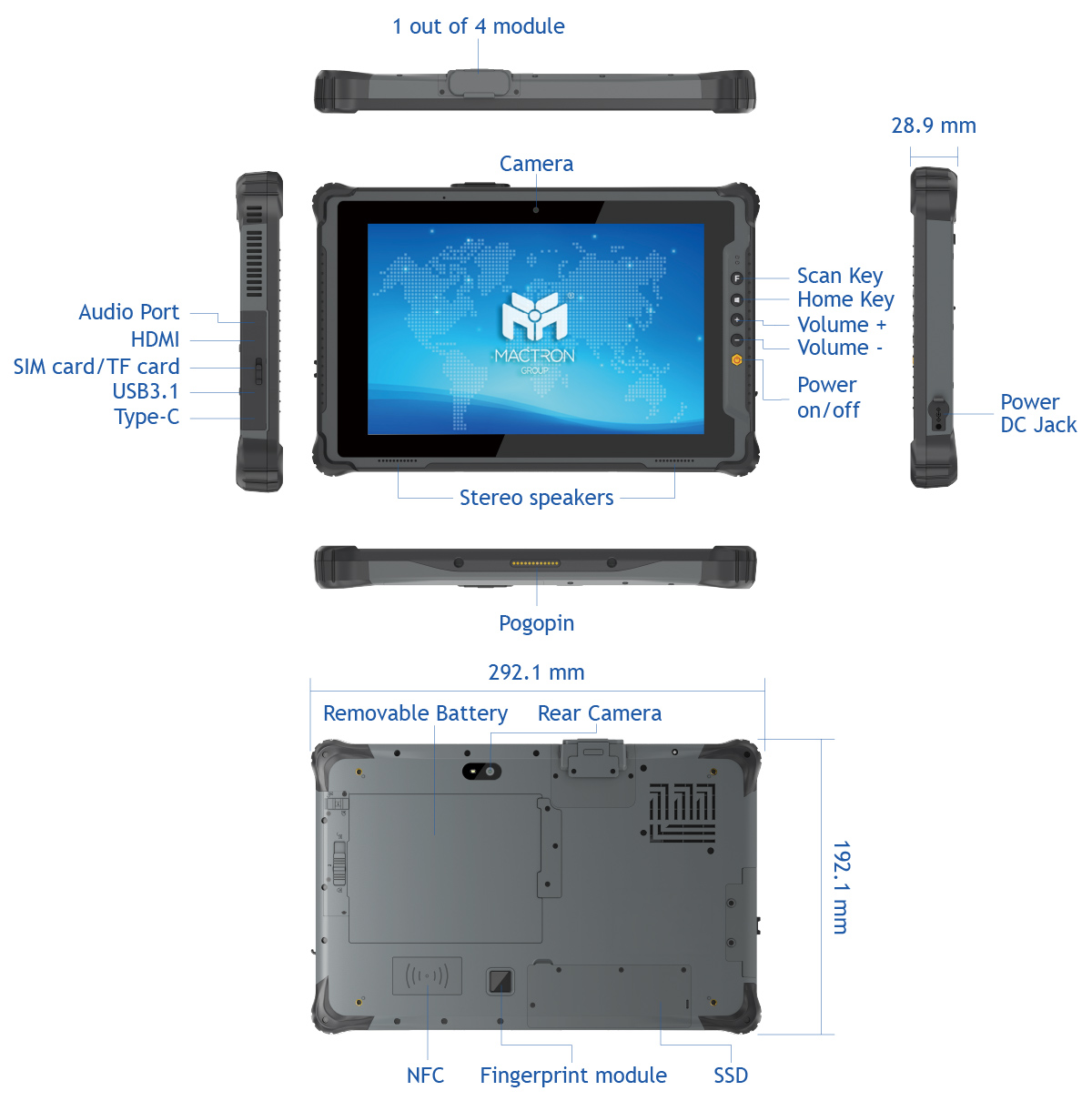

| I/O Ports |

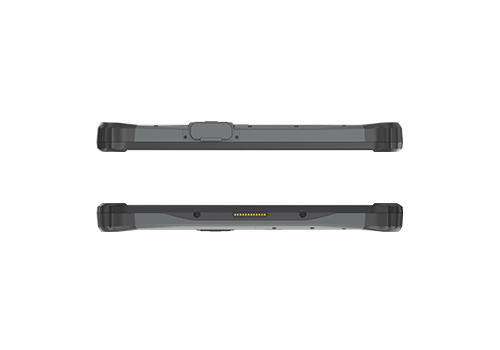

USB 3.1 Type-A x1 USB 3.0 Type-C x1 (Full Function Support) TF Card x1 Max: 128GB mini HDMI ( HDMI2.1a ) x1 5.5mm DC Jack x1 Docking Connector (12-pin Pogo) x1 3.5mm Standard Earjack x1 SIM card slot x1 |
| Expansion Interface |
RJ45 Gigabit Ethernet Port x1/RS232 x1/USB2.0 x1 /Barcode Sanner Module x1 (Choose 1) |
| WiFi | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | Bluetooth® 5.1 Class1 Transmited Distance：10m |
| 4G/5G | 4G LTE (Optional 5G) |
| GPS | GNSS Module (uBlox M7N) Support GPS |
| Data Collection |
Barcode Scanner Module (Optional) NFC Module (Optional) Fingerprint Module |
| Physical | |
| Camera |
Front 5.0MP Rear 8.0MP |
| Audio |
1W Speaker x1 Microphone x1 |
| Color | Gray |
| Dimension | 292.1 mm (L) × 192.1 mm (W) × 23.8 mm (H) |
| Weight | 1.29 kg |
| Buttons |
Power x1 Volume Key + x1 Volume Key - x1 Windows Home x1 F Key x1 (Barcode Scanning, Customizable without barcode) |
| Sensors | G-Sensor |
| Fan | IPX5 Fan x1 |

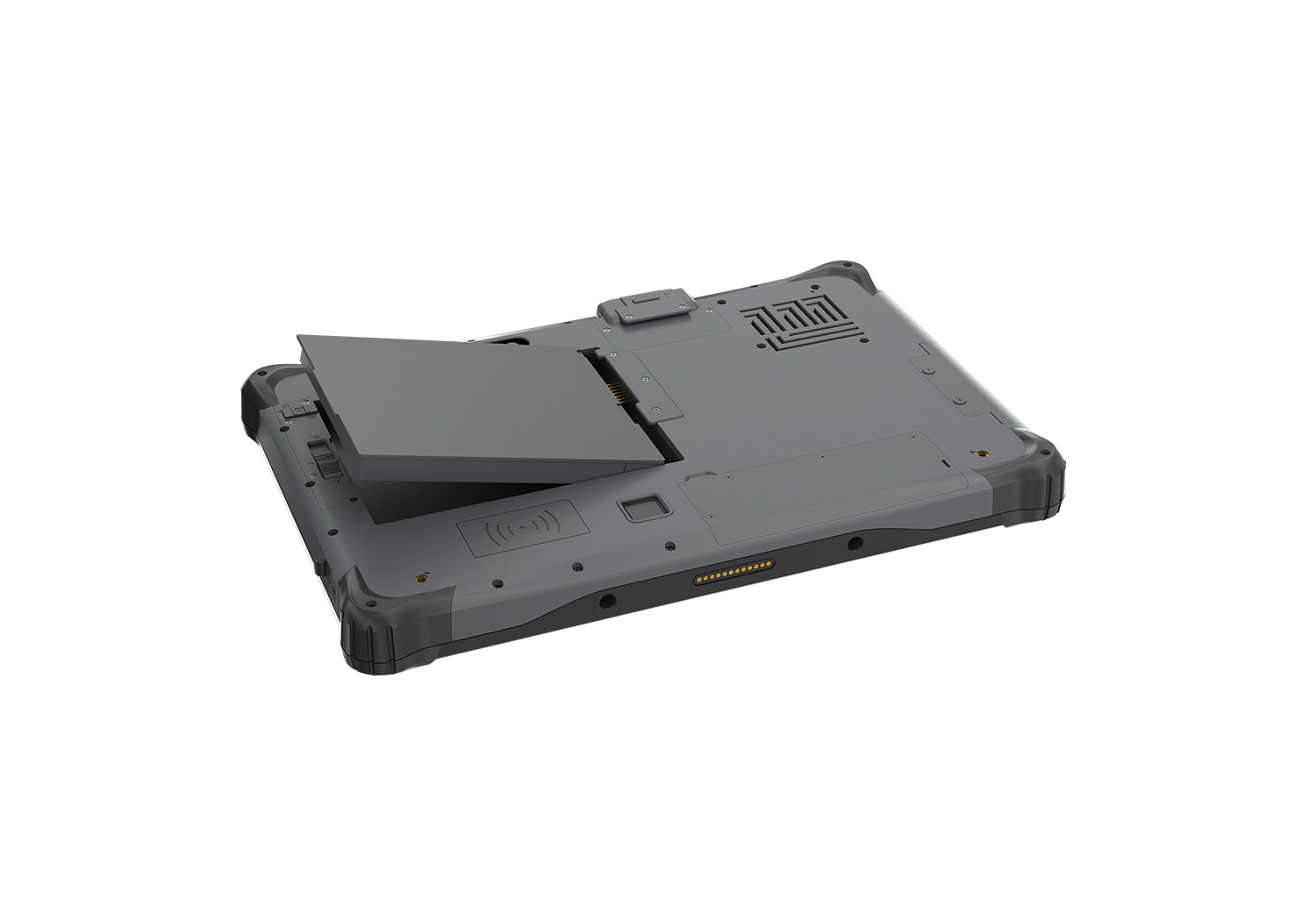

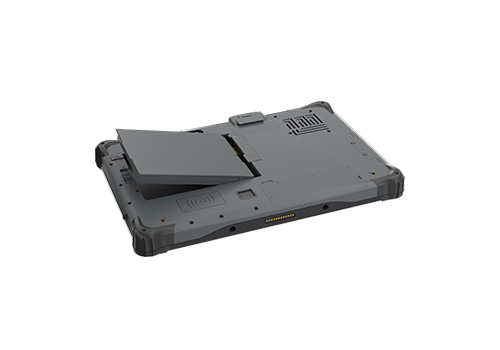

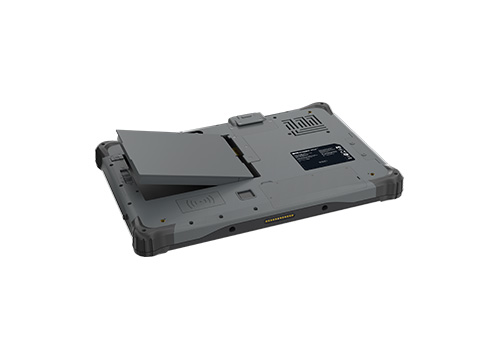

| Main Battery |
Removable Li-polyment Battery 7.4V/5000mAh 6.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Sub Battery | Build in Lithium-Ion Polymer Battery,Non-Removable 7.4V/860 mAh |
| Power Adapter | AC adapter : AC100V ~ 240V, 19V 3.42A/65W Output |
| Standard Accessory |
19V-3.42A, DC interface Power Adapter x1 Hand-Strap x1 |
| Optional Accessory |
Removable Battery Power Adapter Docking Station Mounting Holder |
| Packing List | |
| Accessories | 19V-3.42A, DC interface Power Adapter x1 |
| Product Dimension | 292.1 mm (L) × 192.1 mm (W) × 23.8 mm (H) |
| Product Weight | 1.29 kg |
| Box Dimension | TBD |
| Box Weight | TBD |
| Environment | |
| IP Rating | IP65 |
| Drop Test | 1.2m Drop Resistance |
| Certification | CE,CCC / MIL-STD-810H |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
