MAS1015

Windows Base, Slim Version, Rugged Mobile Tablet PC

  • 10.1" high bright screen

  • Support Windows 10

  • Support NXP NFC(13.56M)

  • Support GPS navigation

  • Rugged IP65 protection level

  • Support high strength Glass Touch Panel

  • Support Wrist Strap

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAS1015 10.1" Rugged Tablet
Windows Base, Intel Cherry Trail X5-Z8350

IP65 Dust & Water Proof
This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

Slim & Lightweight Rugged Tablet
You can carry this tablet easily for various environment

10000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 6hrs  (Default 50% volume, default 200nit, play 1080HD video)

Display
Display Type10.1" IPS TFT LCD
Resolution1280 x 800
Brightness 400nit
Touch screen type 10 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPU Intel Cherry Trail X5-Z8350, 1.44GHz
GPU Intel HD Graphic (Gen7)
RAM 2 GB LPDDR3
ROM 32 GB
Network 802.11 a/b/g/n/ac (2.4G/5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class 1, transmission distance: 10m
4G

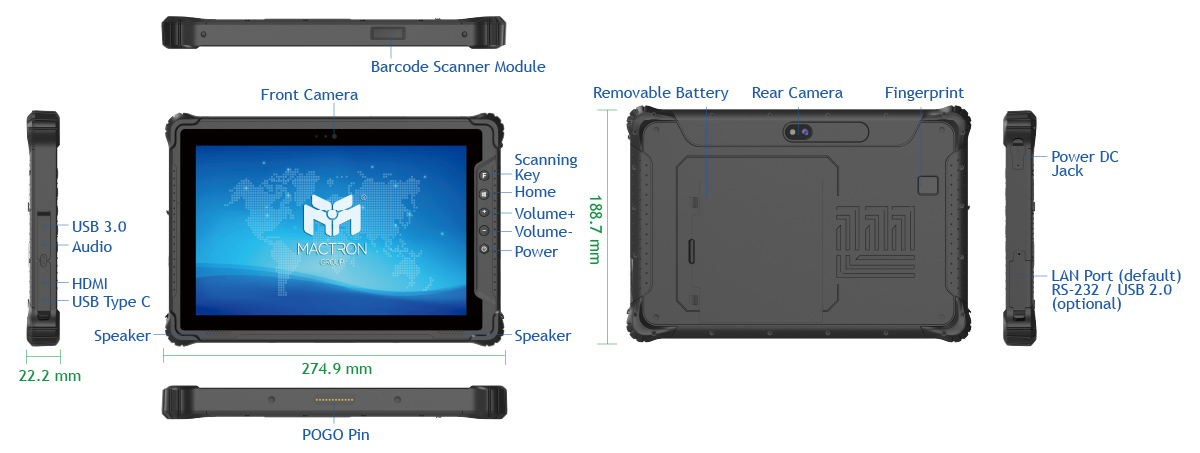

IO Ports 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 3.0 Type B
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
Application NFC
GPS & Glonass
Operation System Windows 10 (Optional)
Physical
Camera Front: 2.0MP camera; Rear: 5.0MP camera
Speaker 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic Sensitivity: -42db, output resistance:2.2kΩ (Built-in)
Sensor G-sensor
Power Adapter AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery 10000mAh/3.7V (Built-in)
Using time 6hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature IP65, 1.0m drops
Operating Temperature -10°C ~ 50°C
Storage Temperature -30°C ~ 70°C
Humidity 95% non-condensing
Dimensions 268mm x 178mm x 14mm
Weight 900g
