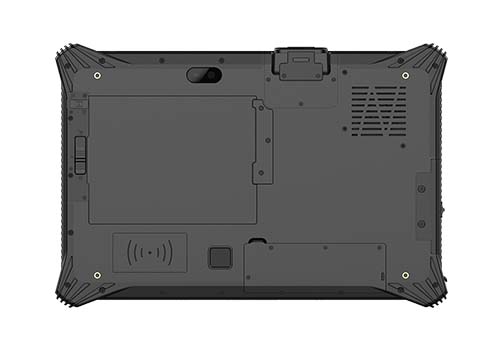

MAS1019

Windows Base, Rugged Mobile Tablet PC

  • Support for Windows 10 system

  • Integrated 4G all network communication, WiFi, Bluetooth and other communication modes

  • Support Hot Swap

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Beidou, GLONASS, more accurate positioning

  • Support 8 million pixel auto focus camera, easy to collect images and video information

  • Support 1D/2D, NFC and other functional modules for free selection

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

Display
Display Type10.1" IPS TFT LCD
Resolution1920 x 1200
Brightness330nit
Touch screen type10 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPUIntel Core i7-8550U
GPUIntel HD Graphics 620
RAM16 GB LPDDR4
ROM128 GB
Network802.11 a/b/g/n/ac (2.4G/5.8G dual band WiFi)
Bluetooth 4.2 (BLE) class 1, transmission distance: 10m
4G
IO Ports1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x USB 3.0
1 x USB 2.0 Type C
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
1 x 12pin POGO pin
Application NFC
GPS & Glonass
1D Barcode scanner, 2D Barcode scanner, RJ45, DB9, USB2.0 (5 choose 1, Optional)
Fingerprint (Optional)
Operation System Windows 10 (Optional)
Physical
CameraFront: 2.0MP camera; Rear: 8.0 MP camera
Speaker2 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
MicSensitivity:-42db, output resistance:2.2kΩ (Built-in)
SensorG-sensor
Power AdapterAC100V ~ 240V, 50Hz/60Hz, output DC 19V/3.42A
Battery2000mAh/7.4V (Built-in); 5000mAh/7.4V (Removable)
Using time5hrs (Default 50%volume, default 200nit, play 1080 HD video)
Rugged FeatureIP65, 1.22m drops
Operating Temperature-10°C ~ 50°C
Storage Temperature-30°C ~ 70°C
Humidity95% non-condensing
Dimensions290mm x 196mm x 22mm
Weight1300g
