MAS1227

12.2″ Automation Rugged Windows Mobile Tablet PC

  • 12.2″ Windows System

  • Intel® Celeron® N5100 Processor

  • Dual Capacity Battery Design

  • Support 4G LTE, NFC Module

  • Support Optional Barcode Scanner

  • Support GNSS, Wi-Fi 5, Bluetooth 5.0

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

MAS1227 12.2" Rugged Tablet
Windows Base, Intel Jasper Lake N5100

IP65 Dust & Water Proof
This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

10,000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
*9hrs (default 50% volume,default200nit,play 1080P HD video)

Full Range of Data Collection Functions

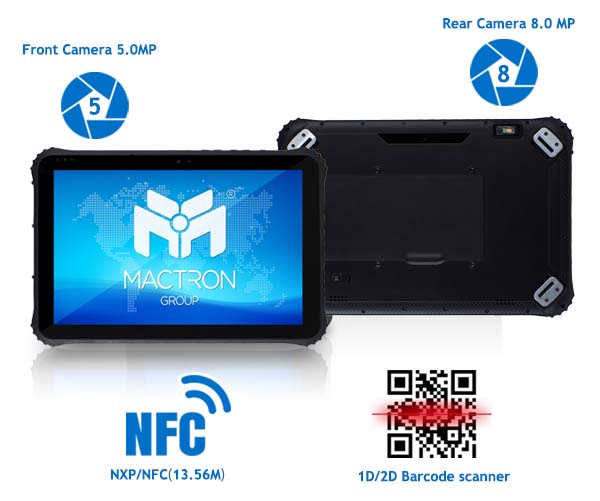

NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0 MP

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/Back Strap/ Keyboard

Display
Display Type12.2″ IPS TFT LCD
Resolution1920 x 1200
Aspect Ratio16:9
Brightness280 nit
Touch Panel10 Points Projected Capacitive Touch
System
ProcessorIntel® Celeron® N5100 Quad Core
GPUIntel® UHD Graphics
MemoryLPDDR4 8 GB
Storage128 GB eMMC

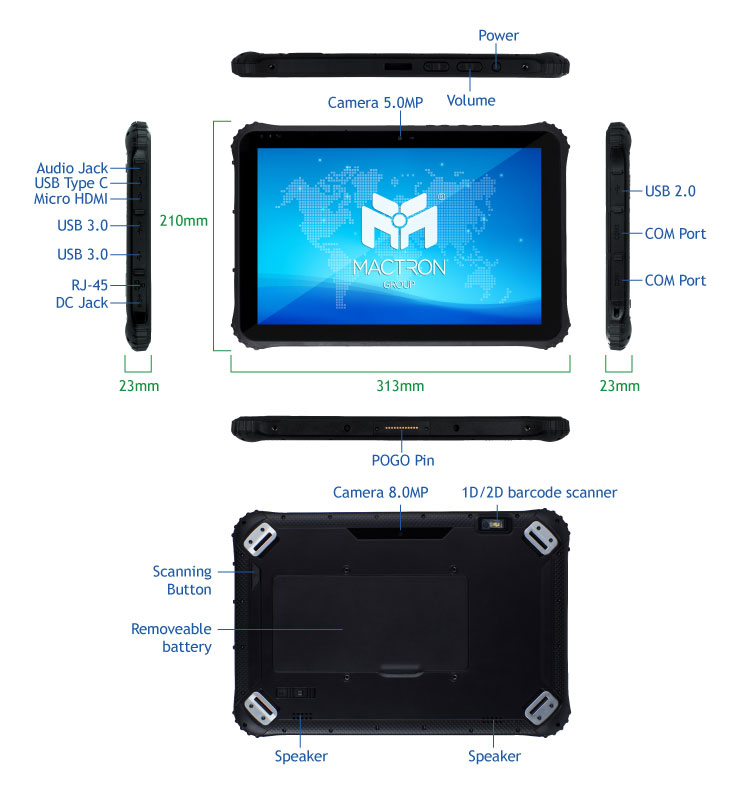

I/O Ports1 x USB 2.0 Type A
2 x USB 3.0 Type A
1 x USB Type C
1 x LAN
1 x HDMI 1.4a Type C
1 x COM (RS232)
1 x COM (RS485)
1 x 3.5mm standard earphone jack
1 x TF slot (Max.128GB) (SDHC/SDXC)
1 x SIM slot
1 x DC jack
1 x 12pin POGO pin
Operating SystemWindows 11
Physical
CameraFront Camera : 5.0 MP
Rear Camera : 8.0 MP
Speaker2 x 0.8W
ColorBlack
Dimensions (WxHxD)319.6 x 216 x 24.3 mm
Weight1500 g
Button1 x Power On/Off
1 x Volume +
1 x Volume -
1 x Scanning
1 x Custom
SensorG-sensor
Battery1000mAh/7.4V (Built-in); 6300mAh/7.4V (Removable)
Using Time9 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
Power Adapter19 V/3.42 A
CommunicationWLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz
WWAN - 4G
Bluetooth 5.0
GNSS - GPS, Glonass
Data CollectionNFC
Barcode Scanner
Standard Accessory1 x Hand Strap
1 x Power Cable
Environment
IP RatingIP65
Drop Test1.22 m
CertificationMIL-STD-810G
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Relative Humidity95% (non-condensing)
Warranty2 Years

Optional

Docking Station
ADOCK27
Docking Station
Removable Battery
ABAT227
Removable Battery
Mounting Holder for MAS1227
ACARM27
Mounting Holder
Adapter 19 V/3.42 A
ADA19D1
Adapter 19 V/3.42 A
DC In 4mm
