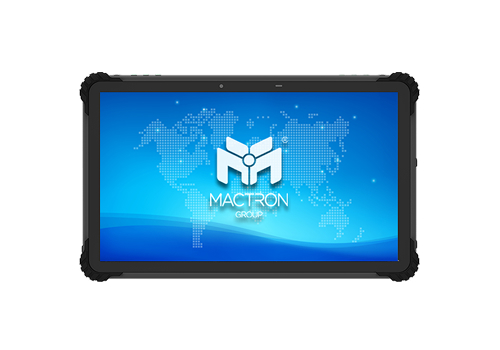

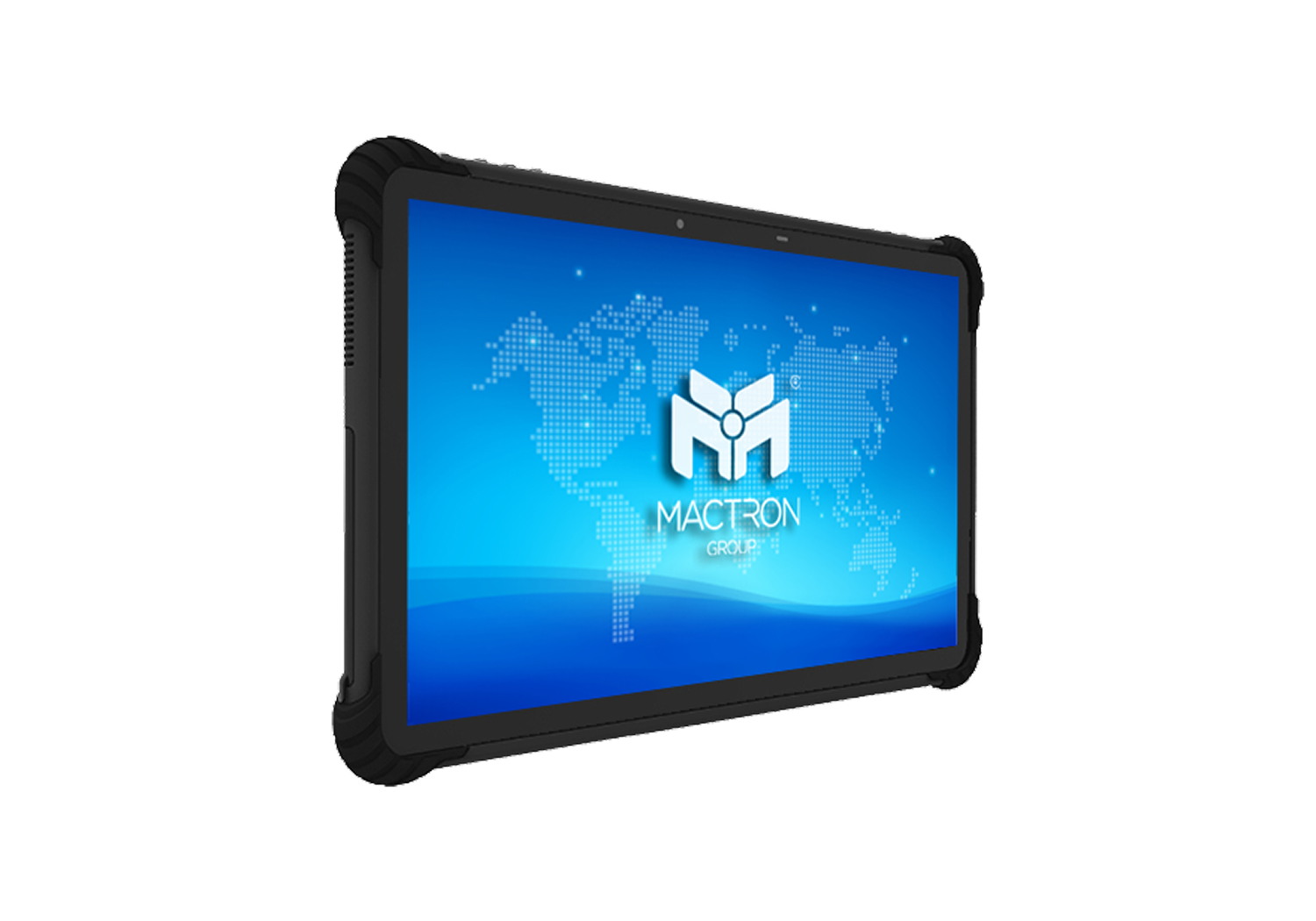

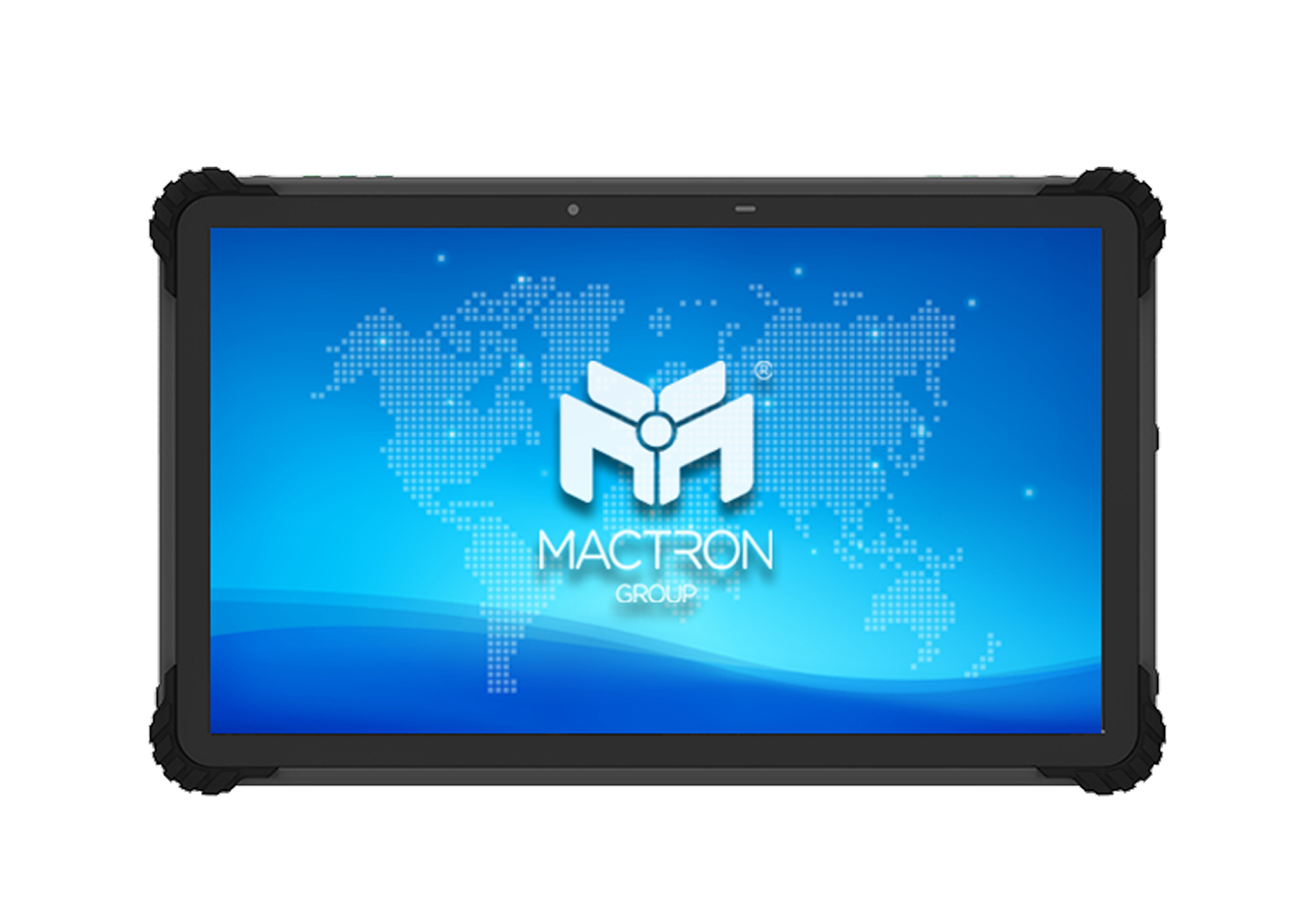

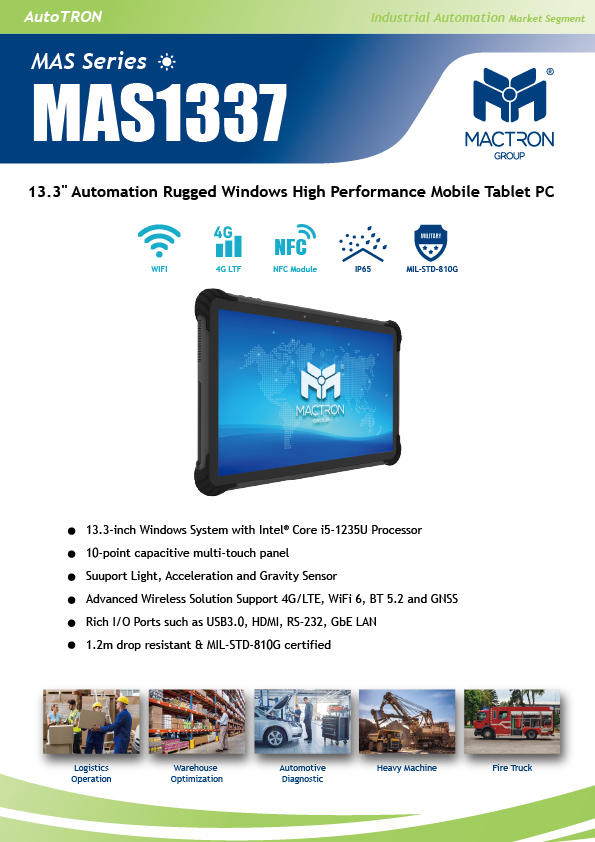

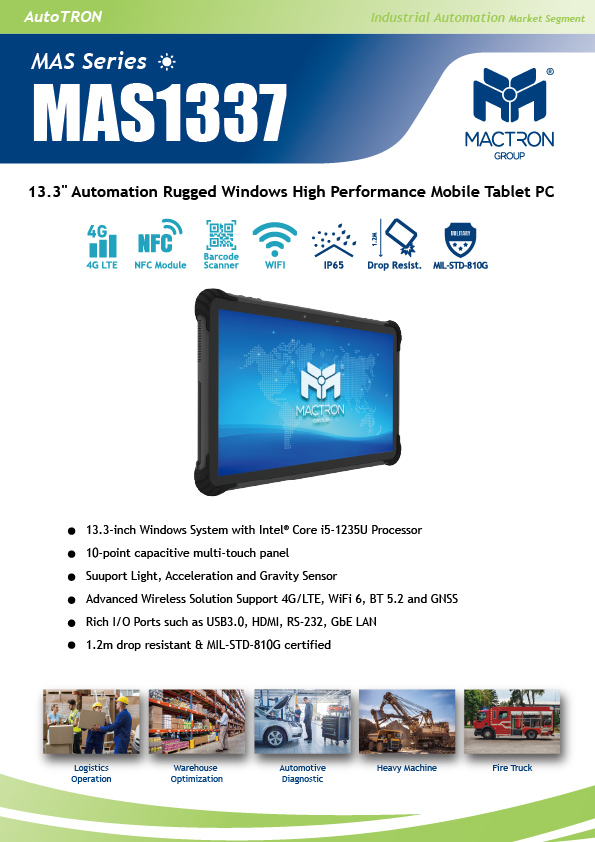

13.3-inch Windows System with Intel® Core i5-1235U Processor
10-point capacitive multi-touch panel
Support Light, Acceleration and Gravity Sensor
Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS
Rich I/O Ports such as USB3.0, HDMI, RS-232, GbE LAN
1.2m drop resistant & MIL-STD-810G certified
Logistics Operation, Warehouse Optimization, Automotive Diagnostic, Heavy Machine, Fire Truck
| Display | |
|---|---|
| Display Type | 13.3" IPS LCD |
| Resolution | 1080 x 1920 |
| Brightness | 450 nits |
| Touch Panel | 10-points Capacitive multi-touch screen |
| System | |
| CPU | Intel® Core™ i5-1235U Processor |
| Intel® Core™ i7-1255U processor (Optional) | |
| GPU | Intel® Iris® Xe Graphics |
| Memory | LPDDR5 x 16GB |
| Storage | 256GB/ (Optional 512GB) |
| Operating System | Windows® 10 IoT Enterprise(LTSC), Windows® 11 IoT Enterprise(GAC) |

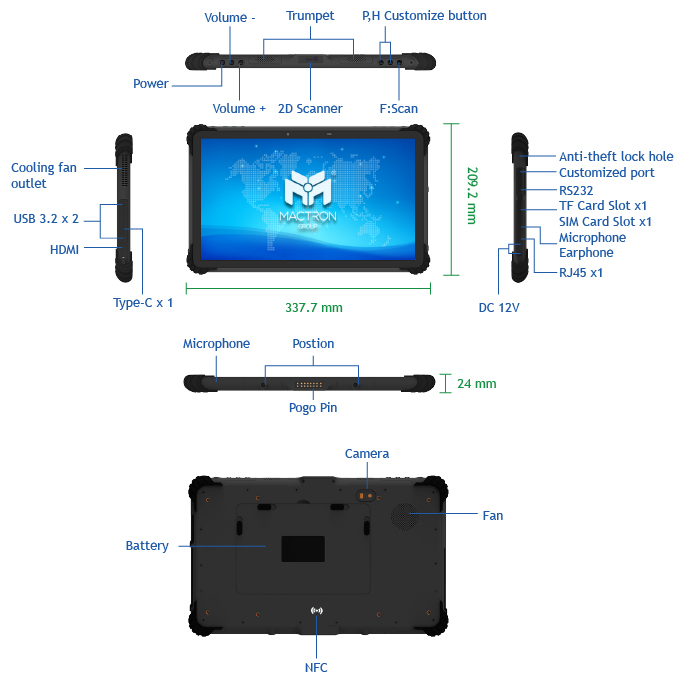

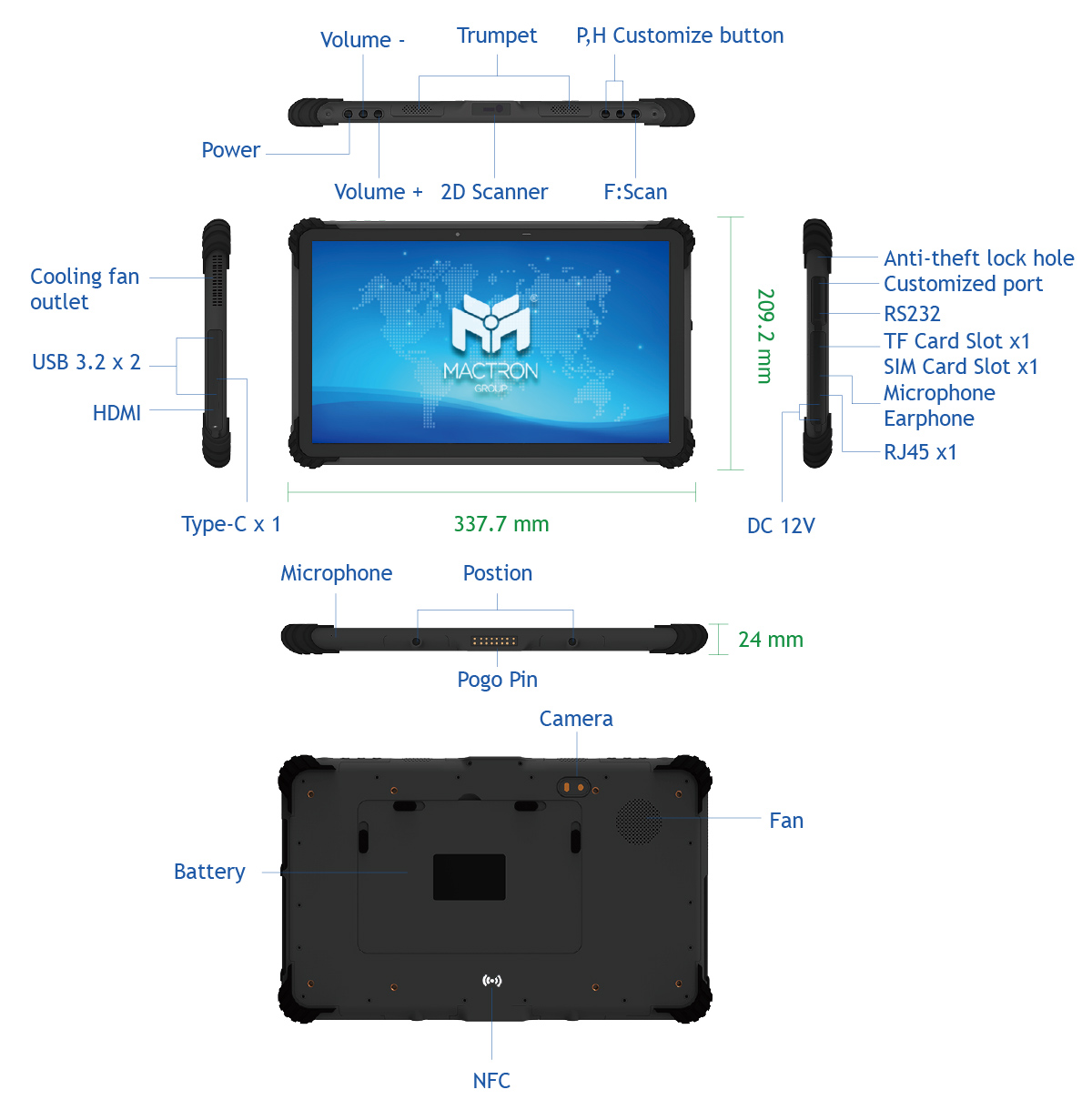

| I/O Ports | 1 x HDMI Type-A |
| 1 x USB 3.2 Type A | |
| 1 x Type-C (Support fast charging) | |
| 1 x Aviation interface: customized interface & RS232 (RS232 not fully functional, only TX RX GND) | |
| Card slot: SIM card slot+TF card slot | |
| 1 x Headphone Jack (3.5mm standard headphone interface) | |
| 1 x GbE RJ45 | |
| 1 x DC-In jack (4.0mm) | |
| 1 x Anti-theft lock hole | |

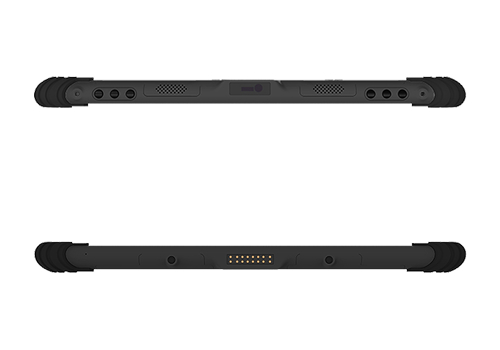

| 1 x 16-pin Pogo Pin | |
| WiFi | Intel® Wi-Fi 6 AX201 (802.11 ax) |
| Bluetooth | Bluetooth® 5.2 |
| 4G/5G | 4G LTE |
| GPS | GPS, BDS, GLONASS |
| Data Collection | NFC Module (13.56 MHz, Distance: 1-3cm) |
| Barcode Scanner Module | |
| Physical | |
| Camera | 5.0 MP front-facing camera 8.0 MP rear camera |
| Audio | 2 x 8Ω /0.8W |
| Color | Black |
| Dimension | 330 mm (L) x 205 mm (W) x 19.5 mm (H) |
| Weight | 1450g |
| Button | 1 x Power |
| 1 x Volume + | |
| 1 x Volume - | |
| 2 x User-definable Key (P&H) | |
| '"F" for Barcode Scan | |
| Sensors | Light sensor, Acceleration sensor, Gravity sensor |
| Battery | 7.6V/8000mAh |
| Power Adapter | USB Type-C Power Adapter (12V/3A) |
| Standard Accessory | 1 x Power Adapter |
| 1 x Carry strap | |
| 1 x Wrist strap | |
| Optional Accessory | Removable Battery: Li-Ion, 7.6V, 6000mAh |
| Packing List | |
| Accessories | 1 x Power Adapter |
| 1 x Carry strap | |
| 1 x Wrist strap | |
| Product Dimension | 330 mm (L) x 205 mm (W) x 19.5 mm (H) |
| Product Weight | 1450g |
| Environment | |
| IP Rating | IP65 |
| Drop Test | 1.2m drop resistance |
| Certification | CE/ FCC/ MIL-STD-810G |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -25°C ~ 80°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
