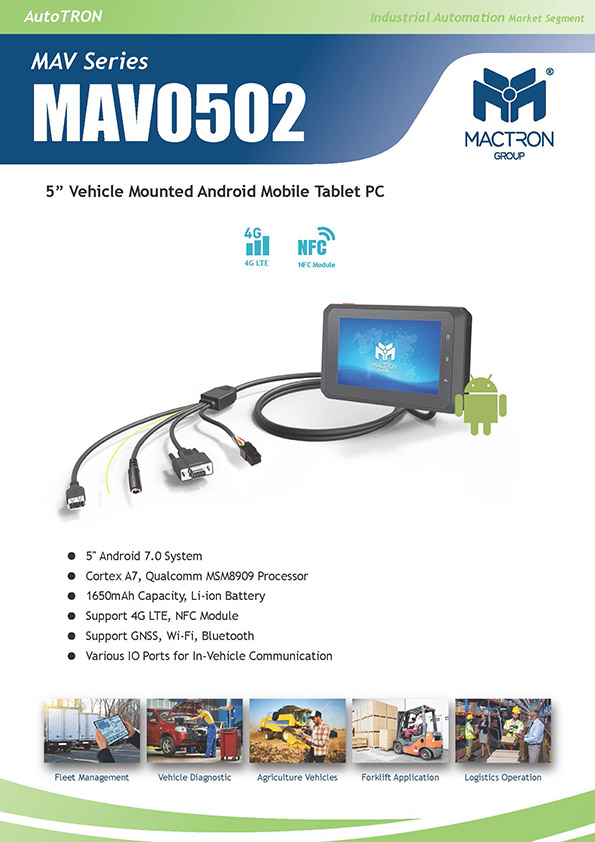

5 inch ARM Base Vehicle Mounted Android Mobile Tablet PC

“For Your Unique Android In-Vehicle Applications”
MACTRON GROUP’s (MTG) 5 Inch MAV0502 is the Vehicle Mounted Mobile Tablet PC which is designed to fit seamlessly into forklifts and other warehouse vehicles to help minimize errors, streamline ordering and inventory management, and improve operational efficiencies.
Android platform allows for the fast development of a variety of customized applications to satisfy In-Vehicle application needs.

  • 5" Android 7 System
  • Cortex A7, Qualcomm MSM8909 Processor
  • 1650mAh Capacity Battery
  • Support 4G LTE, NFC Module
  • Support GNSS, Wi-Fi, Bluetooth
  • Support All-In-One Cable


Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

Other MAV Series == Back to MTP

Ready for Fleets
RS232 and GPIO supported & Built-in GNSS and NFC facilitate driver identification and vehicle tracking.
Ready for Fleets
All-terrain Android Mobile Tablet PC
Equipped with Qualcomm MSM8909 Processor.
MAV0502 is a reliable and productive daily workhorse!
All-terrain Android Mobile Tablet PC
The Ultimate in Mobility
Weighing at just 450g for lightweight mobility. It is Ready to go Anytime, Anywhere.
The Ultimate in Mobility
Display Type5" TFT LCD
Resolution854 x 480
Brightness300 Nits
Touch Panel5 Points Projected Capacitive Touch Panel
CPUQualcomm MSM8909 Cortex-A7 32-bit Quad-core processor, 1.1GHz
Memory2GB LPDDR3
Storage16GB eMMC
OS SupportAndroid 7
CommunicationWWAN: 4G LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
WLAN: IEEE 802.11a/b/g/n; 2.4GHz/5GHz
Bluetooth 4.2

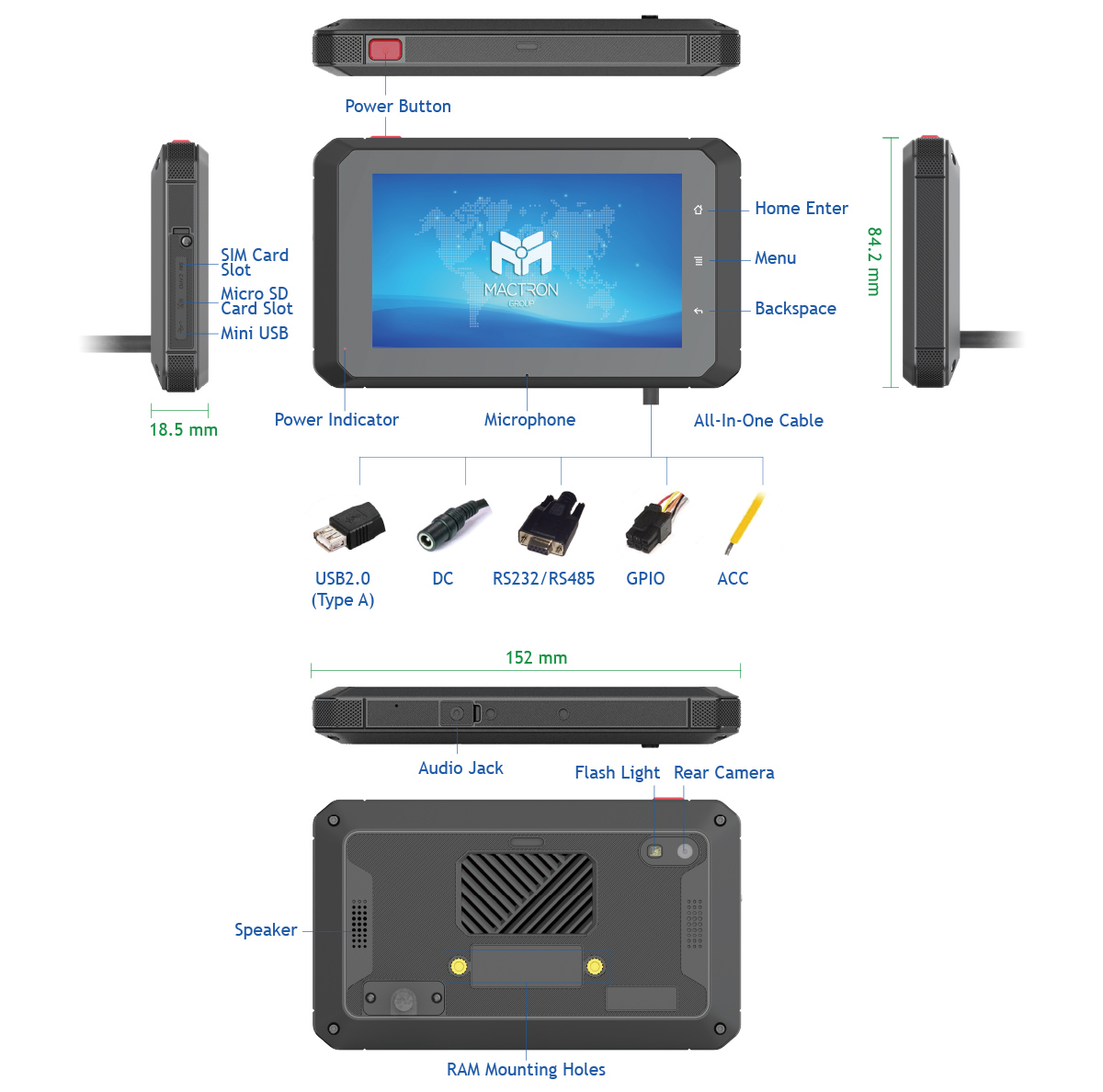

IO Ports1 x Audio Jack
1 x Mini USB (for data transfer; supports OTG)
1 x Micro SD Card Slot (Max. 64GB)
1 x Sim Card Slot
1 x DC-in Jack (On All-In-One Cable)
1 x ACC (On All-In-One Cable)
1 x RS232 (On All-In-One Cable)
1 x RS485 (On All-In-One Cable)
1 x GPIO (On All-In-One Cable)
1 x USB 2.0 Type A (On All-In-One Cable)
Audio1 x Built-In Speaker (1 Watt)
1 x Built-in Microphone
SensorAcceleration sensor, Ambient light sensor, Compass
CameraRear: 8MP Camera with LED Light
ModuleNFC Module (Built-In)
Battery3.7V, 1650mAh, Li-ion Battery
Operating TimeAbout 3.5hr (Depending on User Behavior/ Environment)
Power InputDC 8-36V (ISO 7637-II-compliant)
Power AdapterDC 12V/2A
Packing List
Standard Accessory1 x Mini USB Cable
1 x Power Adapter (12V/2A)
Product Dimension152 x 84.2 x 18.5 mm
Product Weight450g
Box Dimension205 x 165 x75 mm
Box Weight700g
Operating Temperature-10°C to 65°C (14°F~149°F) ; 0°C to 55°C (32°F~131°F) (Charging)
Storage Temperature-20°C to 70°C

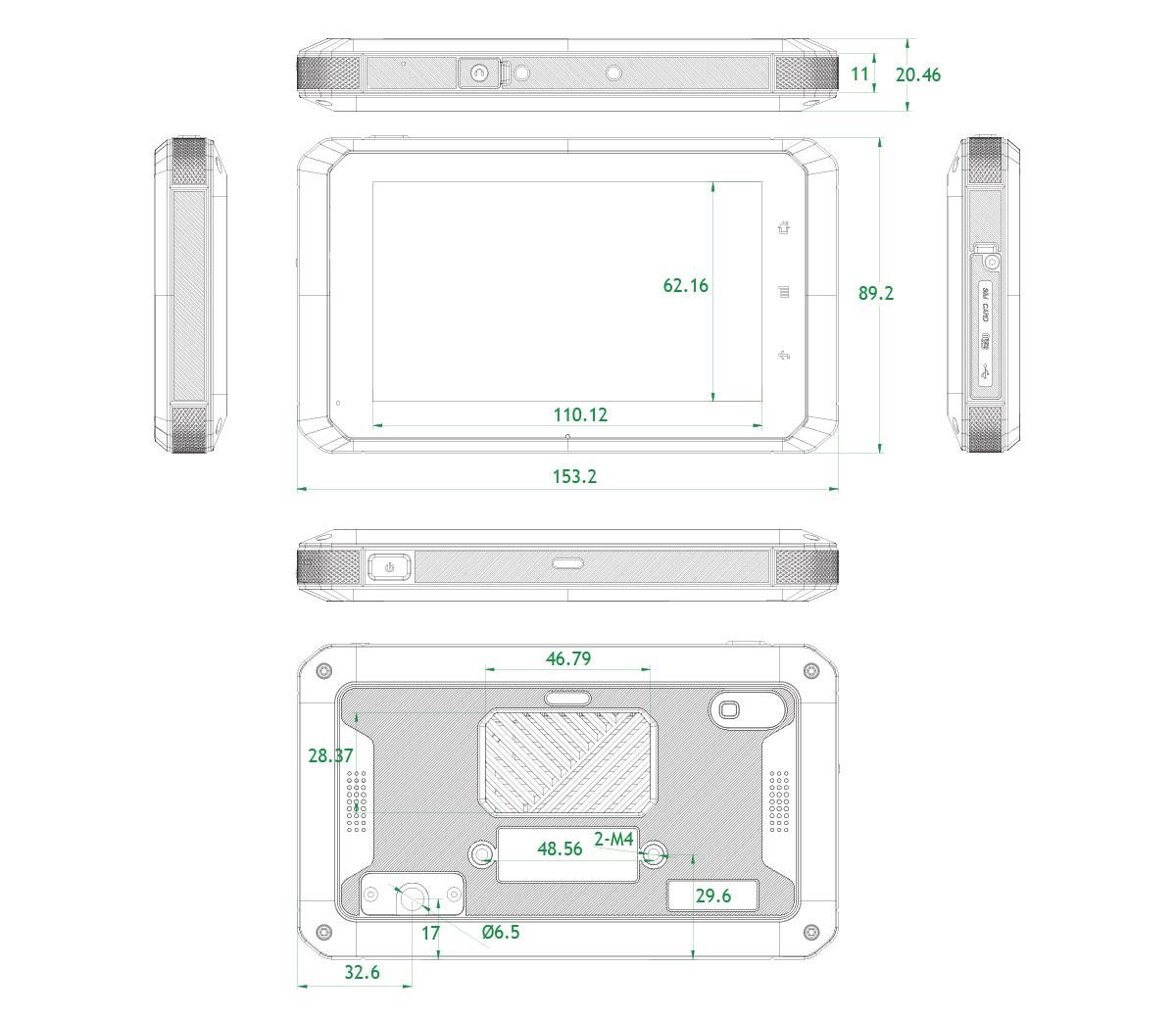

Unit: mm

Standard Accessory

USB Type-C Cable
USB Type-C Cable
RAM Screws
RAM Screws (M4 x 9mm)
Power Adapter (12V/3A)
Power Adapter (12V/2A)

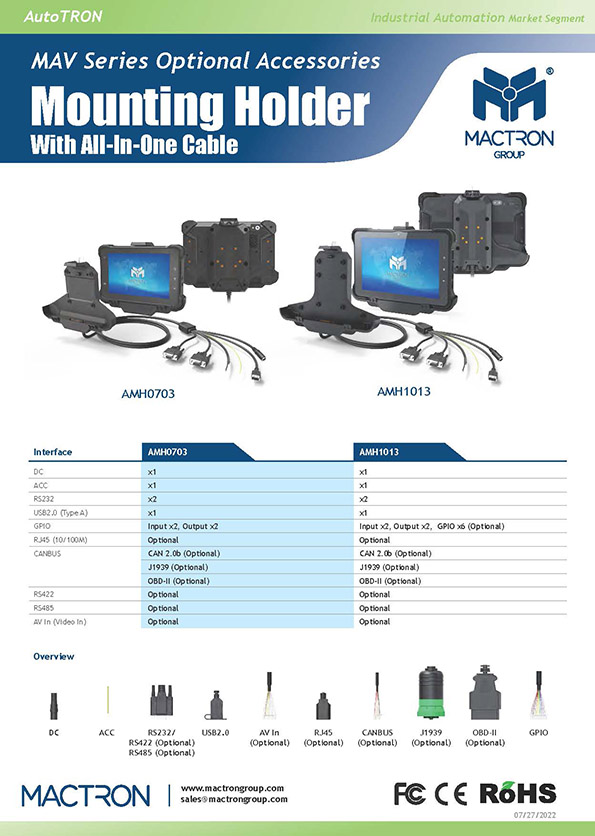

Optional Accessory

Ball RAM Mounting Kit 9CM
Ball RAM Mounting Kit 9CM
Vehicle  Charger (12V/2A)
Vehicle Charger (12V/2A)
