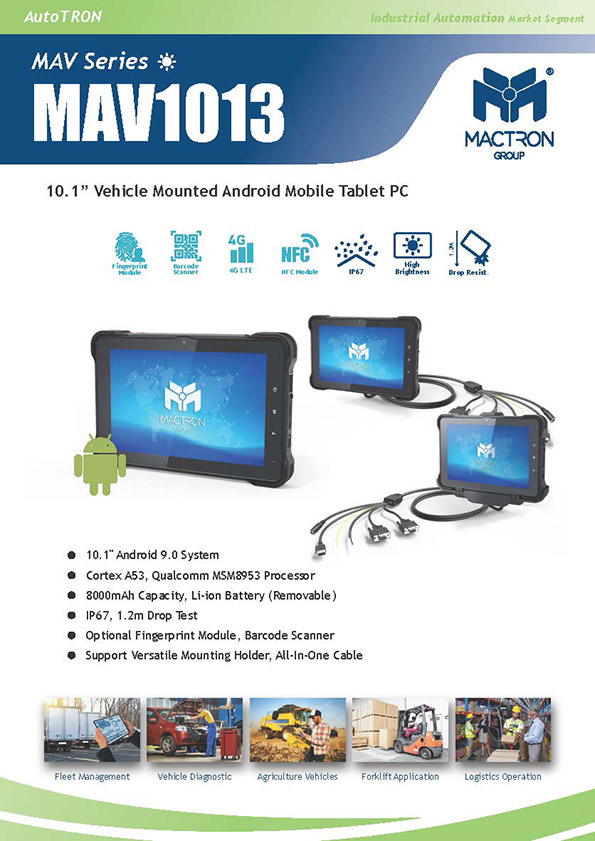

MAV1013

10.1” Vehicle Mounted Android Mobile Tablet PC

  • 10.1" Android 9.0 System
  • Cortex A53, Qualcomm MSM8953 Processor
  • 8000mAh Capacity Removable Battery
  • IP67 Certified & 1.2m Drop Test
  • Support Fingerprint Module, Barcode Scanner
  • Support Versatile Mounting Holder, All-In-One Cable

Applications:

Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

Ready for Fleets
MAV1013 is integrated with 4G LTE, NFC, Fingerprint and Barcode Scanner.
Excellent On-the-go connectivity to keep you up to speed and connect with various IoT devices.
Ready for Fleets
All-terrain Android Mobile Tablet PC
Equipped with Qualcomm MSM8953 Octa-core high-performance processor
Rugged Features with IP67 Rating & MIL-STD 810G certified. MAV1013 is a reliable and productive daily workhorse!
All-terrain Android Mobile Tablet PC
Underline the Visibility of Outdoor
1000 Nits High Brightness Display Gives Crystal-Clear Visibility.
Collecting data in bright sunlight is just as easy as reviewing it indoors.
Underline the Visibility of Outdoor
Versatile Mounting Holder & AII-In-One Cable
Different Configurations for Deployment
Comprehensive Cables for In-Vehicle Applications
Versatile Mounting Holder & AII-In-One Cable
Display
Display Type10.1” IPS LCD
Resolution1280 x 800
Brightness1000 Nits
Touch Panel5 Points Projected Capacitive Touch Panel
System
CPUQualcomm MSM8953 Cortex-A53 64-bit Octa-core processor, 1.8GHz
Memory4GB LPDDR3
Storage64GB eMMC
OS SupportAndroid 9.0
CommunicationWWAN: 4G LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz
Bluetooth 4.2
GNSS: GPS, GLONASS
IO Ports1 x DC-in Jack
1 x Audio Jack
1 x USB3.0 Type C (for data transfer; supports OTG)
1x Micro SD Card Slot (Max. 128GB)
1 x Sim Card Slot
1 x Mounting Holder Pogo Pin Connector (24-pin)
1 x DC-in Jack (On All-In-One Cable)
1 x ACC (On All-In-One Cable)
2 x RS232 (On All-In-One Cable)
1 x USB 2.0 Type A (On All-In-One Cable)
1 x GPIO (On All-In-One Cable)
1 x RJ45 (On All-In-One Cable)
1 x CANBUS (On All-In-One Cable)
1 x RS422 (On All-In-One Cable)
1 x RS485 (On All-In-One Cable)
1 x AV In (On All-In-One Cable)
Physical
Audio1x Built-In Speaker (2 Watt)
1 x Built-in Microphone
SensorAcceleration sensor, Ambient light sensor, Gyroscope, Compass
CameraFront: 5MP Camera
Rear: 16MP Camera with LED Light
ModuleNFC Module (Built-In)
Capacitive Fingerprint
Area sensor (Optional)
Barcode Scanner (Optional)
Battery3.7V, 8000mAh, Li-ion Battery (Removable)
Operating TimeAbout 4.5hr (Depending on User Behavior / Environment)
Power InputDC 8-36V (ISO 7637-II-compliant)
Power AdapterDC 12V/3A
Packing List
Standard Accessory1 x USB3.0 Type C
1 x Hand Strap
1 x Power Adapter (12V/3A)
Product Dimension207.4 x 137.4 x 30.1 mm
Product Weight815g
Box Dimension240 x 210 x 125 mm
Box Weight1730g
Environment
Rugged FeatureIP67 certified, MIL-STD 810G certified, 1.5 m drop test
Operating Temperature-10°C to 65°C (14°F~149°F)
0°C to 55°C (32°F~131°F) (Charging)
Storage Temperature-20°C to 70°C

MAV1013


MAV1013 with All-In-One Cable (Optional) / MAV1013 with AMH1013 (Optional)

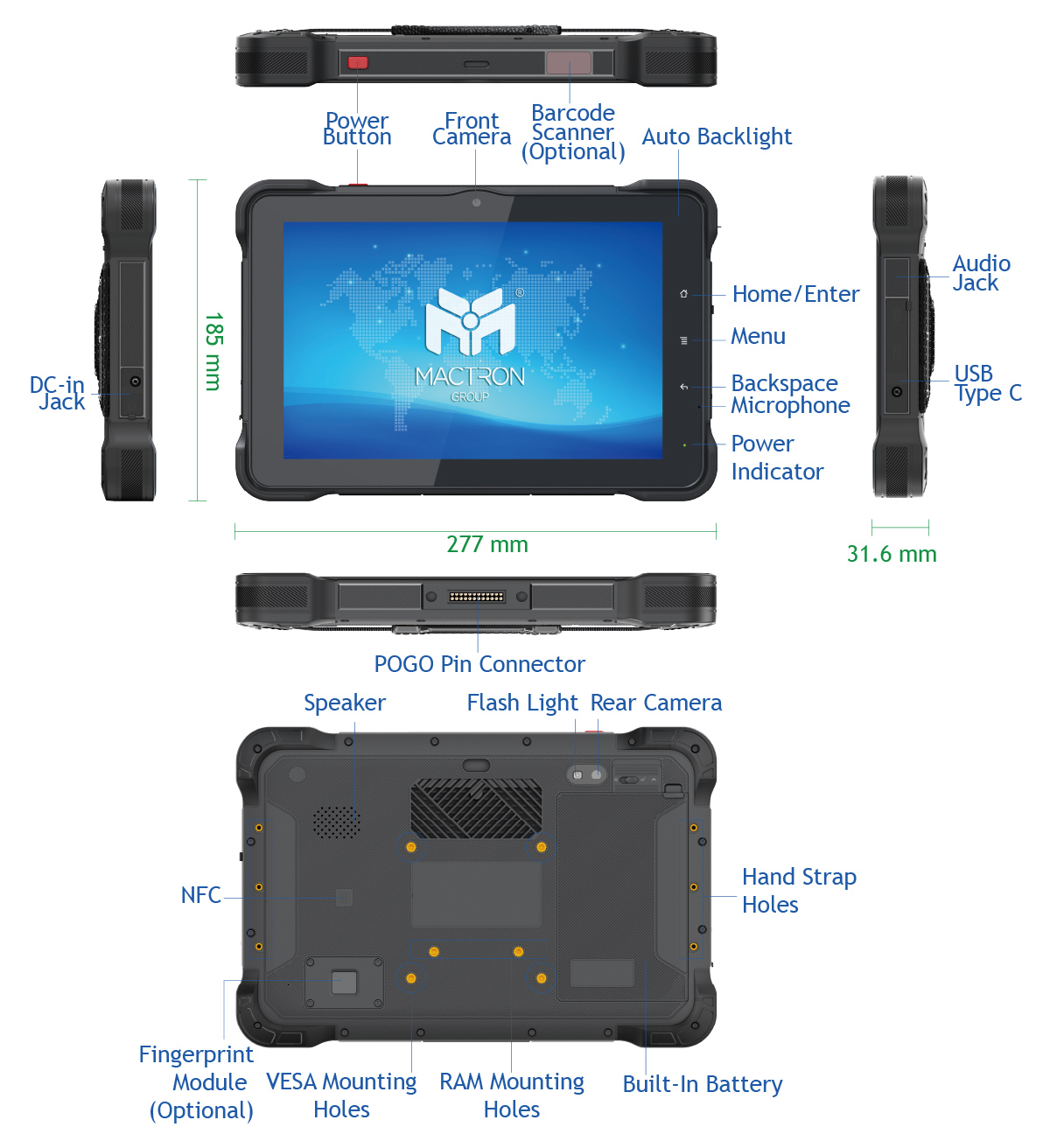

Dimension

Unit: mm

Standard Accessory

USB Type-C Cable
USB Type-C Cable
Allen Wrench
Allen Wrench
RAM Screws
RAM Screws (M4 x 9mm & M4 x 12mm)
Power Adapter (12V/3A)
Power Adapter (12V/3A)
Hand Strap
Hand Strap
Pry Bar
Pry Bar

Optional Accessory

MAV1013 with All-In-One Cable
MAV1013
All-In-One Cable to go with MAV1013

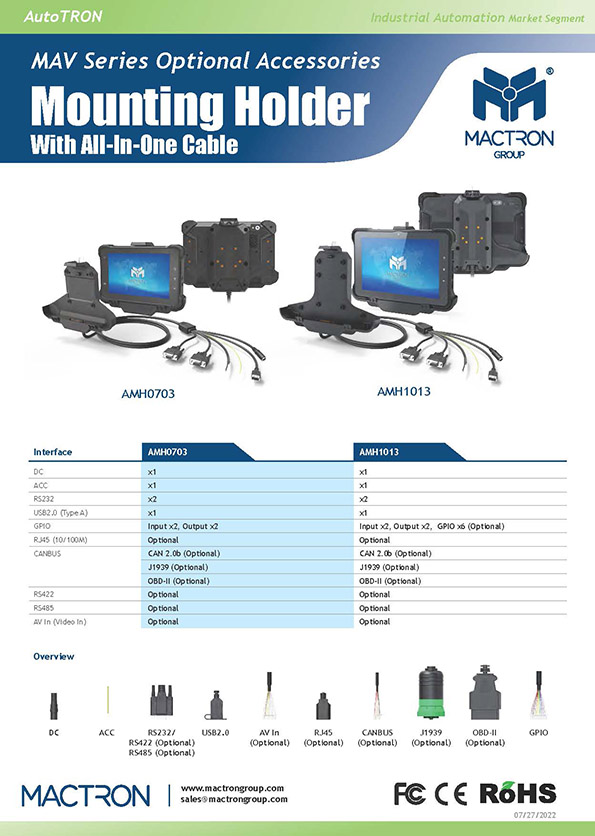

Mounting Holder
AMH1013
Mounting Holder with All-In-One Cable
Ball RAM Mounting Kit 15CM
ABM1510
Ball RAM Mounting Kit 15CM
Vehicle  Charger (12V/3A)
AVC1203
Vehicle Charger (12V/3A)
