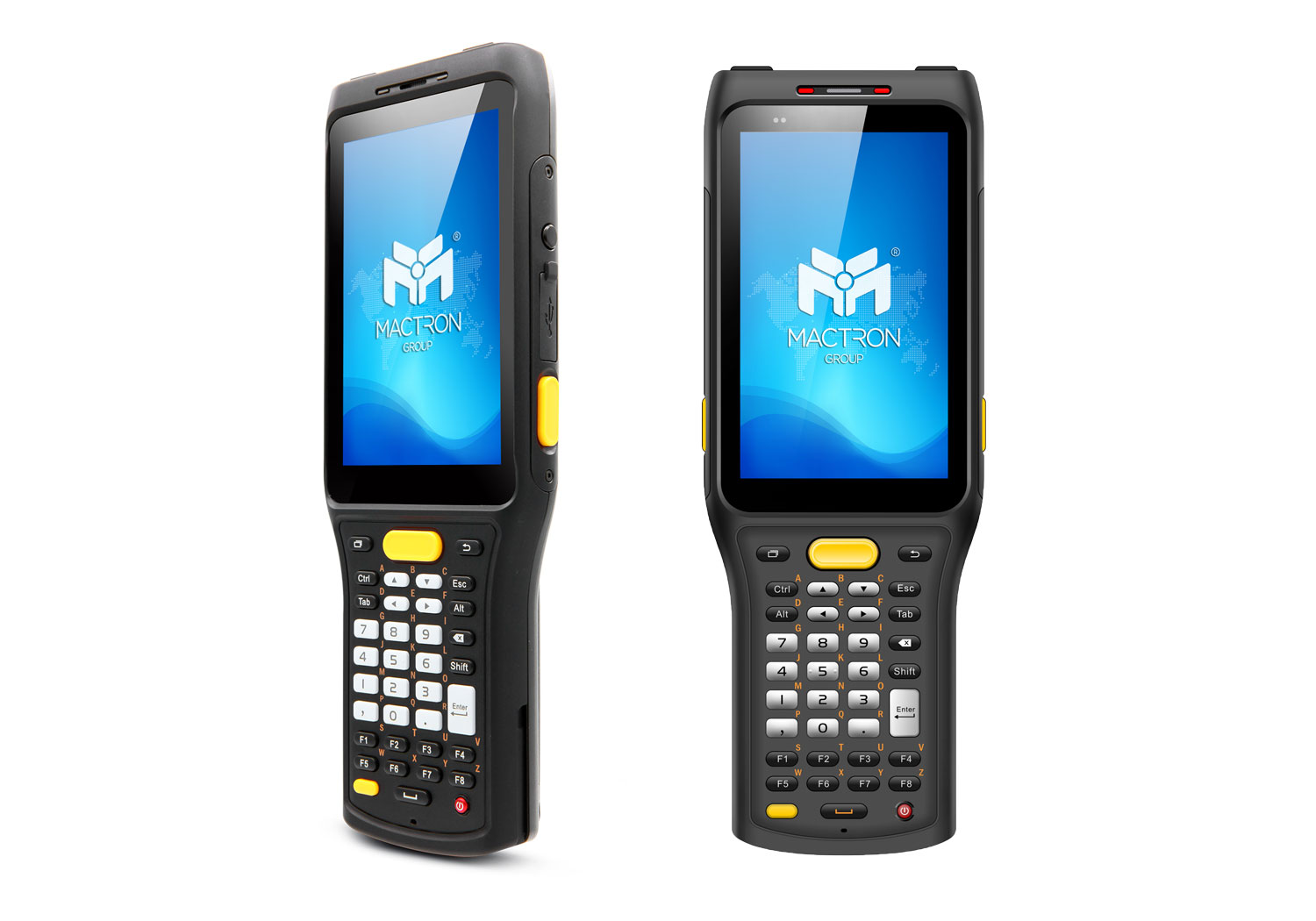

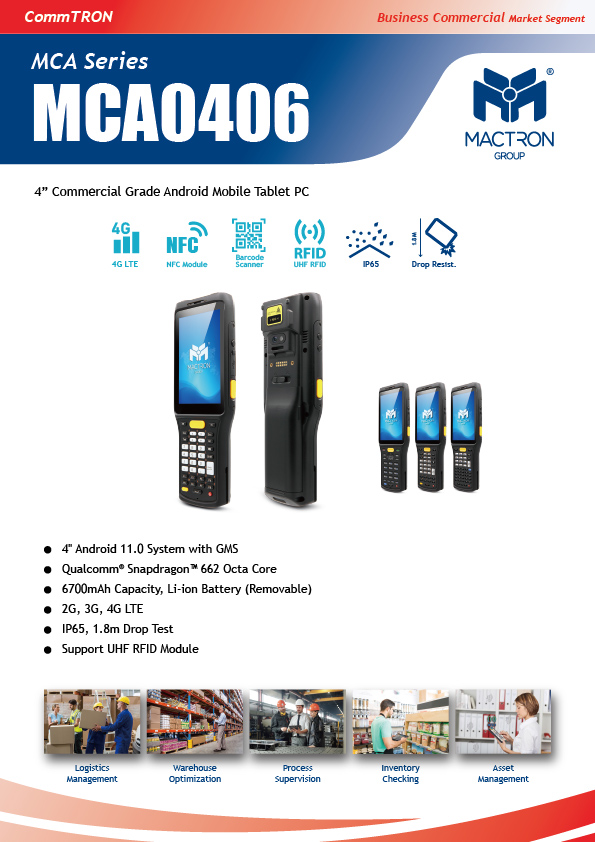

MCA0406

4” Commercial Grade Android Mobile Tablet PC

Android Mobile Tablet PC Android Mobile Tablet PC Android Mobile Tablet PC Android Mobile Tablet PC
  • 4" Android 11.0 System with GMS

  • Qualcomm® Snapdragon™ 662 Octa Core

  • 6700mAh Capacity, Li-ion Battery (Removable)

  • 2G, 3G, 4G LTE

  • IP65, 1.8m Drop Test

  • Support UHF RFID Module

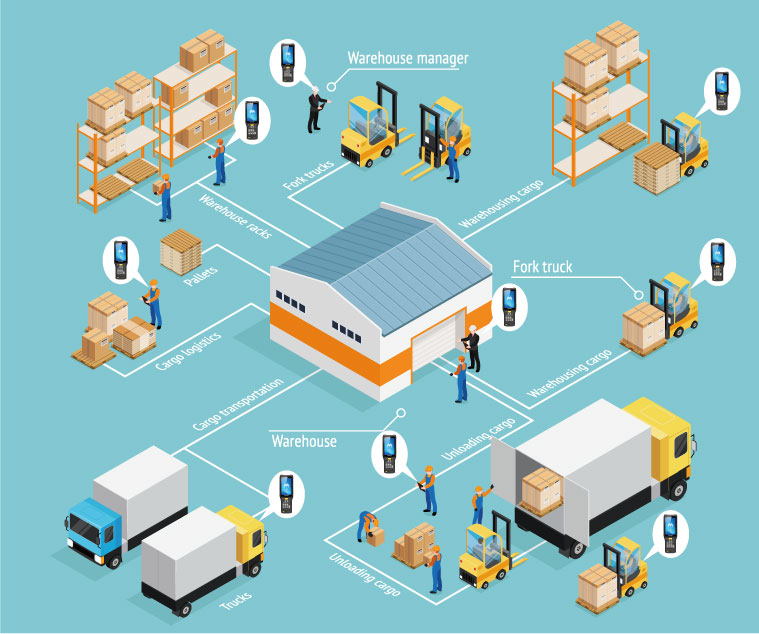

Applications:

Logistics Management, Warehouse Optimization, Inventory Checking, Asset Management, Process Supervision

Other MCA Series == Back to MTP

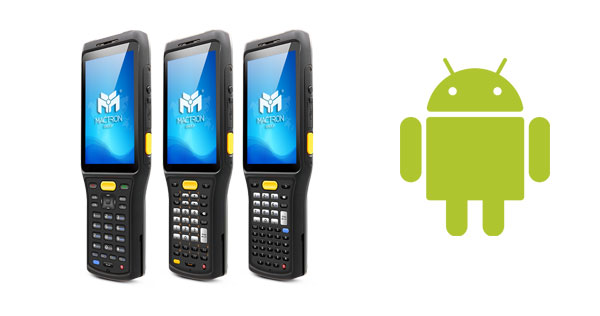

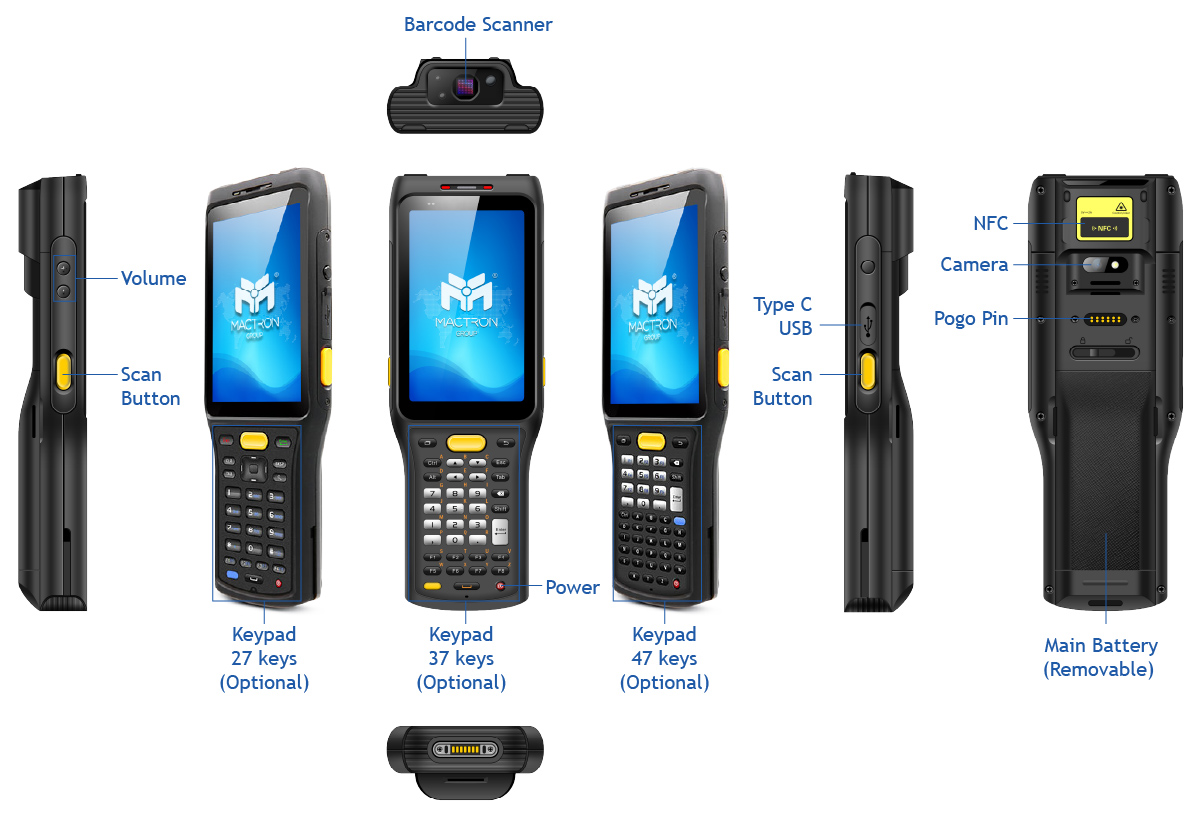

MCA0406 4” Multiple Functions Tablet
Android 11.0, Qualcomm MSM8953

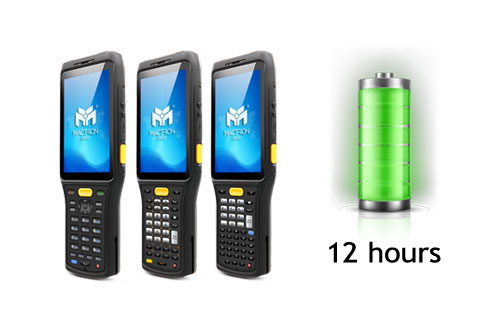

6700mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore

Full Range of Data Collection Functions
Camera/ NFC/ 2D Barcode Scanner/ UHF RFID



Multiple Modules Can Be Adapted To Virtually Any Job And Environment

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Display
Display type4" IPS
Resolution480 x 800
Brightness320 nits
Touch Panel5 Points Projected Capacitive Touch Panel
Main System
CPUQualcomm® Snapdragon™ 662 Octa Core
Memory3GB
Storage32GB
OS SupportAndroid 11
Developing EnvironmentSDK: Supported
Language: Java
Tool: Eclipse / Android Studio
CommunicationWLAN: 802.11 a/b/g/n/ac/d/e/h/i/k/r/v (2.4G + 5G dual-band WiFi)
WWAN: 4G
Bluetooth: 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo; Internal Antenna
Card Slot1 x Micro SIM Card, 1 x TF Card

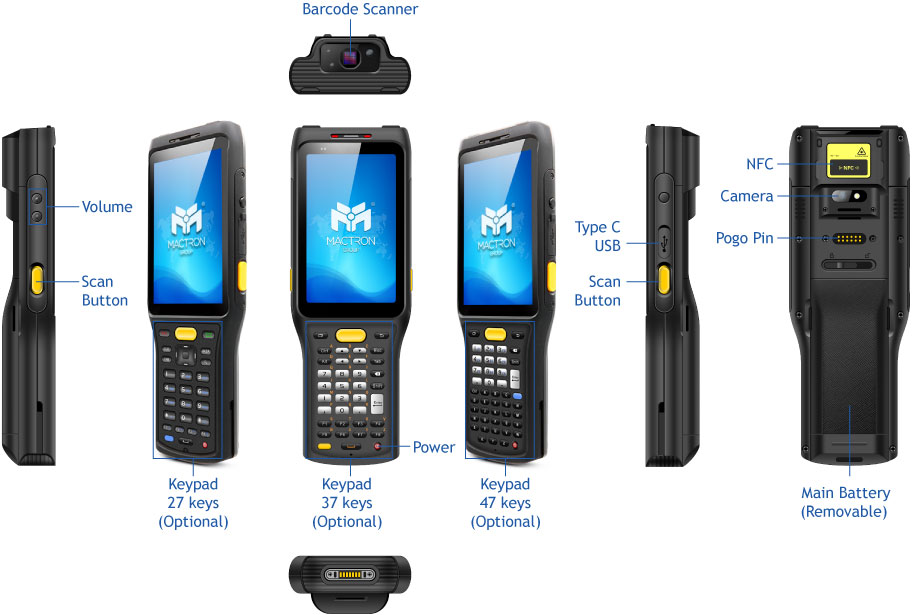

InterfaceUSB 3.1, Type-C, OTG, Extended Thimble
Physical
Speaker1 x Speaker
Microphone2 x Microphone
SensorGravity sensor, Proximity sensor, light sensor, Accelerometer sensor, Vibration motor
CameraRear: 13MP Camera with LED Light
ModuleNFC Module
Bardcode Scanner
External UHF RFID Reader (Optional)
Battery6700mAh Capacity, Li-ion Battery (Removable)
Using TimeOver 12hrs (Depending on User Behavior/ Environment)
Power InputAC 100 - 240V
Power AdapterDC 5V/2A

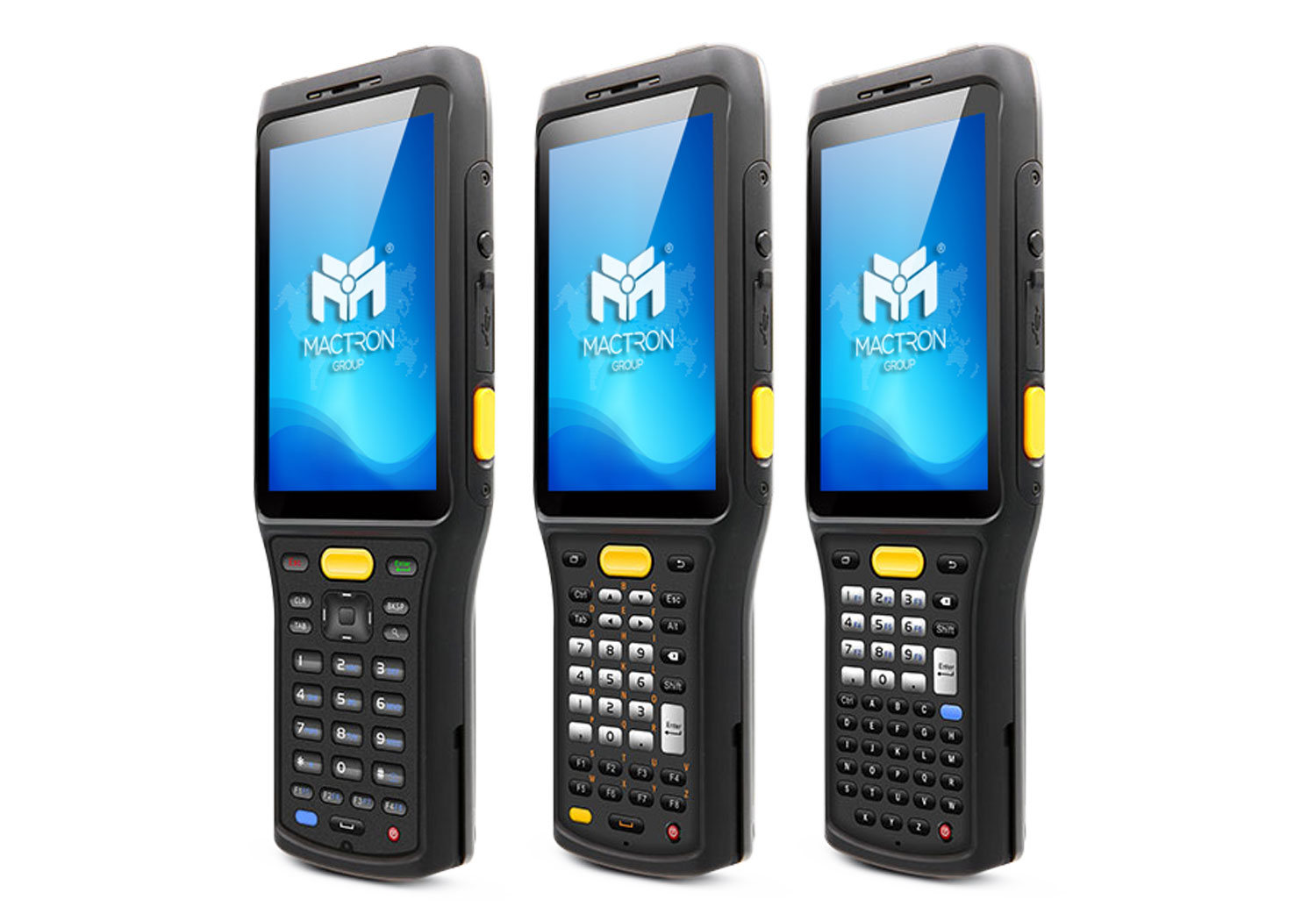

KeypadKeypad (Optional): 27/37/47 keys
Side keys: 2 volume keys, 2 scan keys, 1 user-defined key
Packing List
Standard Accessory 1 x Power Adapter (5V/2A)
1 x USB Type-C Cable
1 x Charging Cradle
1 x Power Adapter (for Charging Cradle)
1 x Hand Strap
Product Dimension 202 x 72.5 x 32 mm
Product Weight 370g
Box Dimension 230 x 105 x 100 mm
Box Weight 730g
Environment
Rugged Feature IP65, 1.8m Drop Test
Operating Temperature -20°C to 50°C
Storage Temperature -40°C to 70°C
Humidity 5% ~ 95% (non-condensing)

Module Configuration

Bardcode Scanner
2D Barcode EngineZebra: SE4710/SE4750SR/SE4750MR/SE4750D P/ SE4850;
Honeywell: N6603/EX30
1D SymbologiesUPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode;
Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
NFC Module
Frequency13.56 MHz
ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
Range2 to 4 cm
UHF RFID (External)
EngineImpinj E710 ; Impinj Indy R2000
Frequency865-868 MHz / 920-925 MHz / 902-928 MHz
ProtocolEPC C1 GEN2 / ISO18000-6C
AntennaCircular Polarized Antenna (4 dBi)
Power1W (30 dBm, +5 dBm to +30 dBm adjustable) ; 2W (33 dBm, for Latin America, etc.) (Optional)
R/W rangeUp to 15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate900+ tags/sec
Communication ModePin Connector

Optional Accessory


Optional Module


Standard Accessory


Power Adapter

USB Type-C Cable

Charging Cradle

Hand Strap

Datasheet
