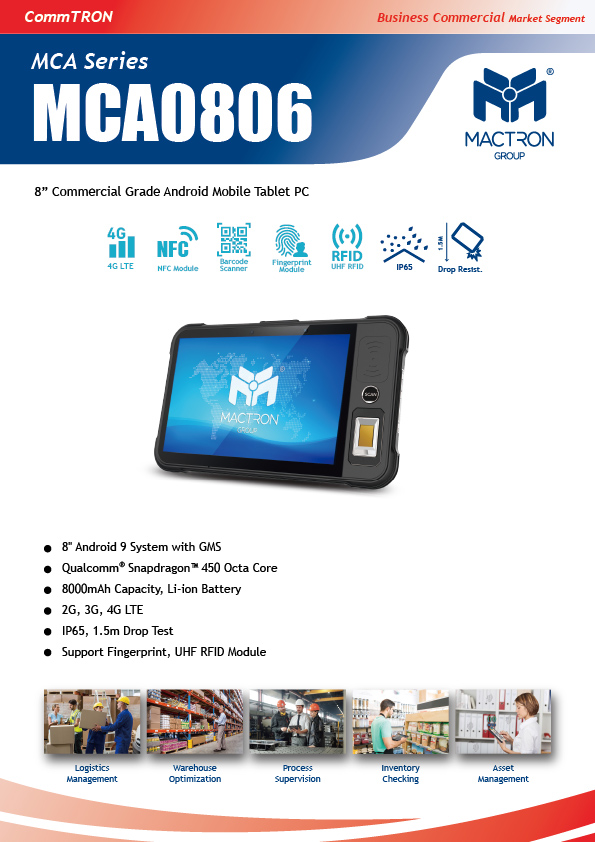

MCA0806

8" Commercial Grade Android Mobile Tablet PC

Android Mobile Tablet PC Android Mobile Tablet PC Android Mobile Tablet PC Android Mobile Tablet PC Android Mobile Tablet PC
  • 8" Android 9 System with GMS

  • Qualcomm® Snapdragon™ 450 Octa Core

  • 8000mAh Capacity, Li-ion Battery

  • 2G, 3G, 4G LTE

  • IP65, 1.5m Drop Test

  • Support Fingerprint, UHF RFID Module

Applications:

Logistics Management, Warehouse Optimization, Inventory Checking, Asset Management, Process Supervision

Other MCA Series == Back to MTP

MCA0806 8” Multiple Functions Tablet
Android 9.0, Qualcomm MSM8953

8000mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore

Full Range of Data Collection Functions
Front Camera 8MP/ Rear Camera 13MP/ NFC/ 2D Barcode Scanner/ UHF RFID/ HF RFID/ Infrared/ PSAM/ Fingerprint/ Iris
Meeting Room Appointment

Ticket Validation

Staff Clock In & Clock Out / Law enforcement

Inventory Management

Ticket Validation



Multiple Modules Can Be Adapted To Virtually Any Job And Environment

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Display
Display type8" IPS
Resolution1920 x 1200
Brightness300 nits
Touch Panel5 Points Projected Capacitive Touch Panel
Main System
CPUQualcomm® Snapdragon™ 450 Octa Core
Memory3GB
Storage32GB
OS SupportAndroid 9
Developing EnvironmentSDK: Supported
Language: Java
Tool: Eclipse / Android Studio
CommunicationWLAN: 802.11 a/b/g/n/ac/d/e/h/i/k/r/v (2.4G + 5G dual-band WiFi)
WWAN: 4G
Bluetooth: 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo; Internal Antenna
Card Slot1 x Micro SIM Card, 1 x Micro SIM or TF Card
InterfaceUSB 3.0, Type-C, OTG
Physical
Speaker1 x Speaker
Microphone1 x Microphone
SensorGravity Sensor, Gyroscope, Accelerometer sensor
CameraFront: 8MP
Rear: 13MP Camera with LED Light
ModuleNFC Module
Bardcode Scanner (Optional)
Capacitive / Optical Fingerprint Module (Optional)
Internal / External UHF RFID Module (Optional)
Battery8000mAh Capacity, Li-ion Battery
Using TimeOver 10hrs (Depending on User Behavior / Environment)
Power InputAC 100 - 240V
Power AdapterDC 5V/2A
Keypad1 power key, 1 volume key, 1 front key
Packing List
Standard Accessory1 x Power Adapter (5V/2A)
1 x USB Type-C Cable
1 x Hand Strap

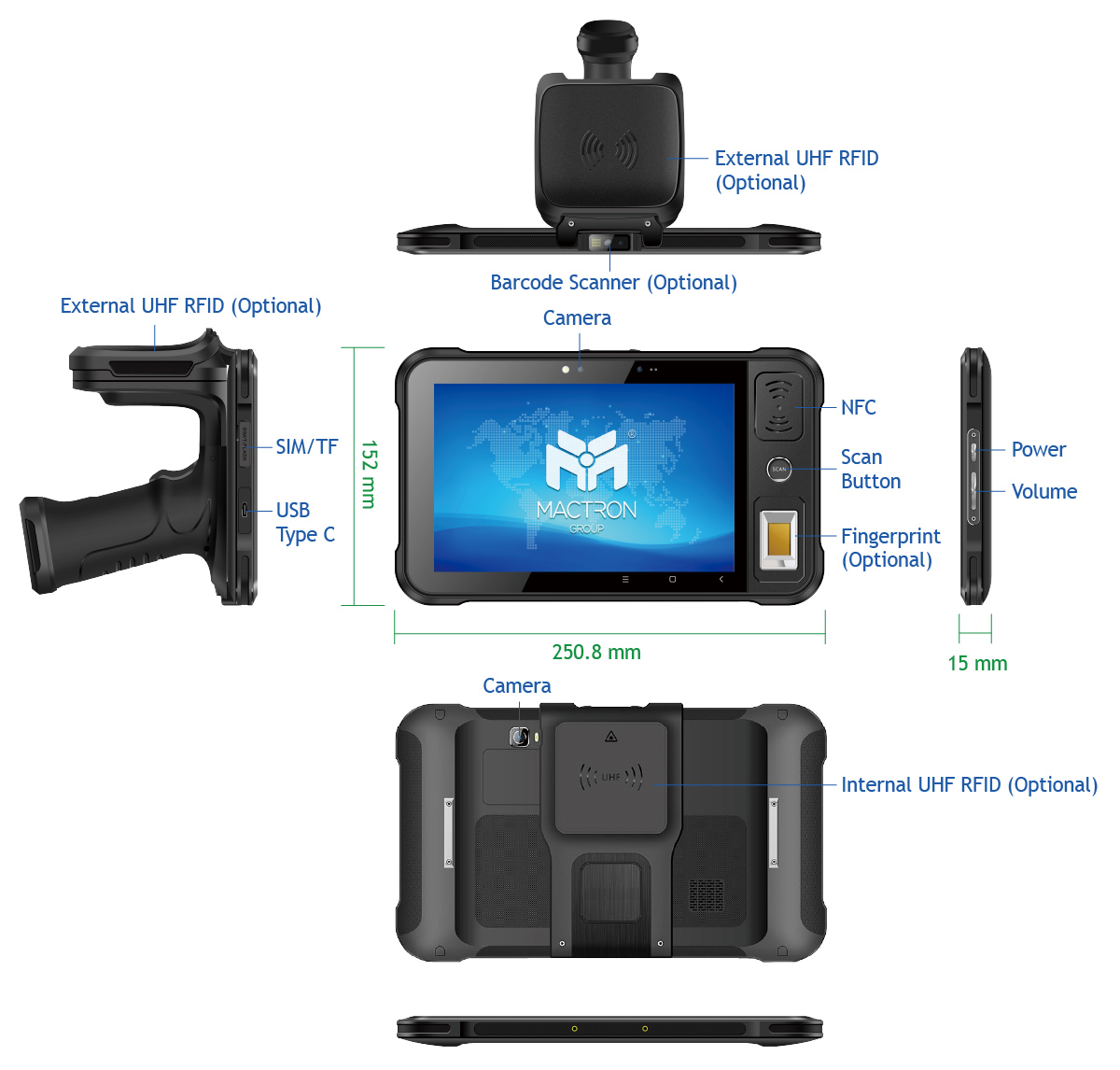

Product Dimension 250.8 x 152 x 15 mm
Product Weight 700g
Box Dimension 280 x 180 x 100 mm
Box Weight 1160g
Environment
Rugged Feature IP65, 1.5m Drop Test
Operating Temperature -20°C to 50°C
Storage Temperature -40°C to 70°C
Humidity 5% ~ 95% (non-condensing)

Module Configuration

Bardcode Scanner
2D Barcode EngineZebra SE4710 ( standard ) , Zebra SE4850 ( optional )
1D SymbologiesUPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
NFC Module
Frequency13.56 MHz
ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
Range2 to 4 cm
Fingerprint Module
SensorTCS1/TCS2 Capacitive
Sensing Area (mm)12.8 x 18.0 ; 10.4 x 14.4
Resolution (dpi)508 dpi, 8-bit greylevel
CertificationsFIPS 201, STQC
Format ExtractionISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger DetectionSupport by SDK
SecurityAES, DES key encryption of the host communication channel
UHF RFID (External)
EngineImpinj E710 ; Impinj E510 ; Impinj Indy R2000
Frequency865-868 MHz / 920-925 MHz / 902 MHz
ProtocolEPC C1 GEN2 / ISO18000-6C
AntennaCircular Polarized Antenna (4 dBi)
Power1W (30 dBm, +5 dBm to +30 dBm adjustable) ; 2W (33 dBm, for Latin America, etc.) (Optional)
R/W rangeUp to 15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate900+ tags/sec
Communication ModeNA
UHF RFID (Internal)
EngineImpinj E710 ; Impinj E510 ; Impinj Indy R2000
Frequency865-868 MHz / 920-925 MHz / 902 MHz
ProtocolEPC C1 GEN2 / ISO18000-6C
AntennaCircular Polarized Antenna (3 dBi)
Power1W (30 dBm, +5 dBm to +30 dBm adjustable) ; 2W (33 dBm, for Latin America, etc.) (Optional)
R/W rangeUp to 10 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate900+ tags/sec
Communication ModeNA

Optional Accessory


Optional Module


Standard Accessory


Power Adapter

USB Type-C Cable

Hand Strap

Datasheet
