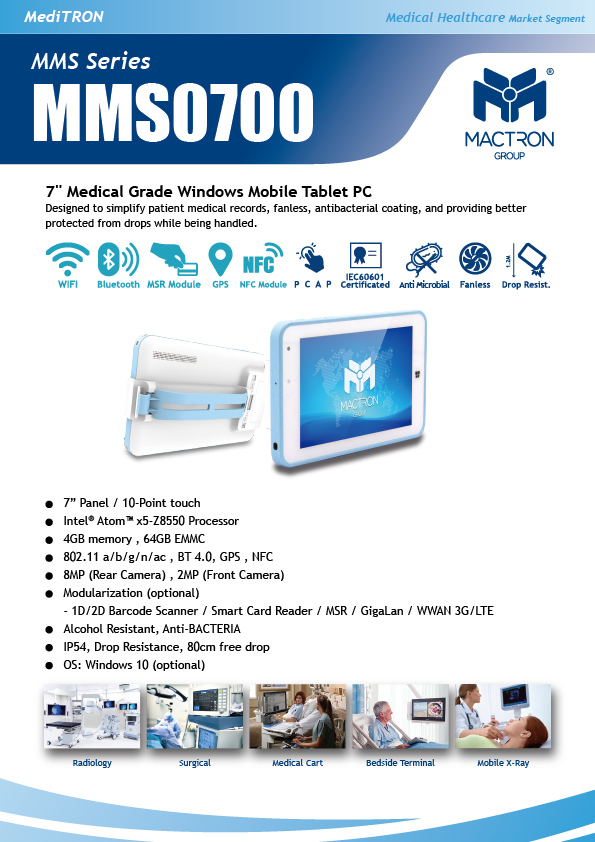

MMS0700

7" Medical Mobile Tablet PC

  • Datasheet

    • MTG’s MMS0700, the medical grade smart mobile tablets support various data collection functions. Bringing diagnosis, medical records to the digital world offers a chance to improve efficiency and satisfaction.

    Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC

    • 7" Panel / 10-Point touch

    • Intel® Atom™ x5-Z8550 Processor

    • 4GB memory , 64GB EMMC

    • 802.11 a/b/g/n/ac , BT 4.0, GPS , NFC

    • 8MP (Rear Camera) , 2MP (Front Camera)

    • Modularization (optional)
      - 1D/2D Barcode Scanner / Smart Card Reader / MSR / GigaLan / WWAN 3G/LTE

    • Alcohol Resistant, Anti-BACTERIA

    • IP54, Drop Resistance, 80cm free drop

    • OS: Windows 10 (optional)

    Applications:

    Radiology, Surgical, Medical Cart, Bedside Terminal, Mobile X-Ray, etc.

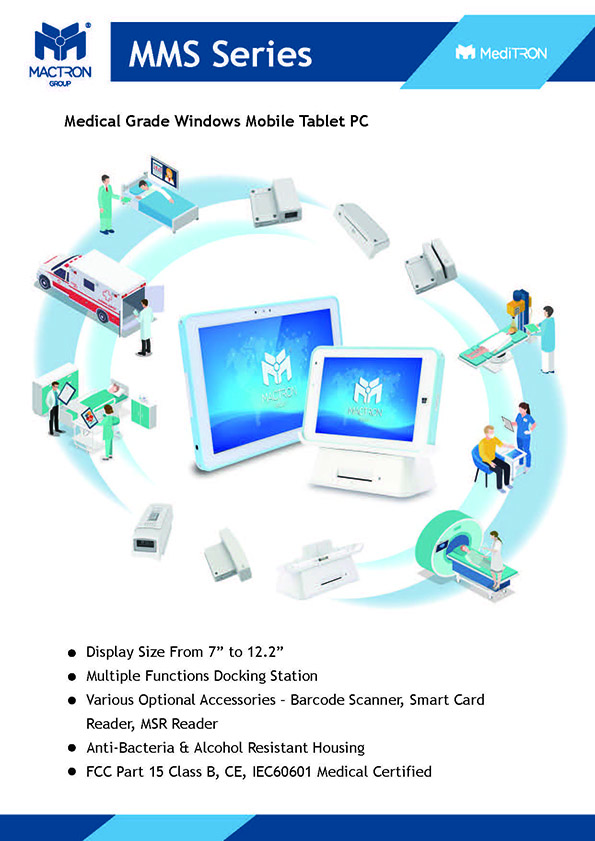

    Other MMS Series == Back to MTP

    MMS0700 7" Medical Grade Tablet
    Windows Base, Intel Cherry Trail Z8550
    E-Health, Medical Person Could Record And Get Data Conveniently
    Full Range of Data Collection Functions & Multiple Accessories
    Front Camera 2.0MP / Rear Camera 8.0 MP / NFC/ Smart Card Reader/ Barcode Scanner/ Docking Station/ LAN Port/ MSR/ LTE Module

    Docking Station
    ADOCK07
    Docking Station

    Display
    Display Type 7" LCD
    Resolution 1280 x 800 pixel
    Touch Type PCAP (10 points)
    System
    CPUIntel® Atom™ x5-Z8550 Processor (Cherry Trail Type 4)
    MemoryLPDDR3 1600MHz, 4GB
    StorageSingle eMMC 4.5, 64GB
    Operating SystemWindows 10 64bit (optional)
    CommunicationsWi-Fi 802.11 a/b/g/n/ac
    Bluetooth v4.0
    GPS & GLONASS
    NFC: NXP NPC100 , ISO14443 Type A, Type B, PC/SC (windows driver support )
    3G/LTE (optional module)
    SensorE-compass, G-sensor, Gyro, Ambient Light sensor
    IO Ports1 x Docking Port (with AC-IN, HDMI, USB)
    1 x Micro SD card slot
    1 x Mic/Head phone jack combo
    1 x micro USB port (OTG)== USB3.0 micro Type B
    CameraFront Camera : 2.0M
    Rear Camera : 8.0M
    Control ButtonsPower, Volume Up ,Volume Down
    BatteryLi-polymer 4100 mAh/ 15.17Wh
    Ingress ProtectionIP54
    Speaker2x Speakers, 1W x 8 Ohm
    MIC1x DMIC
    Environment
    Operating Temperature 0°C ~ 40°C
    Operating Humidity (RH)10% - 95% non-condensing
    Storage Temperature-20°C ~ 60°C
    Storage Humidity (RH)5% - 95%
    Vibration4Gs Peak, 5Hz to 2kHz, 1 Hour Duration per axis
    Drop Test0.8m / 2.7ft. Drop to steel Surface, 1 drop per 6 sides
    Dimensions200mm x 125mm x 23.5mm
    Weight490g

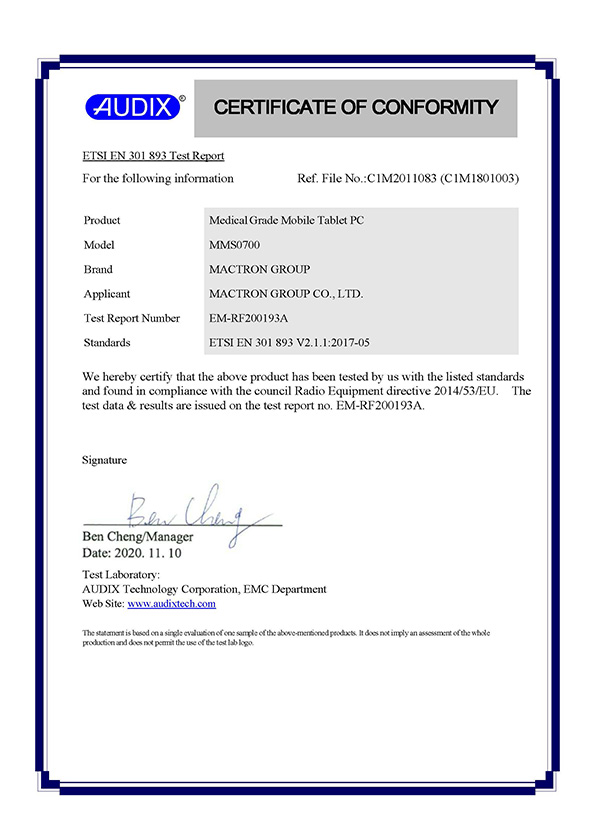

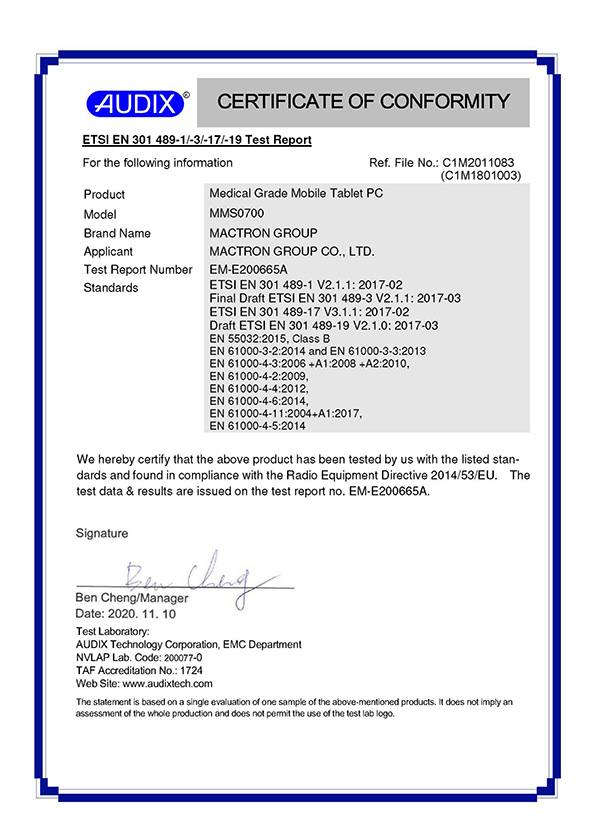

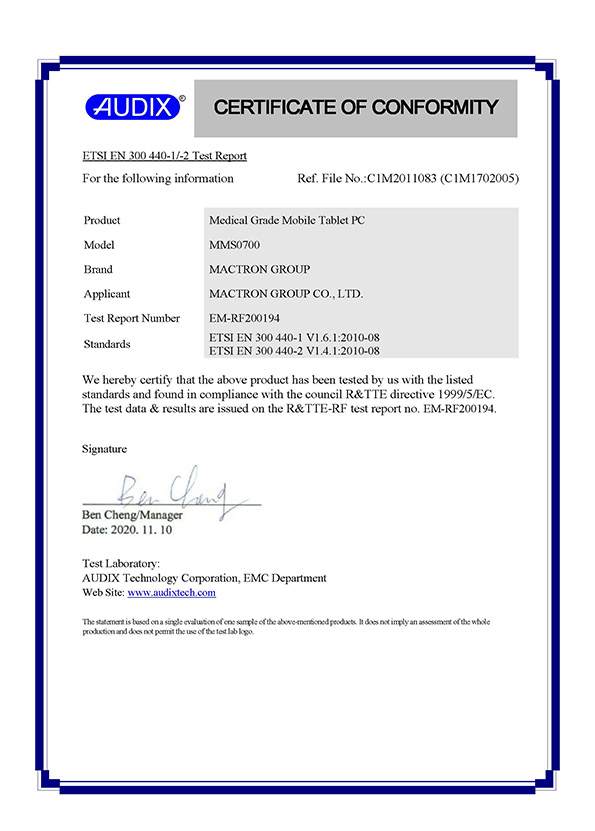

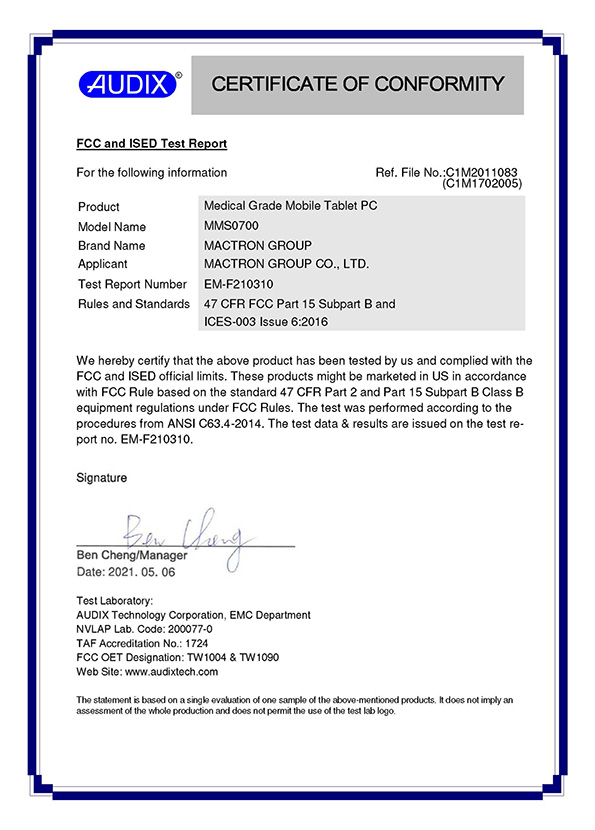

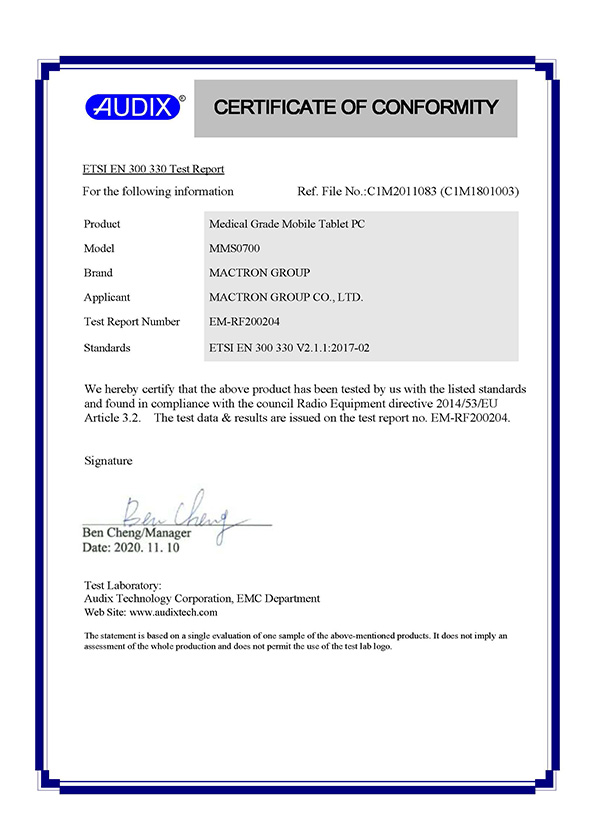

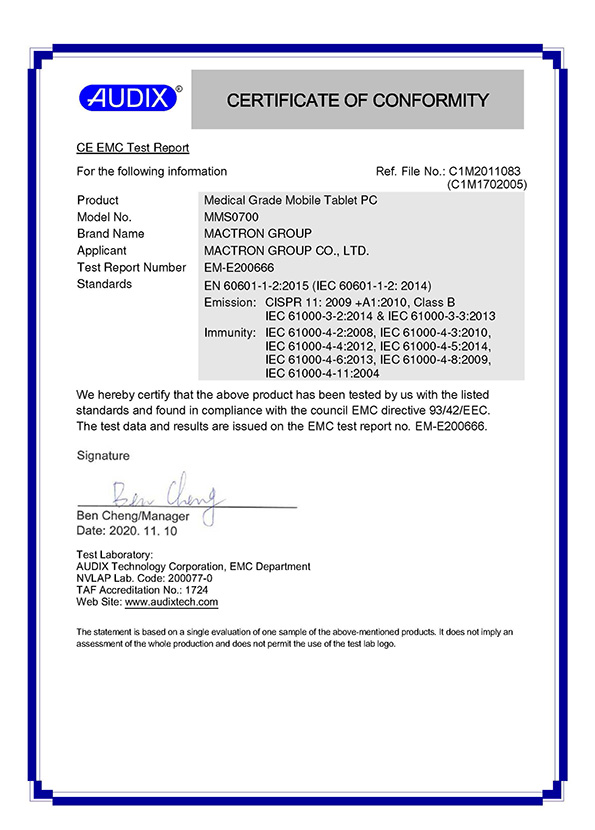

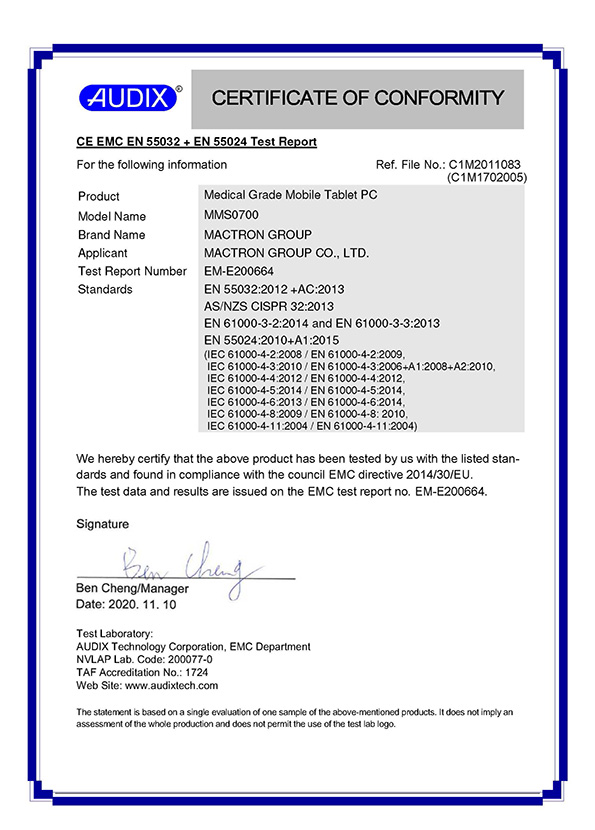

    CertificationsFCC Part 15 Class B, CE, IEC60601
    Optional Devices1D/2D Barcode Scanner, 3G / LTE Module, Smart Card Reader (contact), MSR, Ethernet Giga LAN RJ45 Port
    DockingOptional

    Standard Accessory

    Hand Strap
    Hand Strap

    Optional Accessory

    Docking Station
    ADOCK07
    Docking Station
    Front : SCR,
    Rear: 1 * DC-IN, 1 * HDMI, 1 * RJ45 Ethernet LAN, 1 * USB30 , 1*USB2.0, 1 * Adapter 12V / 3A , 100 – 240V
