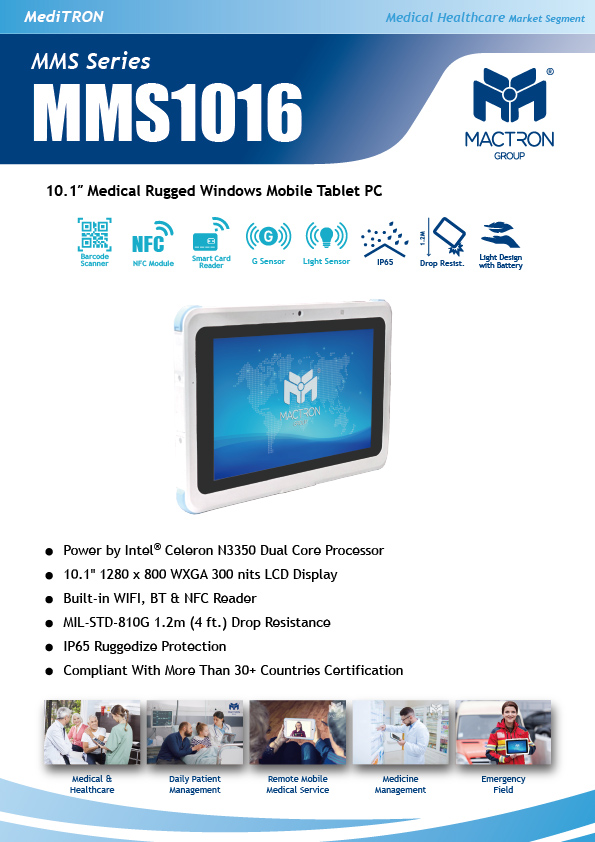

MMS1016

Medical Rugged Mobile Tablet PC

Medical Mobile Tablet PC Medical Mobile Tablet PC
  • Power by Intel® Pentium N4200 Processor

  • 10.1″ 1280 x 800 WXGA 300 nits LCD Display

  • Built-in WIFI, BT & NFC Reader

  • MIL-STD-810G 1.2m (4 ft.) Drop Resistance

  • IP65 Ruggedize Protection

  • Support Windows & Android System

Applications:

Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field, etc.

Other MMS Series == Back to MTP

Ruggedize
  • IP65 Protection
  • MIL-STD-810G 4-feet drop resistance
  • Superior Gorilla glass cover lens

Longevity
  • Long-term supply
  • Support both Windows & Android System
  • Various Optional Accessories

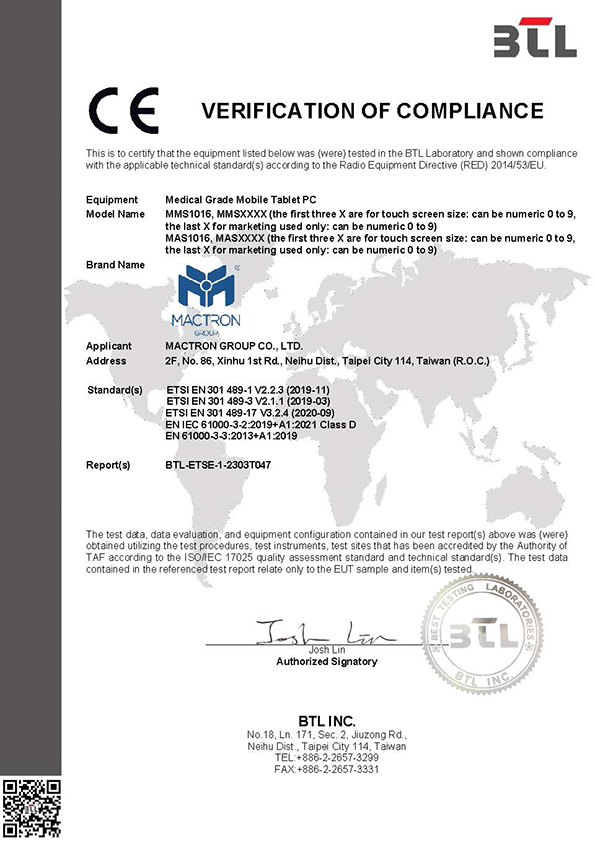

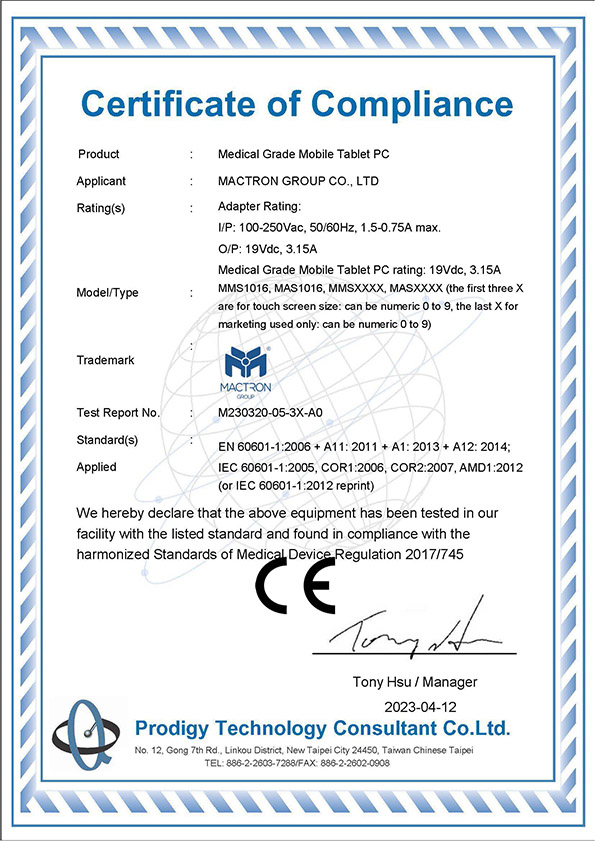

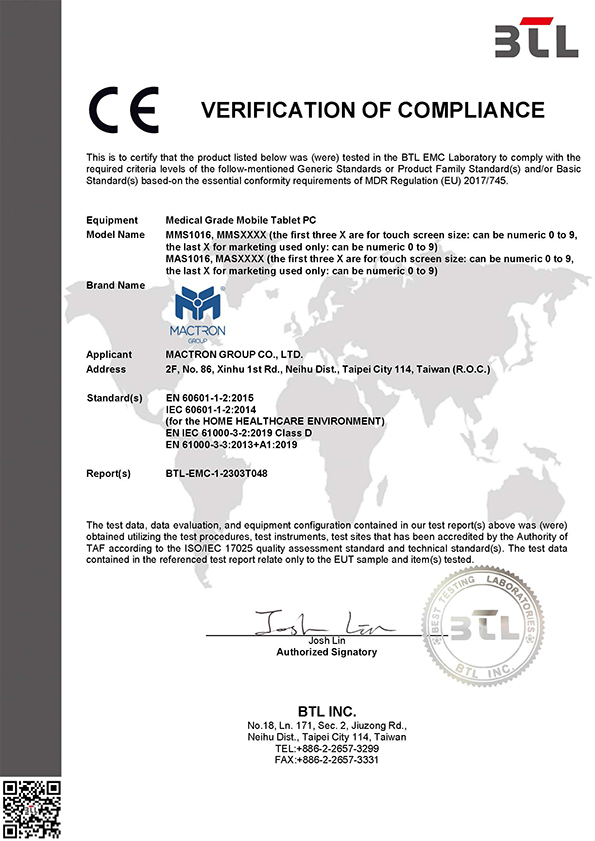

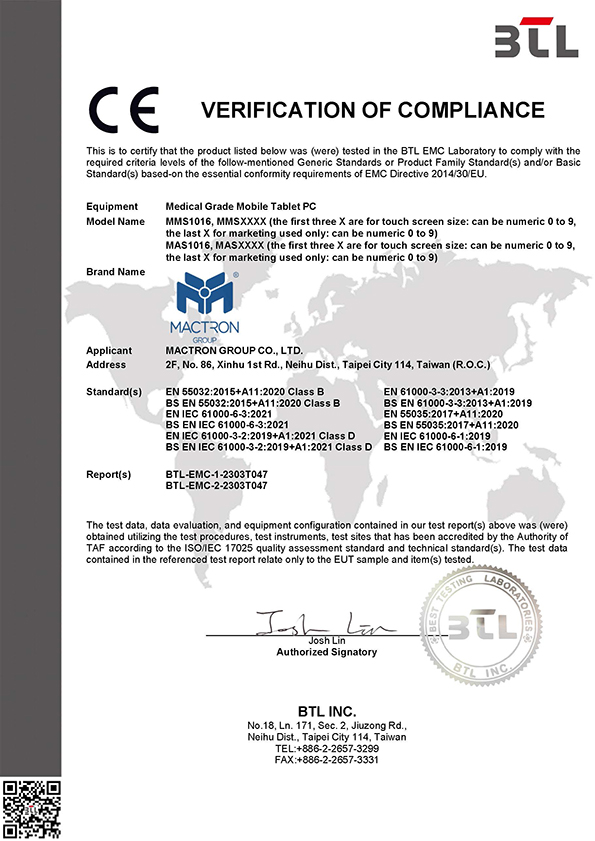

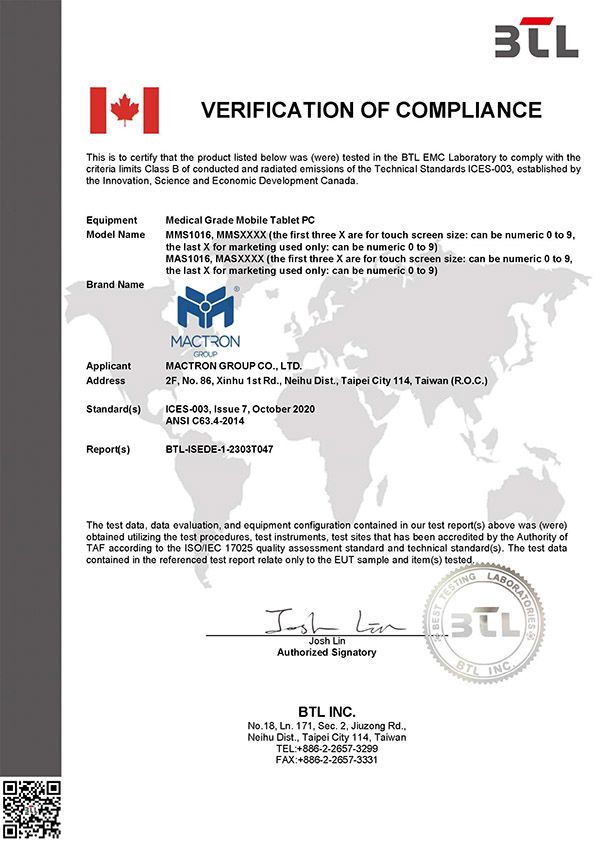

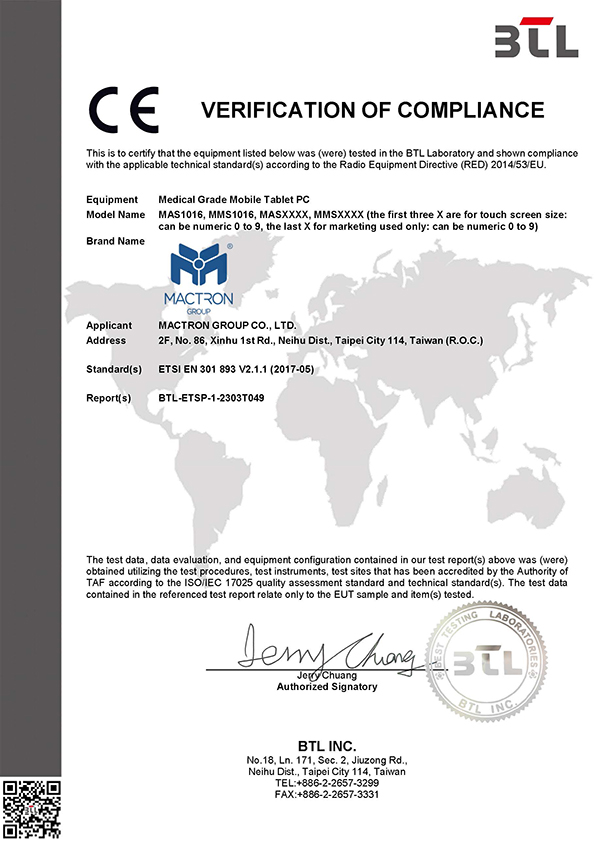

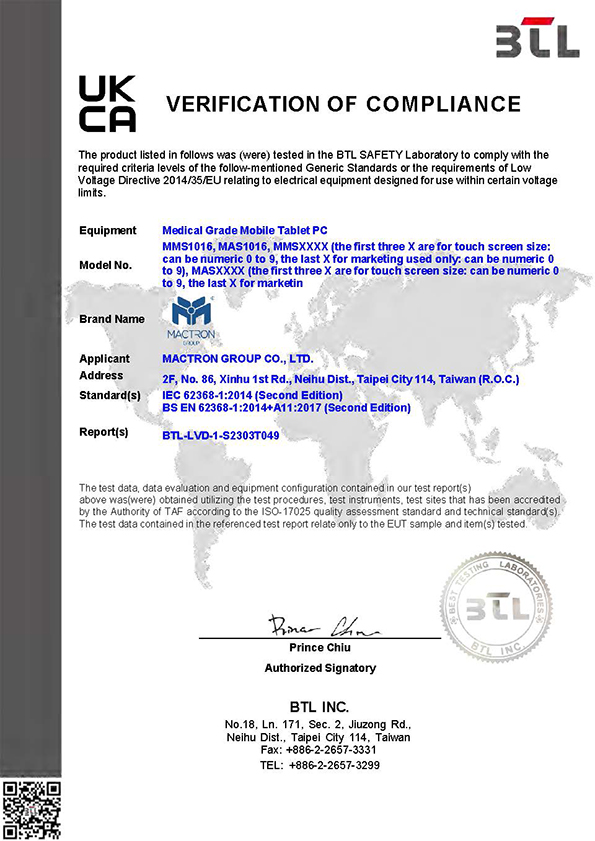

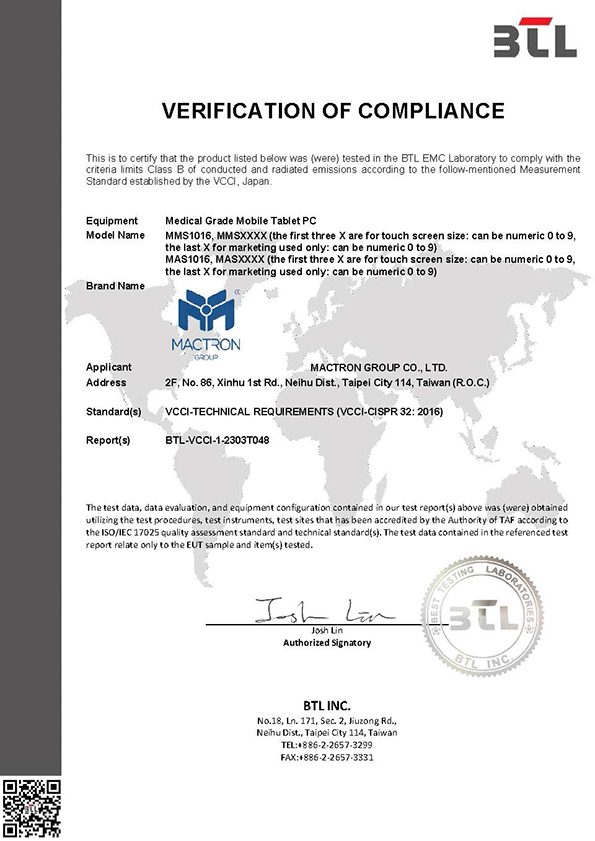

Certification
  • CE/ FCC/ VCCI/ CCC/ BSMI/ UKCA/ RCM
  • Compliant with more than 30+ countries certification

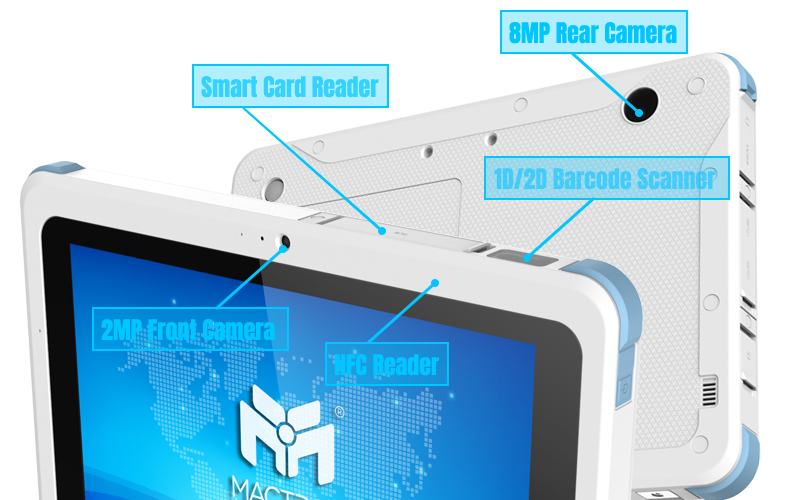

Data Collection
  • NFC Reader
  • 1D/2D Barcode Scanner
  • Smart Card Reader
  • 2MP Front / 8MP Rear Camera With Auto Focus


Various Optional Accessories
MAS1016 Wall Mount
Wall Mount
Docking Station
Docking Station
Battery Charging
Station
Battery Charging Station
Display
Display Type10.1″ TFT LCD
Resolution1280 x 800
Aspect Ratio16:10
Brightness300 nits
Touch Panel10 Points Projected Capacitive Touch
System
ProcessorIntel® Pentium N4200 Quad Core
GPUIntel® HD Graphics 505
Memory1 x LPDDR4 4GB (Max.8GB)
Storage1 x M.2 SSD 128GB (Up to 1TB)
I/O Ports2 x USB 3.0 Type A
1 x HDMI
1 x Audio Jack
1 x Micro SD Card Slot
1 x DC-In
Operating SystemWindows 10 IoT, Android 8.1
Physical
Camera2MP Front Camera
8MP Rear Camera With Auto Focus
SpeakerInternal Speaker
MountingVESA Mount 75 x 75 mm
ColorBlack
Dimensions (WxHxD)281 x 193 x 19 mm
Weight1 kg
EnclosureRugged Rubber Plastic
Button1 x Power On/Off
1 x Barcode Scanner Trigger
SensorG-Sensor
Light-Sensor
Battery28.44W Li-ion Battery
Using Time6 Hours
Power AdapterDC 19V/3.15A, 65W
CommunicationWLAN : 802.11 a/b/g/n/ac
Bluetooth 5.0
Data CollectionNFC
4G LTE (Optional)
Barcode Scanner (Optional)
Smart Card Reader (Optional)
Standard Accessory1 x Power Adapter
Environment
IP RatingIP65
Drop Test4-Feet Drop on Concrete Floor, MIL-STD-810G 516.6 Procedure IV
CertificationEN 60601, CE, FCC, VCCI, UKCA
Operating Temperature0°C ~ 40°C
Storage Temperature-20°C ~ 60°C
Relative Humidity15% - 95% RH non-condensing
Warranty2 Years

Standard Accessory

Hand Strap
Hand Strap

Optional Accessory

MMS1016 Wall Mount
AWMMW16
Mounting Holder
3 x USB 2.0 Type A
1 x LAN (10/ 100Mbps)
1 x DC-in
Docking Station
ADOCKW6
Docking Station
3 x USB 2.0 Type A
1 x LAN (10/ 100Mbps)
1 x DC-in
Battery Charging
Station
ACHABW6
Battery Charger (3 slots)
