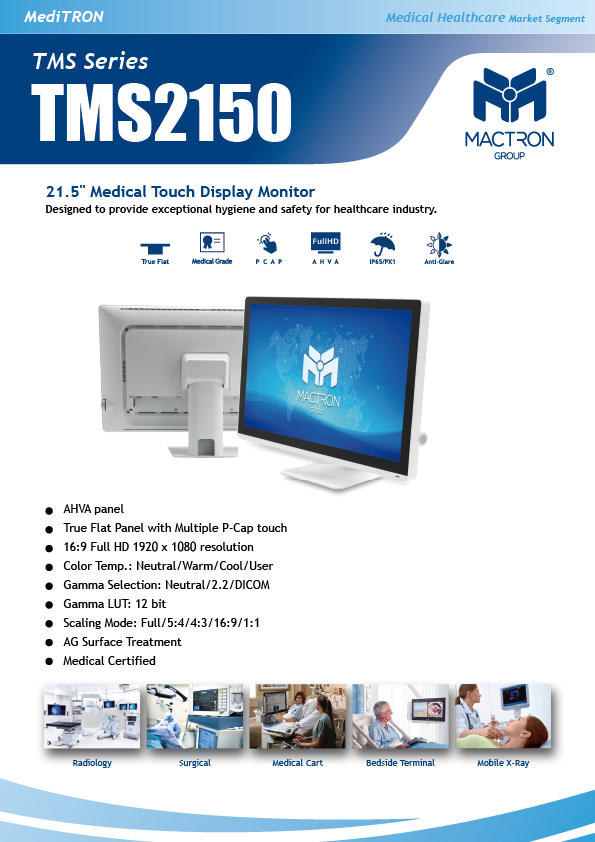

TMS2150

MACTRON Medical Touch Display Monitor. Designed to provide exceptional hygiene and safety for healthcare industry.



  • AHVA panel
  • 16:9 Full HD 1920 x 1080 resolution
  • True Flat Panel with Multiple P-Cap touch
  • Color Temperature: Neutral/Warm/Cool/User
  • Scaling Mode: Full/5:4/4:3/16:9/1:1
  • Gamma Selection: Neutral/2.2/DICOM
  • Gamma LUT: 12 bits
  • AG Surface Treatment
  • Medical Certified

Applications:

Radiology, Surgical, Medical Cart, Bedside Terminal, Mobile X-Ray, etc.

Display
Display Type21.5" AHVA True Flat
Resolution1920 x 1080
Display Area (mm)476.06(H) x 267.79(V)
Pixel Pitch (mm)0.248 (H) x 0.248 (V)
Viewing Angle (degree)178 (H)/ 178 (V)
Response time (ms)22 (On/Off)
Brightness (cd/m²)350 (typical)
Contrast Ratio1000:1 (typical)
Color Depth (bits)8
I/O Interface1 x DVI-D
1 x DP 1.2
1 x VGA
1 x AUDIO
Touch
TypePCAP (10 points)
Point10 points
Screen PrintingBlack
Surface TreatmentAG
Touch InterfaceUSB / RS232 (COMBO)
Environment
Color Temperature Neutral/Warm/Cool/User
OSD LanguagesEnglish/ Spanish/ French/ German/ Italian/ Japanese
Gamma SelectionNeutral/2.2/DICOM
Gamma LUT12
Scaling Mode Full/5:4/4:3/16:9/1:1
Speaker 2W Speaker
IP levelIP65 (Front) / IPX1 (Back Cover)
Power SupplyDC 24V
Power Consumption (W)40 (Max) / < 5 (Off Mode)
Operating Temperature10°C ~ 40°C
Operating Humidity (RH)30% - 75%
Storage Temperature-20°C ~ 60°C
Storage Humidity (RH)10% - 90%
Tilt0° ~ +30°

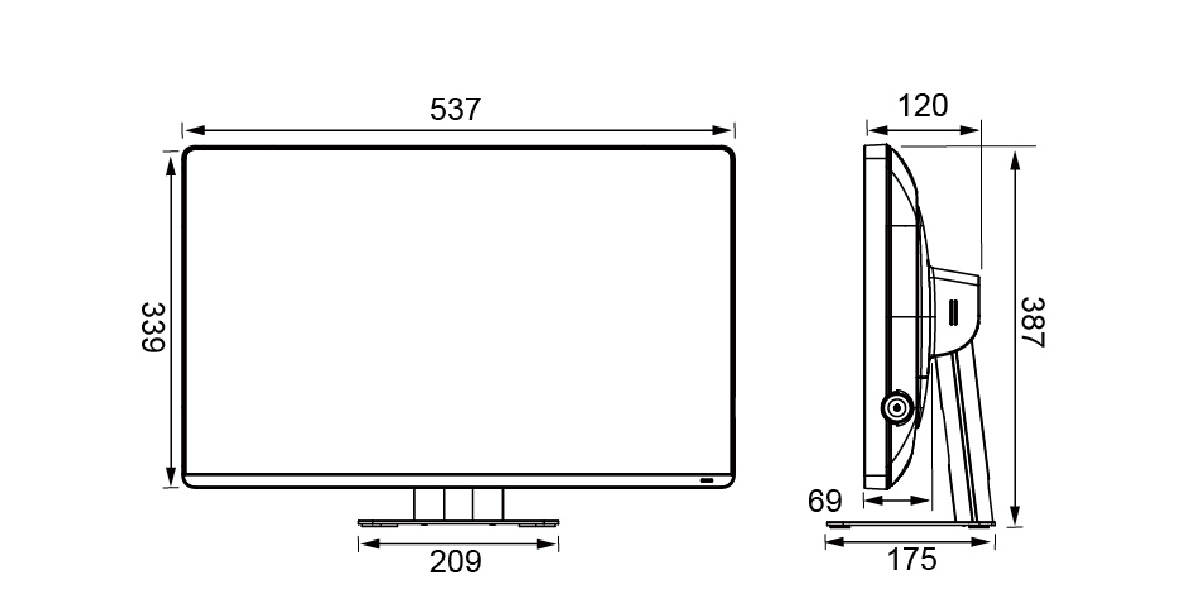

Dimensions(mm)537(W) x387(H) x175(D)(with Stand)
537(W) x339(H )x69(D) (w/o Stand)
VESA Mounting100 x 100
StandOptional
Weight8.2 (with Stand)
6.5 (w/o Stand)
Certifications and CompliancescTUVus(60601 Ed3.1),CB(60601 Ed3.1),CE,FCC-B
