MACTRON GROUP’s (MTG) WAB Series has an ultra-high brightness display to provide a joyful visual experience. WAB Series is the industrial grade Touch All-In-One System Panel PC with great backlight quality, which is verified to work in the harsh environment.
| Display | |
|---|---|
| Display Type | 24" FHD TFT LCD |
| Resolution | 1920 x 1080 pixel |
| Brightness | 1400 cd/m2 (After Touch about 1180 cd/m2) |
| Color | 16.7M colors |
| Contract ratio | 4100:1 (typ.) |
| Viewing angle (H/V) | 178° / 178° (typ.) |
| Backlight MTBF | 50,000 hrs (typ.) |
| Touch screen type | 3M Surface Capacitive Touch touch screen |
| Main System | |
| Processor | Intel Celeron N3350 (2M Cache, up to 2.4 GHz) |
| BIOS | AMI BIOS, 128Mbit SPI Low Power Flash ROM |
| Chipset | Intel Apollo Lake-I SoC integrated |
| Graphic | Intel HD Graphics 505 |
| VRAM | Shared Memory |
| Memory | 4GB 204-pin DDR3L SO-DIMM 1866 MHz Memory Built-In |
| System I/O | 1 x HDMI |
| 1 x RJ-45 | |
| 2 x USB 3.0 | |
| 1 x 4-Pin Power Din | |
| Ethernet | 1 x Gigabit LAN 10/100/1000 Mb/s (1 x Intel i211LM GbE) |
| Storage | 1 x mSATA 64GB SSD |
| Watchdog timer | Interval: Programmable 1 ~ 255 sec. Output: System reset |
| OS Support | Win10, Linux |
| Environment | |
| Color | Black |
| Machanical | Heavy-duty Steel |
| Power supply | DC 12V |
| Power Consumption | 70W (typ. Tested in DC12V) |
| Mounting kit | VESA mount (100mm x 100mm) |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -10°C ~ 60°C |
| Relative humidity | 0% ~ 90% (non-condensing) |

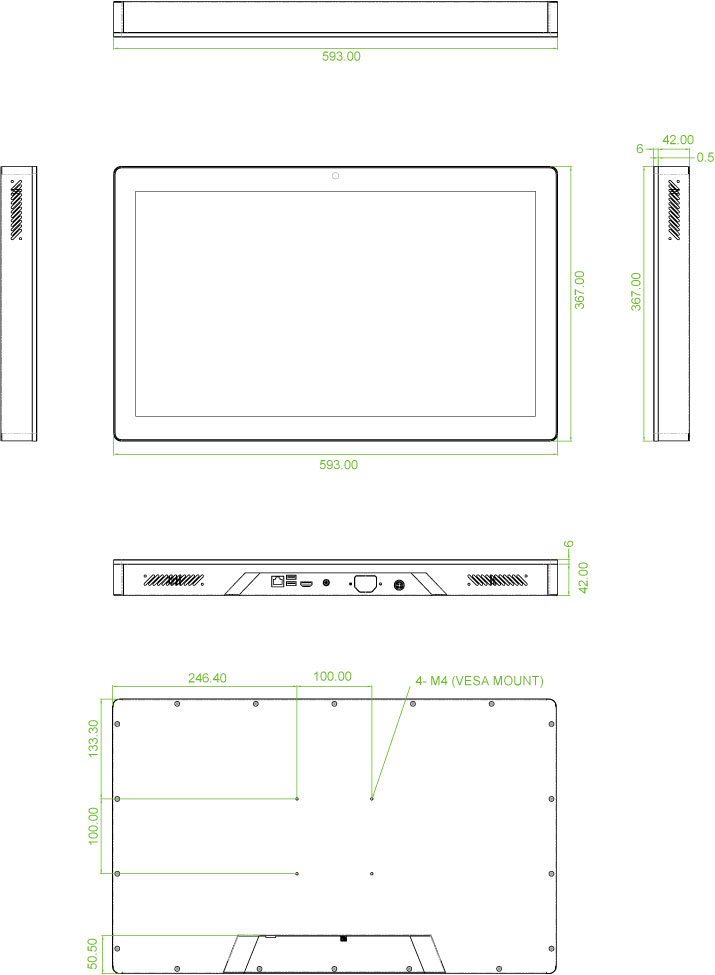

| Dimension | 593 mm(W) x 42 mm(D) x 367 mm(H) |
| Net Weight | 8.7 Kg |
