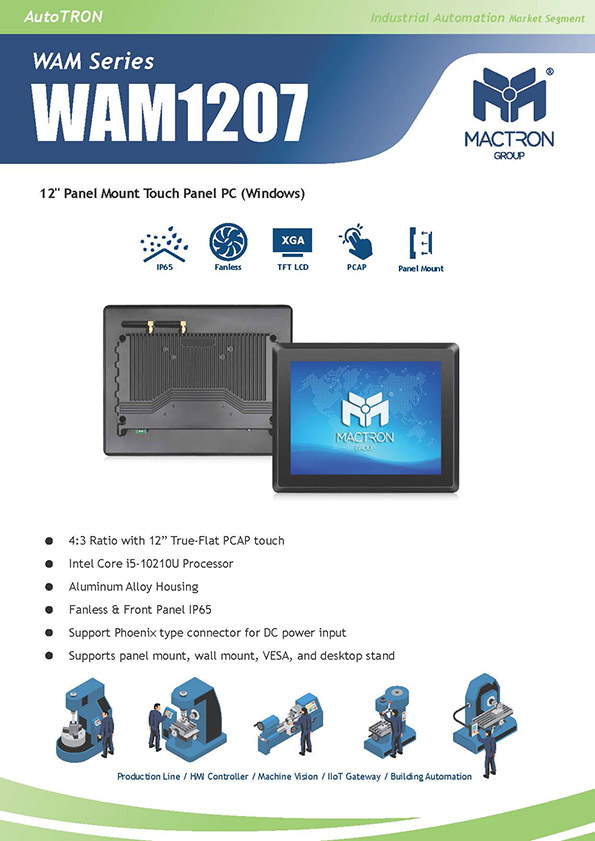

4:3 Ratio with 12” True-Flat PCAP touch
Intel Core i5-10210U Processor

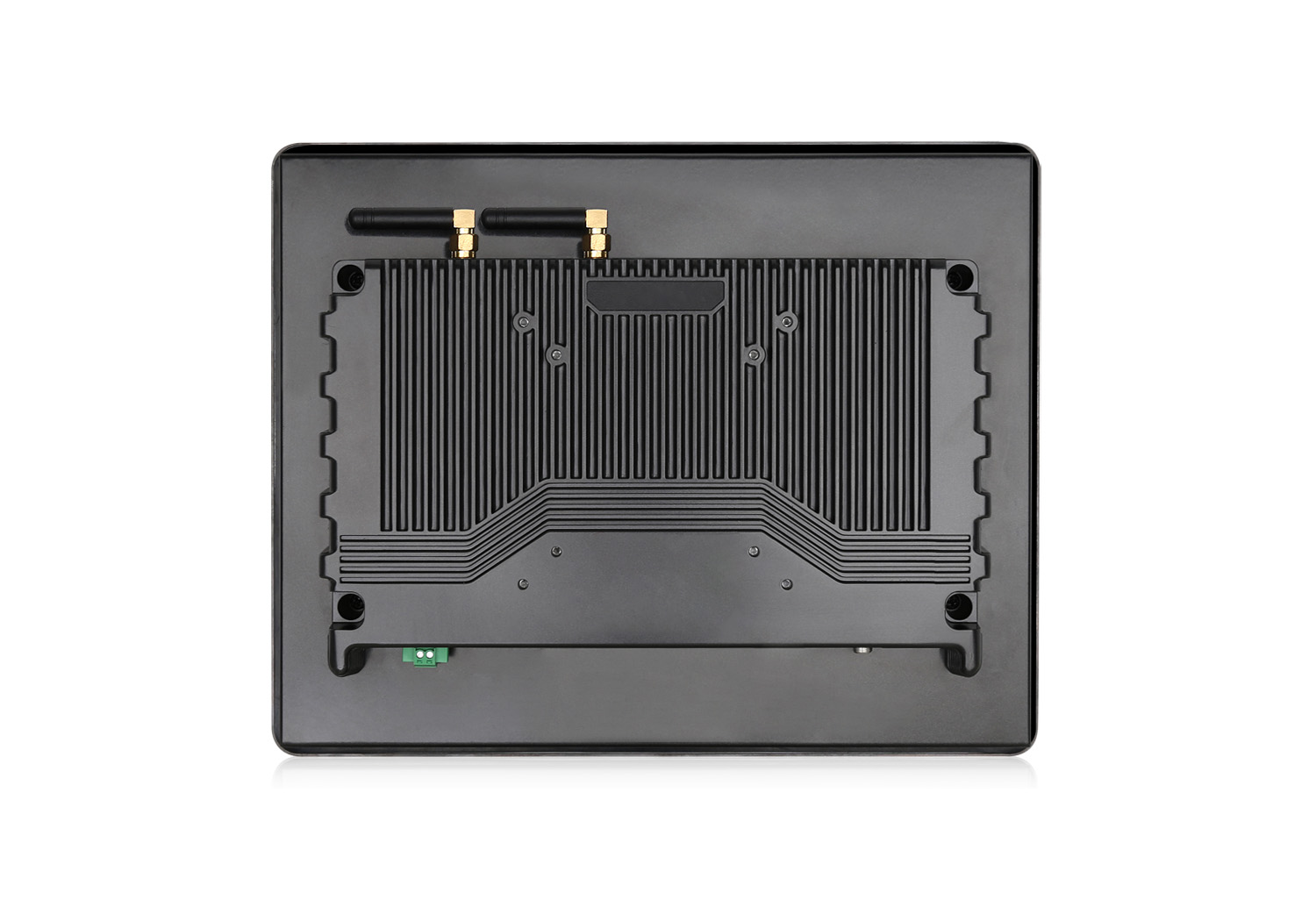

Aluminum Alloy Housing
Fanless & Front Panel IP65
Support Phoenix type connector for DC power input
Supports panel mount, wall mount, VESA, and desktop stand
Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation
Other WAM Series == Back to PPC Line
| Display | |
|---|---|
| Display Type | 12” TFT LCD |
| Resolution | 1024 x 768 |
| Brightness | 300 nits (Optional to 1000 nits) |
| Touch Panel | 10 Points Multiple PCAP touch (Optional Resistive Touch) |
| Aspect Ratio | 4:3 |
| Main System | |
| CPU | Intel Core i5-10210U Processor (Optional Core i7/i3, Celeron J4125) |
| GPU | Intel® HD Graphics Engine |
| Memory | 8GB |
| Storage | 256GB |
| Expansion | 1x Full-size Mini-PCIe Socket |
| 1x M.2 Key M 2280 Socket | |
| OS Support | Windows 10 Pro, Windows 10 IoT, Windows 11, Linux |
| Function Support | Bluetooth 4.0 |
| WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna) | |
| RTC | |
| Time Switch | |
| IO Ports | 1 x Phoenix type connector (2-pin) |
| 1 x DC-in | |
| 2 x USB2.0 | |
| 2 x USB3.0 | |
| 2 x RJ-45 (Support Wake-on-LAN) (Optional PoE Function) | |
| 1 x HDMI | |
| 1 x SIM card slot | |
| 1 x DB15 (VGA) | |
| 1 x Audio (Line-out) | |
| 2 x DB9 (RS232) | |
| 1 x Power Button | |
| Physical | |
| Intermal Speaker | 2 x 2W |
| Power Input | DC 12-36V |
| Power Adapter | DC 12V/5A |
| Mounting | Panel Mount, VESA 75 x 75 mm &100 x 100 mm, Wall mount, Desktop stand |
| Housing | Aluminum Alloy Housing |
| Packing List | |
| Standard Accessory | Power Adapter |
| Clamp Mount Kit | |
| Product Dimension | 312.3 x 250.8 x 62 mm |
| Product Weight | 3.5 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | CE, FCC Class B |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative humidity | 95% RH non-condensing |
