15.6 Inch Panel Mount Touch Panel PC Windows

  • 16:9 Ratio with 15.6” True-Flat PCAP touch

  • Intel Celeron J4125 Quad Core Processor

  • Aluminum Alloy Housing

  • Fanless & Front Panel IP65

  • Support Phoenix type connector for DC power input

  • Supports panel mount, wall mount, VESA, and desktop stand


Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation

Other WAM Series == Back to PPC Line

Display Type15.6” TFT LCD
Resolution1920 x 1080
Brightness300 nits (Optional to 1000 nits)
Touch Panel10 Points Multiple PCAP touch (Optional Resistive Touch)
Aspect Ratio16:9
Main System
CPUIntel Celeron J4125 Quad Core Processor (Optional Core i7/i5/i3)
GPUIntel® HD Graphics Engine
Expansion1x Full-size Mini-PCIe Socket
OS SupportWindows 10 Pro, Windows 10 IoT, Windows 11, Linux
Function SupportBluetooth 4.0
WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna)
Time Switch
IO Ports1 x Phoenix type connector (6-pin)
1 x DC-in
2 x USB2.0
2 x USB3.0
2 x RJ-45 (Support Wake-on-LAN) (Optional PoE Function)
1 x HDMI
1 x SIM card slot
1 x DB15 (VGA)
1 x Audio (Line-out)
2 x DB9 (RS232)
1 x Power Button
Intermal Speaker2 x 2W
Power InputDC 12-36V
Power AdapterDC 12V/5A
MountingPanel Mount, VESA 75 x 75 mm & 100 x 100 mm, Wall mount, Desktop stand
HousingAluminum Alloy Housing
Standard Accessory
Product Dimension
Product Weight
Packing List
Standard AccessoryPower Adapter
Clamp Mount Kit

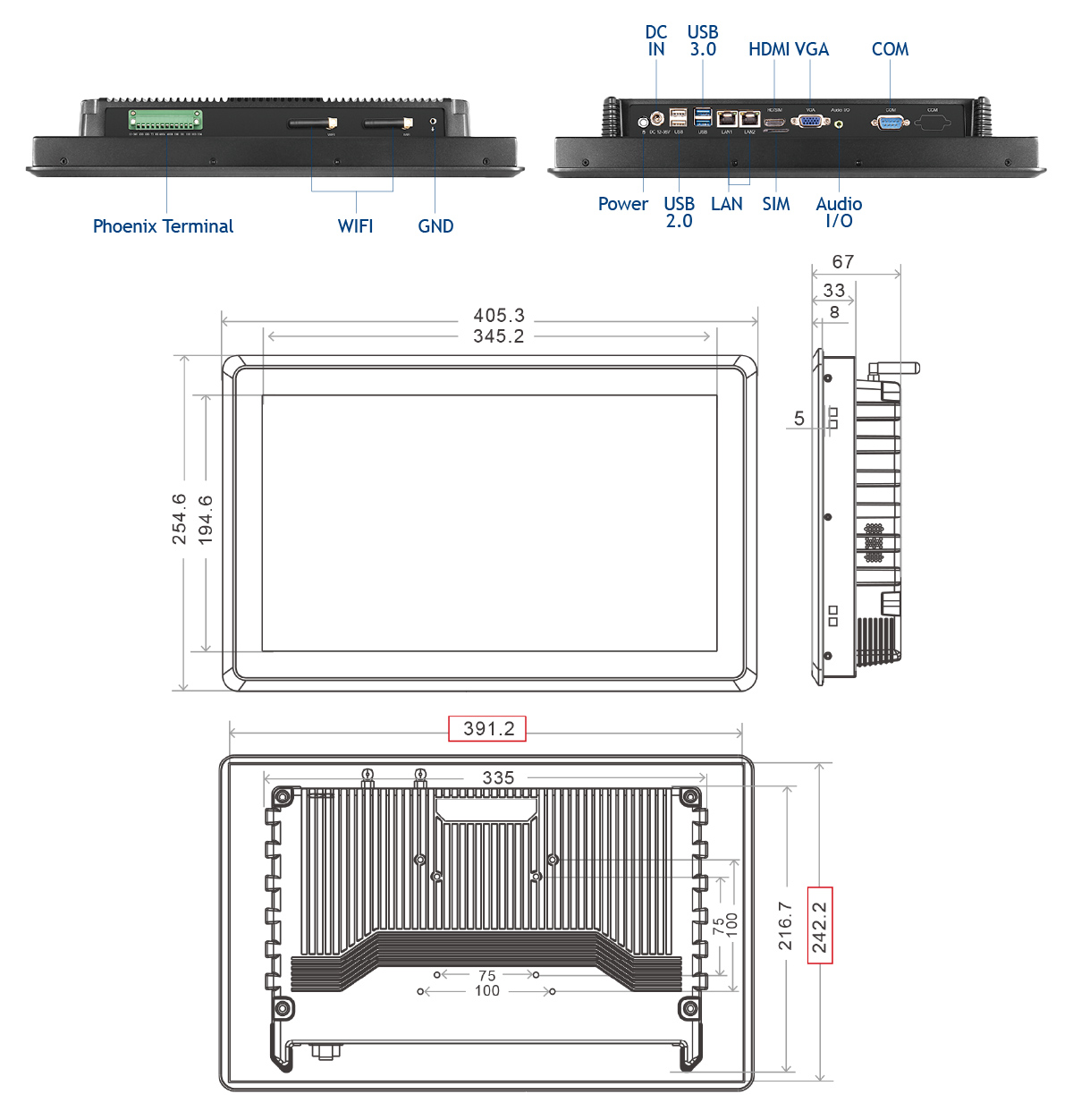

Product Dimension405.3 x 254.6 x 67 mm
Product Weight4.1 kg
Rugged FeatureFront IP65
CertificationCE, FCC Class B
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Relative humidity95% RH non-condensing
WAM1560 15.6″ Panel Mount Touch Panel PC
Intel Celeron J4125 Quad Core Processor (Optional Core i7/i5/i3)

Standard Accessory
