WAM1707

17 Inch Panel Mount Touch Panel PC (Windows)

  • 5:4 Ratio with 17” True-Flat PCAP touch

  • Intel Core i5-10210U Processor

  • Aluminum Alloy Housing

  • Fanless & Front Panel IP65

  • Support Phoenix type connector for DC power input

  • Supports panel mount, wall mount, VESA, and desktop stand

Applications:

Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation

Other WAM Series == Back to PPC Line

Display
Display Type17” TFT LCD
Resolution1280 x 1024
Brightness300 nits (Optional to 1000 nits)
Touch Panel10 Points Multiple PCAP touch (Optional Resistive Touch)
Aspect Ratio5:4
Main System
CPUIntel Core i5-10210U Processor (Optional Core i7/i3, Celeron J4125)
GPUIntel® HD Graphics Engine
Memory8GB
Storage256GB
Expansion1x Full-size Mini-PCIe Socket
1x M.2 Key M 2280 Socket
OS SupportWindows 10 Pro, Windows 10 IoT, Windows 11, Linux
Function SupportBluetooth 4.0
WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna)
RTC
Time Switch

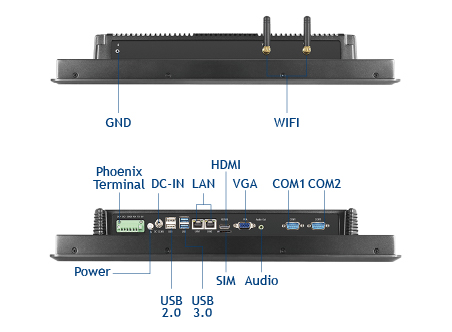

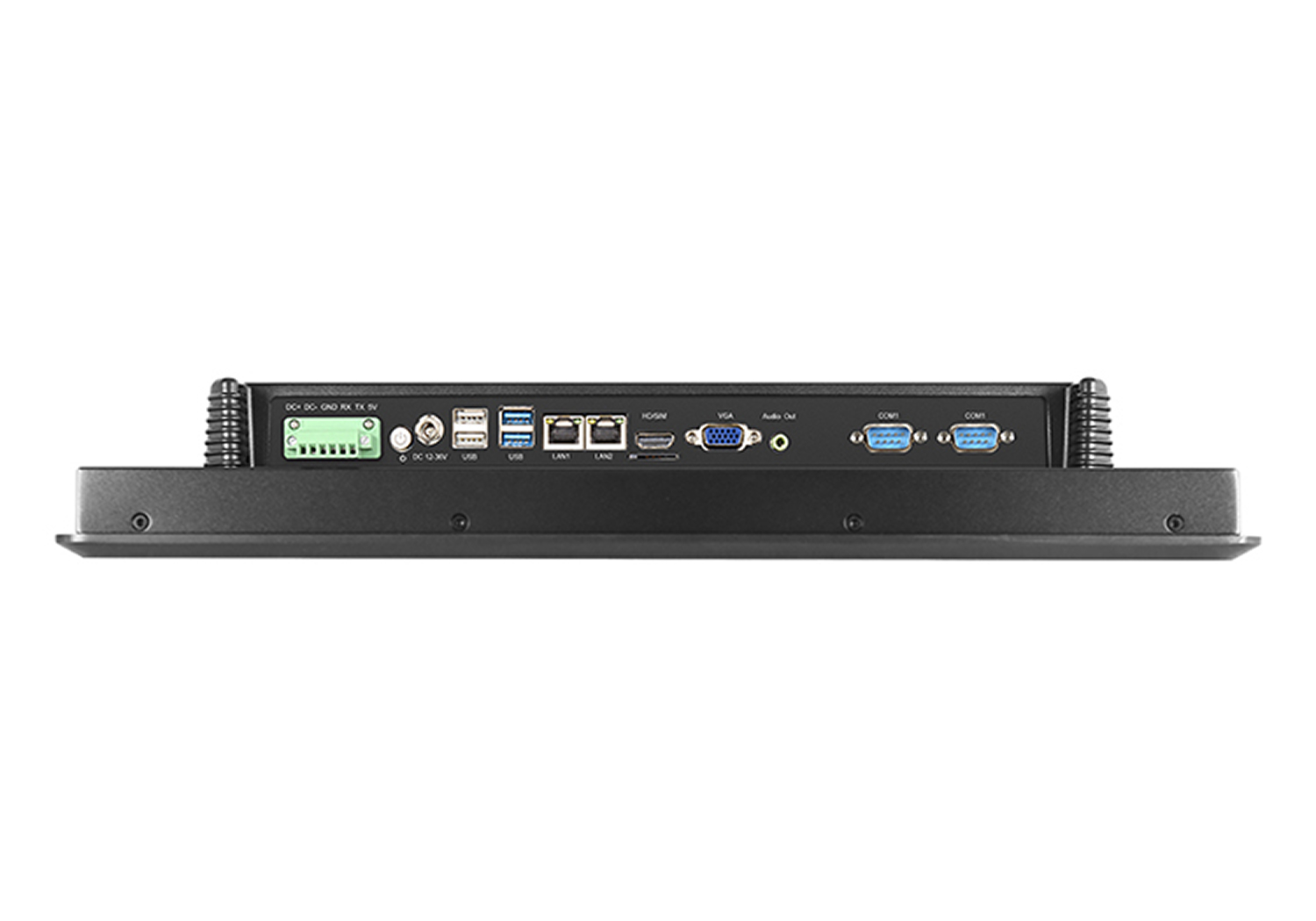

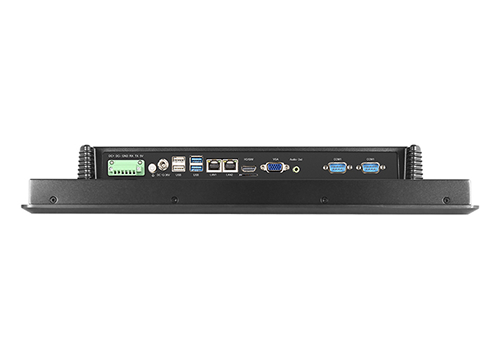

IO Ports1 x Phoenix type connector (6-pin)
1 x DC-in
2 x USB2.0
2 x USB3.0
2 x RJ-45 (Support Wake-on-LAN) (Optional PoE Function)
1 x HDMI
1 x SIM card slot
1 x DB15 (VGA)
1 x Audio (Line-out)
2 x DB9 (RS232)
1 x Power Button
Physical
Intermal Speaker2 x 2W
Power InputDC 12-36V
Power AdapterDC 12V/5A
MountingPanel Mount, VESA 75 x 75 mm &100 x 100 mm, Wall mount, Desktop stand
HousingAluminum Alloy Housing
Packing List
Standard AccessoryPower Adapter
Clamp Mount Kit

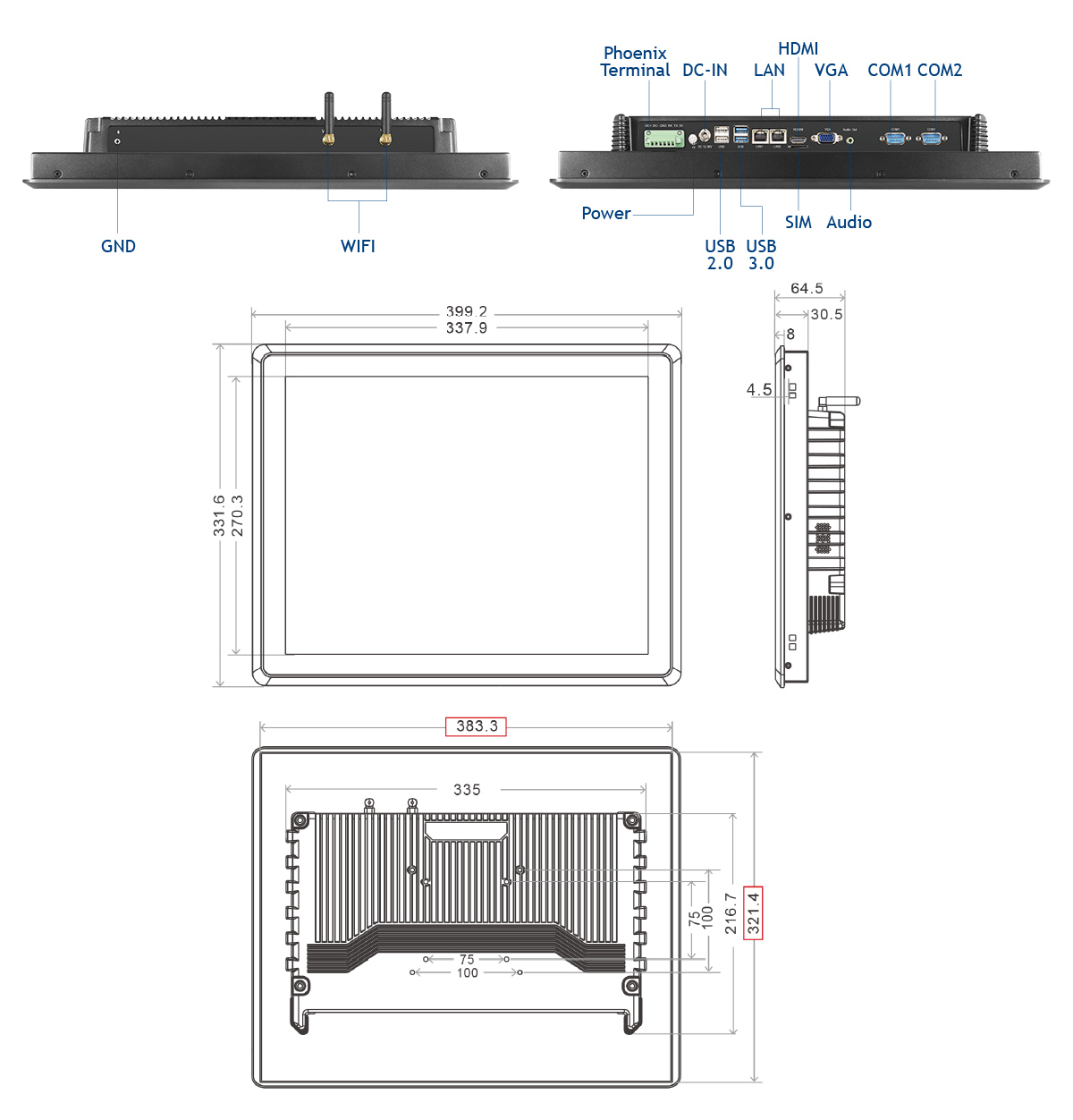

Product Dimension399.2 x 331.6 x 64.5 mm
Product Weight6 kg
Environment
Rugged FeatureFront IP65
CertificationCE, FCC Class B
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Relative humidity95% RH non-condensing
WAM1707 17″ Panel Mount Touch Panel PC
Intel Core i5-10210U Processor (Optional Core i7/i3, Celeron J4125)




Standard Accessory

Optional
