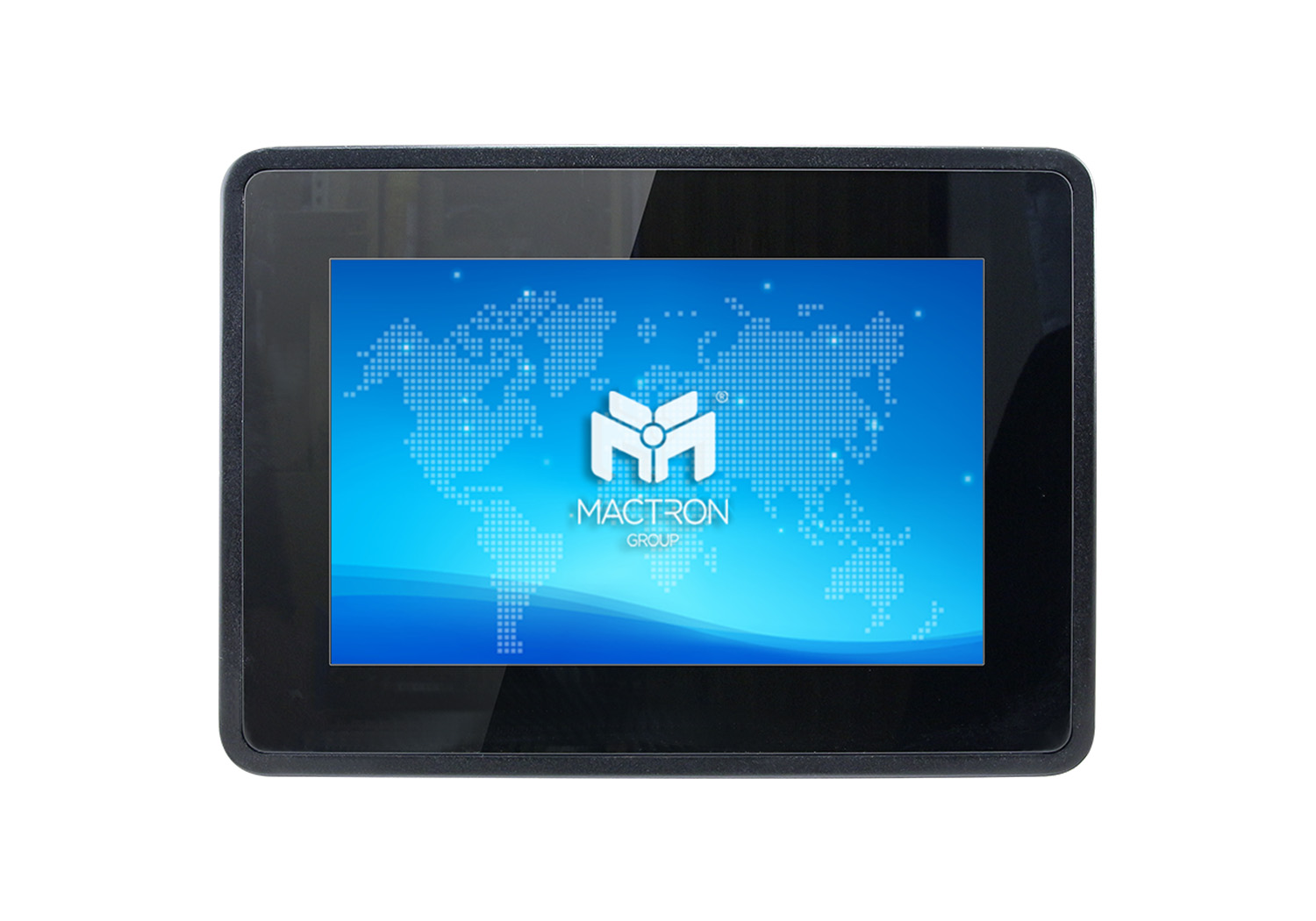

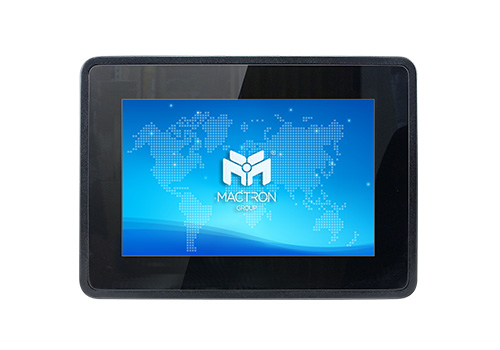

WAP1010

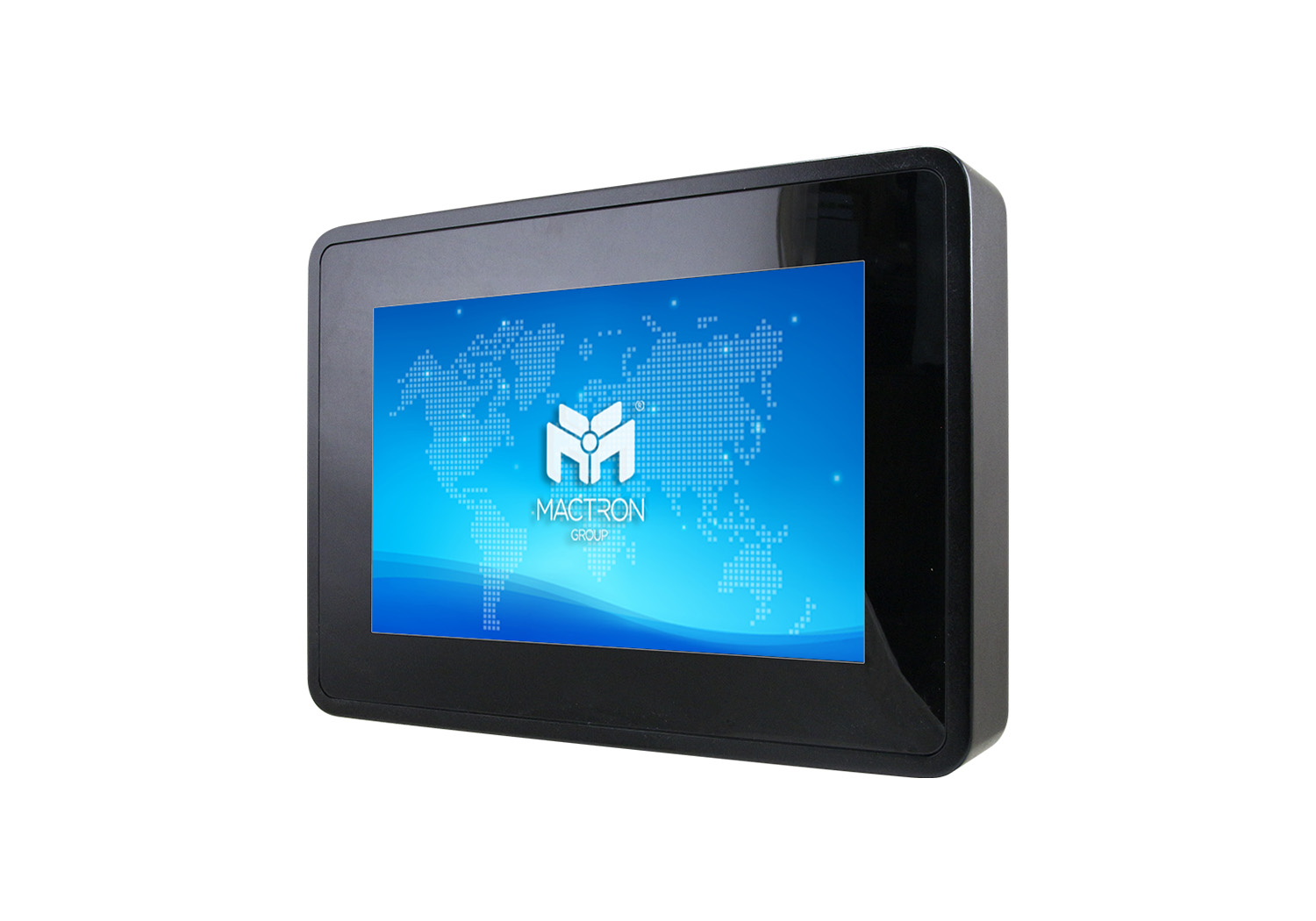

10.1" Fanless Stainless Windows Touch Panel PC

  • Datasheet
    • Fanless Full IP66/IP69K Stainless Windows Touch Panel PC Fanless Full IP66/IP69K Stainless Windows Touch Panel PC Fanless Full IP66/IP69K Stainless Windows Touch Panel PC
    • 10.1-inch Windows Touch Panel PC with Intel® Celeron® J6412 Processor
    • Projective Capacitive Touch Screen Full Flat Design
    • Stainless Steel Housing with Front IP65 & Rear IP54 Design

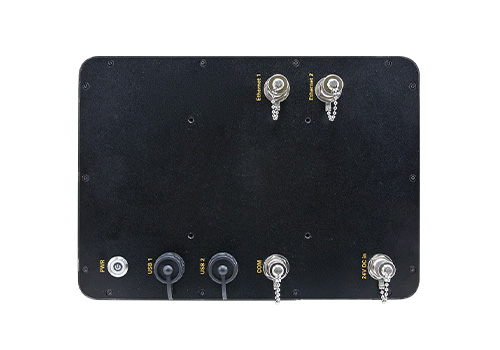

    • 1 x LAN, 2 x USB, 1 x COM by M12 Connector with waterproof cover and chain
    • Flexible installation with wall, stand, and VESA mounting options
    • Wide-ranged voltage DC In 12V~24V

    Applications:

    Food Processing, Pharmaceutical Manufacturing, Cleanroom Application, Chemical Environment, Animal Feed Production

    10.1" Fanless Stainless
    Windows Touch Panel PC
    Intel® Celeron® J6412 Processor
    (1.5M Cache, up to 2.60 GHz)

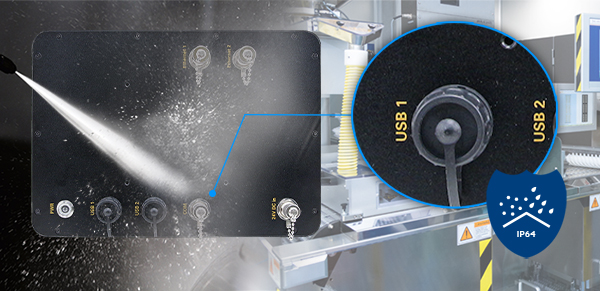

    Front IP65 / Rear IP54 Waterproof Design

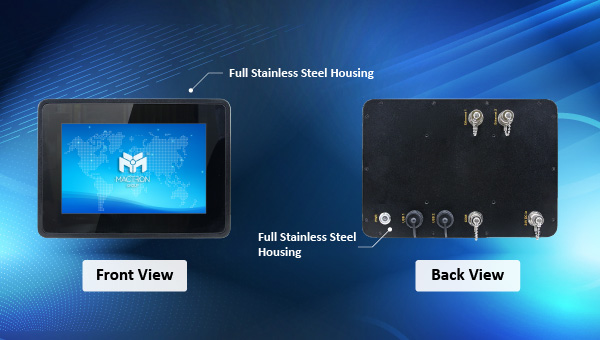

    Rugged construction with
    Stainless Steel housing
    Full M12 Connectivity for Industrial-Grade Protection

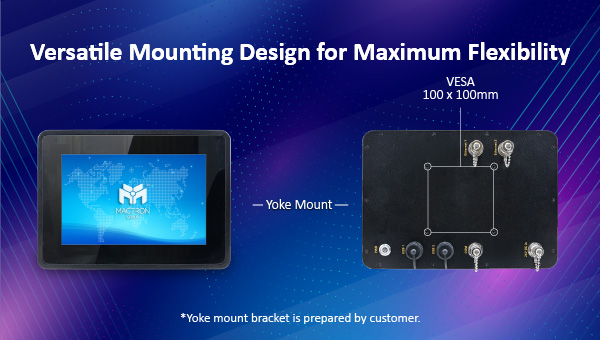

    Versatile Mounting Design
    for Maximum Flexibility
    Supports Yolk, Stand, VESA installation
    to fit diverse industrial environments.
    Display
    Display Type 10.1" WXGA 16:10 LCD
    Resolution 1280 x 800
    Brightness 500 nits
    Contrast Ratio 800
    Viewing Angle -89° ~ 89° (H) ; -89° ~ 89° (V)
    Response Time 29 ms
    Touch Type 10 Points Projective Capacitive Multi-Touchscreen
    Main System
    CPU Intel® Celeron® J6412 Processor (1.5M Cache, up to 2.60 GHz)
    GPU Intel® UHD Graphics
    Memory 1 x 260-pin DDR4 3200MHz SO-DIMM Socket, 8GB, Up to 32GB Max.
    Storage 128GB SSD (Optional 256GB/512GB/1TB)
    OS Support Windows 10/11, Ubuntu LTS
    LAN Controller 2 x Intel® I210AT (Co-lay I210IT/I211AT) Gigabit Ethernet
    Wireless WiFi with waterproof Antenna (Optional)
    BT (Optional)
    TPM TPM 2.0
    Watchdog Timer H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
    H/W Monitor Monitoring CPU & System Temperature and Voltage
    Expansion 1 x M.2 Type E 2230 supports WiFi module (PCIe x1 & USB 2.0 Signal)
    1 x M.2 Type B 3042/2242 support WWAN+GNSS or SSD）（SATA and USB 3.0/USB 2.0 signal）
    1 x M.2 Type M supports 2260 slot

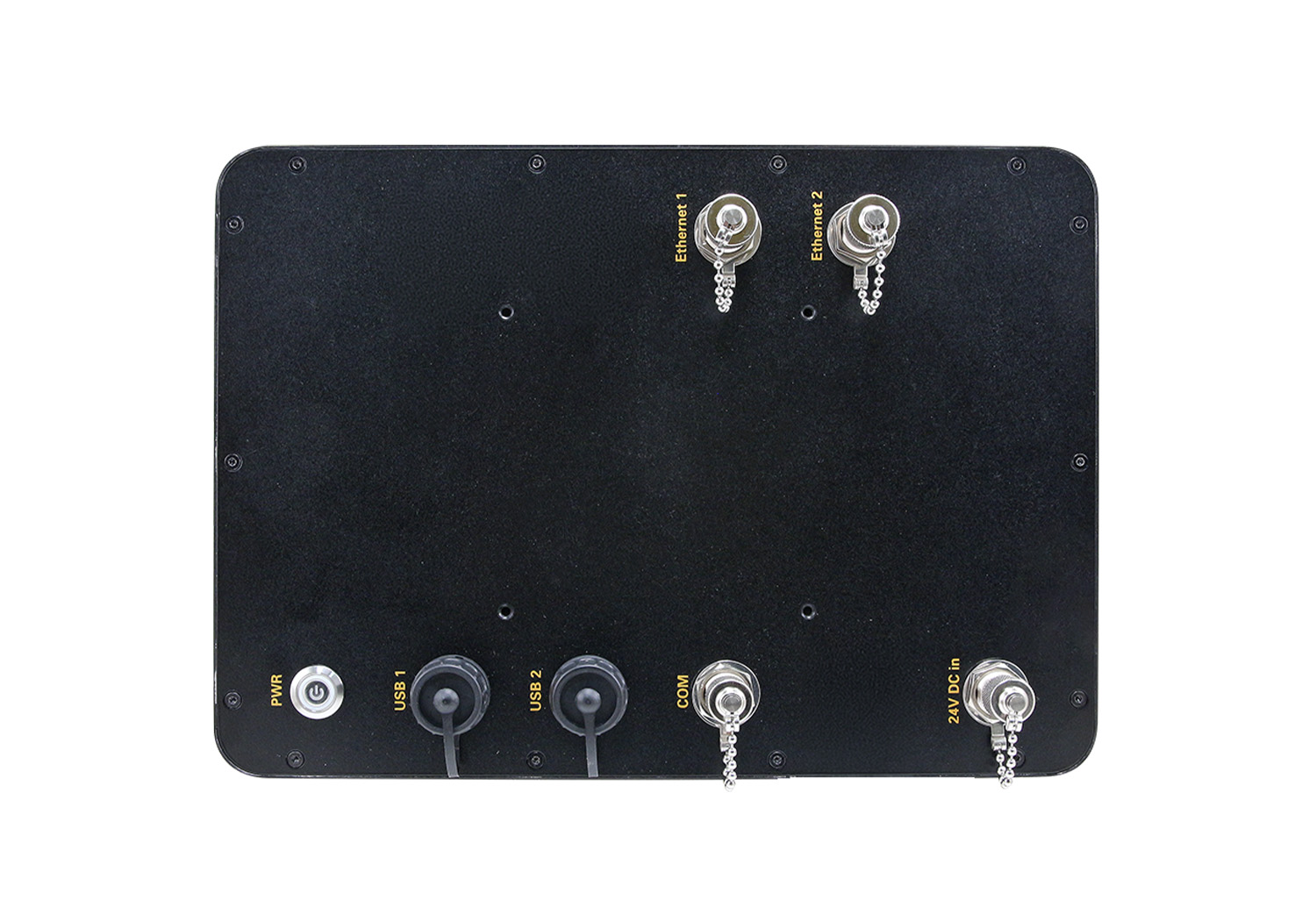

    IO Ports 1 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain
    2 x M12 4-pin(D-coded female) for LAN with waterproof cover and chain
    1 x M12 8-pin (male) COM1(RS-232) with waterproof cover and chain
    1 x M12 DC-In Connector
    1 x Power Switch on the back
    Physical
    Construction Front: Sheet metal, SECC + black painting, matt finish
    Rear: Sheet metal, SECC + black painting, matt finish
    CPU Cooler (Type) Fanless heatsink
    Mounting Wall / Stand / VESA 100mm x 100mm
    Power Mode ATX
    Power Connector M12 Connector
    Power Input DC 12-24V
    Power Adapter DC 24V/2.5A, 60W
    Packing List
    Standard Accessory 1 x Power Adapter (24V/2.5A)
    Waterproof M12 DC Cable

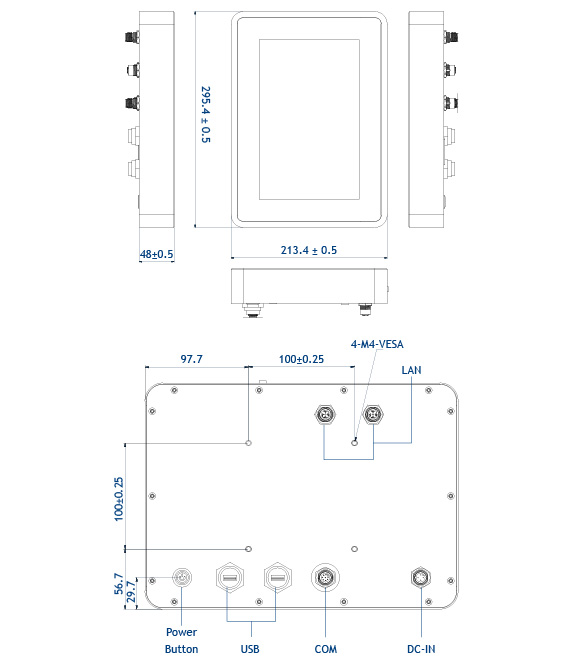

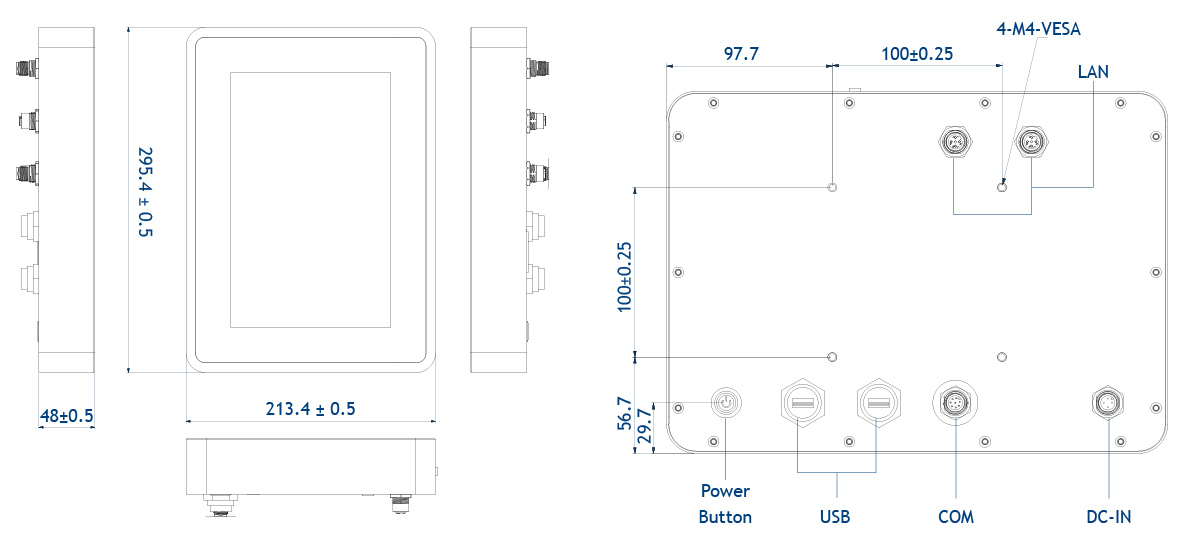

    Product Dimension 295.4 x 213.4 X48 mm
    Product Weight 3.5Kg
    Environment
    IP Rating Front IP65 / Rear IP54
    Certification CE / FCC Class A
    Operating Temperature 0℃ ~ 40℃ (32°F ~ 104°F)
    Storage Temperature 0℃ ~ 60℃ (32°F ~ 140°F)
    Relative Humidity 10% to 85%, non condensing
    Optional Accessory

    M12 Connector to
    2x USB
    2.0 Cable

    M12 Connector to
    DB9 Cable

    M12 Connector to
    LAN Cable

    Datasheet

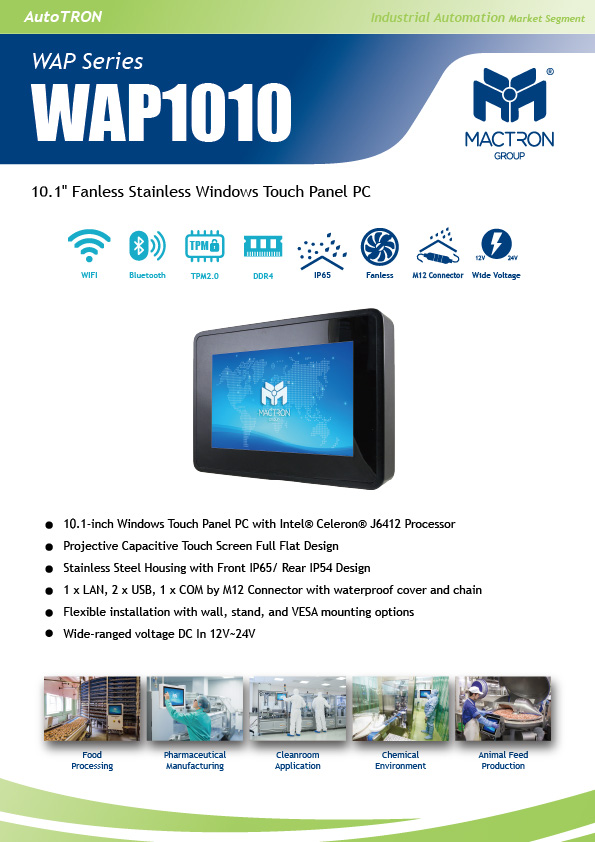

    flyer WAP1010
