WAP1705

17” Waterproof Stainless Windows Touch Panel PC

  • 17" TFT LCD w/PCAP Touch
  • Durable M12 IO Connectors
  • Optional Wall Mount, Yoke Mount Kits
  • Intel® Pentium® Processor N4200
  • Optional Wi-Fi Module
  • All-around IP66/IP69K Rating

Applications:

Food Processing, Pharmaceutical Manufacturing, Cleanroom Application, Chemical Environment, Animal Feed Production.

Corrosion Resistant Stainless Steel Enclosure
304 stainless steel housing  to withstand harsh chemicals without corroding over time.

The stainless steel Touch Panel PCs are widely used for automation processes in Food and Beverage applications and other industries that put hygiene as their top priority.

Waterproof All-Around
M12 connectors and support IP66/IP69K waterproof rated to survive splashing conditions during stringent cleanup processes and strict hygiene demands.

Responsive Touch Technologies
Multi-Touch PCAP touchscreen offers natural, precise interaction for unique workspace conditions.
Sustained Operation During Washdowns
WAP Series feature touchscreen enable/disable controls allowing facility operations to continue throughout intense high-pressure washdowns.

Pressure Balance Element
AGRO Pressure Balance Element, Preventing Water Condensation.

Round Corner
The rounded edges and smooth surface housing make it easy to clean.

M12 Connectors
The M12 connectors are waterproof for various industrial environments.


Application Usage
Display
Display Type 17" TFT LCD
Resolution 1280x1024
Brightness 350 Nits
Contrast Ratio800:1
LCD Color16.7M
Touch Panel 10 Points Projected Capacitive Touch Panel
Main System
CPUIntel® Pentium® N4200 Quad Core
Memory1 x SO-DIMM 4GB DDR3L
GraphicIntegrated Intel® HD Graphics 505
Expansion1 x Full Size Mini PCIe Socket (mux with mSATA)
Storage1 x Internal 2.5" SATA HDD Bay (Up to 1TB)
1 x mSATA Socket (Shared by 1 x Mini PCIe) (Up to 1TB)
OS SupportWindows® 10 IoT Enterprise, Windows® 10 Pro
Communication2 x Intel® I210 AT GbE LAN Port, Support Wake on LAN and PXE
WLANWi-Fi 802.11 a/b/g/n/ac/Bluetooth 4.0 (Optional)
IO Ports1 x VGA (M12 Connector)
2 x LAN (M12 Connector)
2 x USB 3.0 (M12 Connector)
1 x USB 2.0 (M12 Connector)
2 x COM (M12 Connector)
1 x DC Input (M12 Connector)
1 x Waterproof Power On/Off Button
1 x Waterproof Touch On/Off Button
Physical
Power ModeAT, ATX
Power InputDC 9 - 36V
Power AdapterDC 12V/5A
Power ConnectorM12 Connector
ConstructionSUS304 Stainless Steel Chassis
MountingVESA Mounting Holes 100 x 100mm, 200 x 200mm, 200 x 100mm
Packing List

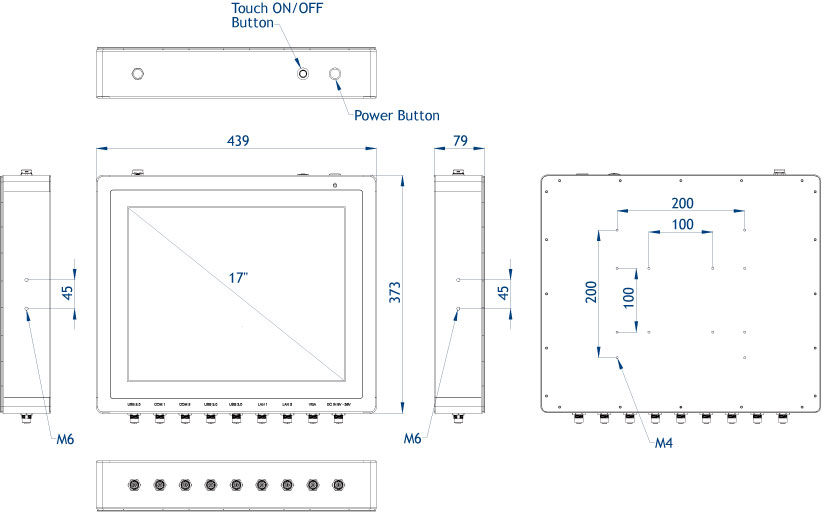

Product Dimension 439 x 373 x 79 mm
Product Weight 9kg
Box Dimension 660 x 540 x 240 mm
Box Weight 14kg
Environment
Rugged FeatureIP66/IP69K
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Relative Humidity 10%~ 90% @40°C (non-condensing)

Optional Accessory

AWM1705
Wall
Mount

AYM1705
Yoke
Mount
