WCA1012

10.1" Commercial Entry Android Touch Panel PC

Android Touch Panel PC Android Touch Panel PC Android Touch Panel PC Android Touch Panel PC Android Touch Panel PC
  • 10.1” Android System

  • Rockchip RK3399 Cortex-A72+A53, Hexa Core Processor

  • Multiple Various Optional Accessories

  • Passive Cooling Fanless Design

  • True Flat With 10 Points PCAP Touch

  • Rich I/O Ports Provide Excellent Peripheral Connectivity

Applications:

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Other WCA Series == Back to PPC Line

Display
Display Type10.1" TFT LCD
Resolution1280 x 800
Brightness500 nits
Touch Panel10 Points Projected Capacitive Touch Panel
Viewing AngleHorizontal 170° / Vertical 170°
Contrast Ratio800:1
Main System
CPURockchip RK3399 Cortex-A72+A53, Hexa Core Processor
GPUMali-T764
Memory2GB DDR3
Storage16GB Emmc
OS SupportAndroid 9.0 (Optional Android 11)
CommunicationWLAN: 802.11 b/g/n Module
Bluetooth 4.2
IO Ports1 x Micro SD Card Slot
1 x USB 2.0
1 x Micro USB 2.0
1 x LAN Port
1 x Mini HDMI
3 x Pogo Pin (Left, Right, Bottom)
Physical
Audio2 x 2W Speaker
CameraFront: 2MP (Optional)
VentilationFanless
ColorBlack
MountingVESA Mount 75 x 75
HousingABS+PC
Power AdapterDC 12V/2A, 20W
Packing List
Standard Accessory1 x Power Adapter (12V/2A)

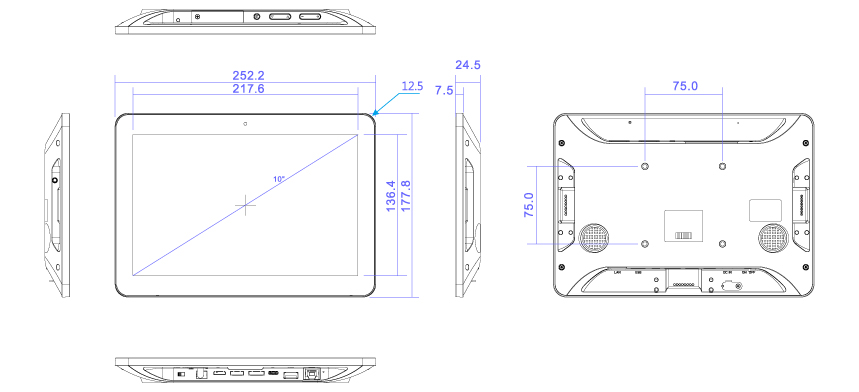

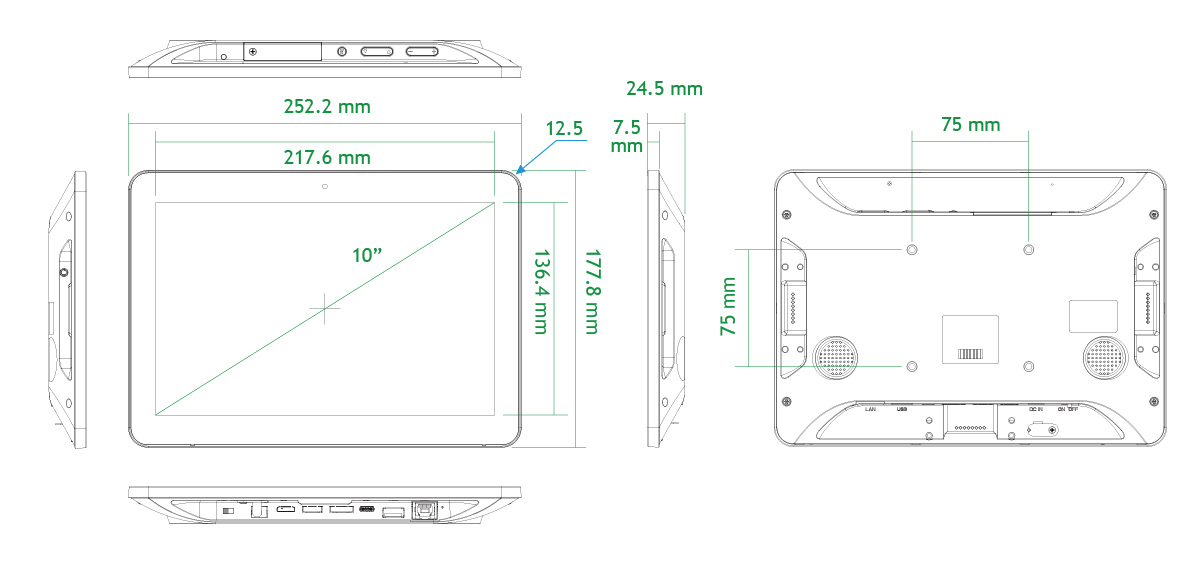

Product Dimension252.1 x 177.8 x 24 mm
Product Weight594.3 g
WCA1012 10.1” Commercial Entry Android Touch Panel PC
RK3399 Cortex-A72+A53, Hexa Core Processor

Optional
