WCA1162

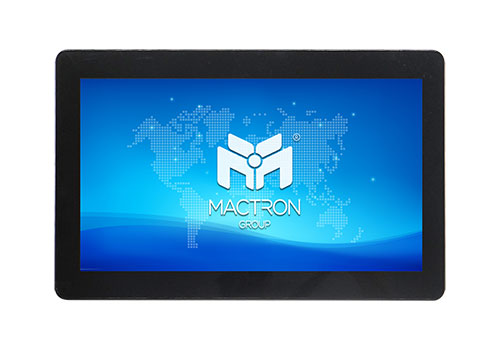

11.6" Commercial Entry Android Touch Panel PC

  • 11.6” Android System

  • RK3288 Cortex-A17, Quad Core Processor

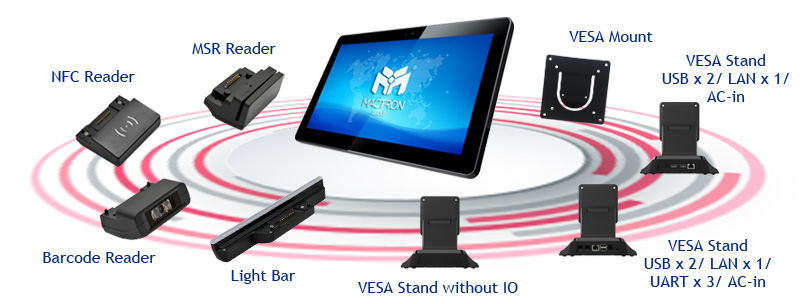

  • Multiple Various Optional Accessories

  • Passive Cooling Fanless Design

  • True Flat With 10 Points PCAP Touch

  • Rich I/O Ports Provide Excellent Peripheral Connectivity

Applications:

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Display
Display Type11.6" TFT LCD
Resolution1920 x 1080
Brightness350 nits
Touch Panel10 Points Projected Capacitive Touch Panel
Viewing AngleHorizontal 160° / Vertical 160°
Contrast Ratio1000:1
Main System
CPURK3288 Cortex-A17, Quad Core Processor
GPUMali-T764
Memory2GB DDR3
Storage16GB Emmc
OS SupportAndroid 9.0
CommunicationWLAN: 802.11 b/g/n Module
Bluetooth 4.2

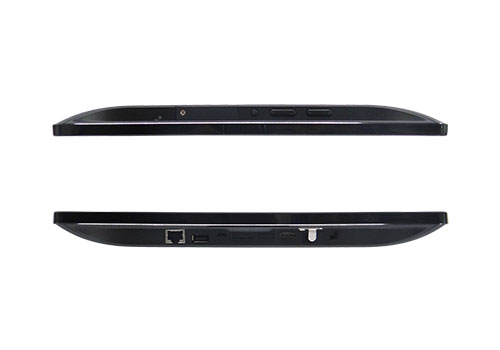

IO Ports1 x Micro SD Card Slot
1 x USB 2.0
1 x Micro USB 2.0
1 x LAN Port
1 x Mini HDMI
3 x Pogo Pin (Left, Right, Bottom)
Physical
Audio2 x 2W Speaker
CameraFront: 2MP (Optional)
VentilationFanless
ColorBlack
MountingVESA Mount 75 x 75
HousingABS+PC
Power AdapterDC 12V/2A, 20W
Packing List
Standard Accessory1 x Power Adapter (12V/2A)

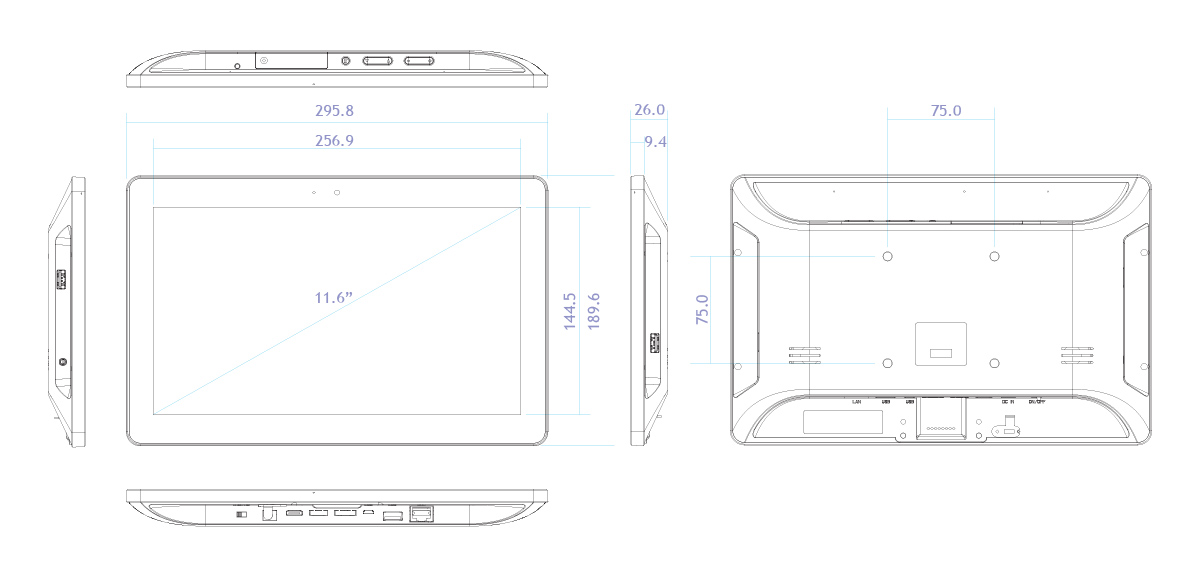

Product Dimension295.8 x 189.6 x 26 mm
Product WeightTBA
WCA1162 11.6” Commercial Entry Android Touch Panel PC
RK3288 Cortex-A17, Quad Core Processor

Optional

Datasheet
