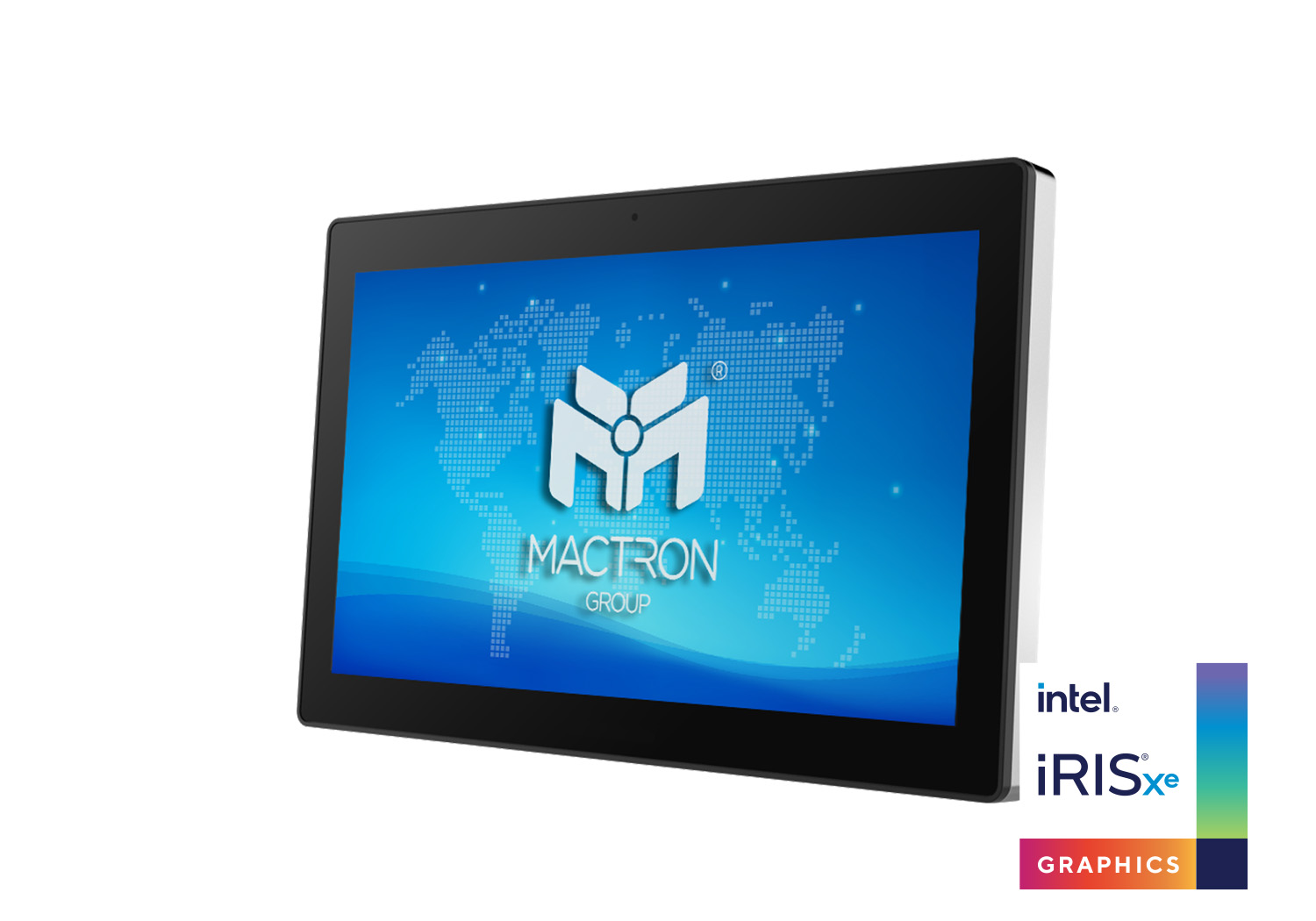

11.6″ Commercial Premium Windows Touch Panel PC

This will be released in mid of Q4, 2023
Commercial Premium Windows Touch Panel PC Commercial Premium Windows Touch Panel PC Commercial Premium Windows Touch Panel PC
  • 11.6″ Windows System
  • Intel Alder Lake Processor
  • Fanless & Front Panel IP65
  • Rich & Flexible I/O Port Design
  • Aluminum Die Casting Housing

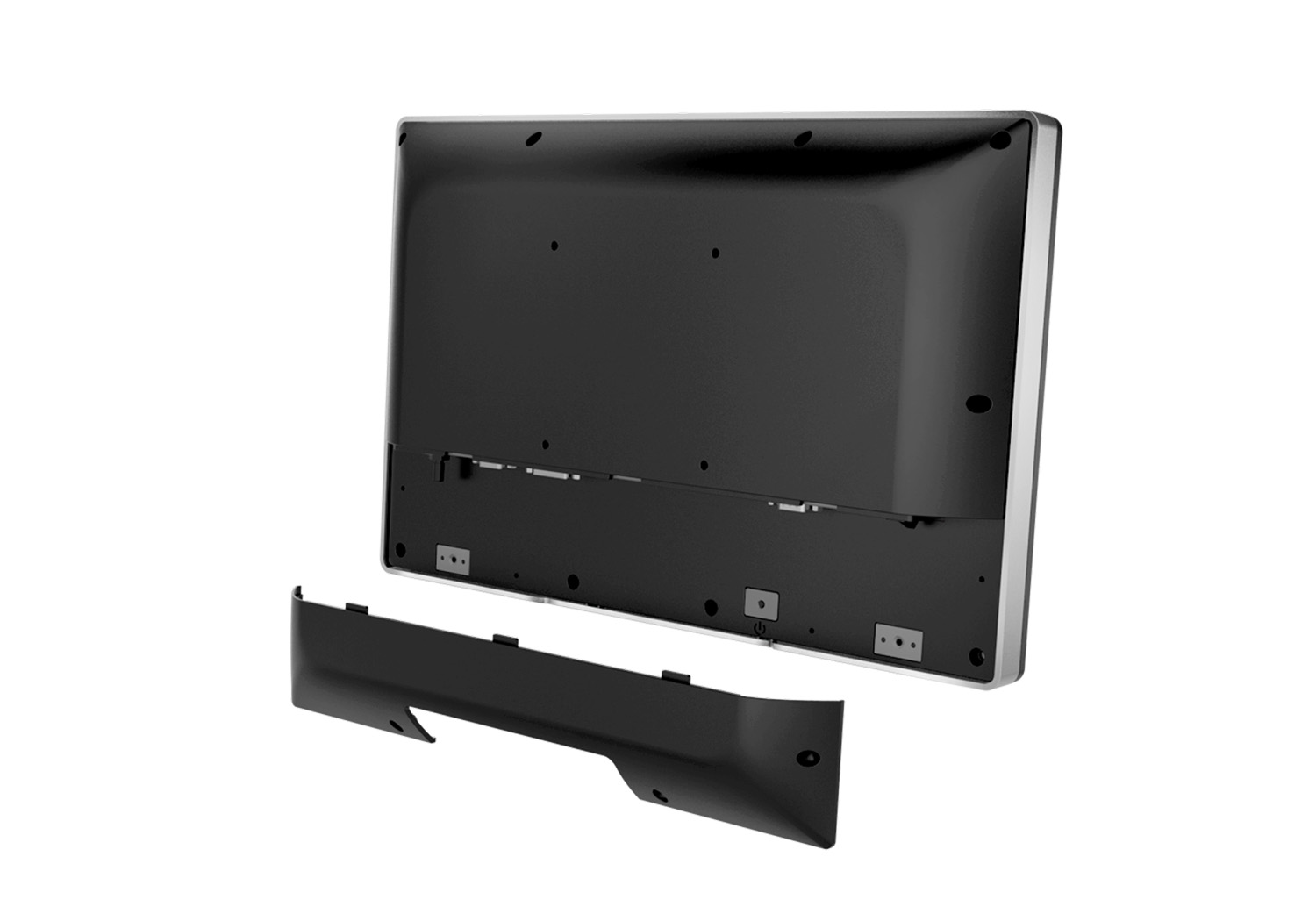

  • Magnetic I/O Port Cover For Easy Maintaining


Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc.

WCP1167 11.6” Windows Touch All In One System Panel PC
Intel® Whiskey Lake i5-8365UE vPro
Display Type11.6″ TFT LCD
Resolution1920 x 1080
Aspect Ratio16:9
Brightness450 Nits
Touch Panel10 Points Projected Capacitive Touch
Viewing Angle-89° ~ 89°(H) ; -89° ~ 89°(V)
Main System
ProcessorIntel® Core™ i5-1245UE vPro Deca Core
Intel® Core™ i7-1265UE vPro Deca Core (Optional)
Intel® Core™ i3-1215UE Hexa Core (Optional)
Intel® Celeron® 7305E Penta Core (Optional)
GPUIntel® Iris® Xe
Memory1 x SO-DIMM, DDR5 8GB, 4800MHz (Max.32GB)
1 x SO-DIMM, DDR5, 4800MHz (Max.32GB)
Storage1 x M.2 2280 Slot, B-Key 256GB (Max.1TB)
I/O Ports4 x USB 3.0
1 x COM (RS232)
1 x COM (RS232/422/485)-(RS232 support 5V/12V)
2 x LAN (1 x Intel® I211, 1 x Intel® I219LM)
1 x HDMI 2.0
1 x DVI-I
1 x 3.5mm phone jack Mic-in
1 x 3.5mm phone jack Line-out
1 x MB support 9-36V DC-in
Operating SystemWindows 10 IoT, Windows 10 Pro, Windows 11, Linux
CameraFront Camera : 2.0 MP
Audio2 x 2W Speaker
MountingVESA Mount 100 x 100 mm
ColorBlack / White
Dimensions(WxDxH)295.8 x 189.6 x 34.9 mm
EnclosureAluminum Die Casting
Cooling SystemFanless
Button1 x Power On/Off
Power AdapterDC 19V/4.74A, 90W
TPM 2.0
Intel vPro
Packing List
Standard Accessory1 x Medical Grade Power Adapter
4 x Rubber Stopper
IP RatingFront IP65
CertificationCE, FCC Class A, CB, cTUVus, EU RF
Operating Temperature0°C ~ 40°C
Storage Temperature-20°C ~ 60°C
Relative Humidity20% ~ 80% (non-condensing)
Warranty2 Years
