WCS1010

10.1" Commercial Entry Windows Touch Panel PC

Commercial Entry Windows Touch Panel PC Commercial Entry Windows Touch Panel PC Commercial Entry Windows Touch Panel PC Commercial Entry Windows Touch Panel PC
  • 10.1” Windows System

  • Intel Pentium N4200, Quad Core Processor

  • Professional Metal Housing

  • Passive Cooling Fanless Design

  • True Flat With 10 Points PCAP Touch

  • Rich I/O Ports Provide Excellent Peripheral Connectivity

Applications:

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Other WCS Series == Back to PPC Line

Display
Display Type10.1" TFT LCD
Resolution1280 x 800
Brightness500 nits
Touch Panel10 Points Multiple PCAP Touch
Aspect Ratio16:10
Main System
CPUIntel Pentium N4200, Quad Core Processor
GPUIntel UHD Graphics 505
Memory2 x SO-DIMM, DDR3 4GB 1600MHz (Max.8GB)
Storage1 x M.2 2242 Slot, B-Key, SATA SSD 64GB (Max.256GB)
OS SupportWindows 8, Windows 10 IOT, Linux
Audio ControllerRealtek ALC255-CG
Function SupportWLAN
Bluetooth 4.2

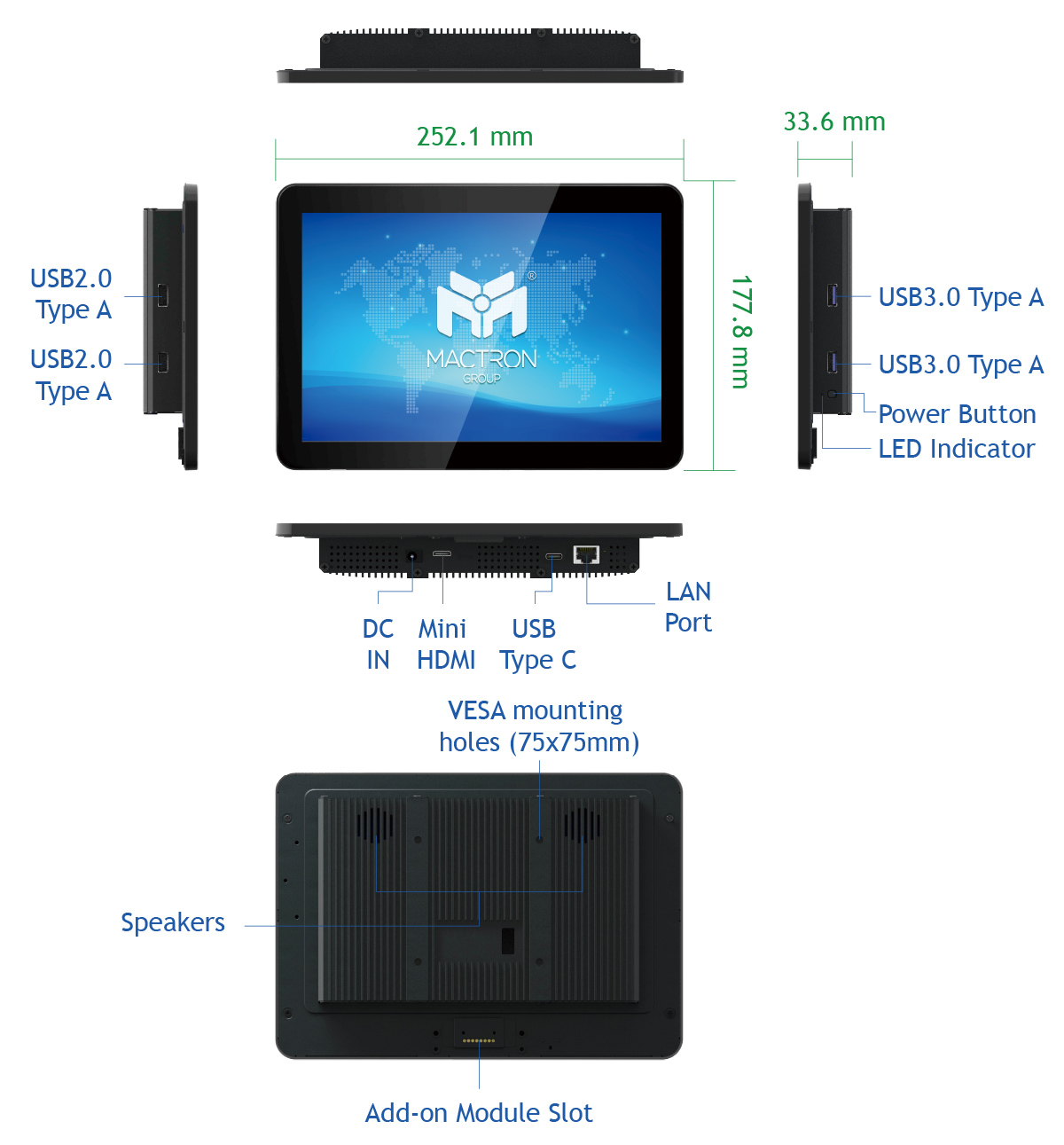

IO Ports2 x USB3.0
3 x USB2.0
1 x HDMI
1 x LAN
1 x Pogo Pin (Bottom)
Physical
Internal Speaker2 x 2W
Power AdapterDC 12V/3A, 36W
MountingVESA Mount 75 x 75
HousingMetal
Packing List
Standard Accessory1 x Power Adapter (12V/3A)
Product Dimension252.1 x 177.8 x 24 mm
Product Weight1420g
Environment
CertificationCE, FCC
Operating Temperature0°C ~ 40°C
Storage Temperature-10°C ~ 55°C
Relative Humidity10% ~ 70% (Non-Condensing)
WCS1010 10.1” Commercial Entry Windows Touch Panel PC
Intel® Pentium N4200, Quad Core Processor

Optional
