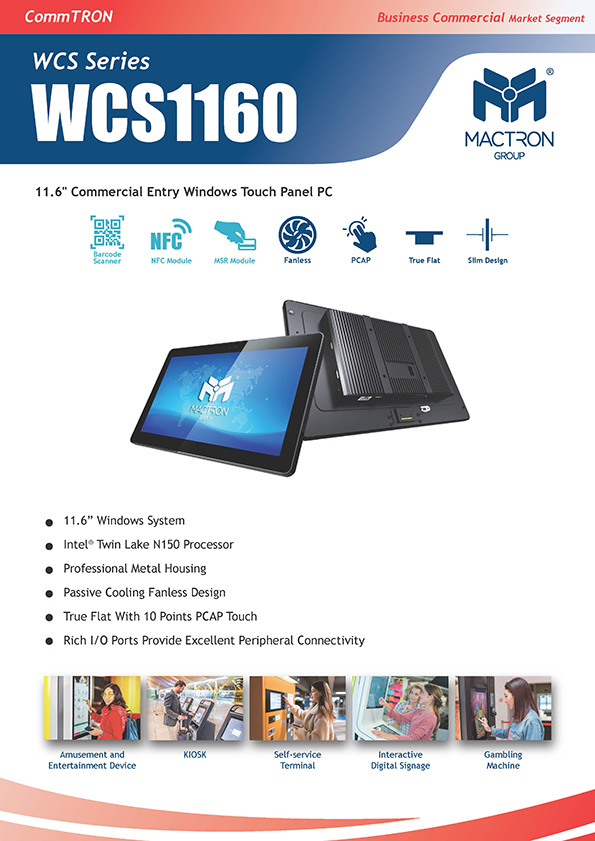

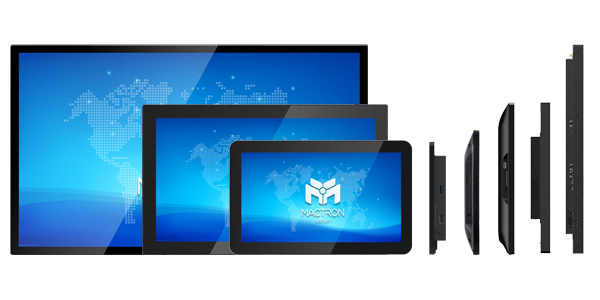

11.6” Windows System
Intel® Twin Lake N150 Processor
Professional Metal Housing
Passive Cooling Fanless Design
True Flat With 10 Points PCAP Touch
Rich I/O Ports Provide Excellent Peripheral Connectivity
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
| Display | |
|---|---|
| Display Type | 11.6" TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 350 nits |
| Touch Panel | 10 Points Multiple PCAP Touch |
| Aspect Ratio | 16:9 |
| Main System | |
| CPU | Intel® Twin Lake N150 |
| GPU | Intel® Graphics 1GHz |
| Memory | 8GB DDR5 4800MT/s Max 16GB |
| Storage | 128GB M.2 2242 SSD |
| OS Support | Windows 10 IoT, Window11 IoT, Linux |
| Audio Controller | Realtek ALC255-CG |
| Function Support | Support: Intel AX210 Module WiFi 802.11 a/b/g/n/ac/ax |
| Bluetooth 5.3 | |

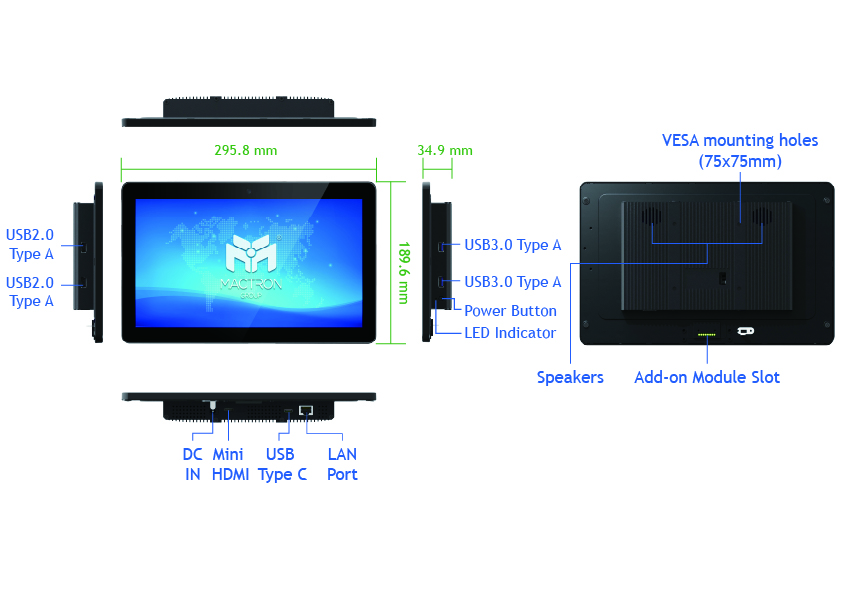

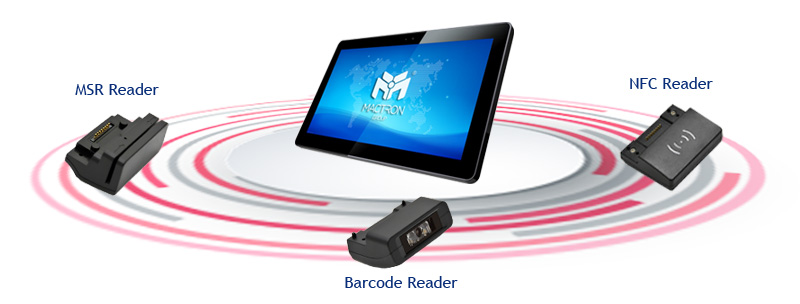

| IO Ports | 1 x Type C with PD 2 x USB3.0 2 x USB2.0 1 x LAN (10/100/1000Mbps) 1 x DC Jack (Input or PD 20V/15V/12V(Min 40W)) 1 x Add-on Module Slot 1 x Mini HDMI |
| Physical | |
| Internal Speaker | 2 x 2W |
| Power Adapter | DC 12V/3A, 36W |

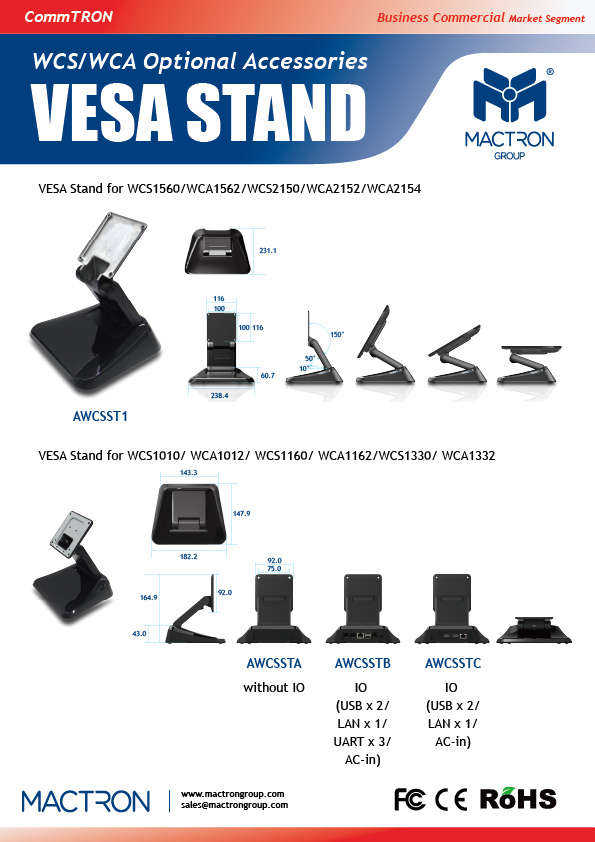

| Mounting | VESA Mount 75 x 75 |
| Housing | Metal |
| Packing List | |
| Standard Accessory | 1 x Power Adapter (12V/3A) |
| Product Dimension | 295.8 x 189.6 x 34.9 mm |
| Product Weight | 1310g |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 55°C |
| Relative Humidity | 10% ~ 70% (Non-Condensing) |
