WCS1560

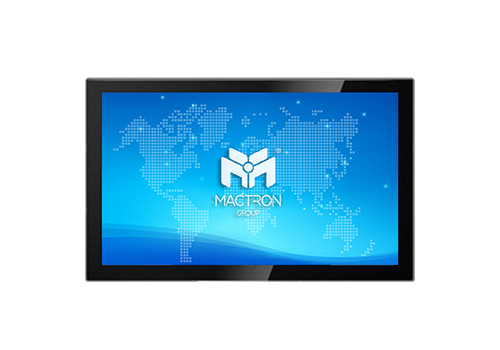

15.6" Commercial Entry Windows Touch Panel PC

  • 15.6” Windows System

  • Intel® Braswell Celeron N3160 Processor

  • Professional Metal Housing

  • Passive Cooling Fanless Design

  • True Flat With 10 Points PCAP Touch

  • Rich I/O Ports Provide Excellent Peripheral Connectivity

Applications:

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Other WCS Series == Back to PPC Line

Display
Display Type15.6" TFT LCD
Resolution1920 x 1080
Brightness300 nits
Touch Panel10 Points Multiple PCAP Touch
Aspect Ratio16:9
Main System
CPUIntel® Braswell Celeron N3160 Processor
GPUIntel UHD Graphics 505
Memory2 x SO-DIMM, DDR3 4GB 1600MHz (Max.8GB)
Storage1 x M.2 2242 Slot, B-Key, SATA SSD 64GB (Max.256GB)
OS SupportWindows 8, Windows 10 IOT, Linux
Audio ControllerRealtek ALC255-CG
Function SupportWLAN
Bluetooth 4.2

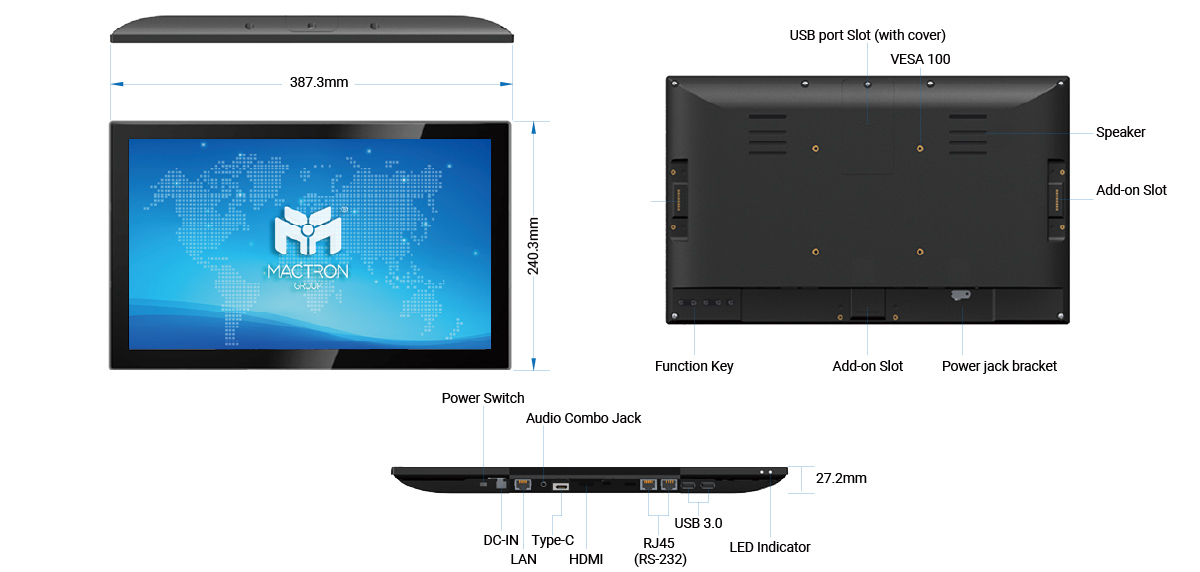

IO Ports2 x USB3.0
3 x USB2.0
1 x Micro USB2.0
1 x LAN
1 x Combo JACK
1 x SPDIF
1 x SD Card Slot
3 x Pogo Pin (Left, Right, Bottom)
1 x HDMI
Physical
Internal Speaker2 x 3W
Power AdapterDC 12V/3A, 36W

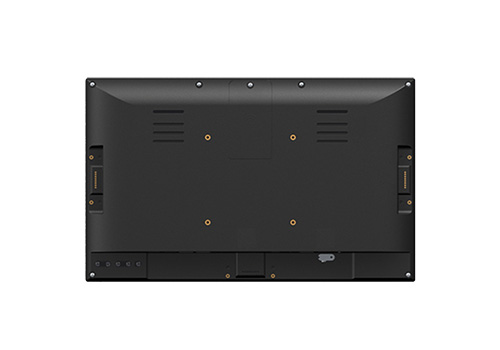

MountingVESA Mount 100 x 100
HousingMetal
Packing List
Standard Accessory1 x Power Adapter (12V/5A)
Product Dimension387.3 x 240.3 x 27.2 mm
Product Weight1480g
Environment
CertificationCE, FCC
Operating Temperature0°C ~ 40°C
Storage Temperature-10°C ~ 55°C
Relative Humidity10% ~ 90% (Non-Condensing)
WCS1560 15.6” Commercial Entry Windows Touch Panel PC
Intel® Braswell Celeron N3160 Processor

Optional

Datasheet
