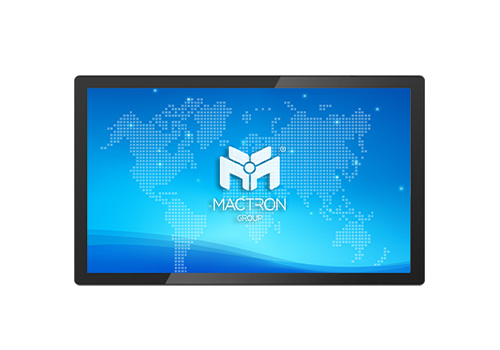

21.5” Windows System
Intel® Braswell Celeron N3160 Processor
Professional Metal Housing
Passive Cooling Fanless Design
True Flat With 10 Points PCAP Touch
Rich I/O Ports Provide Excellent Peripheral Connectivity
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
Other WCS Series == Back to PPC Line
| Display | |
|---|---|
| Display Type | 21.5" TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Touch Panel | 10 Points Multiple PCAP Touch |
| Aspect Ratio | 16:9 |
| Main System | |
| CPU | Intel® Braswell Celeron N3160 Processor |
| GPU | Intel UHD Graphics 505 |
| Memory | 2 x SO-DIMM, DDR3 4GB 1600MHz (Max.8GB) |
| Storage | 1 x M.2 2242 Slot, B-Key, SATA SSD 64GB (Max.256GB) |
| OS Support | Windows 8, Windows 10 IOT, Linux |
| Audio Controller | Realtek ALC255-CG |
| Function Support | WLAN |
| Bluetooth 4.2 | |

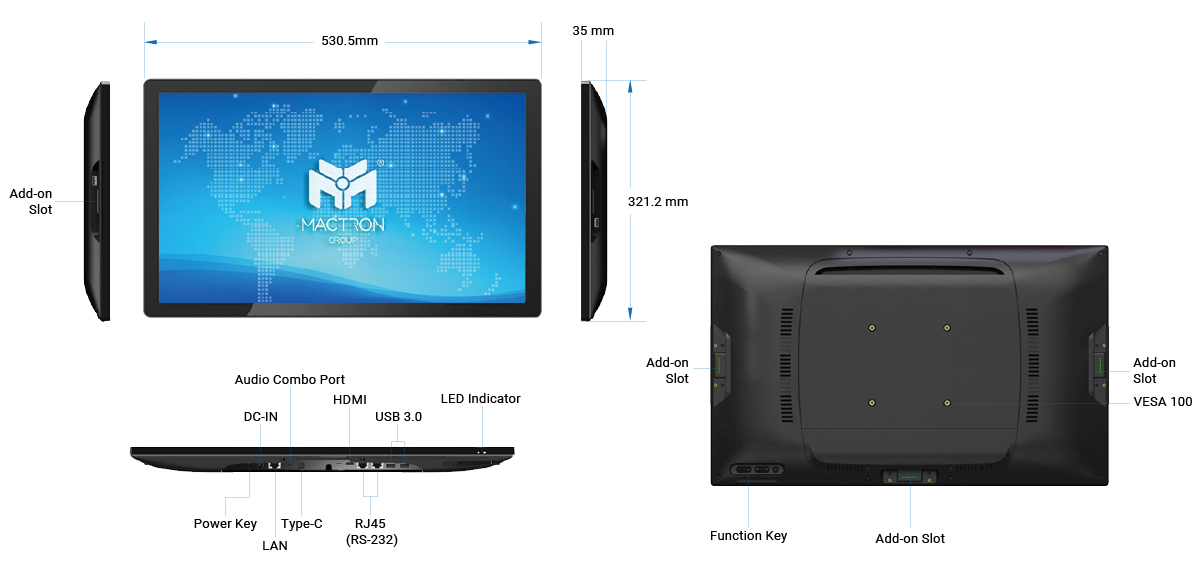

| IO Ports | 2 x USB3.0 1 x SPDIF 1 x SD Card Slot |
| 3 x USB 2.0 | |
| 1 x Micro USB 2.0 | |
| 1 x LAN | |
| 1 x Combo JACK | |
| 1 x SPDIF | |
| 1 x SD Card Slot | |
| 1 x HDMI | |
| 3 x Pogo Pin (Right, Left, Bottom) | |
| Physical | |
| Internal Speaker | 2 x 3W |
| Power Adapter | DC 12V/3A, 36W |
| Mounting | VESA Mount 100 x 100 |
| Housing | Metal |
| Packing List | |
| Standard Accessory | 1 x Power Adapter (12V/5A) |
| Product Dimension | 537 x 332 x 43 mm |
| Product Weight | 6.6kg |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 55°C |
| Relative Humidity | 10% ~ 90% (Non-Condensing) |
