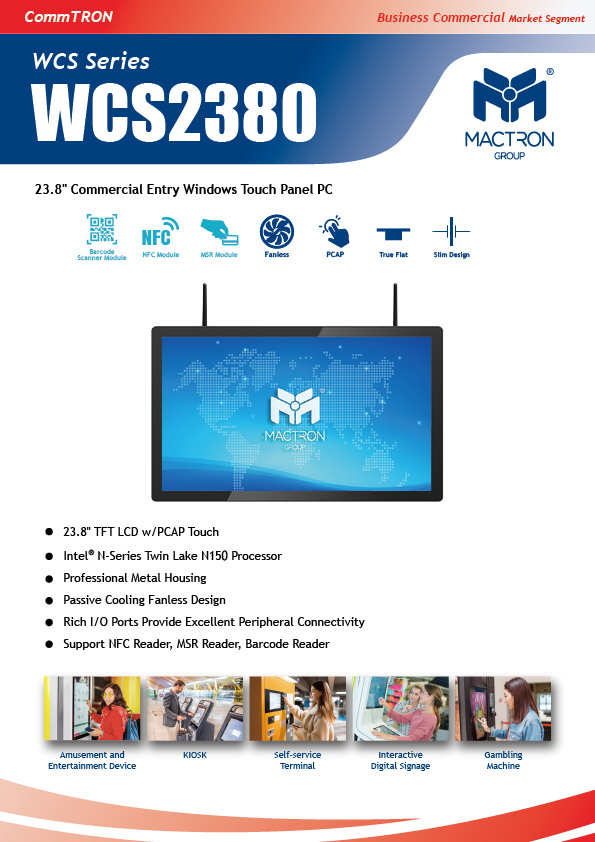

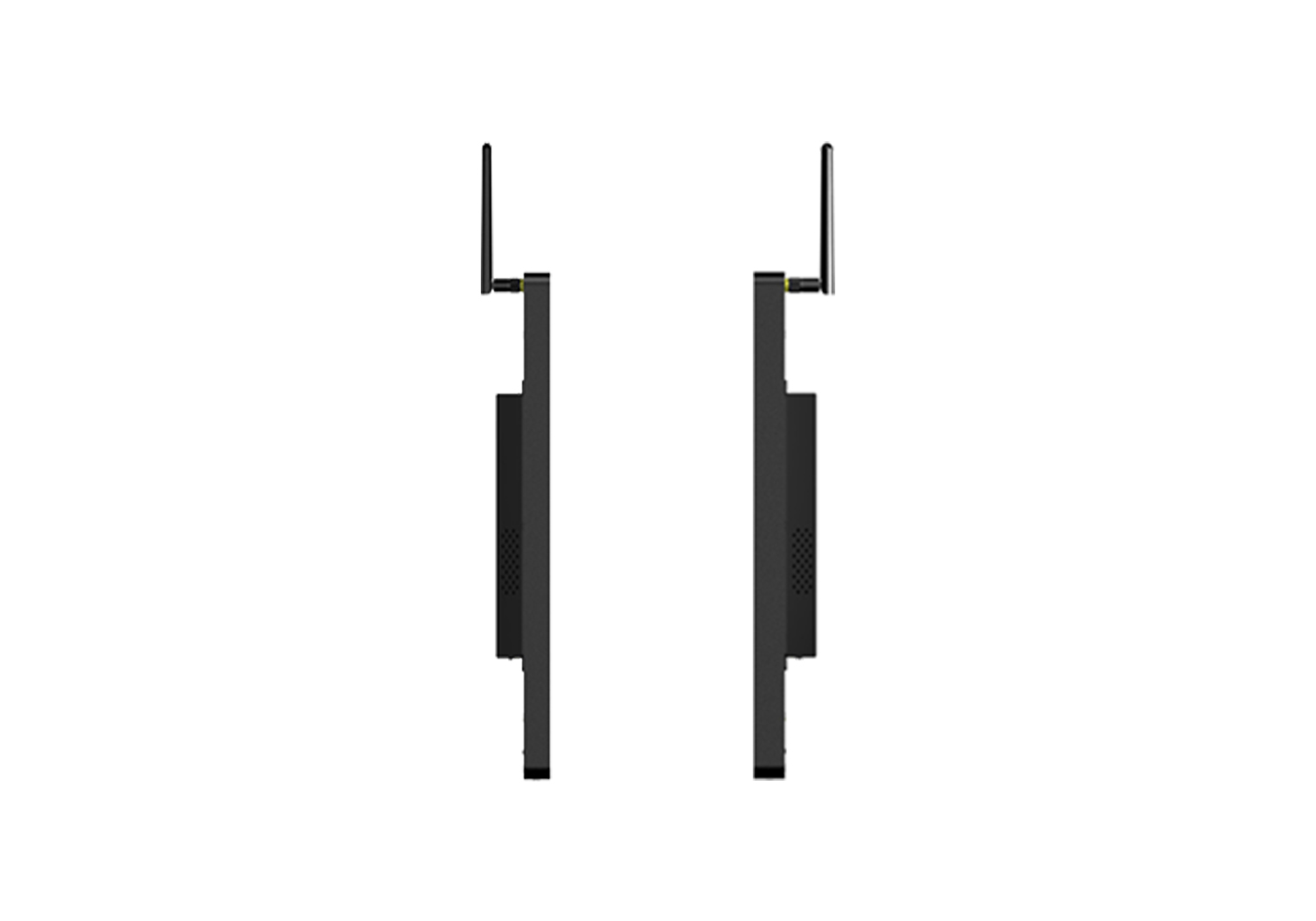

WCS2380

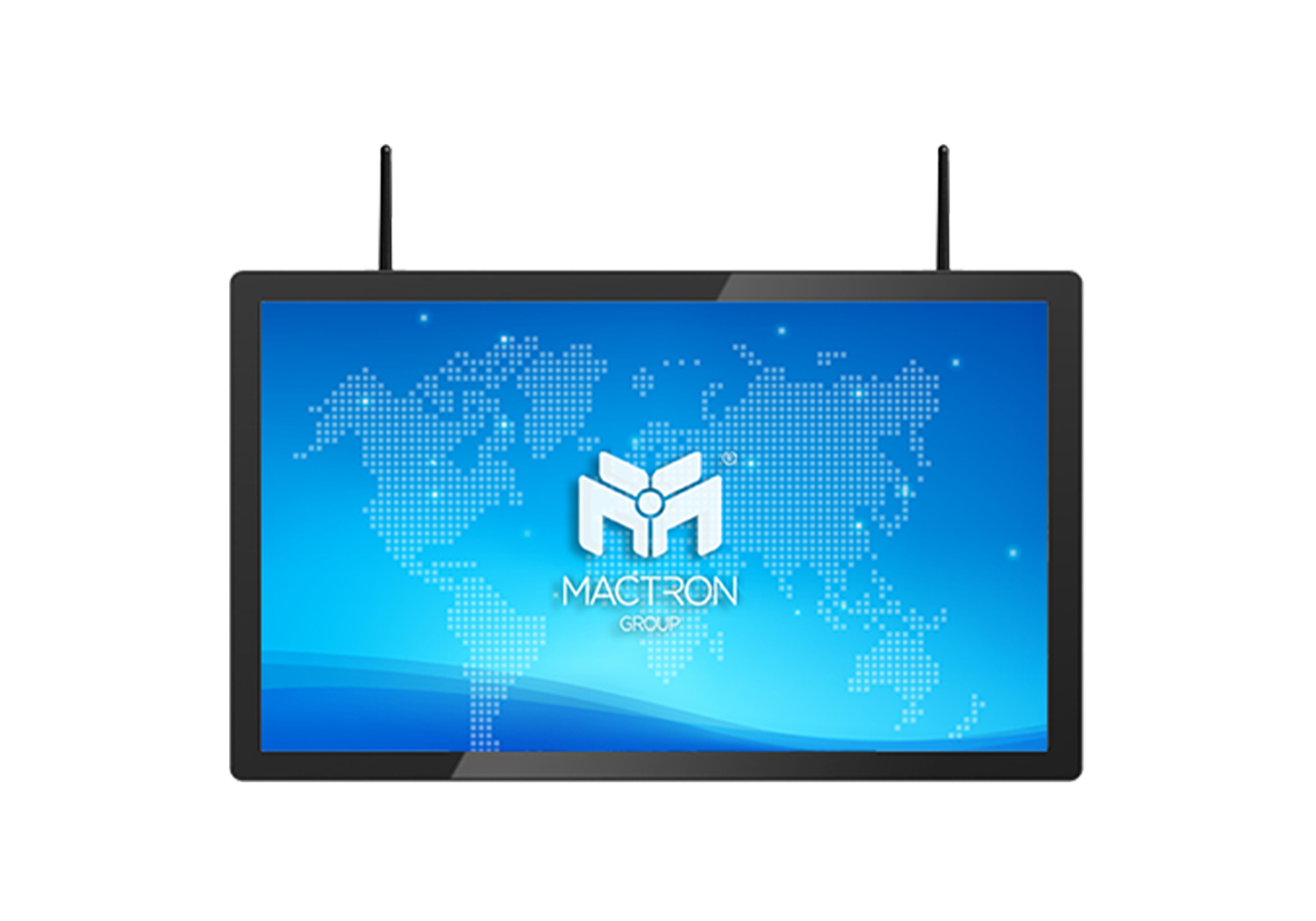

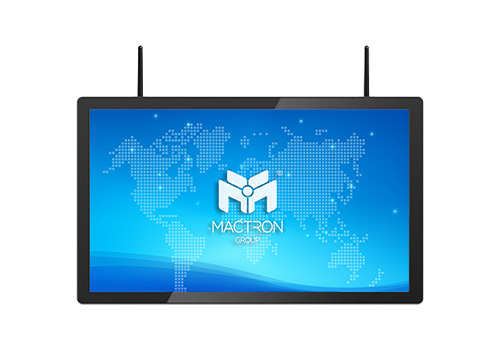

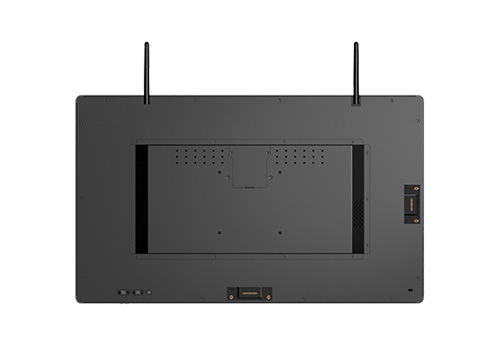

23.8" Commercial Entry Windows Touch Panel PC

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Intel^® Processor N150, Quad Core Processor

Full range display sizes from 7” to 42.5” meet various application and places

WCS Series is suited for all kinds of your needs

Fast & easily to switch your accessories like transformers

Display
Display Type	23.8" TFT LCD
Resolution	1920x1080
Brightness	350 nits
Touch Panel	Projected Capacitive Touch Panel
Main System
CPU	Intel^® N-series Twin lake N150
GPU	Intel^® Graphics 1GHz
Memory	8GB DDR5 4800MT/s Max 16GB
Storage	128GB M.2 2242 NVMe SSD
Security	fTPM
OS Support	Windows 10 IoT, Window11 IoT, Linux
Audio Controller	Realtek ALC255-CG
Wireless	Intel AX210 Module WiFi 802.11 a/b/g/n/ac/ax Bluetooth 5.3
Function Key	Power On / Off Windows Home Key Volume +/- Brightness +/-

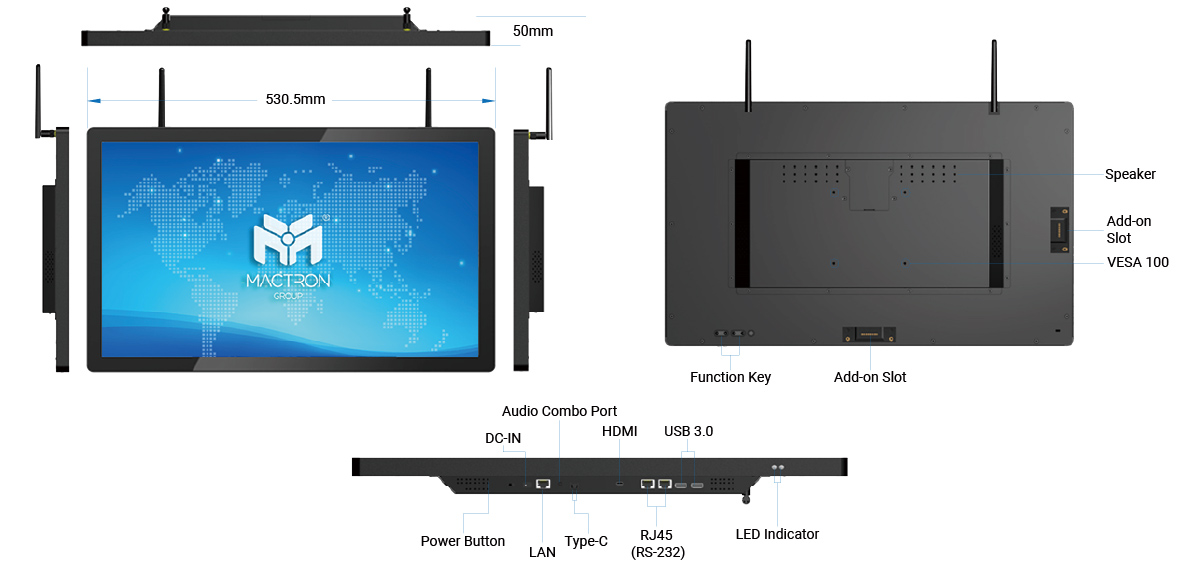

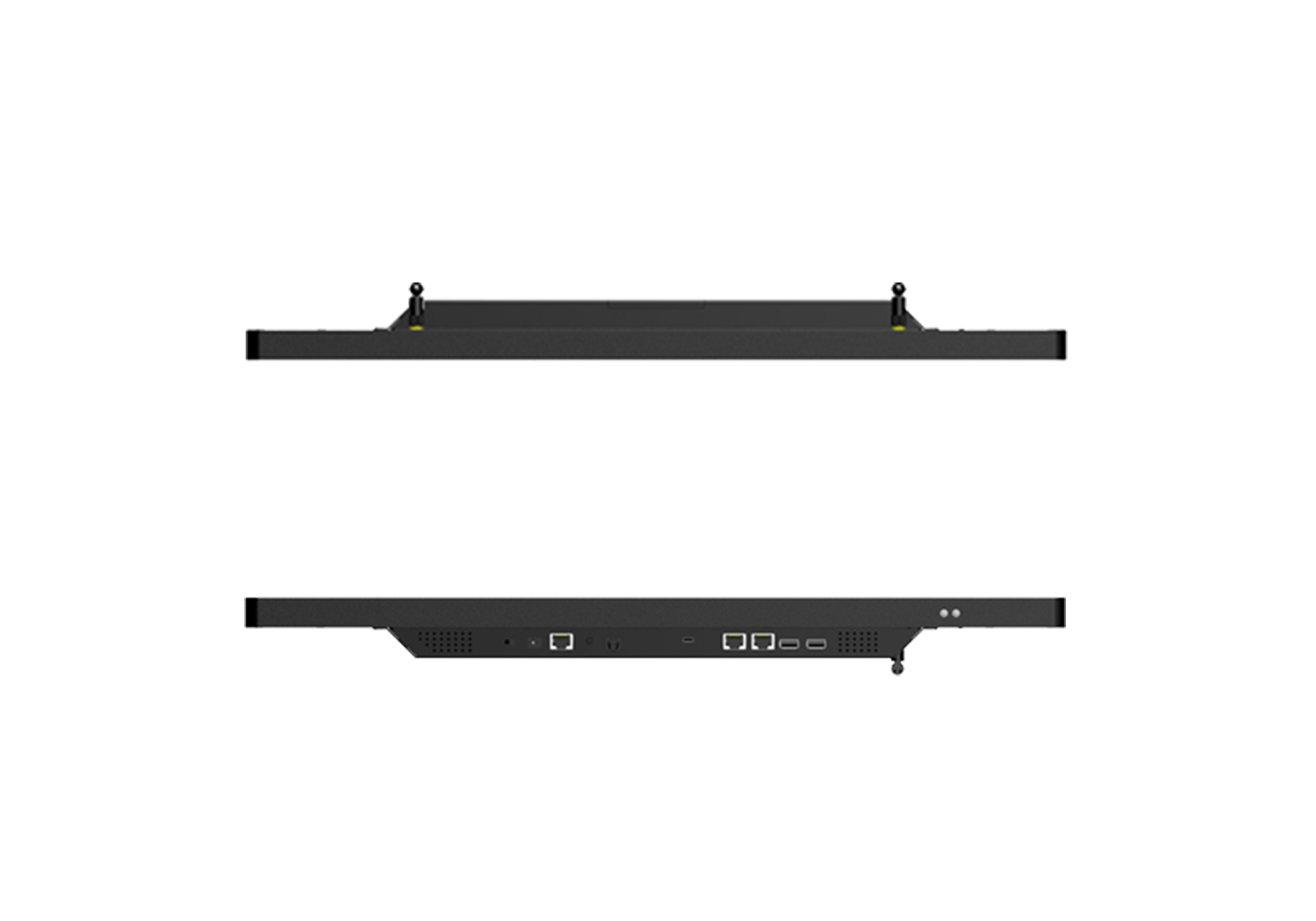

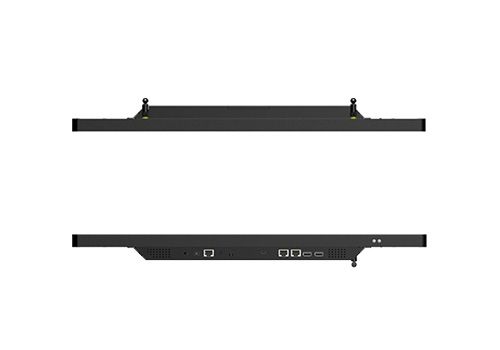

IO Ports	Type C (USB 3.2) with PD USB 3.2 x 2 USB 2.0 x 3 (Right,Left,Top for Pogo Device) LAN x 1 (10/100/1000Mbps) Mini HDMI x 1 Audio Combo Jack x1 DC Jack x 1 COM Port x 2 (RJ-45, RS-232) GPIO x 2 pin Add-on module Slot x 3
Data Collection	NFC Module (Optional) MRS Reader (Optional) 2D Barcode Reader Module (Optional)
Physical
Internal Speaker	2x 3W
Power Adapter	DC 12V/5A
Mounting	VESA100 x 100
Housing	Metal with black color
Packing List
Standard Accessory	Power Adapter COM Port Cable x 2
Product Dimension	575 x 346 x 45 mm
Product Weight	7.8 kg
Environment
Certification	CE, FCC
Operating Temperature	0°C ~ 35°C (32℉ ~ 95℉)
Storage Temperature	0°C ~ 55°C (32℉ ~ 131℉)
Relative Humidity	Operating: 85% relative humidity, non-condensing Storage: 85%relative humidity, non-condensing
