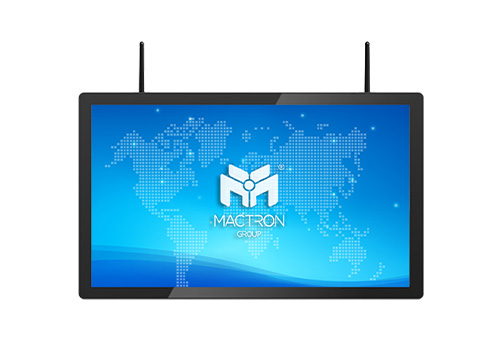

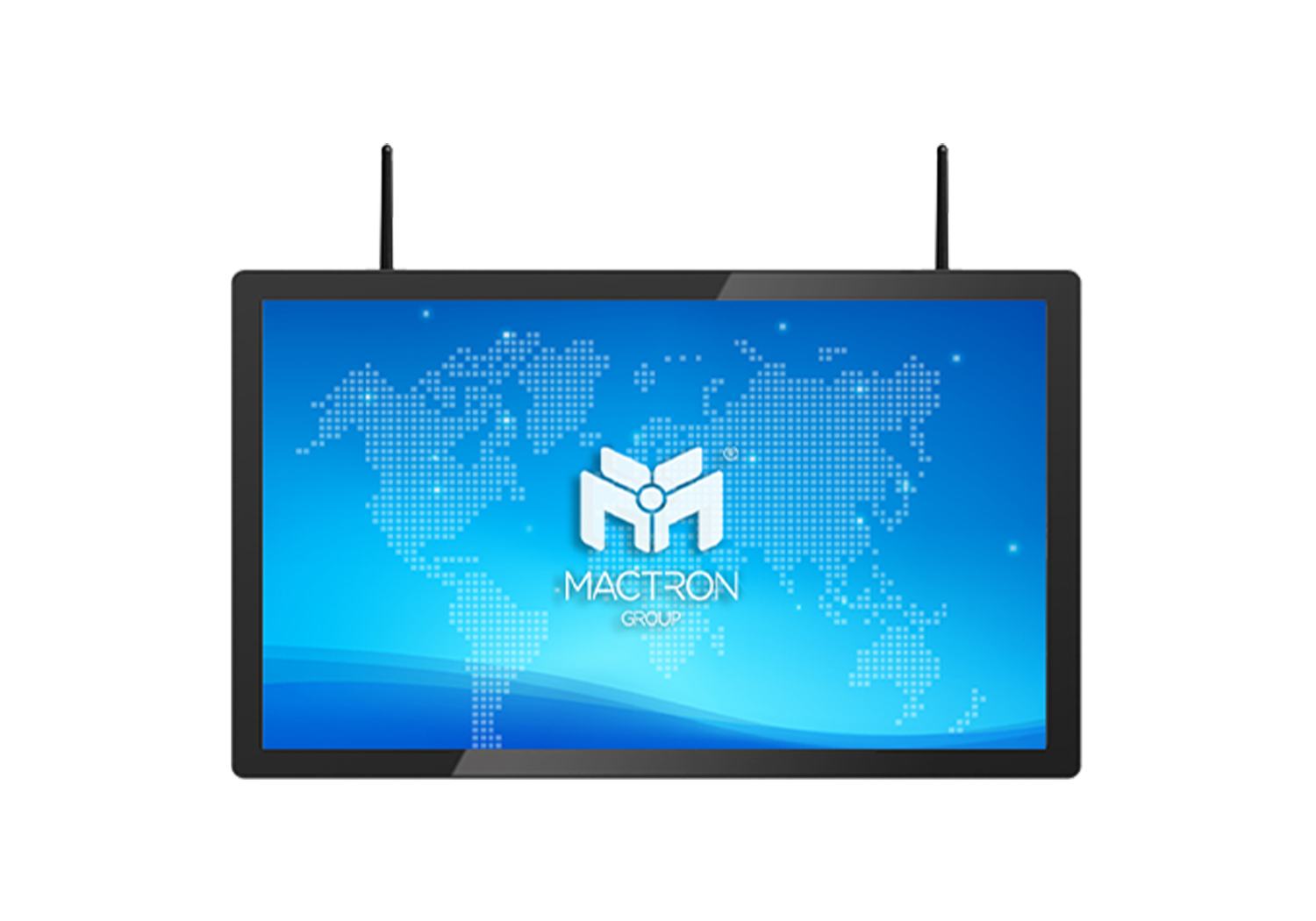

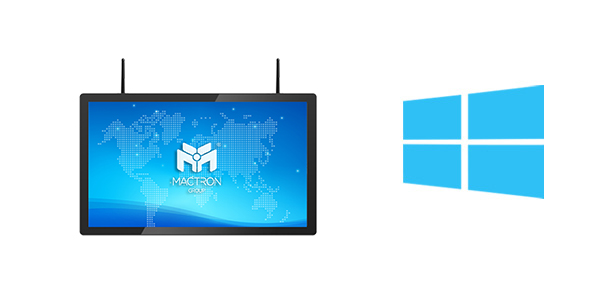

27” Windows System
Intel® Pentium N4200 Processor
Professional Metal Housing
Passive Cooling Fanless Design
True Flat With 10 Points PCAP Touch
Rich I/O Ports Provide Excellent Peripheral Connectivity
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
Other WCS Series == Back to PPC Line
Display | |
---|---|
Display Type | 27" TFT LCD |
Resolution | 1920 x 1080 |
Brightness | 300 nits |
Touch Panel | 10 Points Projected Capacitive Touch Panel |
Viewing Angle | Horizontal 170° / Vertical 160° |
Contrast Ratio | 1000:1 |
Main System | |
CPU | Intel® Pentium N4200 Processor |
GPU | Intel UHD Graphics |
Memory | 4GB DDR3 |
Storage | 64GB SSD |
OS Support | Windows 8, Windows 10, Linux |
LAN Controller | WLAN: 802.11 b/g/n SiP Wireless Module |
Communication | Bluetooth 4.0 |

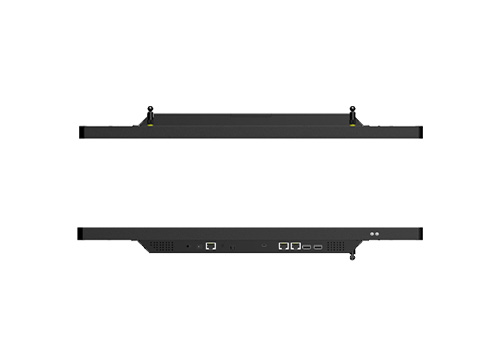

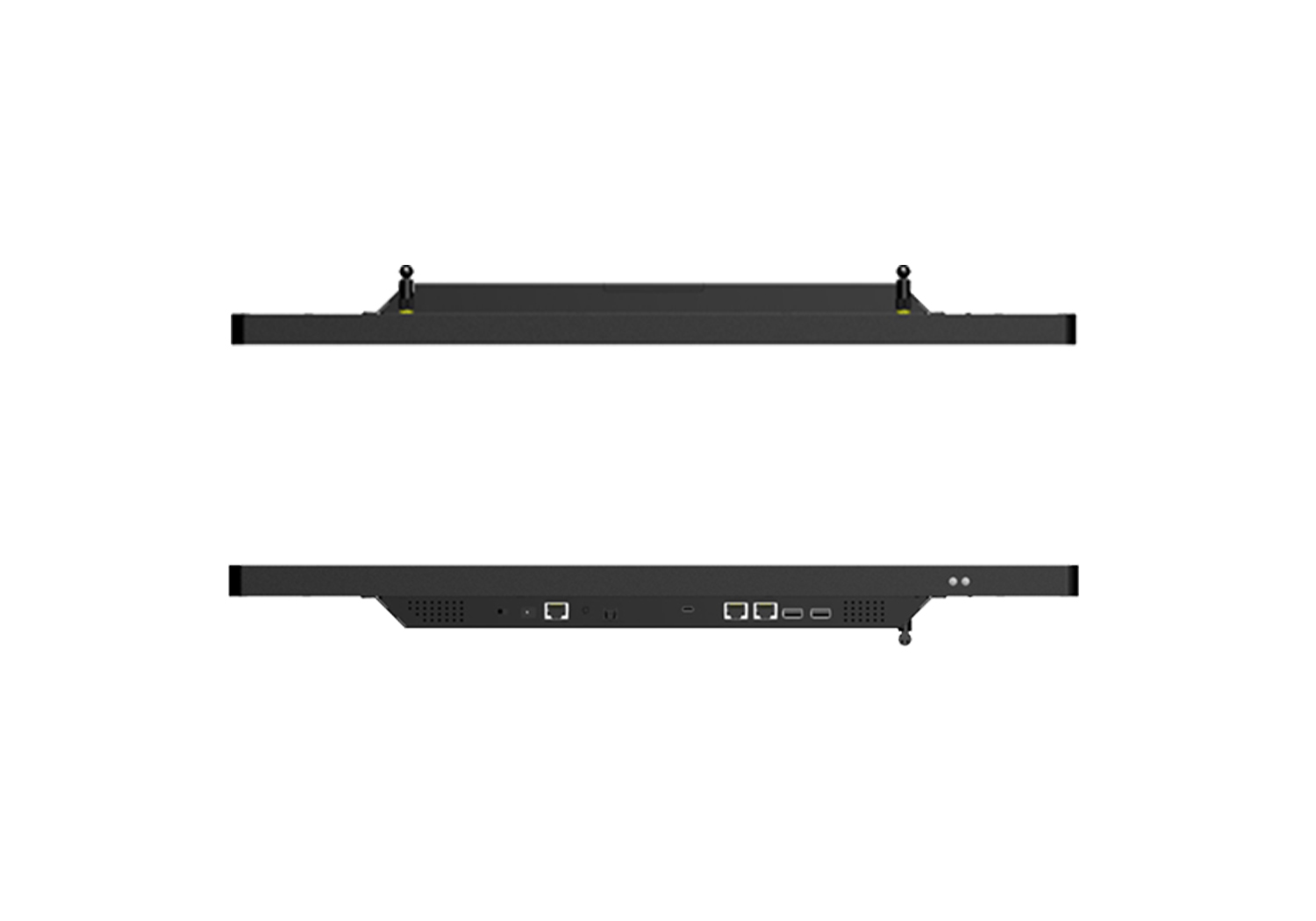

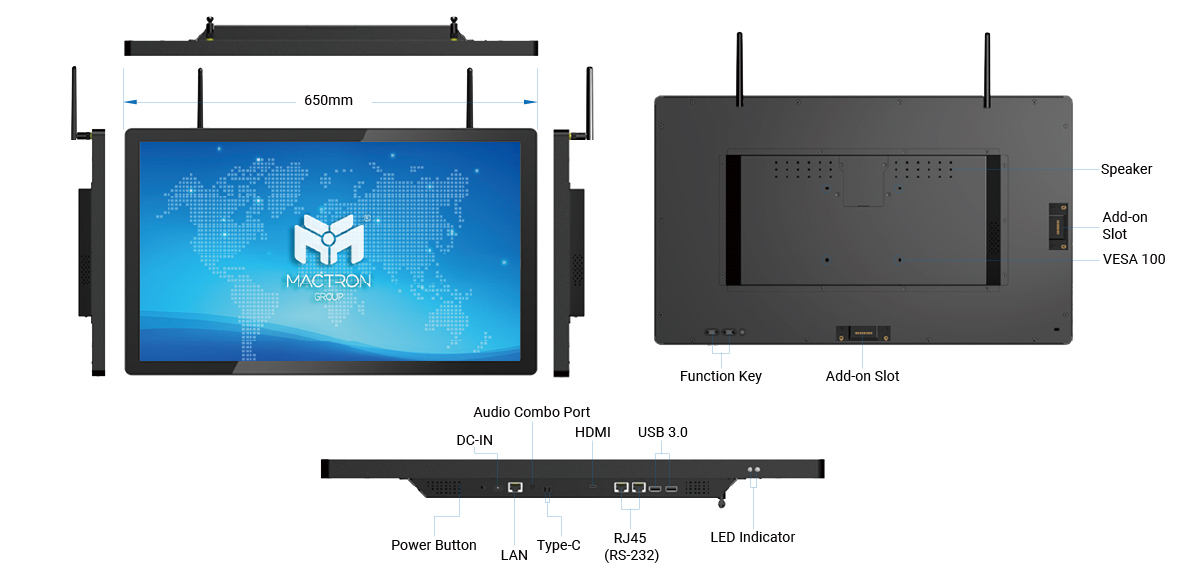

IO Ports | 2 x USB3.0 |
6 x USB2.0 | |
1 x Micro USB2.0 | |
1 x LAN | |
1 x Combo JACK | |
1 x SPDIF | |
1 x SD Card Slot | |
2 x Pogo Pin (Right, Bottom) | |
Physical | |
Audio | 2 x 5W Speaker |
Ventilation | Fanless |
Color | Black |

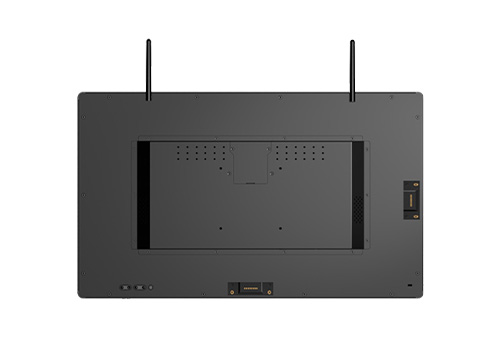

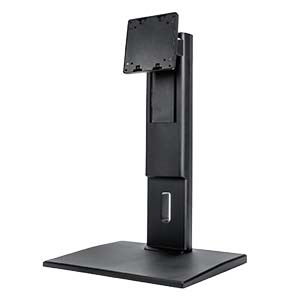

Mounting | VESA Mount 100 x 100 |
Housing | Metal |
Power Adapter | DC 12V/5A, 60W |
Packing List | |
Standard Accessory | 1 x Power Adapter (12V/5A) |
Product Dimension | 649.4 x 389.7 x 43 mm |
Product Weight | 8.3kg |
Environment | |
Certification | CE, FCC |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -20°C ~ 60°C |
Relative Humidity | 10% ~ 90% (Non-Condensing) |
