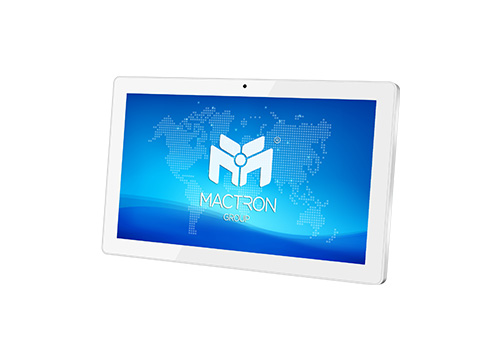

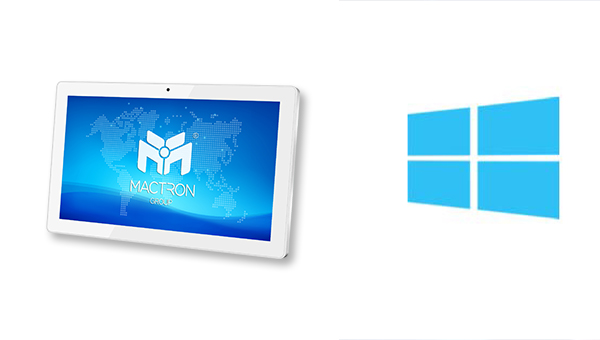

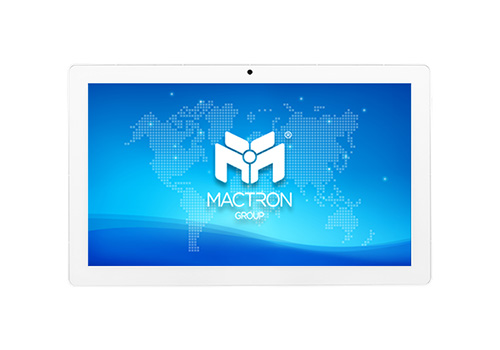

WMP2157

MACTRON GROUP’s (MTG) offers our WMP Series – Medical-Grade Touch All-In-One System Panel PC to enhance the standard of care in all medical facilities. WMP Series has medical certification to ensure compliance for your medical needs and it is ideal for the medical healthcare segment.

  • 16:9 Ratio with 21.5” True-Flat PCAP touch
  • Intel Whiskey Lake U Processor
  • Aluminum Die Casting Housing
  • Rich & Flexible I/O Port Design
  • Ultra Slim 49.9mm with 3 Pieces Design
  • Fanless & Front Panel IP65
  • Simple Installation & Easy Assembly
  • Industrial Quality & Chic Appearance
  • Support TPM and Intel vPro (Optional)
  • Magnetic I/O Port Cover For Easy Maintaining ( Optional)
  • Extensional Power Button (Optional)

Applications:

Radiology, Surgical, Medical Cart, Bedside Terminal, Mobile X-Ray, etc.

Display
Display Type21.5” LVDS I/F
Resolution1920 x 1080 pixel; 16:9
Brightness350 nits
Viewing Angle-89° ~ 89°(H) ; -89° ~ 89°(V)
Touch screen typeTrue-Flat PCAP touch, USB I/F
Main System
MotherboardWhiskey Lake-U 15W
CPU SupportsIntel Core i5 Processor: i5-8365UE vPro
Intel Core i7 Processor: i7-8665UE vPro (optional)
Intel Core i3 Processor: i3-8145UE (optional)
Intel Celeron Processor : 4305UE (optional)
System Memory2 x S.O.DIMM, DDR4 2400MHz, 4GB (Up to 32GB)
Graphic engineIntel UHD Graphics
LAN controllerIntel I219LM (Phy); Intel I211 (PCIe)
Audio controllerRealtek ALC662VDO-GR
Storage1 x SSD 2.5" 7mm SATA, 128G (Up to 1TB), Swappable design
1 x PCIex4 M.2 2280 B or SATA I/F (Up to 1TB)

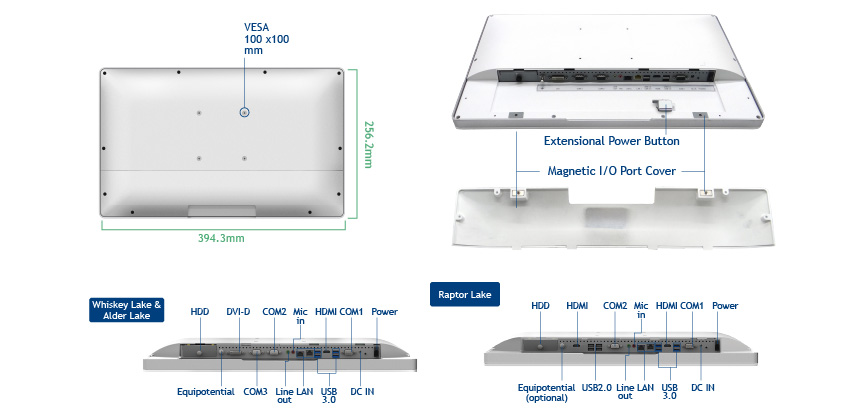

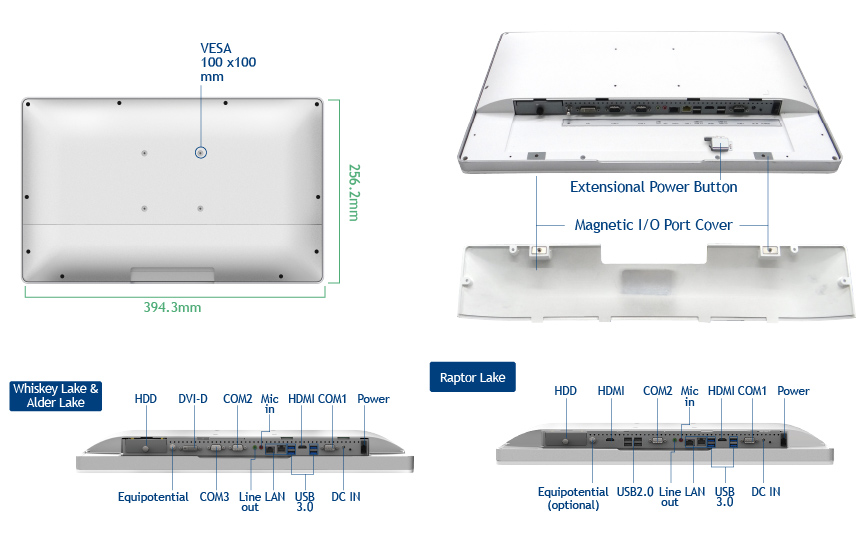

System I/O4x USB3.0
1 x DB9 (RS232)
2 x DB9 (RS232/422/485)-(RS232 support 5V/12V)
2x RJ-45
1x HDMI
1x DVI-D
2, Mic-in & Line-out
1, MB support 9-36V DC-in
Function supportWireless LAN (Internal Antenna)
Bluetooth
TPM
Intel vPro
OS SupportWin 10 64bit, Linux
Physical
Color (Rear, Middle, Front)Black, Silver, Black / White, Silver, White
Camera2M WebCam (HD webcam, USB interface)
Internal Speaker2x 2W
Power Adapter90W/19V, 3-pin
CertificationsFCC Class B, CE Mark, CB, IEC60601
VentilationFanless
Dust & Water ProofFront IP65
Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity20% - 80% RH non-condensing
Storage Humidity20% - 80% RH non-condensing
Dimensions (WxDxH)543 x 334 x 49.9 mm
Weight7.6 - 8 kg (net weight)
MountingVESA Mount 100 x 100
Optional AccessoriesEquipotential Module
External Antenna
Desktop Stand (Under development)
VESA Mount Kit (Under development)
