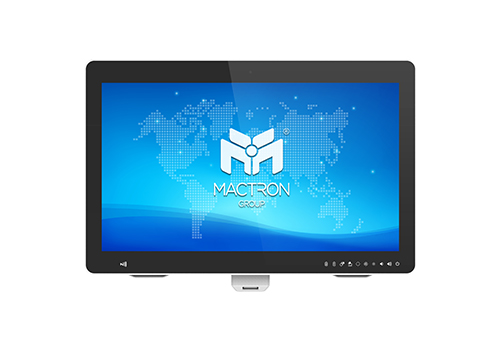

WMR2387

Medical Rechargeable Touch Panel PC

Medical Rechargeable Touch Panel PC Medical Rechargeable Touch Panel PC
  • 23.8″ Full HD 10 Points PCAP Touch
  • Socketed Alder Lake Intel® Core i5-1235UL Processor
  • Medical LED Reading Light Bar
  • Support 2 x 6900mAh Hot Swappable Batteries
  • Built-in NFC RFID Module
  • Optional Barcode, Privacy Screen & Charging Bay

Applications:

Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field, etc.

Hot Swappable Battery
  • Easy & Quick Access Side Opening Design
  • Hot Swappable Lithium Ion Battery
  • 13600mAh Total Capacity

Anti-Microbial Finishing
  • Medical Grade Anti-Microbial Coat
  • Cleanability with Hospital Solvents

System Layout

Optional Accessories

4 Bay Battery Charging Station

Barcode Scanner

Expansion Power Bank

Display
Display Type23.8″ TFT LCD
Resolution1920 x 1080
Aspect Ratio16:9
Brightness250 nits
Touch Panel10 Points Projected Capacitive Touch
Viewing Angle-89° ~ 89°(H) ; -89° ~ 89°(V)
Contrast Ratio3000:1
Main System
ProcessorIntel® Core i5-1235UL Processor Ten Core
Intel® Core i3-1215UL Processor Ten Core (Optional)
Intel® Core i7-1255UL Processor Ten Core (Optional)
GPUIntel® HD Graphics 620
Memory1 x SO-DIMM, DDR4 8GB, 2400MHz (Max.32GB)
1 x SO-DIMM, DDR4, 2400MHz (Optional, Max.32GB)
Storage1 x 2.5″ SATA SSD 256GB (Up to 1TB)
Expansion1 x M.2 2230
1 x mPCIe with SATA or 1 x mSATA with PCIe
I/O Ports4 x USB 3.0 Type A
2 x LAN (1 x Intel® I211, 1 x Intel® I219LM)
1 x HDMI
1 x DP
1 x Line-Out
1 x Mic-In
1 x DC-In
Operating SystemWindows 10, Linux
Physical
Camera5MP Front Camera with Auto-Focus
Speaker2 x 2W
MountingVESA Mount 75 x 75 mm & 100 x 100 mm
ColorWhite
Dimensions (WxHxD)592 x 382 x 49.5 mm
Weight6.9 kg
EnclosurePlastic with Anti-Microbial
Button1 x Power On/Off
2 x Vol + & Vol -
2 x Brightness + & Brightness -
1 x Blacklight Icon
1 x Reading Light Icon
1 x Touch Screen Icon
2 x Battery Status Icon
Battery2 x 14.4 V / 6800mAh Hot Swappable Li-ion Battery
Using Time6 Hours
Power ModeATX
Power AdapterMedical Grade DC 24V/5A, 120W
CommunicationWLAN - 802.11 b/g/n/ac
Bluetooth 4.0
Security Wake-on-LAN
Watchdog
Data CollectionNFC
Barcode Scanner (Optional)
Standard Accessory1 x Power Adapter
Environment
IP RatingFront IP65
Vibration TestWith SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock TestWith CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
CertificationCE, FCC, CB, UL60601-1
Operating Temperature0°C ~ 40°C
Storage Temperature-30°C ~ 70°C
Relative Humidity0% - 90% RH non-condensing
Warranty2 Years
Optional Accessory

4 Bay Battery Charging Station

Barcode Scanner

Expansion Power Bank
