MAA0703

Android Base, High Brightness Rugged Mobile Tablet PC

  • 7" Mobile Tablet

  • High Brightness

  • Support Android 9 system

  • Support wet-hand touch

  • Support Anti-Scratch Touch Panel

  • Support NXP NFC(13.56M)

  • Support 1D/2D Scanner

  • Support Fingerprint

Applications:

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

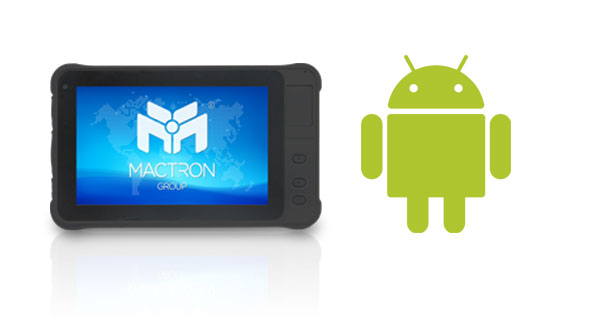

MAA0703 7" Rugged Tablet
Android 9, MSM8953
1000 nits Brightness &
IP65 Dust & Water Proof
This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

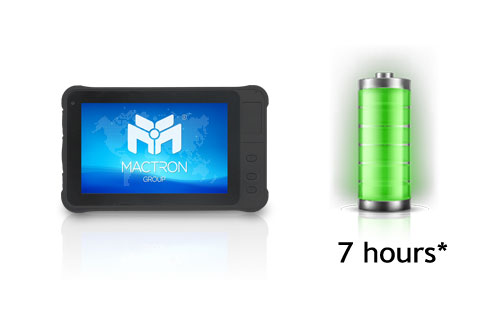

7500mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* 7hrs (default 50% volume，default 50% lumens brightness，play 1080P HD video)

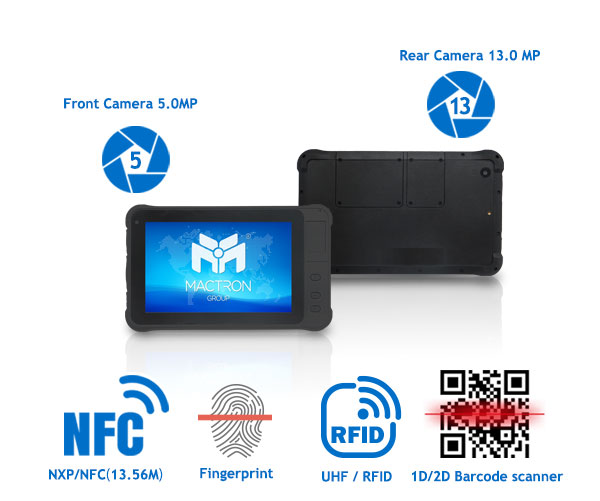

Full Range of Data Collection Functions
NXP NFC(13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0 MP / Fingerprint / UHF / RFID
Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Hand Strap / Car Charger / Hand Writing Pen
Application Usage
Environmental Monitoring Application Usage

Environmental Monitoring

Sunlight Environment Application Usage

Sunlight Environment

Display
Display type7" IPS TFT LCD
Resolution1280 x 800
Brightness1000nit
Touch screen type5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPUMSM8953, 2.0GHz
GPUAdreno 506
RAM4 GB LPDDR3
ROM64 GB
Network802.11a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.1 (BLE) class 1.5, transmission distance: 10m
4G

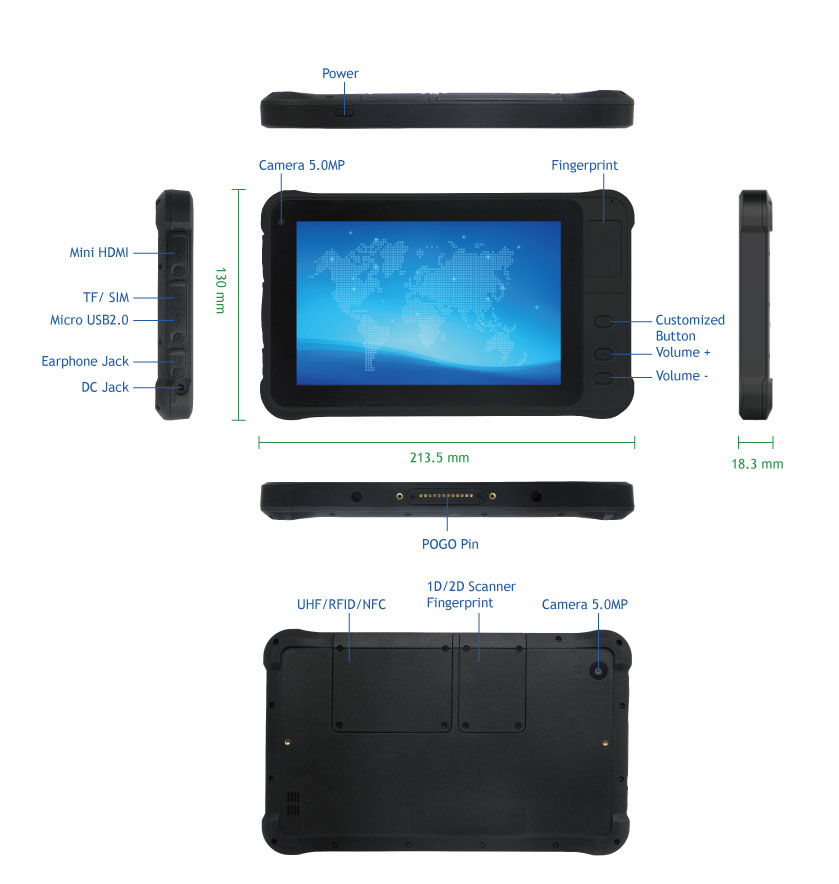

IO Ports1 x TF slot, max: 128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 2.0 for OTG
1 x 3.5mm standard headphone jack
1 x HDMI 1.4a Type C
1 x DC jack
1 x 12pin POGO pin
Applications1D/2D Barcode Scanner (Optional)
NFC
Fingerprint (Optional)
UHF/HF (Optional)
ID Module (Optional)
GPS & Glonass
Operation SystemAndroid 9
Physical
CameraFront: 5.0MP camera; Rear: 13.0MP camera
Speaker1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
MicSensitivity:-42db, output resistance 2.2kΩ (Built-in)
SensorG-sensor, Gyro sensor, Light sensor, Proximity sensor, Compass
Power AdapterAC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery7500mAh/3.7V (Built-in)
Using time7hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged FeatureIP65, 1.2m drops
Operating Temperature-10°C to 50°C
Storage Temperature-30°C to 70°C
Humidity95% non-condensing
Dimensions213.5mm x 130mm x 18.3mm
Weight607g
