MAA1222

Android Base, 12.2" Automation Rugged Android Mobile Tablet PC

  • 12.2" Android System

  • Qualcomm MSM8953 Processor

  • 12,600mAh Capacity Battery

  • Support 4G LTE, NFC Module, Barcode Scanner Module

  • Support DB9 COM Ports

  • Support GNSS, Wi-Fi, Bluetooth

Applications:

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring, etc.

MAA1222 12.2"
Automation Rugged Android Mobile Tablet PC
Android 10, MSM8953

IP65 Dust & Water Proof
This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

12600mAh Large Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
*8hrs (default 50% volume,default200nit,play 1080P HD video)

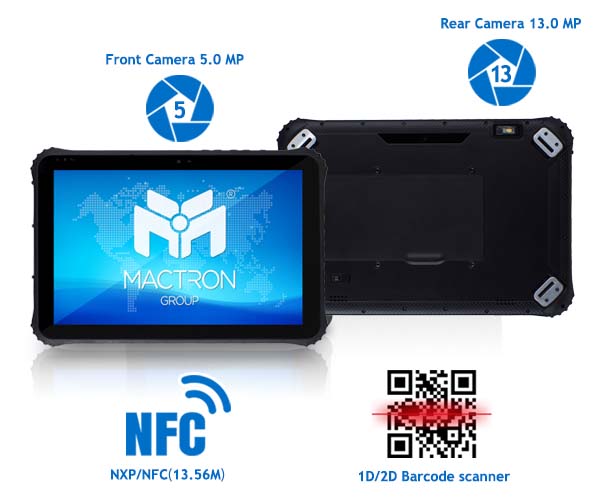

Full Range of Data Collection Functions
NXP NFC(13.56M)/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0 MP

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/Back Strap/ Car Charger /Hand Writing Pen/ Keyboard/ Metal Stand

Display
Display Type12.2" TFT LCD
Resolution1920 x 1200
Brightness280 nits
Touch Panel10 Points Multi-touch Capacitive Touch Panel, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPUQualcomm MSM8953 Processor
Memory4GB LPDDR4
Storage64GB eMMC
OS SupportAndroid 10
CommunicationWWAN: 4G LTE
WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5.8GHz
Bluetooth 4.2
GNSS: GPS, GLONASS
IO Ports1 x TF Slot, max:128G
1 x SIM Card Slot
2 x USB 2.0
1 x USB 3.0
1 x USB 3.0 Type C
1 x HDMI 1.4a Type C
2 x DB9 (1 x RS232, 1 x RS485)
1 x RJ45
1 x 3.5mm Standard Earphone Jack
1 x DC-in Jack
1 x POGO pin (12-pin)
Physical
Audio1 x Built-In Speaker (0.8 Watt)
1 x Built-in Microphone
SensorG-sensor
CameraFront: 5MP Camera
Rear: 13MP Camera
ModuleNFC Module (Built-In)
2D Barcode Scanner (Optional)
Battery3.7V, 12,600mAh Li-ion Battery (Removable)
Operating TimeAbout 8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
PowerAC100V ~ 240V, output DC 5V/3A
Packing List
Standard Accessory1 x Power Adapter (5V/4A)
1 x USB Micro Cable
1 x OTG Cable
1 x Pry Bar
1 x Metal Stand
1 x Hand Strap
Product Dimension319.6 x 216 x 23.4 mm
Product Weight1,500g
Environment
Rugged FeatureIP65 certified, MIL-STD 810G certified, 1.2m drop test
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 70°C

Standard Accessory

Adapter 5V/3A
Adapter 5V/3A
USB Micro Cable
USB Micro Cable
OTG Cable
OTG Cable
Pry Bar
Pry Bar
Metal Stand
Metal Stand
Hand Strap
Hand Strap

Optional Accessory

Docking Station
ADOCK10
Docking Station
Removable Battery
ABAT120
Removable Battery
Mounting Holder for MAS1220
ACARM12
Mounting Holder
Detachable Keyboard
AKYBD12
Detachable Keyboard
Shoulder Strap
ASTRAP1
Shoulder Strap
Back Strap
ASTRAP2
Back Strap
Vehicle Charger (5V/3A)
ACARC05
Vehicle Charger (5V/3A)
Adapter 5V/3A
ADA0503
Adapter 5V/3A
