MAS0650

6.5″ Automation Rugged Windows Mobile Handheld PC

  • 6.5" Windows System

  • Intel® Celeron® N5100 Processor

  • Support 45W Type-C PD3.0 fast charging

  • Support NFC

  • IP67 High Protection level

  • 1.5m drop resistant & MIL-STD-810H certified

Applications:

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

MAS0650 6.5" Rugged Windows Handheld PC
Intel® Celeron® N5100 Processor

IP67 Water Proof Level
This rugged tablet is IP67 Dust & Water proof, so you can use it anywhere.

4000mAh High Capacity Battery
You don’t have to worry your business would be interrupted by power off anymore
* About 6 hours (50% volume sounds, 50% screen brightness, 1080P HD video display by default)

Full Range of Data Collection Functions
NFC (13.56M)/ 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0MP

Display
Display Type6.5" IPS TFT LCD
Resolution720 x 1600
Brightness500 nits
Touch Panel5 points Projected Capacitive touchscreen
System
CPUIntel® Celeron® N5100 Processor
GPUIntel® UHD Graphics 620
Memory8GB
Storage128GB
Operating SystemWindows 10/ Windows 11 (optional)
I/O Ports1 x TYPE-C 2.0 OTG (Data transmission)
1 x USB3.0 Type-A
1 x Nano-SIM Card
1 x TF card
1 x Pogo Pin
WiFi802.11(a/b/g/n/ac), 2.4G+5.8G
4G4G
BluetoothBT5.0 transmission distance: 10m
GPSGPS+GLONASS
Physical
CameraFront Camera 5M
Rear Camera 8M
Speaker1 x 1W speaker
ColorBlack

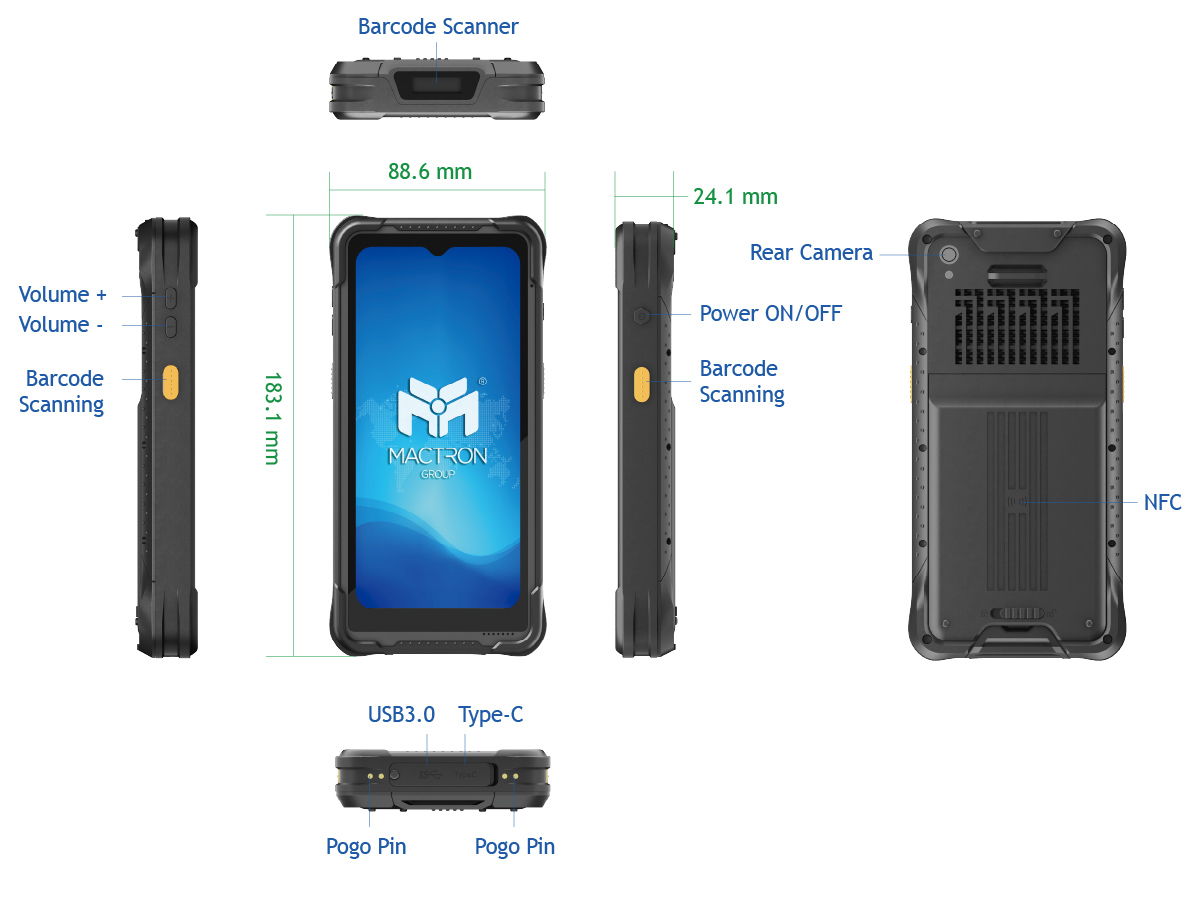

Dimension (WxHxD)88.6 x 183.1 x 24.1mm
Weight470g
Buttons1 x Power On/Off
1 x Volume Key +
1 x Volume Key -
2 x Barcode scanning
Data CollectionNFC
Barcode Scanner
Sensors1 x G-sensor
Battery7.4V/4000mAh
Using TimeAbout 6 hours (50% volume sounds, 50% screen brightness, 1080P HD video display by default )
Power AdapterUSB Type C PD3.0 45W
Standard Accessory1 x Hand-strap
1 x 45W Fast charge adapter and CtoC data cable
Environment
IP RatingIP67
Drop Test1.5m Composite wood floor working (Power-on state)
CertificationCE/ FCC/ MIL-STD-810H
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 70°C
Relative Humidity95% Non-Condensing
Warranty2 Years
Removable Battery

Removable Battery

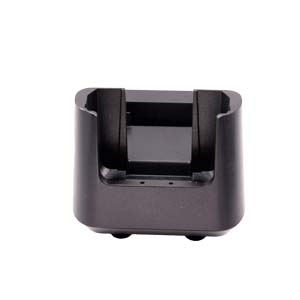

Docking Station

Docking Station

Datasheet
