MAS0701

Windows Base, High Brightness Rugged Mobile Tablet PC

Food Process, Robotics, Factory, HMI screening, Packaging, etc.

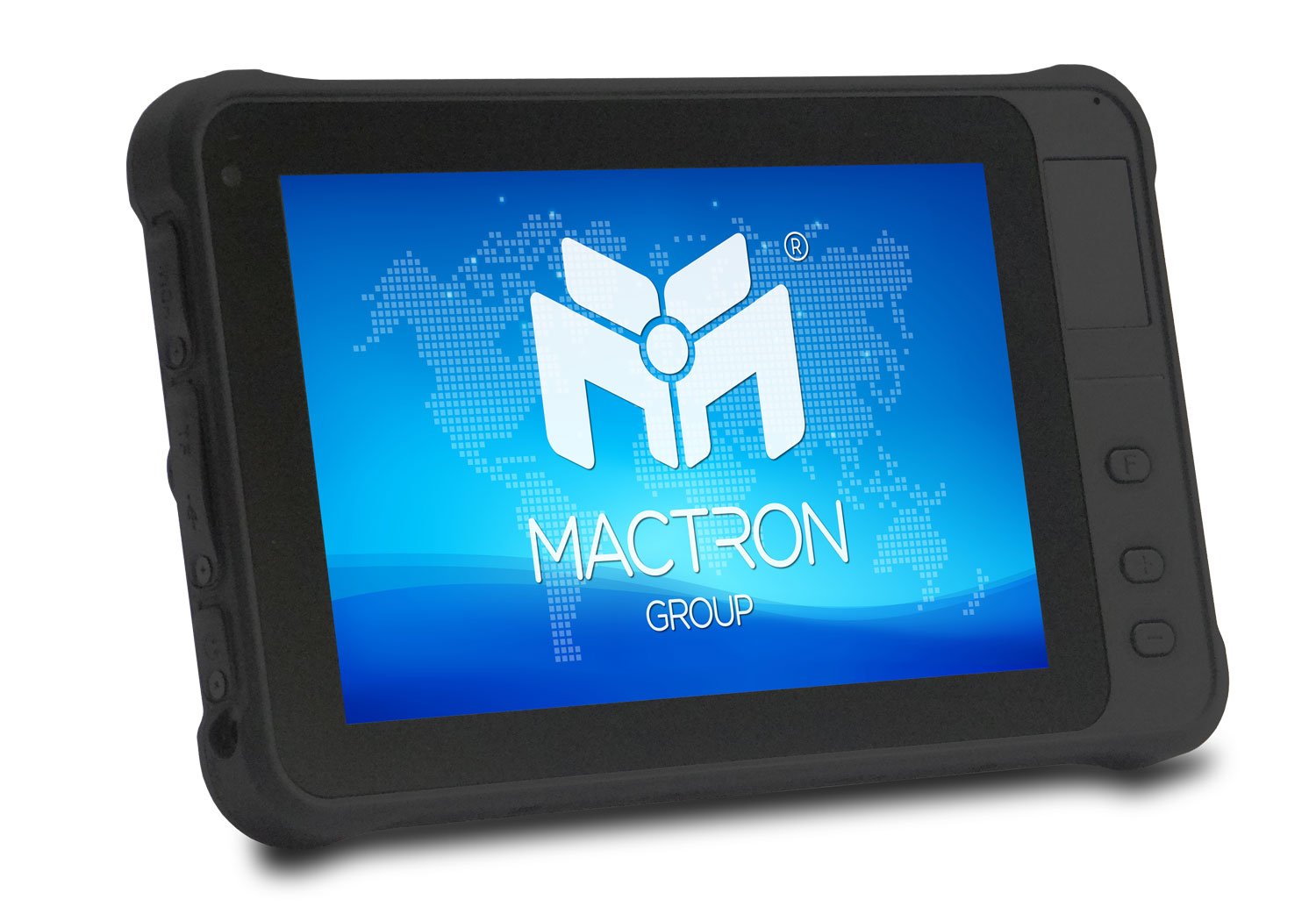

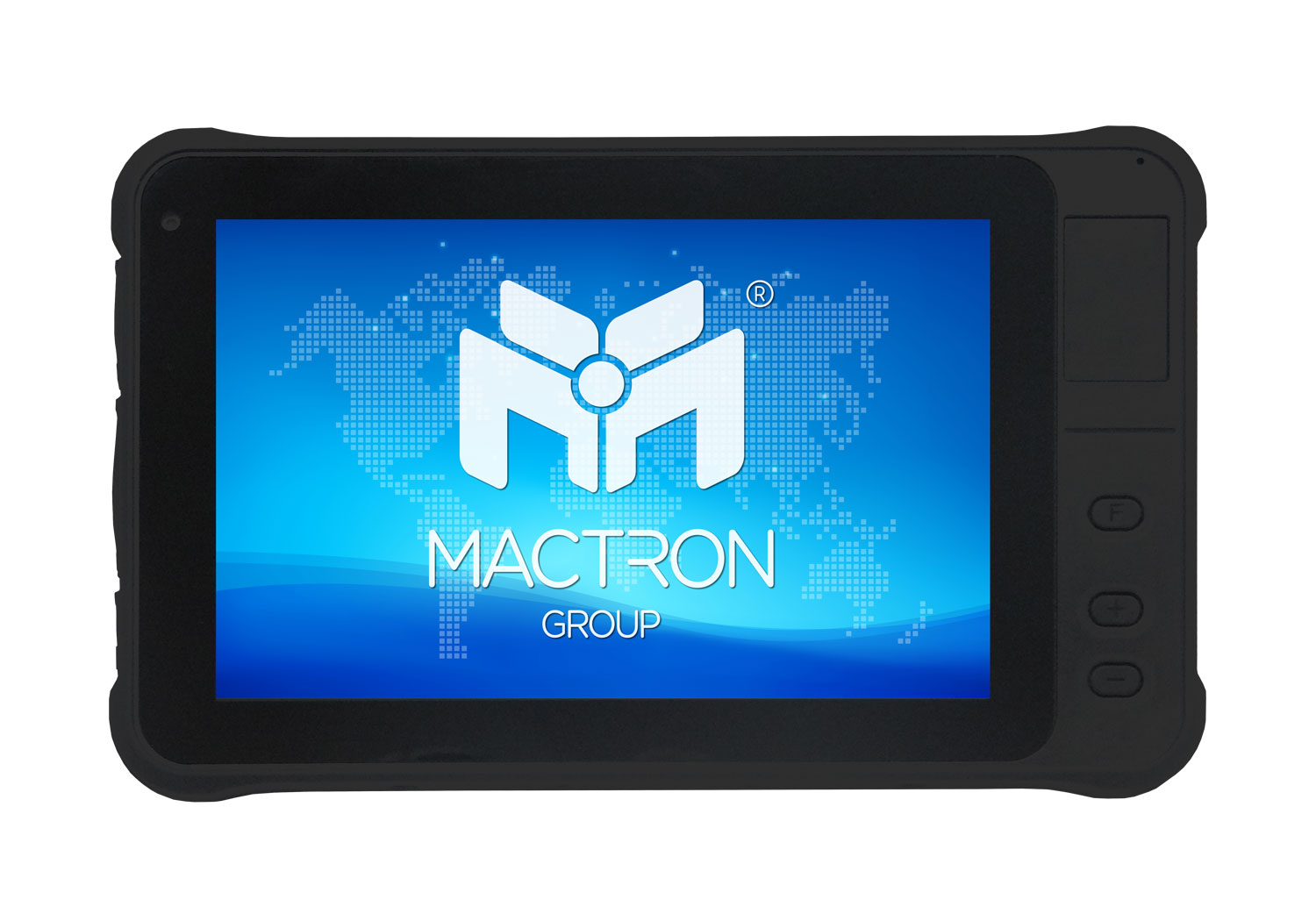

MAS0701 7" Rugged Tablet

Windows Base, Intel Cherry Trail X5-Z8350

1000nit Brightness &
IP65 Dust & Water Proof

This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

7500mAh Large Capacity Battery

You don’t have to worry your business would be interrupted by power off anymore

* 8hrs (Default 50% volume, default 200nit, play 1080 HD video)

Full Range of Data Collection Functions

NXP NFC(13.56M）/ 1D, 2D Barcode Scanner / Front Camera 2.0MP / Rear Camera 5.0 MP / Fingerprint / UHF / RFID

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

Docking Station / Hand Strap / Car Charger / Hand Writing Pen

Application Usage

Display
Display type	7" IPS TFT LCD
Resolution	1280 x 800
Brightness	1000nit
Touch screen type	5 point capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
System
CPU	Intel Cherry Trail X5-Z8350, 1.44GHz
GPU	Intel HD Graphic (Gen7)
RAM	4GB LPDDR3
ROM	64GB
Network	802.11 a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
	Bluetooth 4.2 class1.5, transmission distance：10m
	4G

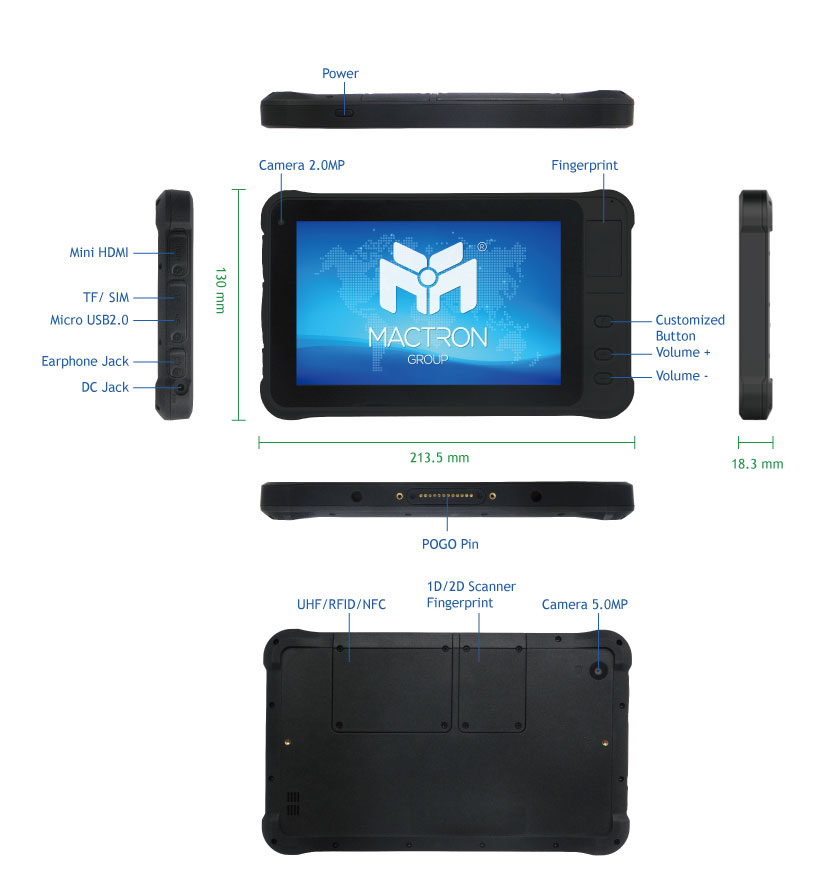

IO Ports	1 x TF slot, max:128G (SDHC/SDXC) & SIM slot
	1 x Micro USB 2.0 for OTG
	1 x HDMI 1.4a Type C
	1 x 3.5mm standard earphone jack
	1 x DC jack

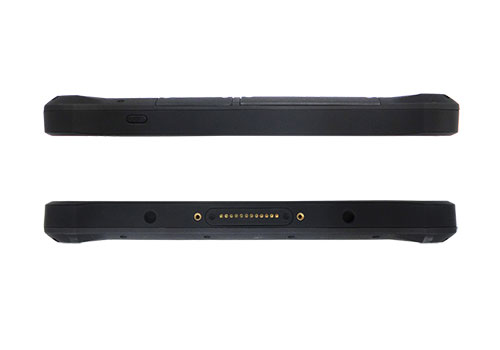

	1 x 12pin POGO pin
Application	1D / 2D Barcode Scanner (Optional)
	NFC
	Fingerprint (Optional)
	UHF/HF (Optional)
	GPS & Glonass
Operation System	Windows 10 (Optional)
Physical
Camera	Front: 2.0MP camera; Rear: 5.0MP camera
Speaker	1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic	Sensitivity:-42db, output resistance2.2kΩ (Built-in)
Sensor	G-sensor
Power Adapter	AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery	7500mAh/3.7V (Built-in)
Using time	8hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature	IP65, 1.2m drops
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-30°C ~ 70°C
Humidity	95% non-condensing
Dimensions	213.5mm x 130mm x 18.3mm
Weight	635g
